Removal - Jr-41
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front bumper fascia from the vehicle (Refer to FRAMES & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .

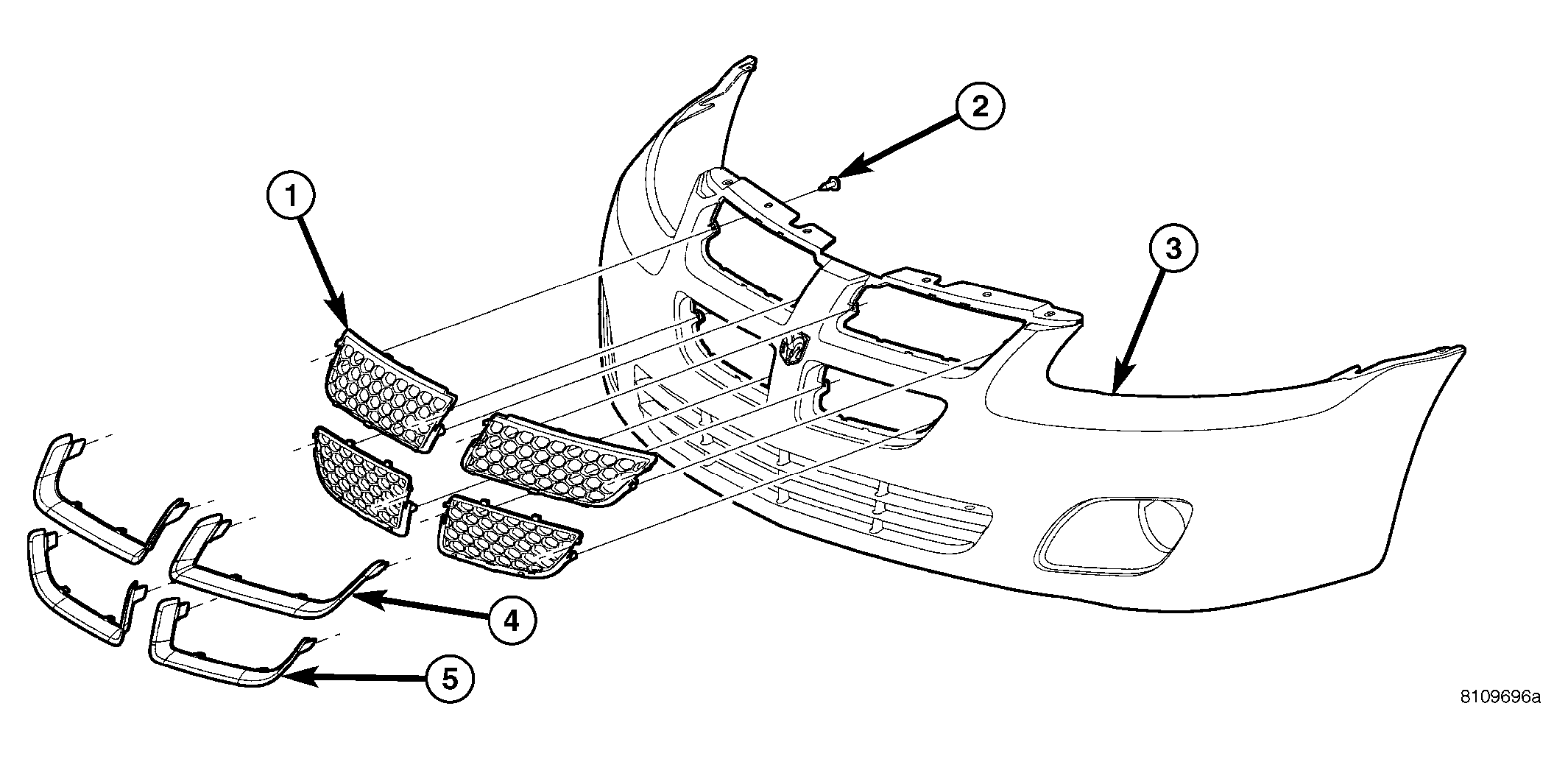

- Unsnap upper and lower grille surround(s). Using a trim stick if necessary. See Fig 1.
- Remove screws attaching grille.
- Remove grille from fascia.
| 1 - GRILLE (4) |
| 2 - ATTACHING SCREW(S) |
| 3 - FRONT FASCIA |
| 4 - UPPER GRILLE SURROUND |
| 5 - LOWER GRILLE SURROUND |
