Removal - Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front bumper fascia, (Refer to FRAMES & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .
  2. Remove fascia from the vehicle.
  3. Remove foam impact bar from fascia.
  4. Remove clips attaching grille. See Fig 1.
  5. Remove grille from fascia.
  6. Transfer medallion.

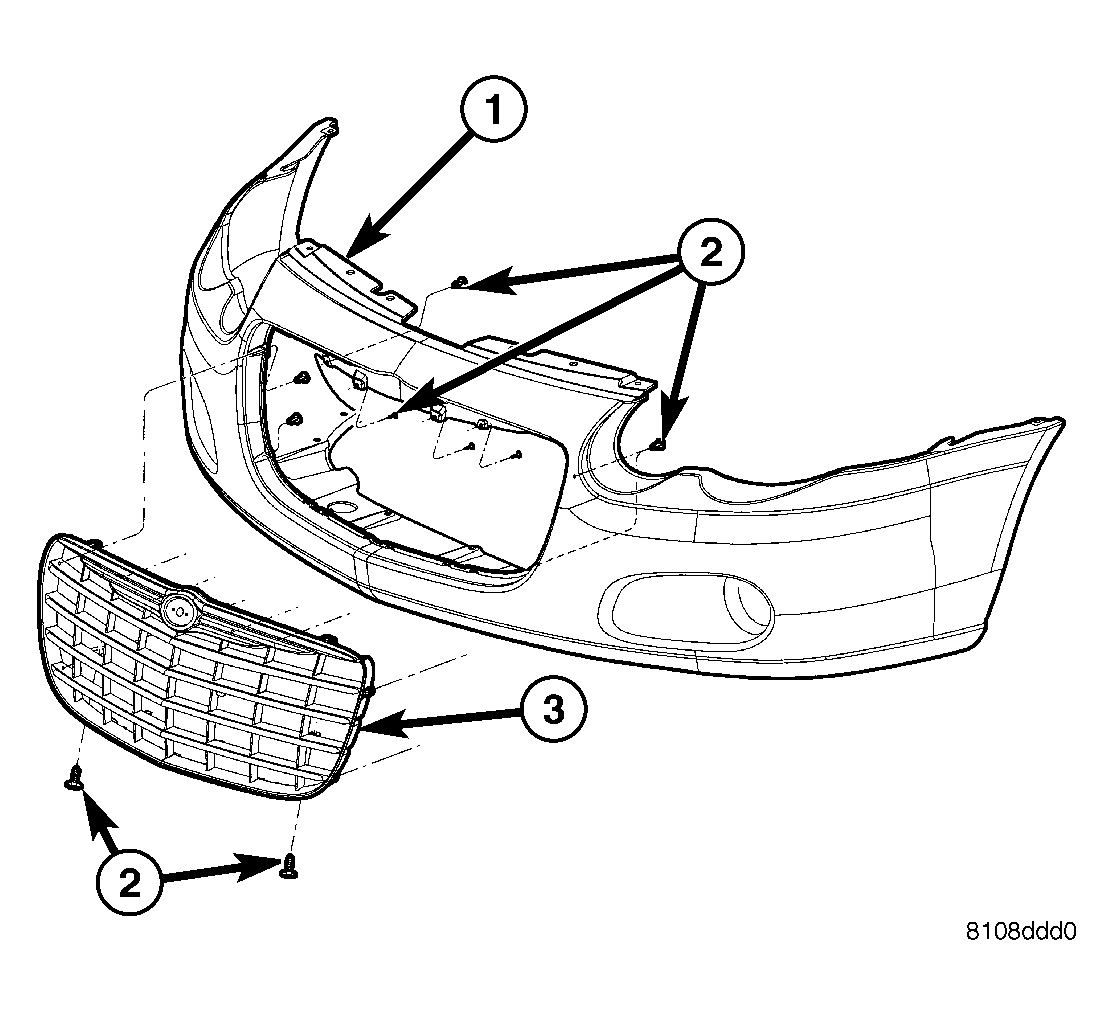

    Fig 1: Front Grille - JR-27
    GC0031418Courtesy of DAIMLERCHRYSLER CORP.
    1 - FRONT FASCIA
    2 - ATTACHING SCREWS
    3 - FRONT GRILLE
  7. Remove grille from fascia.
