Fuel Fill Door: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open fuel filler door.
  2. Remove the two Torx screws. See Fig 1.
  3. Remove fuel filler door from vehicle.

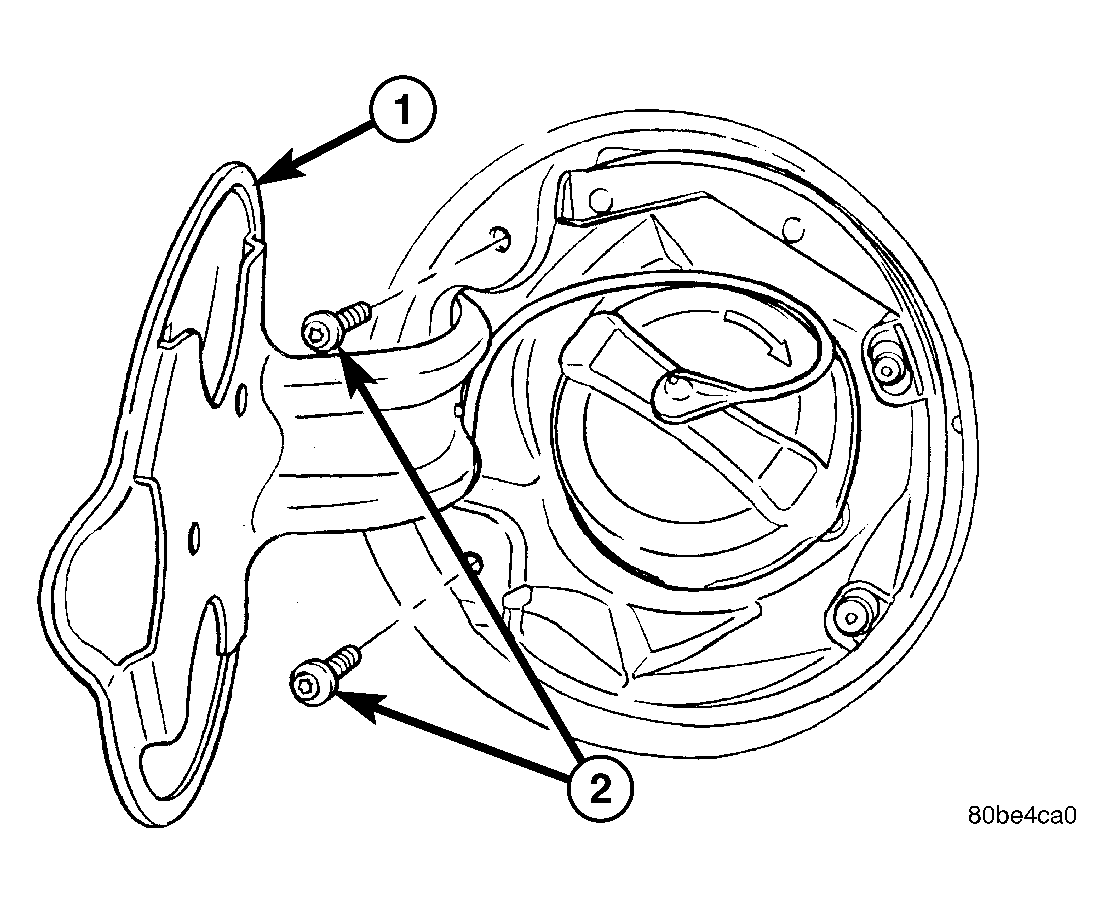

Fig 1: Fuel Filler Door
GC0031412Courtesy of DAIMLERCHRYSLER CORP.
1 - FUEL FILLER DOOR
2 - TORX SCREWS
