Front Fender: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove headlamp housing.
  2. Remove mud guard.
  3. Remove inner splash shield.
  4. Remove fender to fascia bolt or See Fig 1 and Fig 2.
  5. Remove fender bolt to lower rocker panel.
  6. Remove fender bolt to lower cowl.
  7. Pull fascia away from fender.
  8. Remove bolts attaching fender to upper rail.
  9. Remove fender from vehicle.

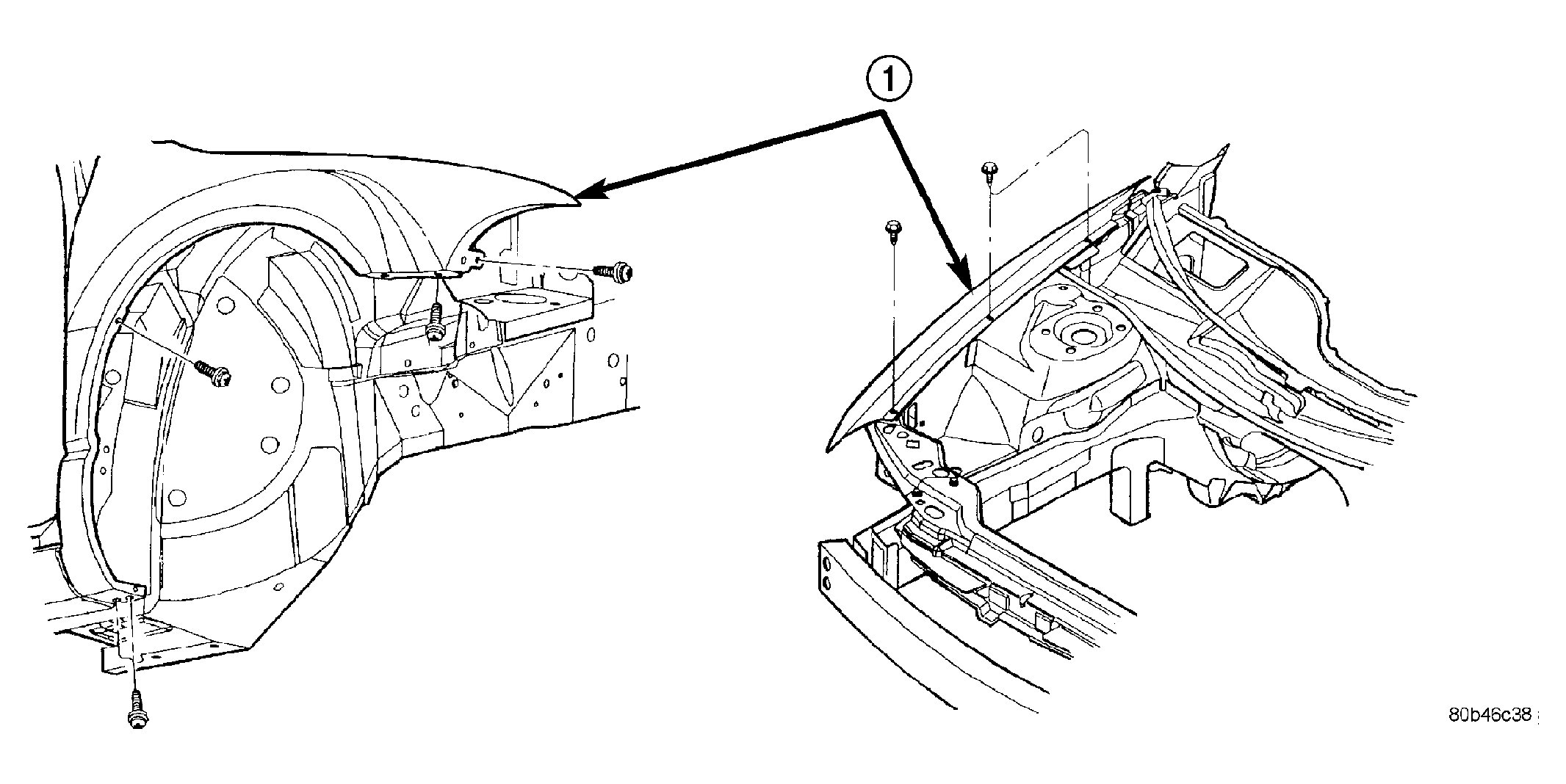

Fig 1: Right Fender
GC0031410Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
Fig 2: Left Fender
GC0031411Courtesy of DAIMLERCHRYSLER CORP.
1 - FENDER
