Battery Splash Shield: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove the three push-pin fasteners and remove the splash shield. See Fig 1.

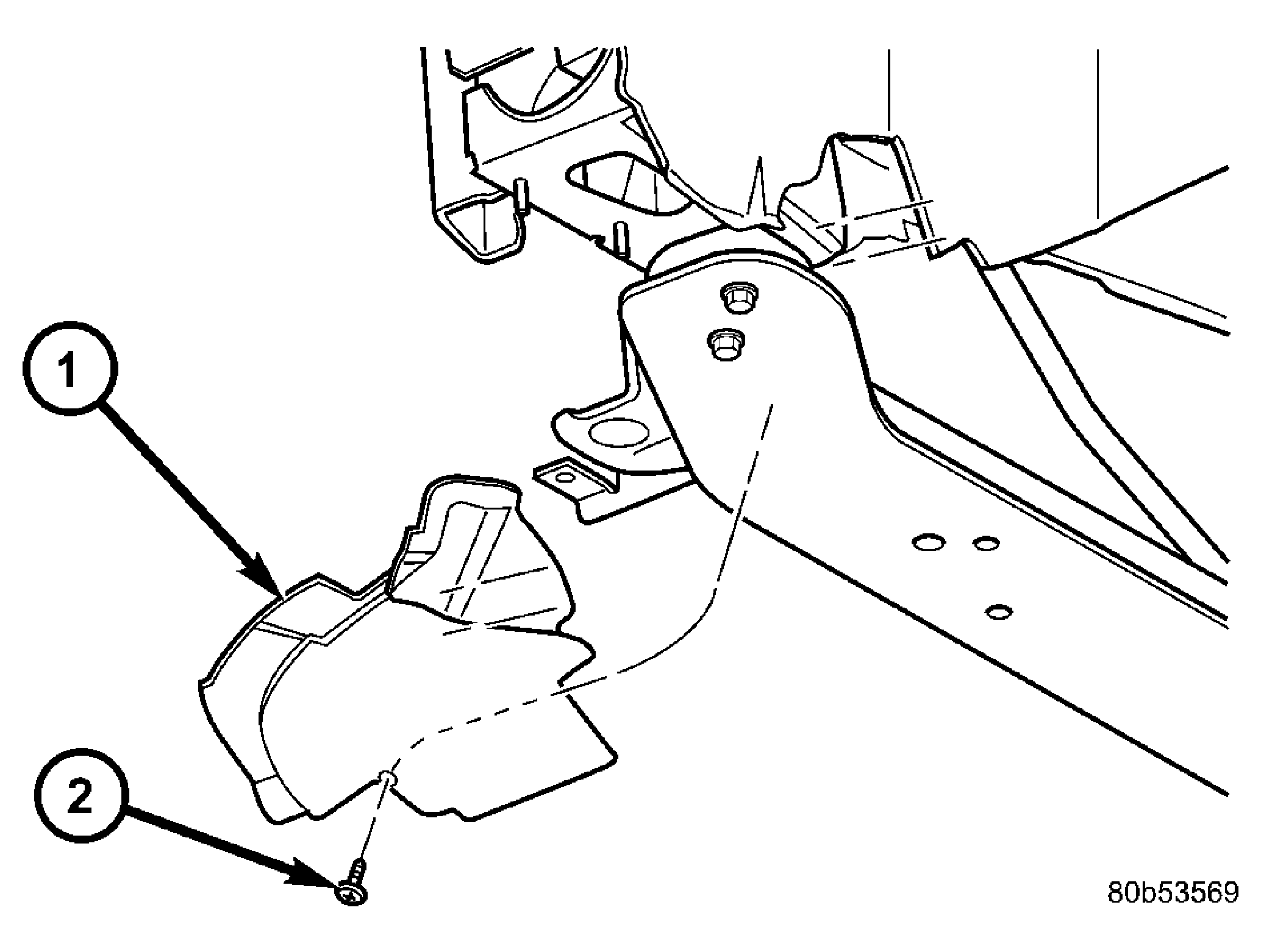

Fig 1: Battery Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPLASH SHIELD

2 - PUSH-PIN FASTENERS
