Accessory Drive Belt Splash Shield: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front wheelhouse splash shield. (Refer to BODY/EXTERIOR/RIGHT FRONT WHEELHOUSE SPLASH SHIELD - REMOVAL) .
  2. Remove the six push-in fasteners attaching accessory drive belt splash shield to frame rail. See Fig 1.
  3. Remove accessory drive belt splash shield from vehicle.

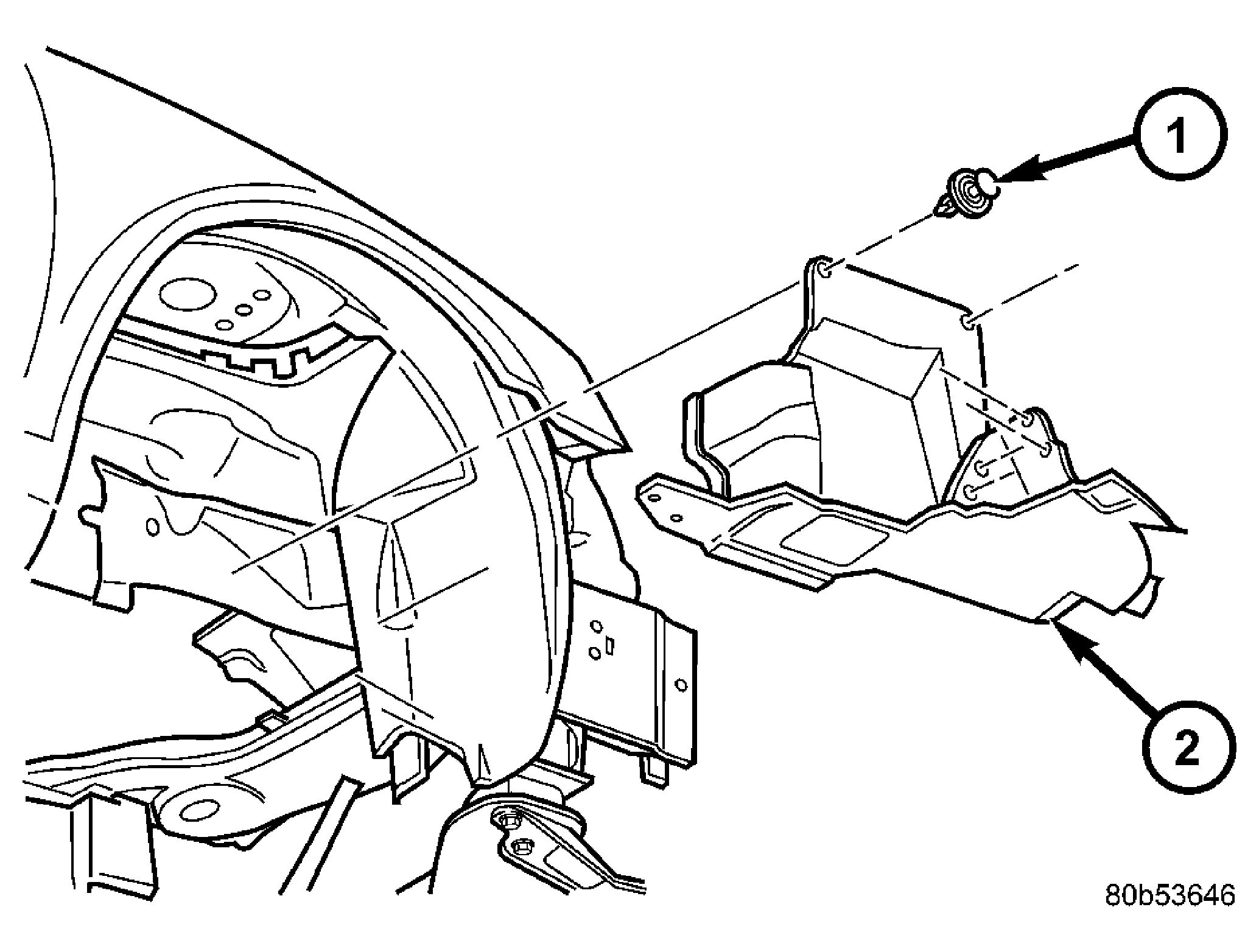

Fig 1: Accessory Drive Belt Splash Shield
GC0031406Courtesy of DAIMLERCHRYSLER CORP.
1 - PUSH-PIN FASTENERS
2 - SPLASH SHIELD
