Trim Panel: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open rear door.
  2. Lower window.
  3. Open the screw cap from bottom of arm rest pull cup and remove the screw. See Fig 1.
  4. Open the screw cap from behind door latch handle and remove the screw.
  5. Remove the screws along the bottom of the trim panel.
  6. Using a trim stick C-4755 or equivalent, disengage clips holding perimeter of trim panel to rear door.
  7. Remove trim panel from inner belt weatherstrip at top of door.
  8. Disconnect wiring harness at door opening.
  9. Remove top of trim panel from door.
  10. Disengage clip holding linkage to latch handle. See Fig 2.
  11. Remove linkage from latch handle.
  12. Lift trim up and off lock button.
  13. Remove rear door trim panel from vehicle.

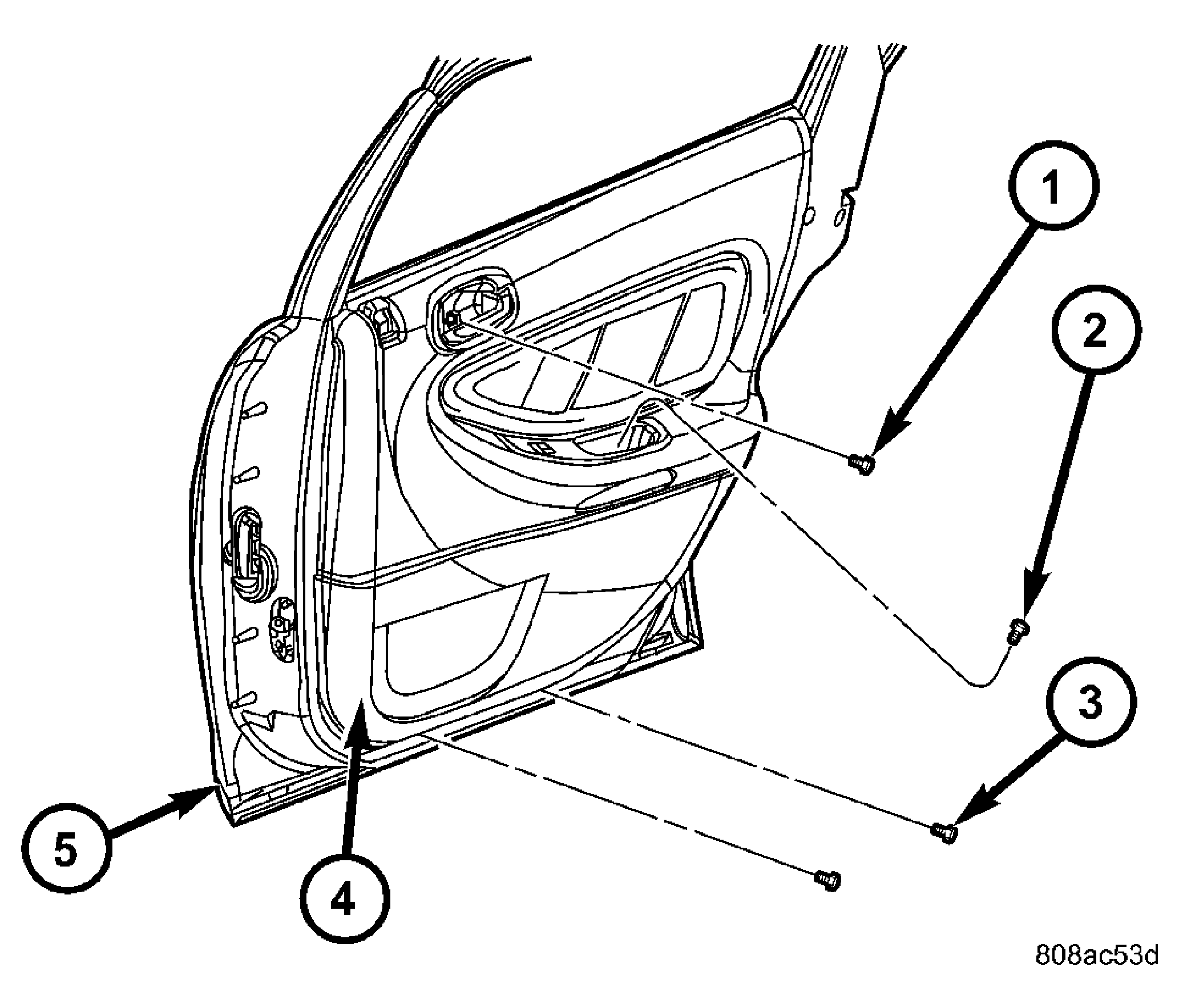

Fig 1: Rear Door Trim Panel
GC0031402Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREW
2 - SCREW
3 - SCREW
4 - REAR DOOR TRIM PANEL
5 - REAR DOOR

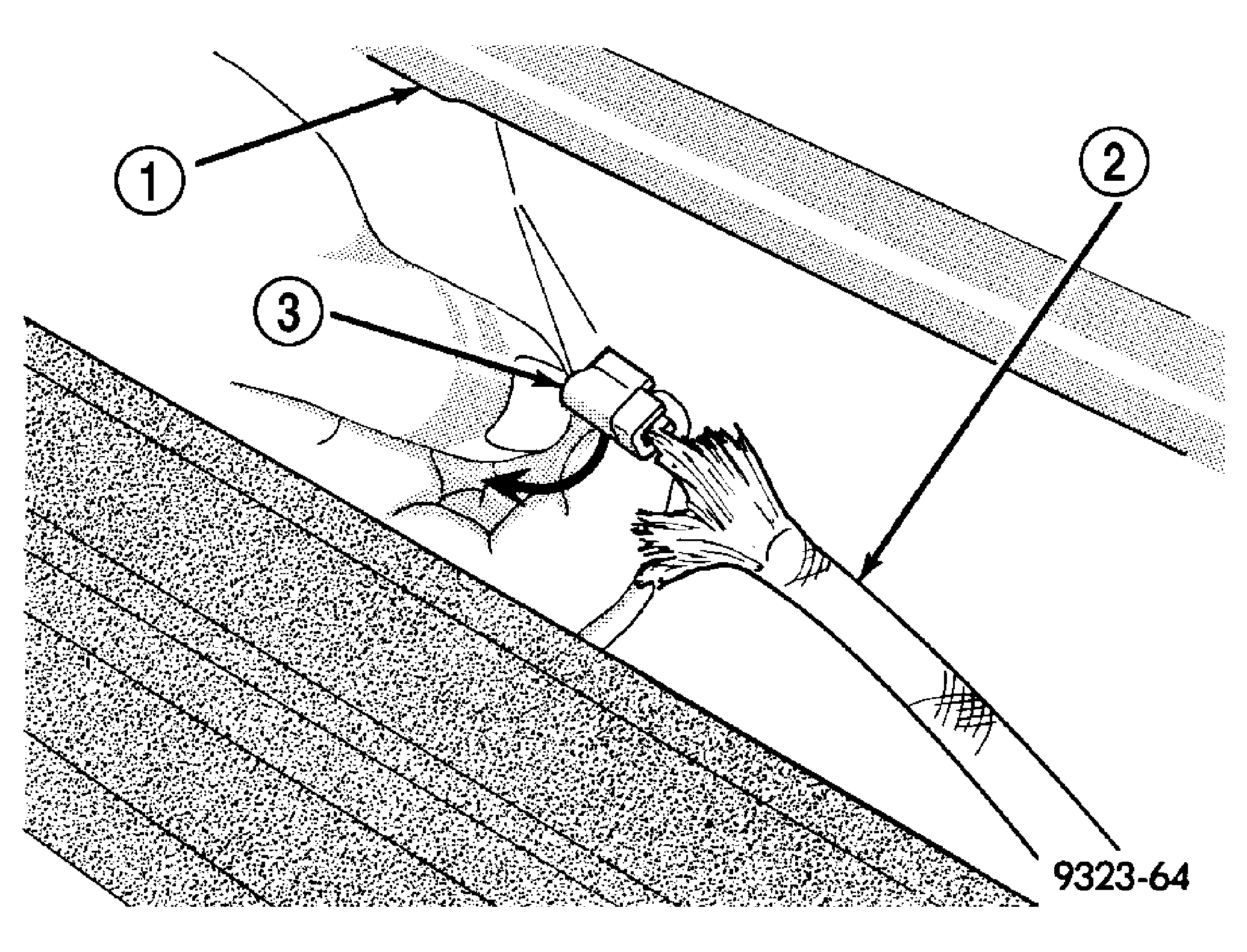

Fig 2: Linkage Clip
GC0031403Courtesy of DAIMLERCHRYSLER CORP.
1 - DOOR TRIM PANEL
2 - LATCH RELEASE ROD
3 - CLIP
