Rear Check Strap: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear door trim panel.
  2. Remove the watershield as necessary to gain access to the latch. (Refer to BODY/DOORS - REAR/WATERSHIELD - REMOVAL) .
  3. Remove bolt attaching check strap to hinge pillar.
  4. Remove bolt attaching check strap to inner door panel. See Fig 1.
  5. Remove bolts attaching check strap to door end frame.
  6. Remove check strap from vehicle.

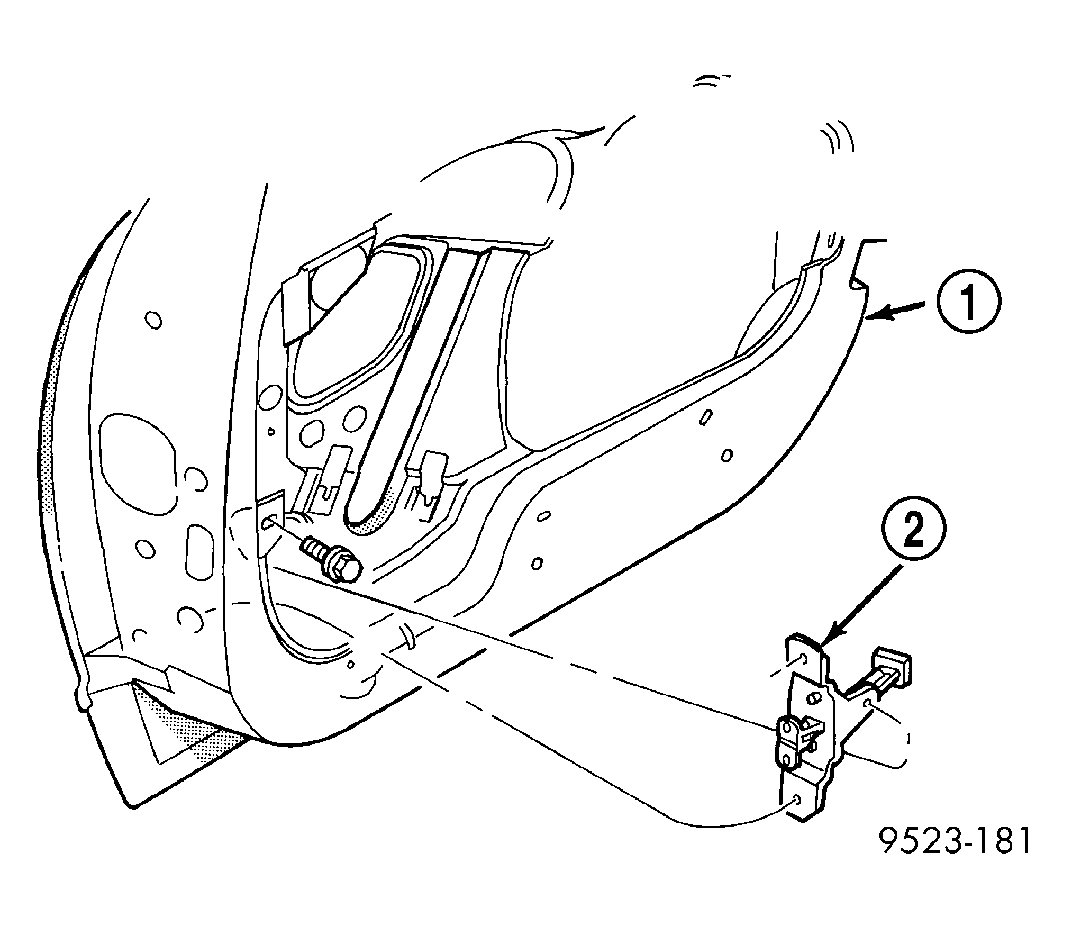

Fig 1: Rear Door Check Strap
GC0031395Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR DOOR
2 - CHECK STRAP
