Door Rear: Latch: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear door trim panel.
- Close door glass.
- Remove lower rear run channel.
- Disengage clips attaching linkage rods to door latch.

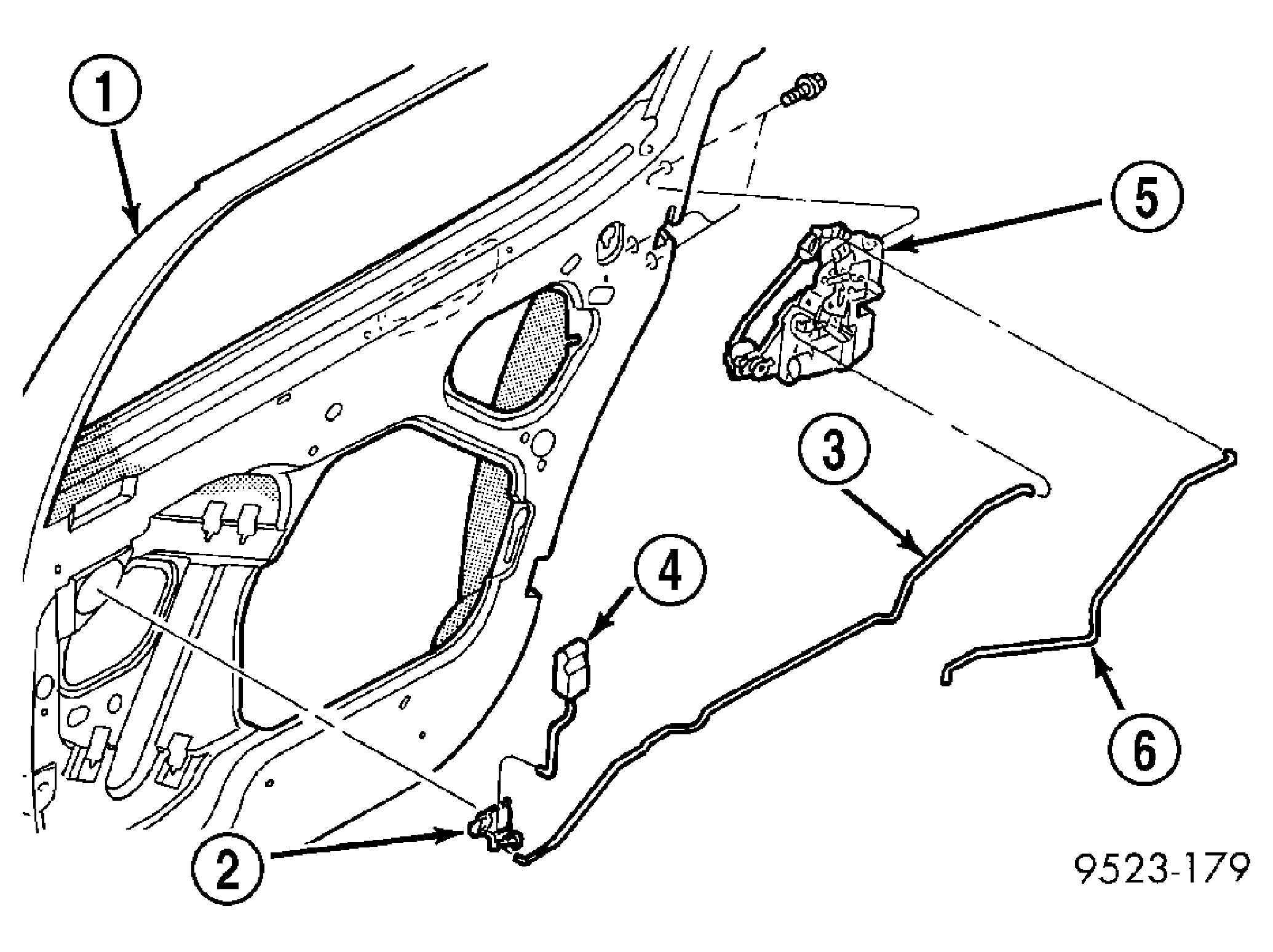

- Remove linkage rods from latch. See Fig 1.
- Remove screws attaching latch to door end frame.
- Remove latch from door.
| 1 - REAR DOOR |
| 2 - BELL CRANK |
| 3 - LOCK LINKAGE |
| 4 - LOCK BUTTON |
| 5 - LATCH |
| 6 - LATCH LINKAGE |
