Door Rear: Applique: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Pull the glass run weatherstrip away from the window opening to access the applique screws. (Refer to BODY/WEATHERSTRIP/SEALS/REAR DOOR GLASS RUN WEATHERSTRIP - REMOVAL) .
Remove the screws under the glass run weatherstrip. See Fig 1.
Remove the upper push-pin fastener.
Remove the lower inner screw and remove the applique.

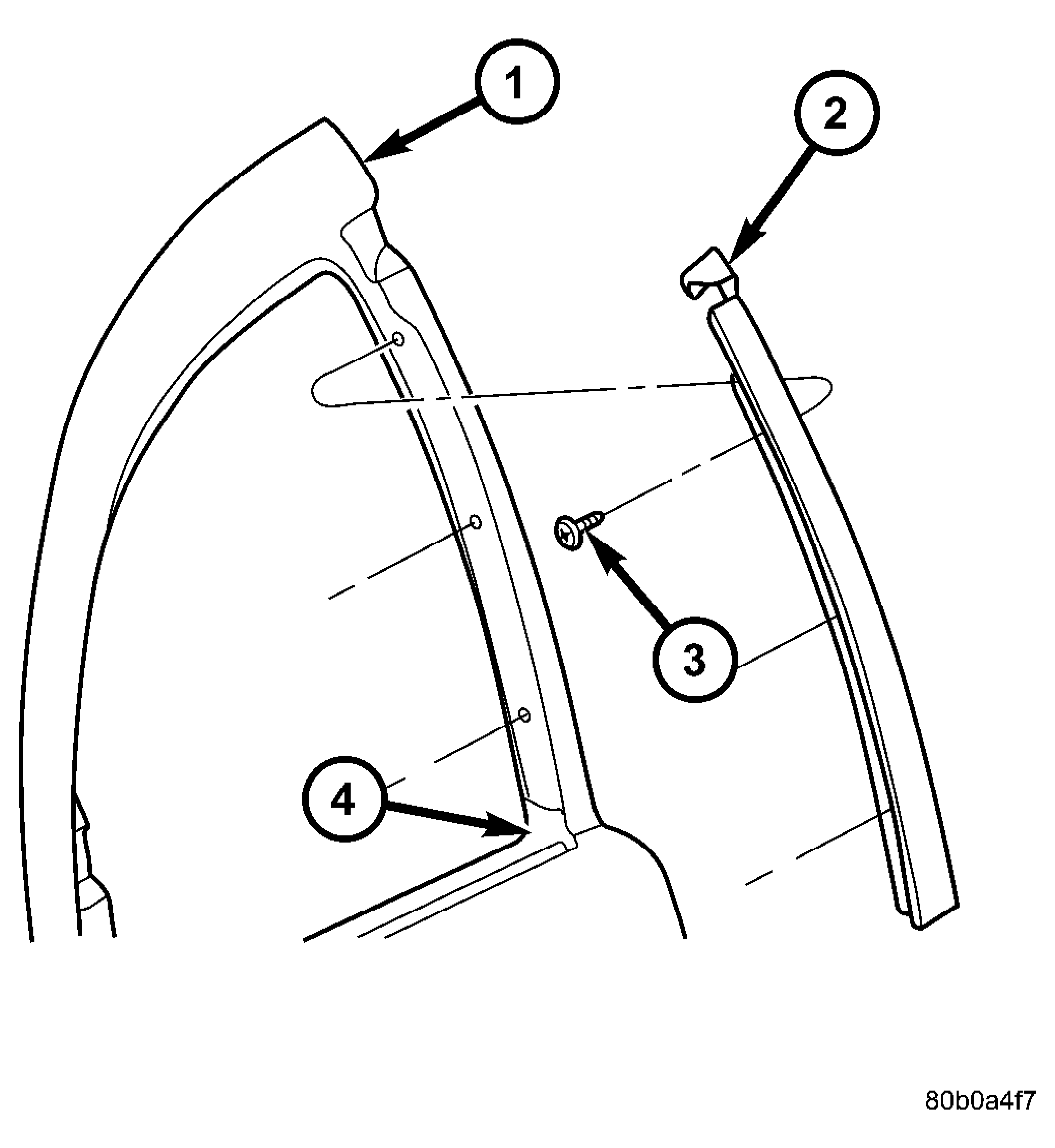

Fig 1: Rear Door Applique

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR

2 - APPLIQUE

3 - SCREWS

4 - INNER SCREW
