Removal - Jr-27
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove door trim panel and watershield.
- Remove the lift plate attaching screws. See Fig 1.
- Remove nut attaching top of guide bar to inner door panel.
- Using a suitable Allen wrench, hold jack screw stationary while removing nut attaching bottom of guide bar to inner door panel.
- Remove guide bar from vehicle and remove through access hole in inner door panel. See Fig 2.

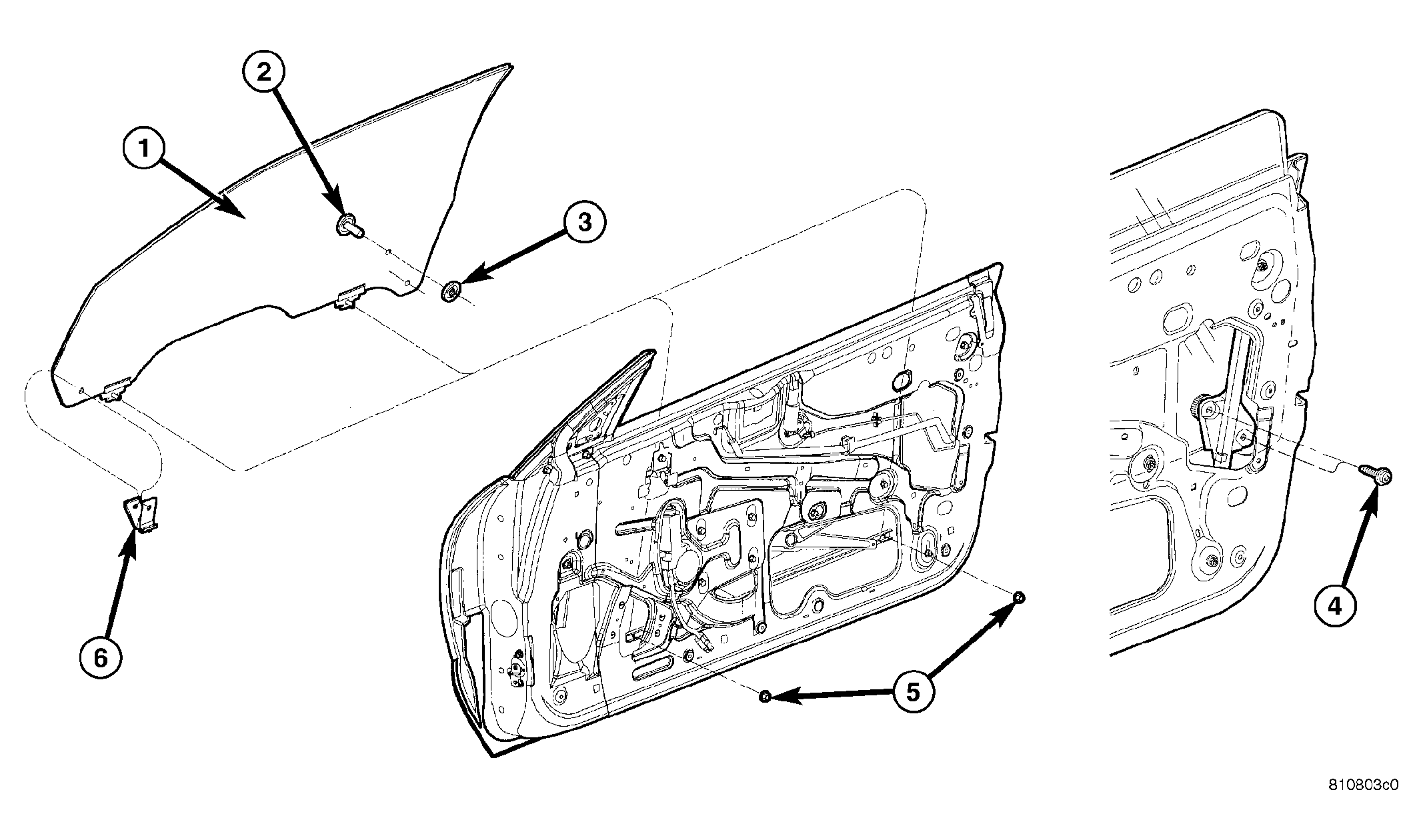

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - FRONT DOOR GLASS |
| 2 - GLASS TO LIFT PLATE RETAINER AND NUT ASSEMBLY |
| 3 - GLASS TO LIFT PLATE BUSHING |
| 4 - GLASS TO LIFT PLATE ATTACHING SCREWS |
| 5 - GLASS TO WINDOW CHANNEL ATTACHING NUTS |
| 6 - DOOR GLASS UP STOP |

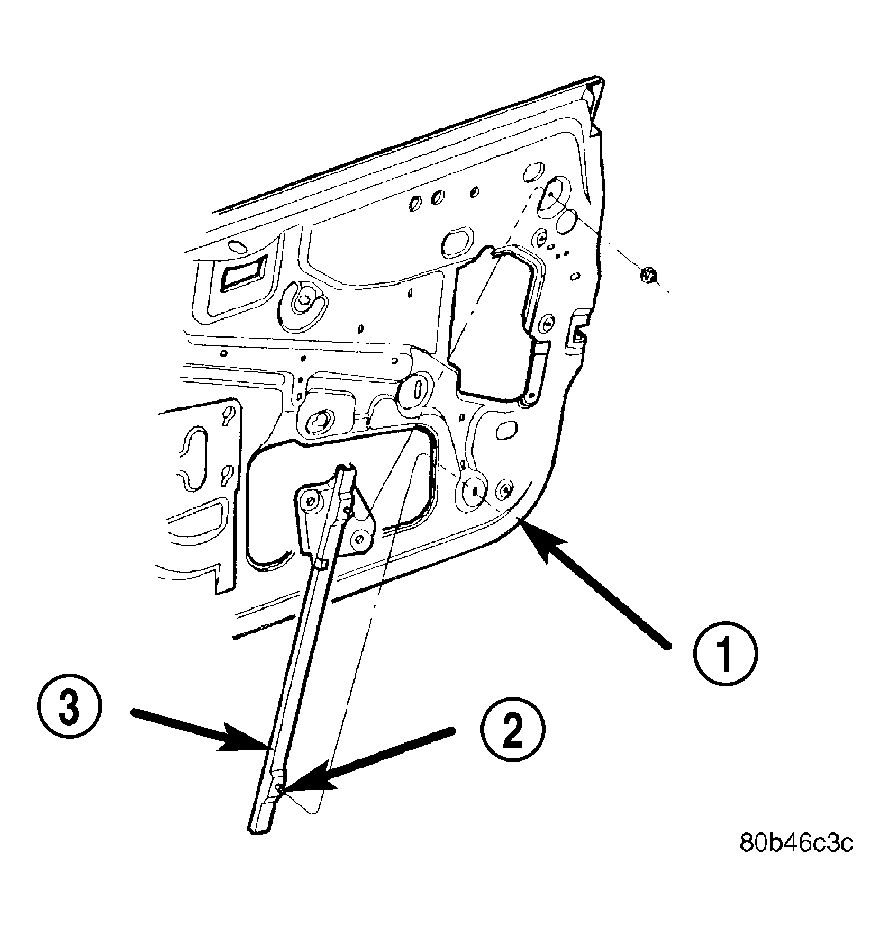

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - DOOR |
| 2 - JACK SCREW |
| 3 - REAR VERTICAL GUIDE BAR |
