Lock Cylinder: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove outside door handle.

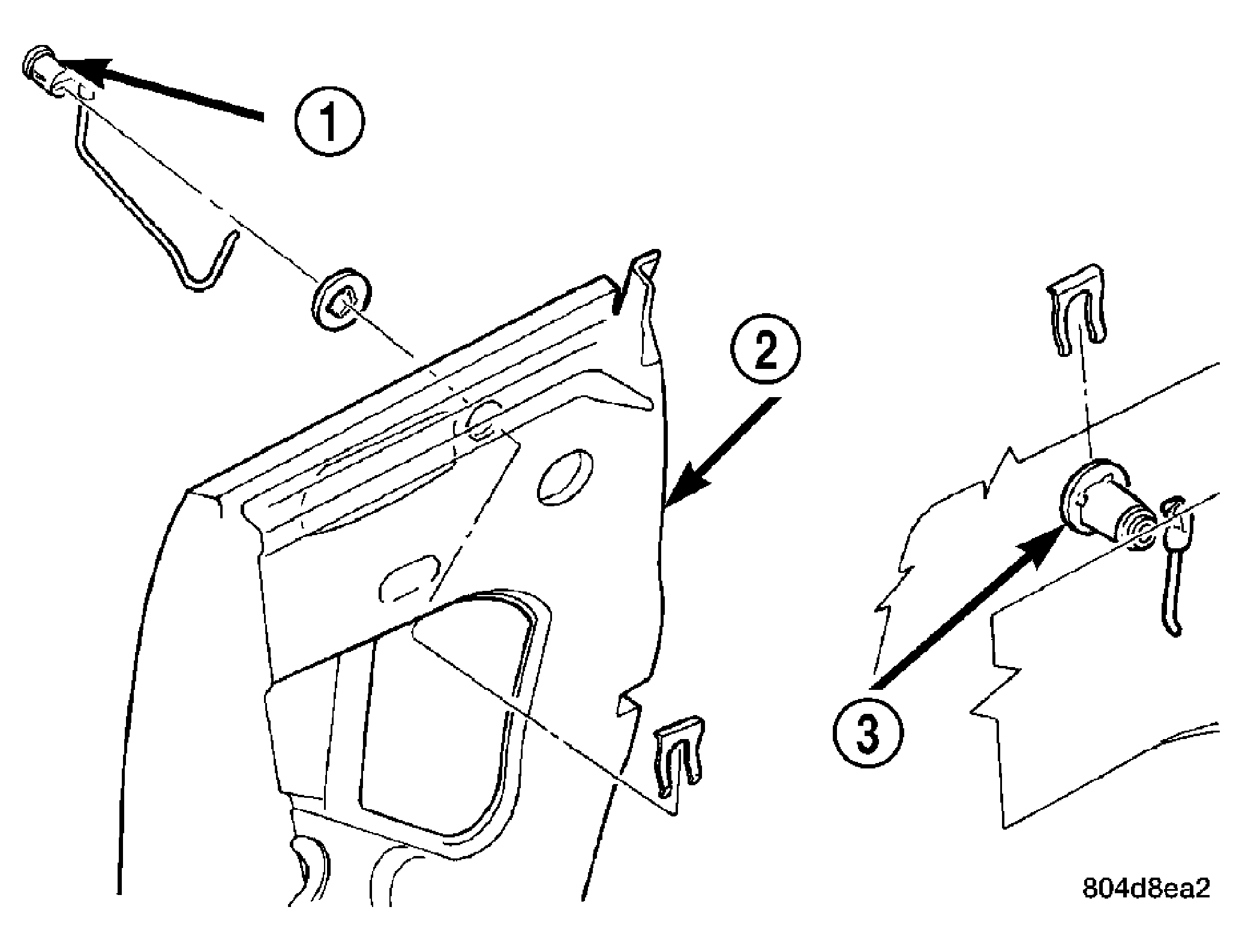

- Remove clip attaching lock cylinder to outside door panel. See Fig 1.
- Disengage clip attaching link to key cylinder.
- Remove lock cylinder from outer door panel.
| 1 - DOOR LOCK CYLINDER |
| 2 - DOOR |
| 3 - DOOR LOCK CYLINDER |
