Lock Button Bell Crank: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove door trim panel.
- Disengage clip holding lock linkage to bell crank.
- Rotate bell crank until retaining ears align with slots in door panel.

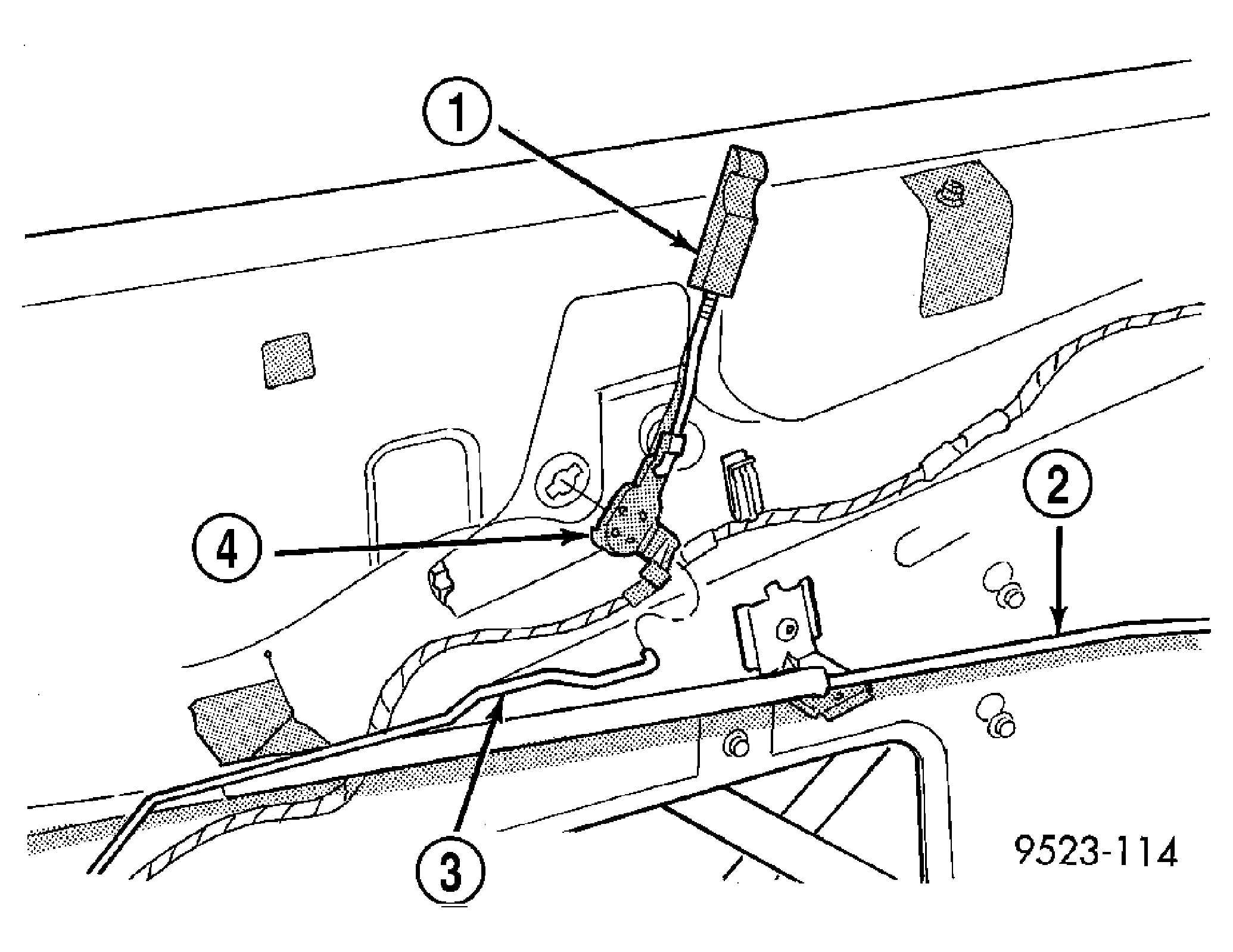

- Remove bell crank from door. See Fig 1.
| 1 - LOCK BUTTON |
| 2 - LATCH LINKAGE |
| 3 - LOCK LINKAGE |
| 4 - BELL-CRANK |
