Latch Striker: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Mark outline of door latch striker on B-pillar to aid in installation.
Remove screws attaching door latch striker to B-pillar. See Fig 1.
Remove latch striker from vehicle.

NOTE: Be sure to check for any shims between door latch striker and B-pillar. If any shims are found, they must be reinstalled with the new door latch striker to maintain proper door operation.

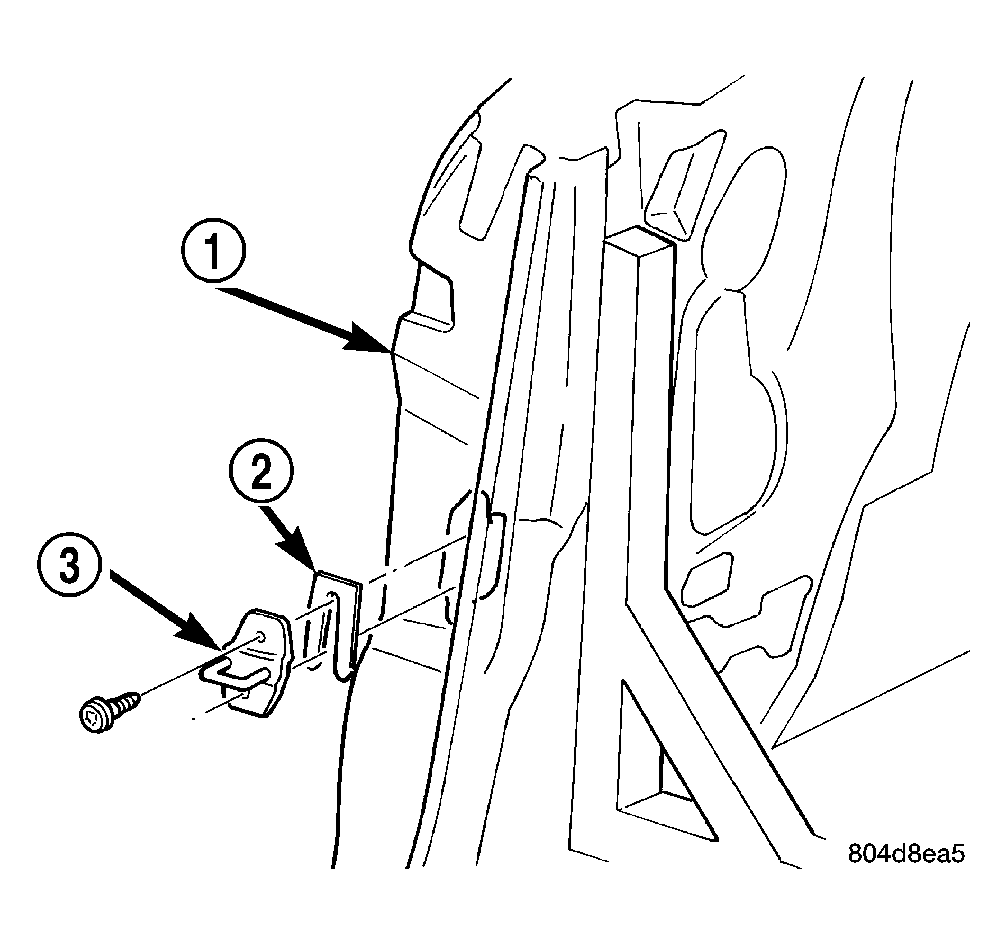

Fig 1: Door Latch Striker

Courtesy of DAIMLERCHRYSLER CORP.

1 - B-PILLAR

2 - SHIM

3 - DOOR LATCH STRIKER
