Door Front: Hinge: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Open and support door on a suitable lifting device.
- Remove bolts attaching door check strap to lower A-pillar for greater access, if necessary.
- Mark position of hinges on both the door end frame and lower A-pillar with a grease pencil or other suitable device to ease installation.

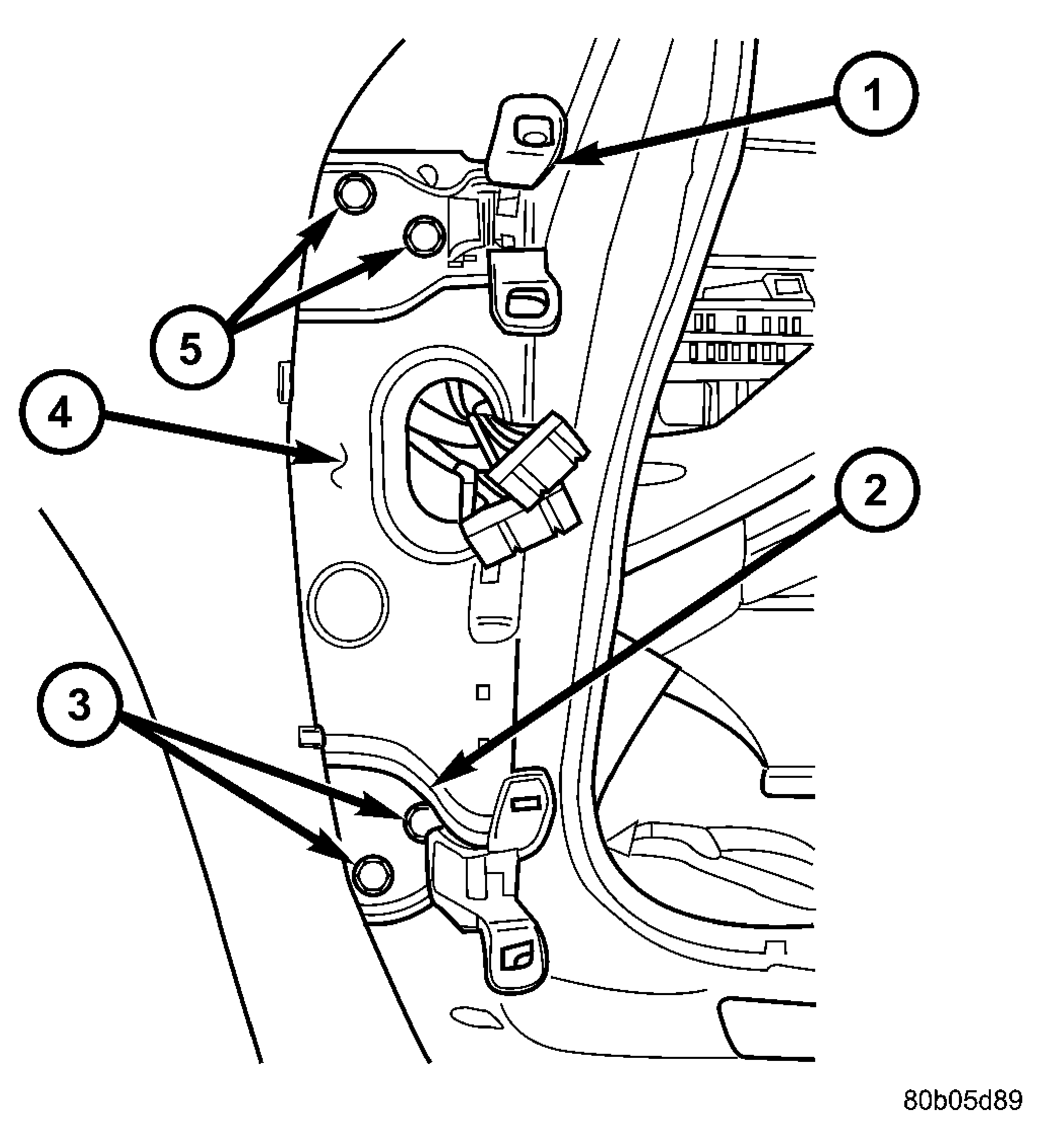

- Remove bolts attaching hinge to door end frame. See Fig 1.
- Remove bolts attaching hinge to lower A-pillar and remove the hinge.
- Remove door hinge from vehicle.
| 1 - UPPER HINGE |
| 2 - LOWER HINGE |
| 3 - LOWER HINGE BOLTS |
| 4 - A-PILLAR |
| 5 - UPPER HINGE BOLTS |
