Door Pin Assembly: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Open the door, remove the door pin bolts and remove the door pin. See Fig 1.
Remove the receiver bolts and remove the receiver and shims if equipped. See Fig 2.

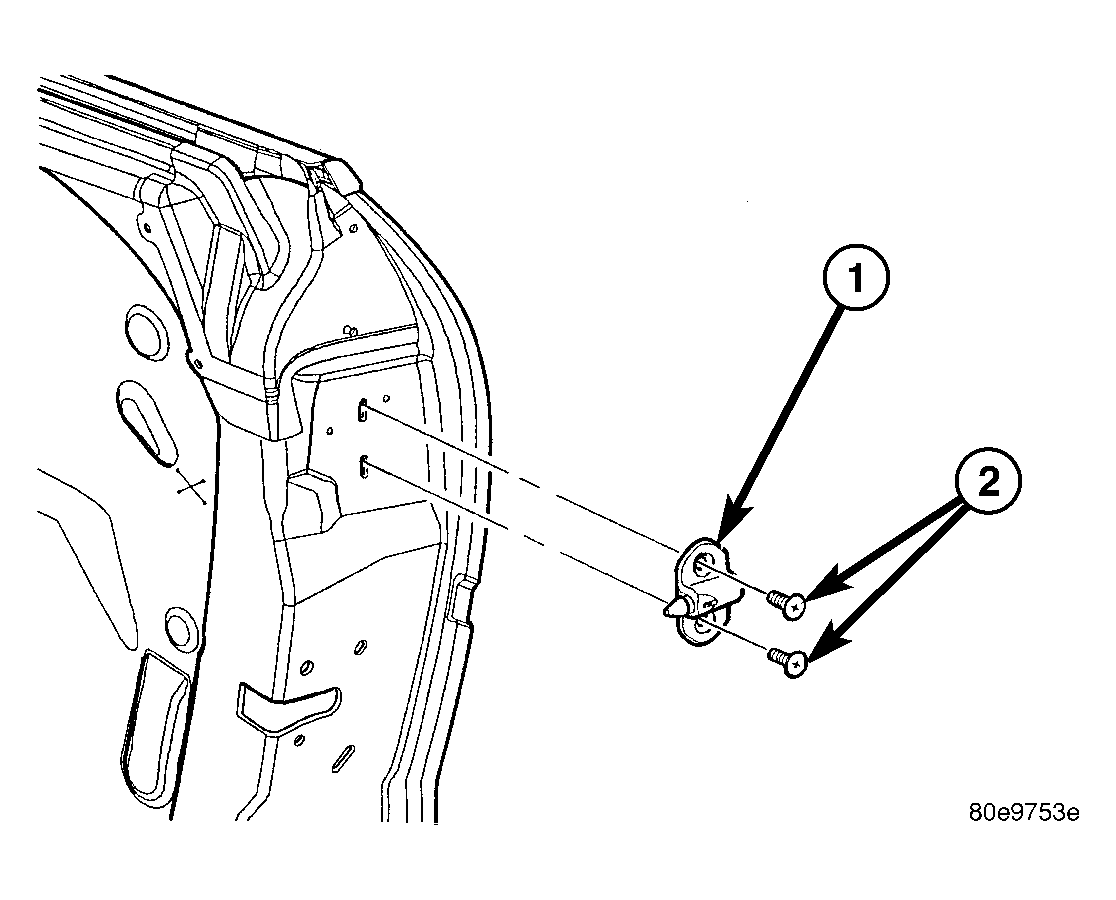

Fig 1: Door Pin Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR PIN ASSEMBLY

2 - BOLTS (2)

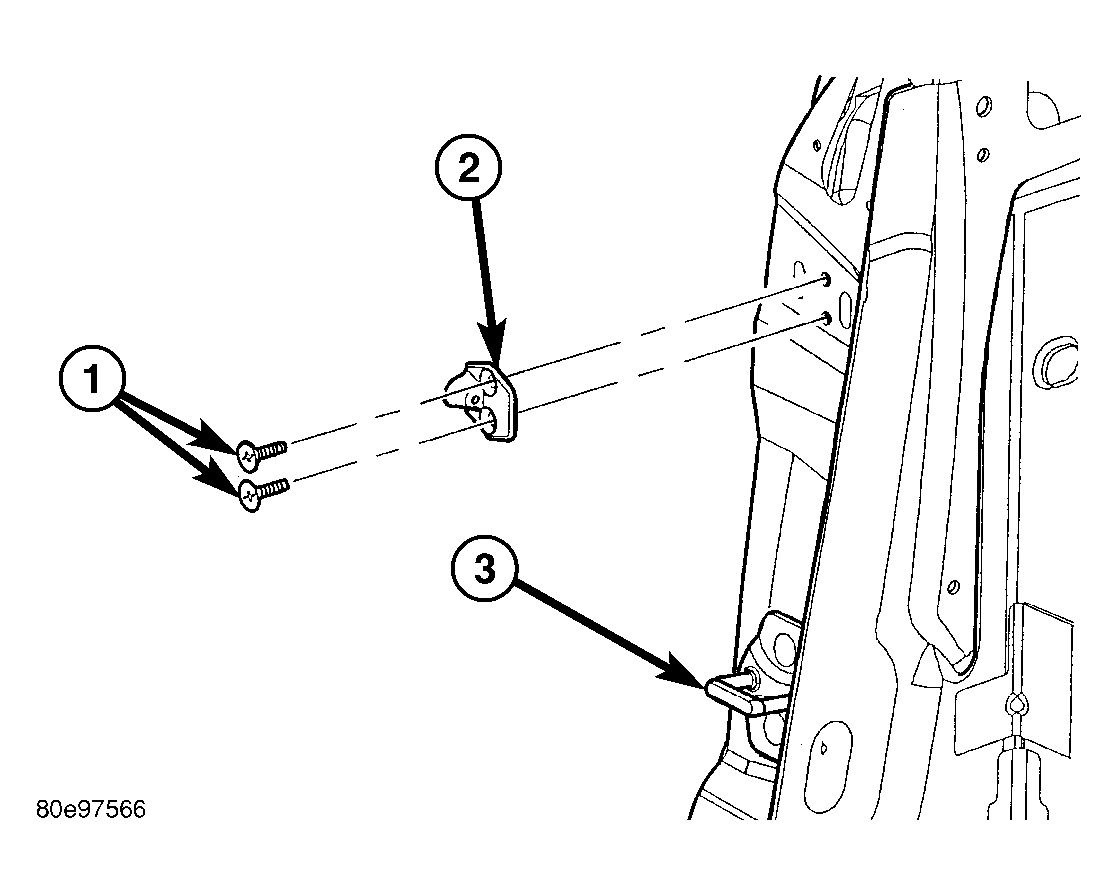

Fig 2: Door Pin Receiver

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLTS (2)

2 - RECEIVER

3 - DOOR LATCH STRIKER
