Door Glass Inner Belt Stabilizer: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door trim panel.
  2. Lift inner belt weatherstrip as necessary to access nut.
  3. Remove nut attaching inner belt stabilizer to door panel.
  4. Remove inner belt stabilizer from door. See Fig 1.

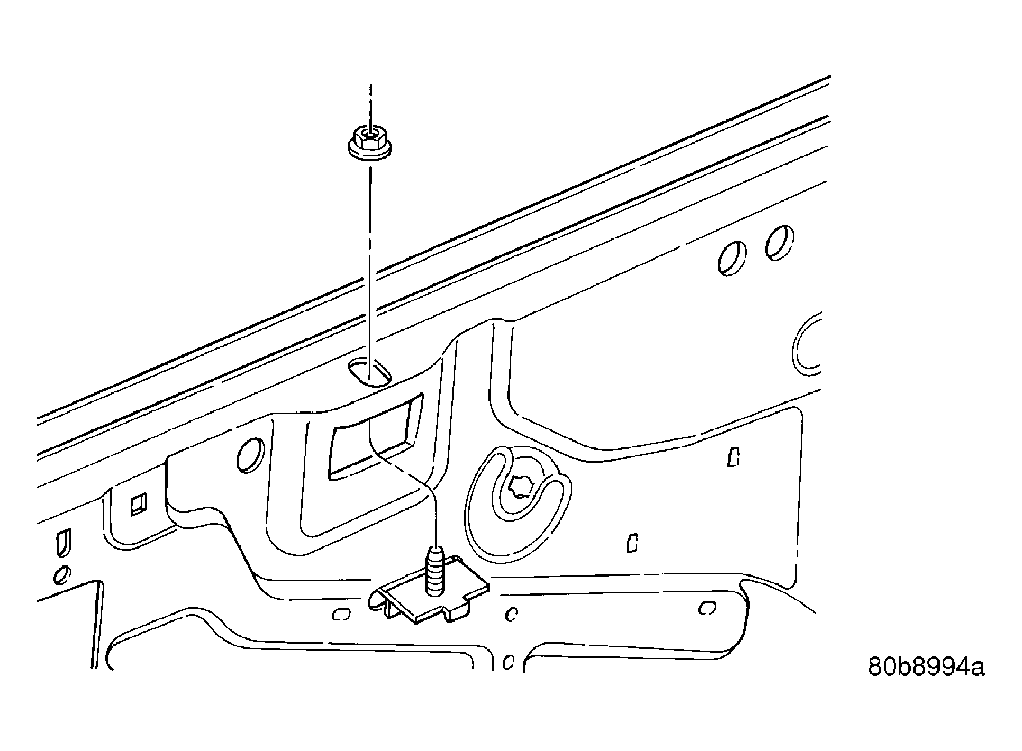

Fig 1: Inner Belt Stabilizer
GC0022294Courtesy of DAIMLERCHRYSLER CORP.
