Check Strap: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  2. Remove water dam as necessary to gain access. (Refer to REMOVAL  ).
  3. Remove bolts attaching check strap to lower A-pillar.
  4. Remove bolts attaching check strap to door end frame. See Fig 1.
  5. Remove door check strap from vehicle.

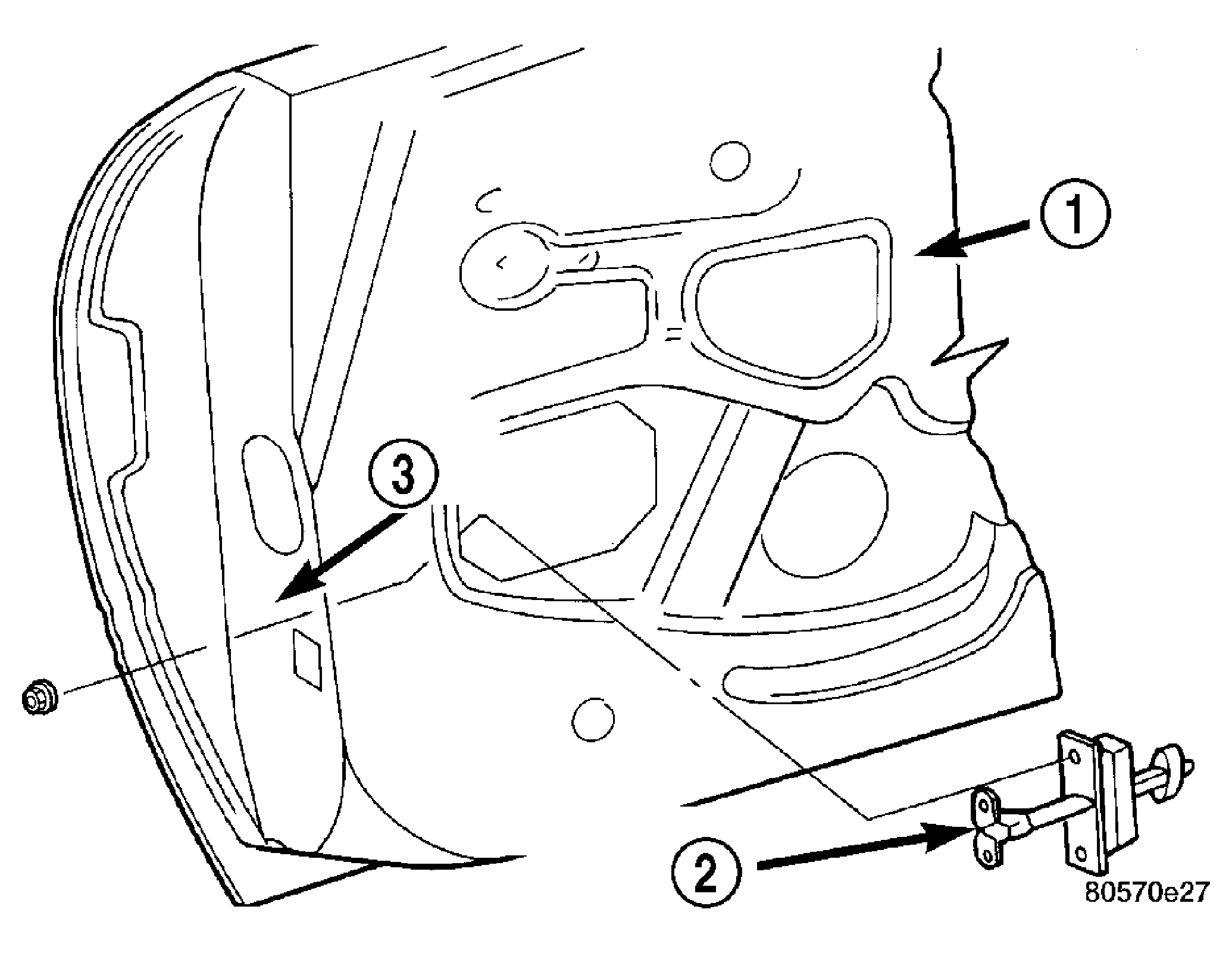

Fig 1: Front Door Check Strap
GC0031349Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT DOOR
2 - DOOR CHECK STRAP
3 - DOOR FACE
