Gas Prop: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Open decklid.
Remove the gas prop-rod lock caps. See Fig 1.
Remove prop-rod from mounting studs.

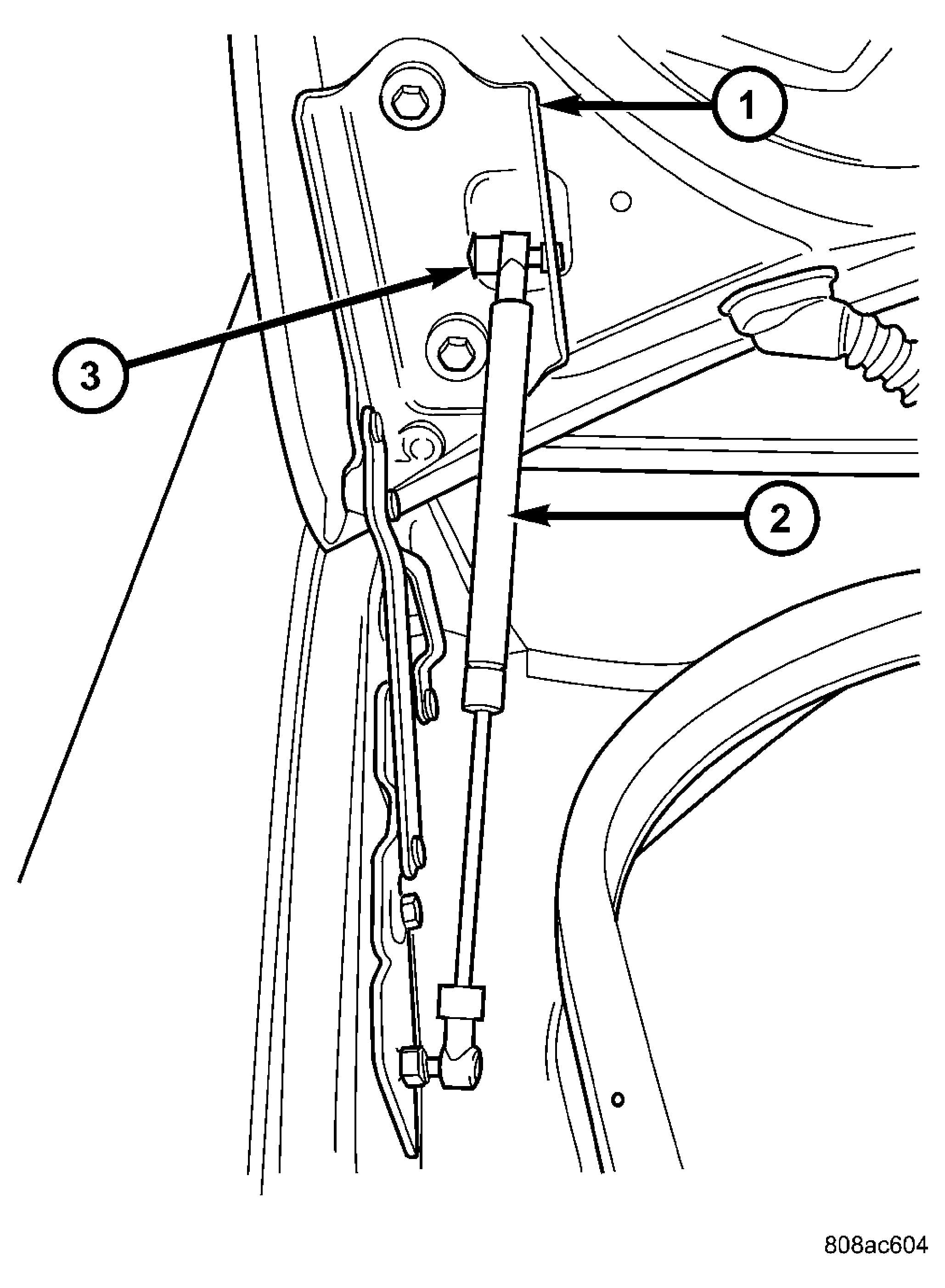

Fig 1: Gas Prop-Rod Lock Cap

Courtesy of DAIMLERCHRYSLER CORP.

1 - DECKLID HINGE

2 - GAS PROP

3 - GAS PROP-ROD LOCK CAP
