Emergency Release Cable: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove the decklid latch cover. See Fig 1.

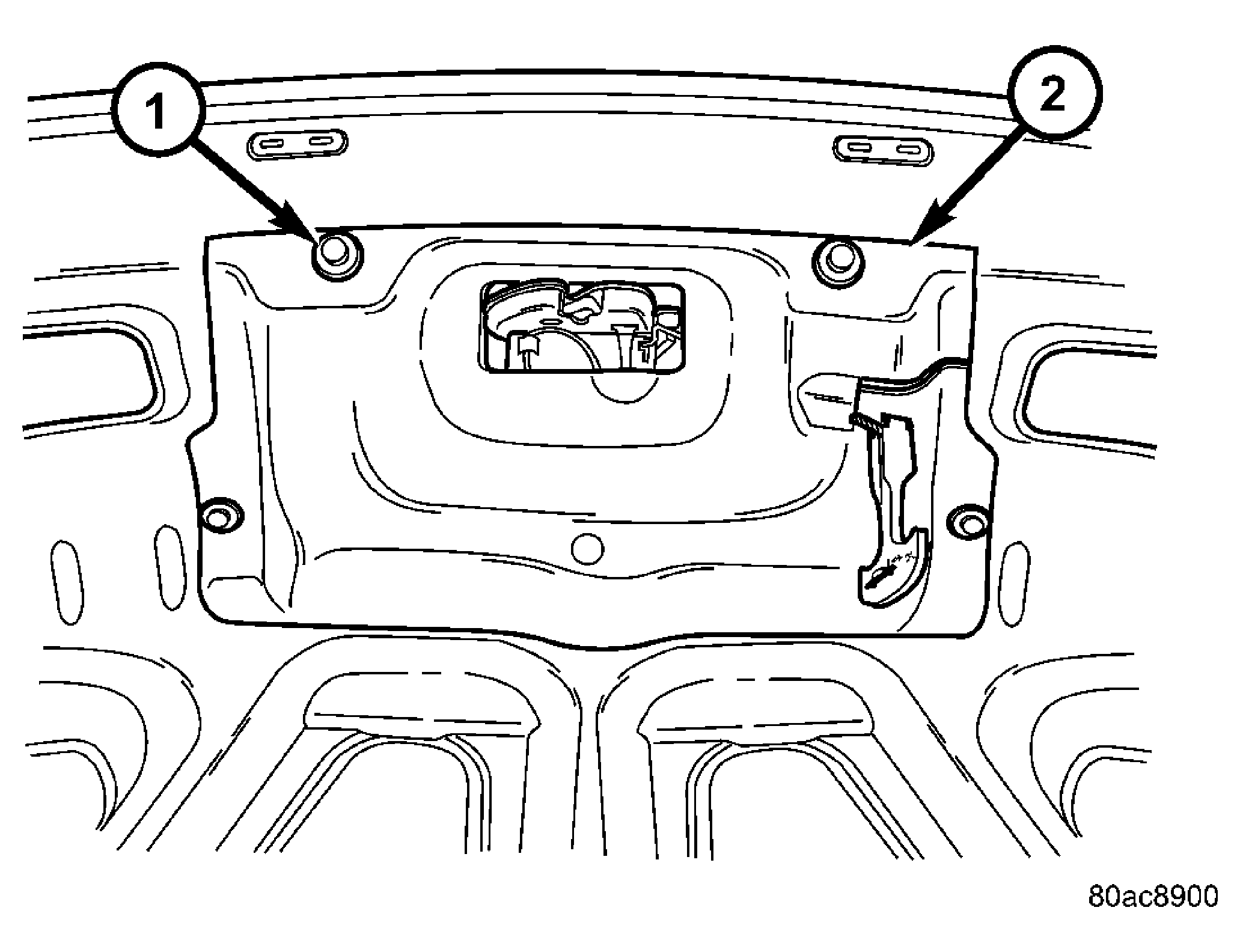

Fig 1: Decklid Latch Cover
Courtesy of DAIMLERCHRYSLER CORP.

1 - Push pin

2 - Decklid latch cover
Unclip cable and handle assembly. See Fig 2.

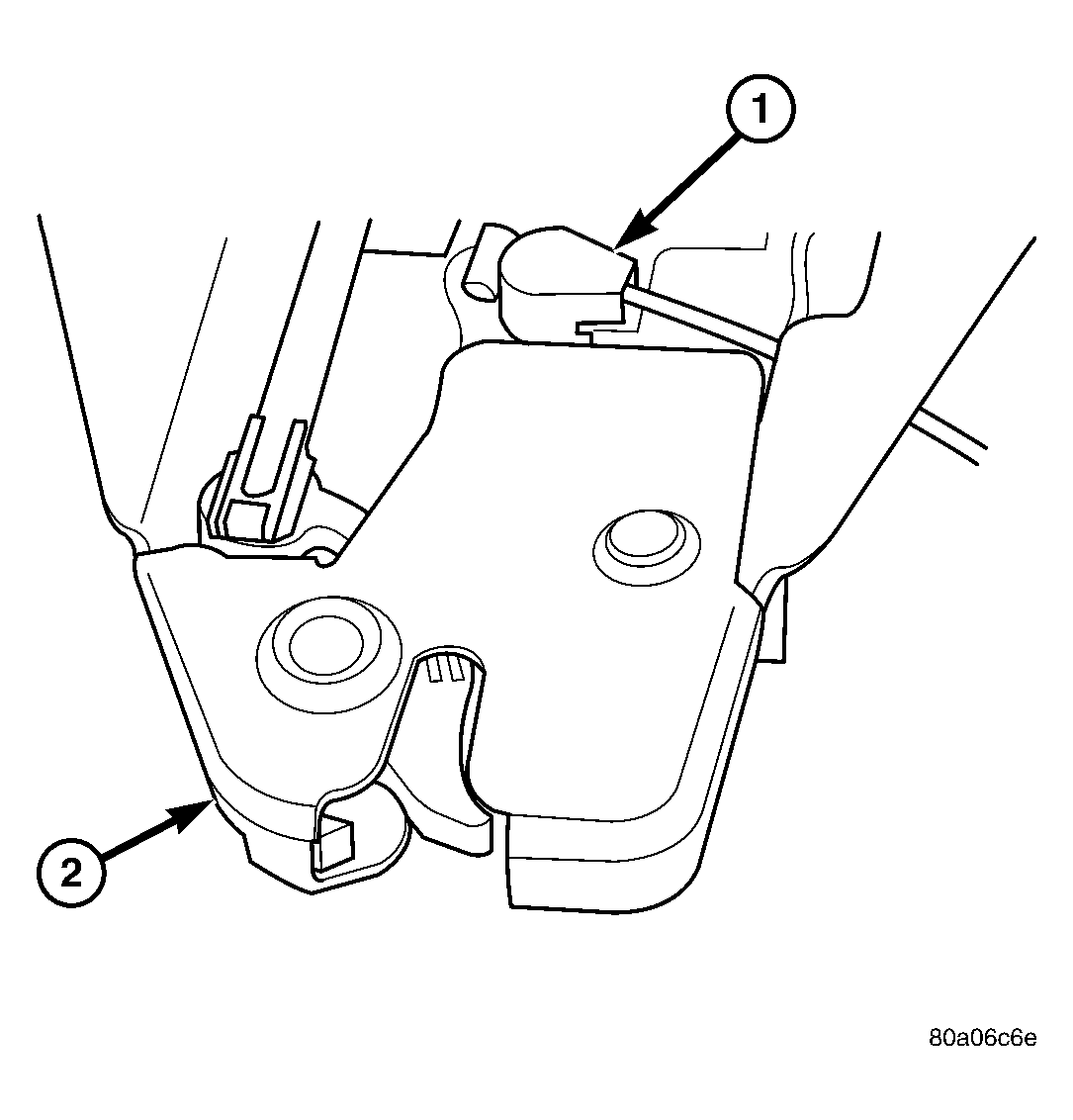

Fig 2: Emergency Release Cable

Courtesy of DAIMLERCHRYSLER CORP.

1 - Release Cable Clip

2 - Decklid Latch
