Deck Lid/Hatch/Liftgate/Tailgate: DECKLID: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Release decklid latch and open decklid.

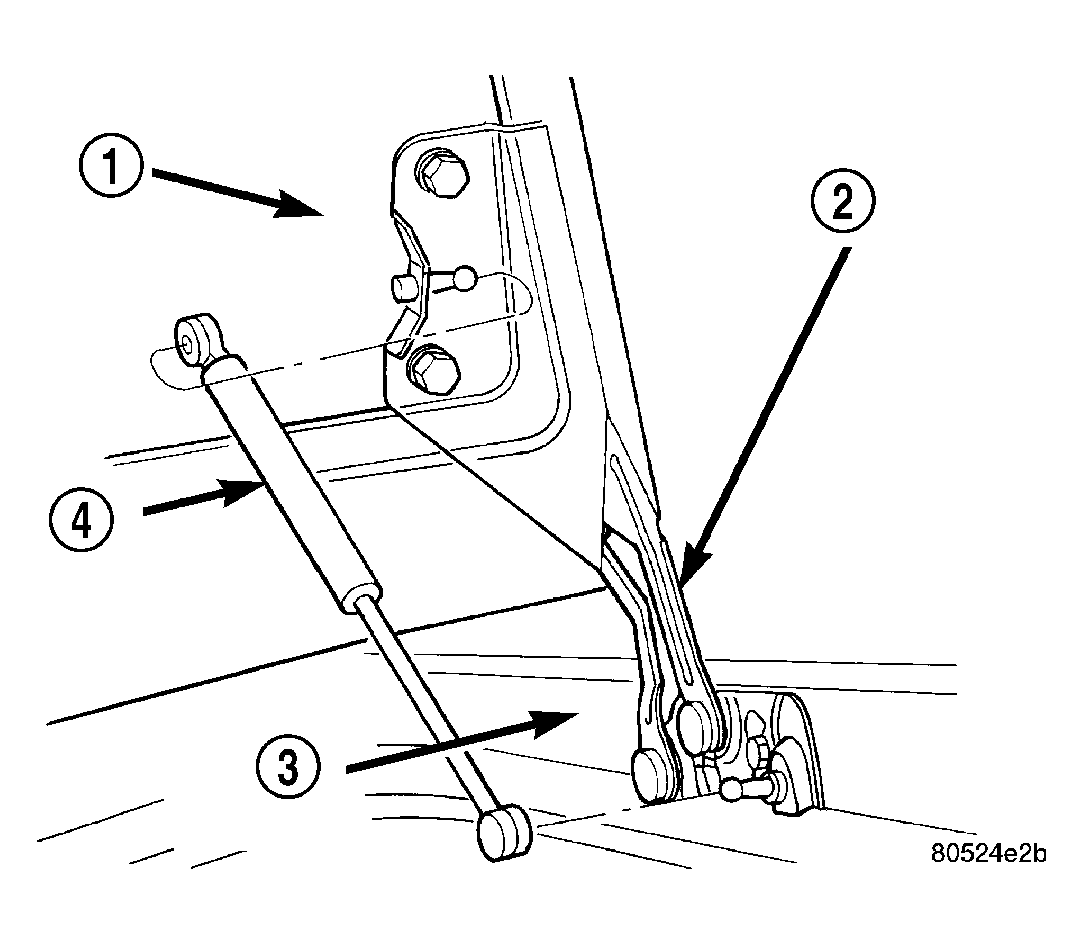

- Mark outline of hinge on decklid to aid in installation. See Fig 1.
- Disconnect all wire connectors from decklid latch and disconnect wire harness from decklid.
- Place suitable padding between decklid and deck panel to protect paint finish.
- With aid of a helper, remove bolts attaching decklid to decklid hinge.
- Remove decklid from vehicle.
| 1 - TRUNK LID |
| 2 - TRUNK HINGE |
| 3 - QUARTER PANEL TROUGH |
| 4 - GAS SUPPORT CYLINDER |
