DECKLID Lock Cylinder: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release decklid latch and open decklid.
  2. Remove decklid latch.
  3. Remove clip attaching decklid lock cylinder to security alarm switch, if so equipped. See Fig 1.
  4. Remove security alarm switch, if so equipped.
  5. Remove clip attaching decklid lock cylinder to decklid.
  6. Remove decklid lock cylinder from vehicle.

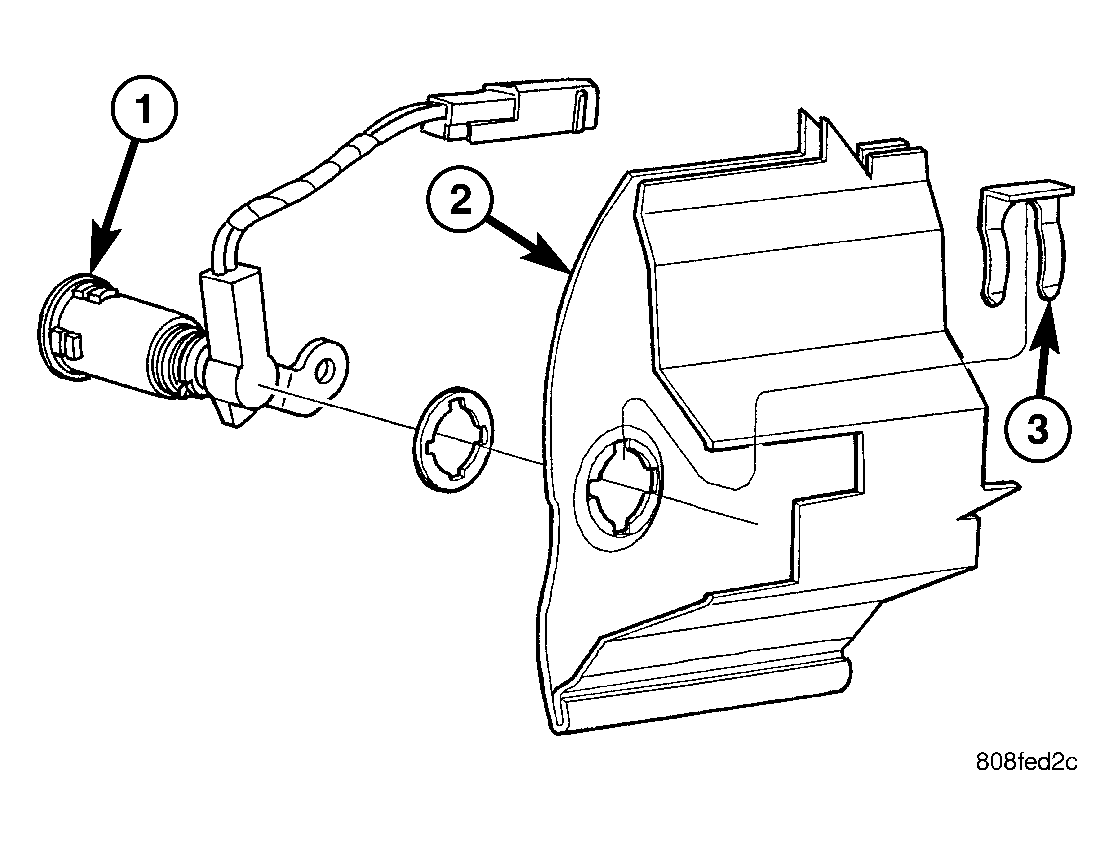

Fig 1: Decklid Lock Cylinder
GC0031346Courtesy of DAIMLERCHRYSLER CORP.
1 - DECKLID LOCK CYLINDER
2 - DECKLID
3 - RETAINER CLIP
