DECKLID Latch: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release decklid latch and open decklid.
  2. Mark outline of decklid latch on decklid to aid in installation.
  3. Disconnect wire connectors to remote release solenoid, if so equipped. See Fig 1.
  4. Remove bolts attaching decklid latch to decklid.
  5. Remove decklid latch from vehicle.

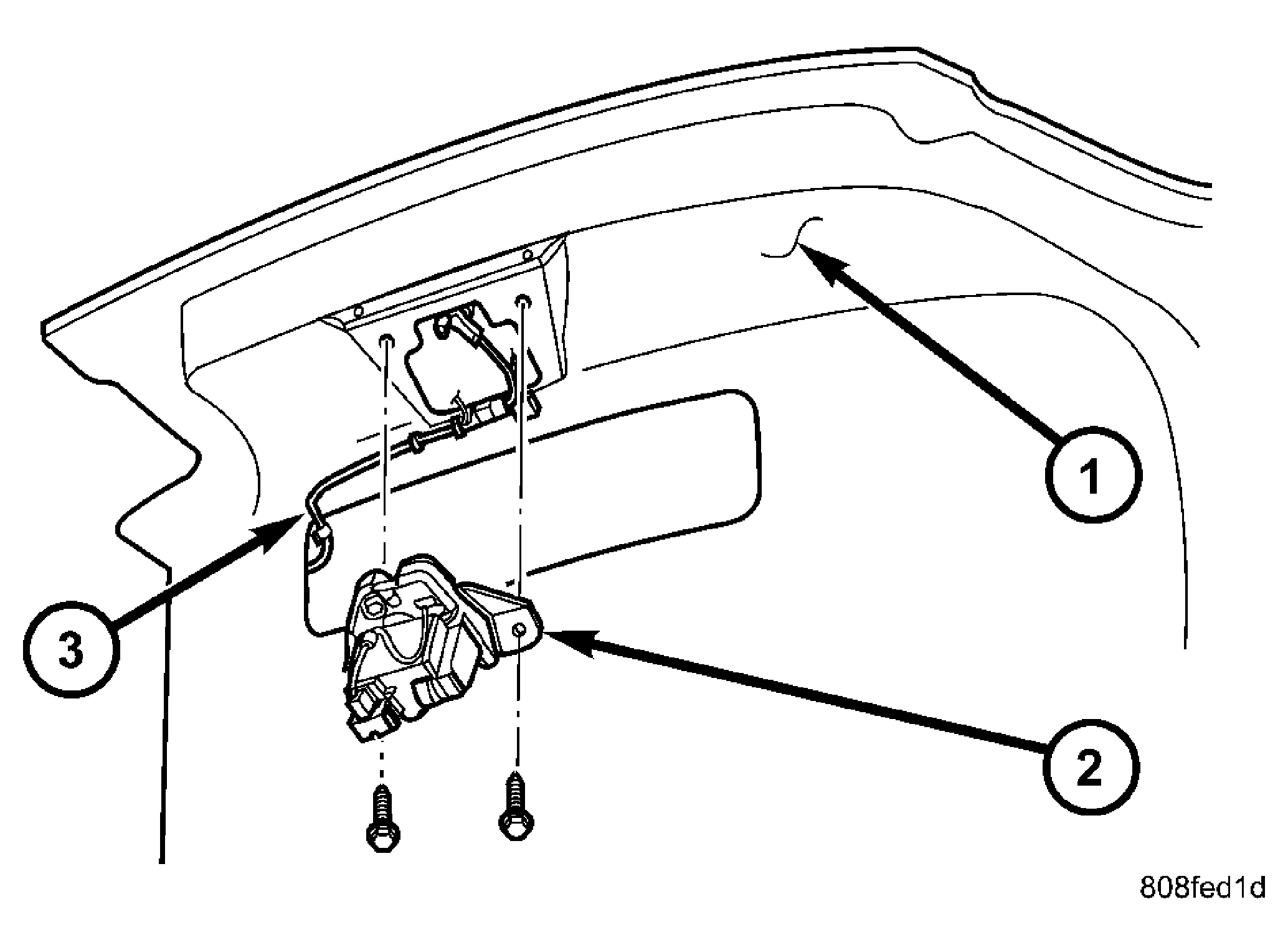

Fig 1: Decklid Latch
GC0031344Courtesy of DAIMLERCHRYSLER CORP.
1 - DECKLID
2 - DECKLID LATCH
3 - WIRE HARNESS
