DECKLID Latch Striker: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release decklid latch and open decklid.
  2. Mark outline of decklid latch striker on rear closure panel to aid in installation.
  3. Remove bolts attaching decklid latch striker to rear closure panel. See Fig 1.
  4. Remove striker from vehicle.

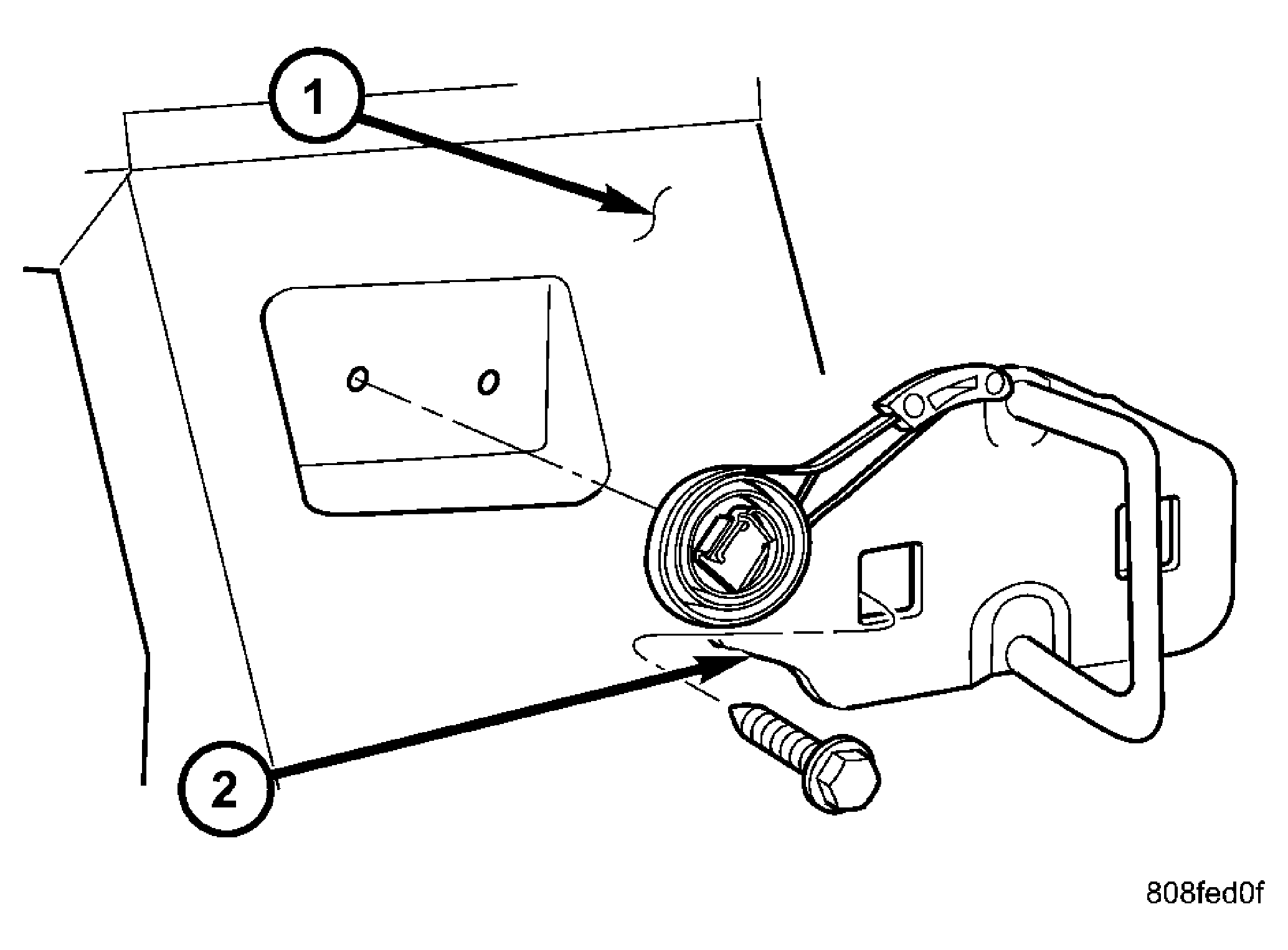

Fig 1: Decklid Latch Striker
GC0031345Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR CLOSURE PANEL
2 - TRUNK LATCH STRIKER
