Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Move top to the down position
- Disconnect battery negative terminal.
- Remove rear seat cushion and rear seat back.

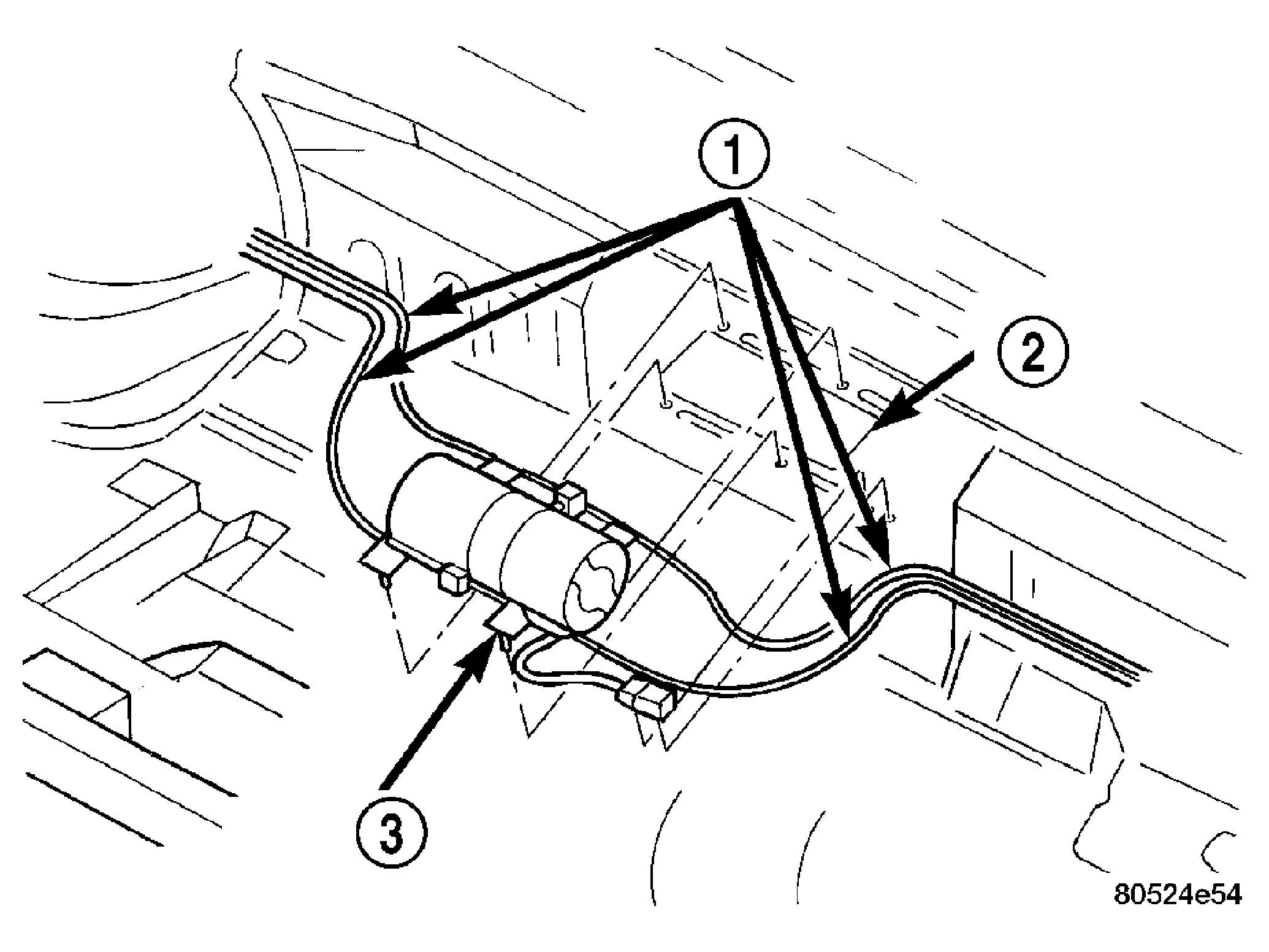

- Disconnect pump wire connector connection. See Fig 1.
- Remove motor from floor panel. Holding motor assembly with reservoir up, squeeze fill plug to release any air pressure from system.
- Mark connections and disconnect hydraulic lines from pump.
- Remove motor pump assembly from vehicle.
| 1 - HYDRAULIC LINES |
| 2 - MOUNTING BRACKET |
| 3 - HYDRAULIC PUMP ASSEMBLY |
