Hydraulic Cylinder: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the top in the up position
  2. Disconnect battery negative terminal.
  3. Remove rear seat cushion and rear seat back.
  4. Remove quarter trim panel.
  5. Remove cylinder mounting bracket and nut. See Fig 1.
  6. Remove pivot bolt attaching cylinder shaft to top linkage.
  7. Remove motor/pump assembly from floor panel. Holding motor/pump assembly with reservoir up, squeeze fill plug to release any air pressure from system.
  8. Disconnect hydraulic lines from the cylinder.
  9. Remove cylinder from vehicle.

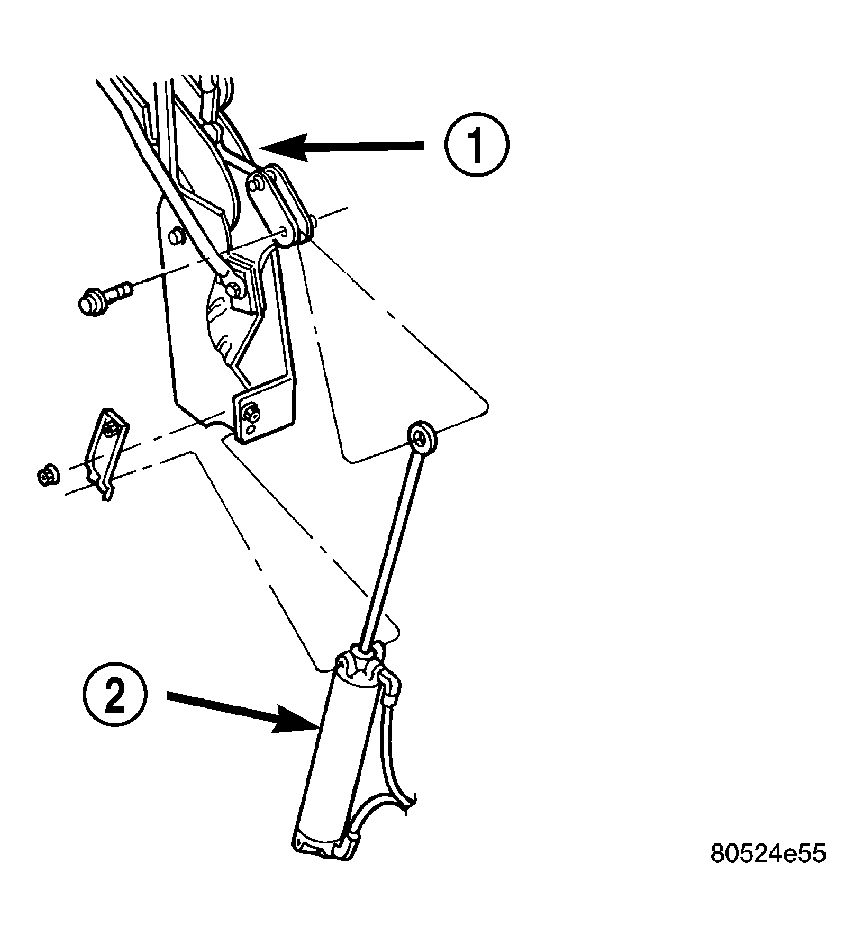

Fig 1: Hydraulic Cylinder
GC0031321Courtesy of DAIMLERCHRYSLER CORP.
1 - CONVERTIBLE TOP LOWER PIVOT
2 - HYDRAULIC CYLINDER
