Convertible Top Storage: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: To avoid damage to the sunvisors, rotate the driver's and passenger's sunvisor down before lowering or raising the convertible top.
  1. Raise and secure convertible top.
  2. Remove screws attaching headliner to top well.
  3. Remove push in fasteners attaching convertible top storage section to rear of storage area. See Fig 1.
  4. Remove push in fasteners attaching storage area below seat belt bezel.
  5. Pull rear of storage area upward and disengage front of storage area from beauty bar.
  6. Remove storage area from vehicle.

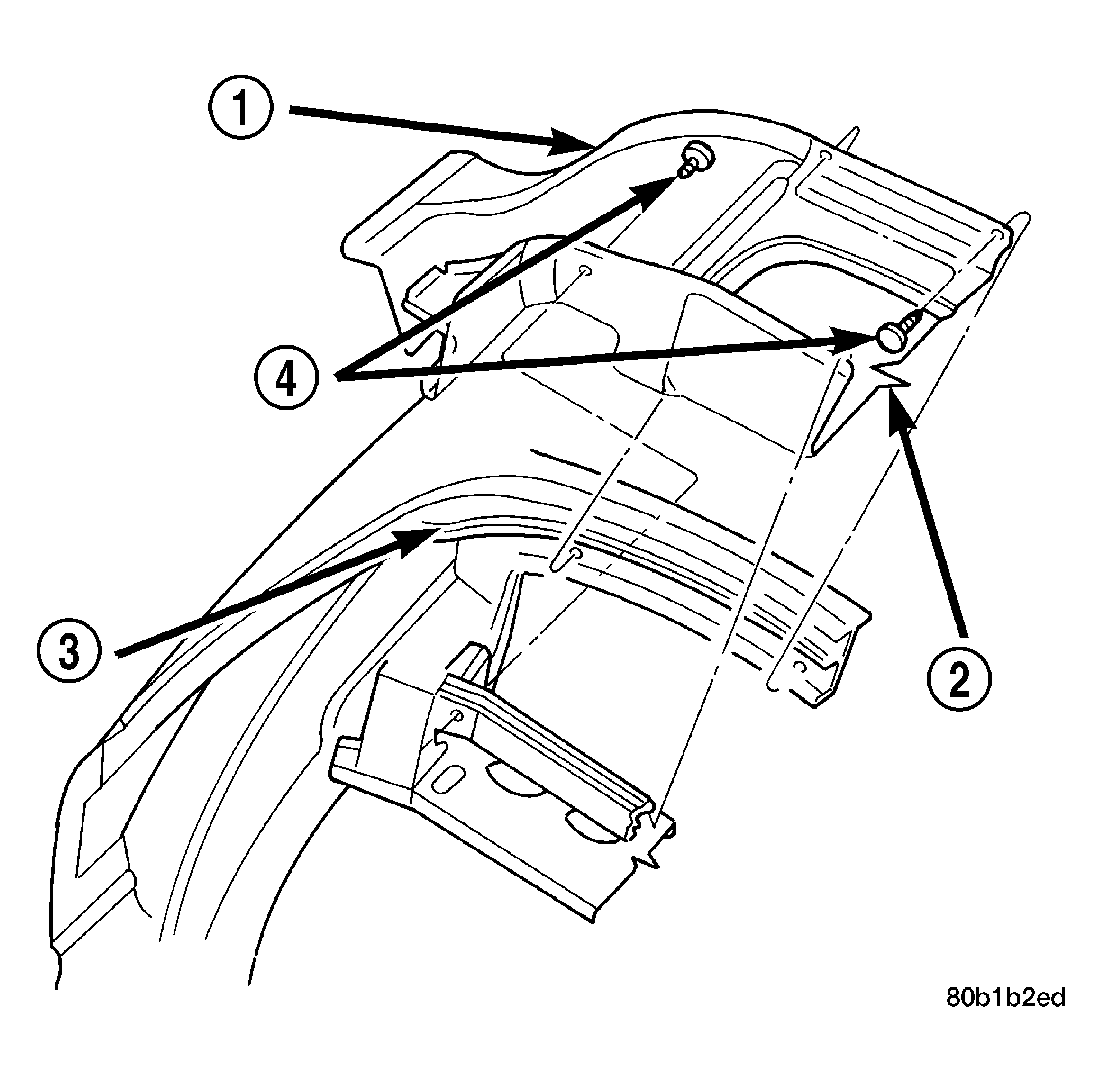

Fig 1: Center Convertible Top Storage
GC0031327Courtesy of DAIMLERCHRYSLER CORP.
1 - CONVERTIBLE TOP STORAGE
2 - REAR DECK PANEL
3 - TACK STRIP
4 - PUSH-IN FASTENER
