Convertible Top: Bow: Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
To avoid damage to the sunvisors, rotate the driver's and passenger's sunvisor down before lowering or raising the convertible top.

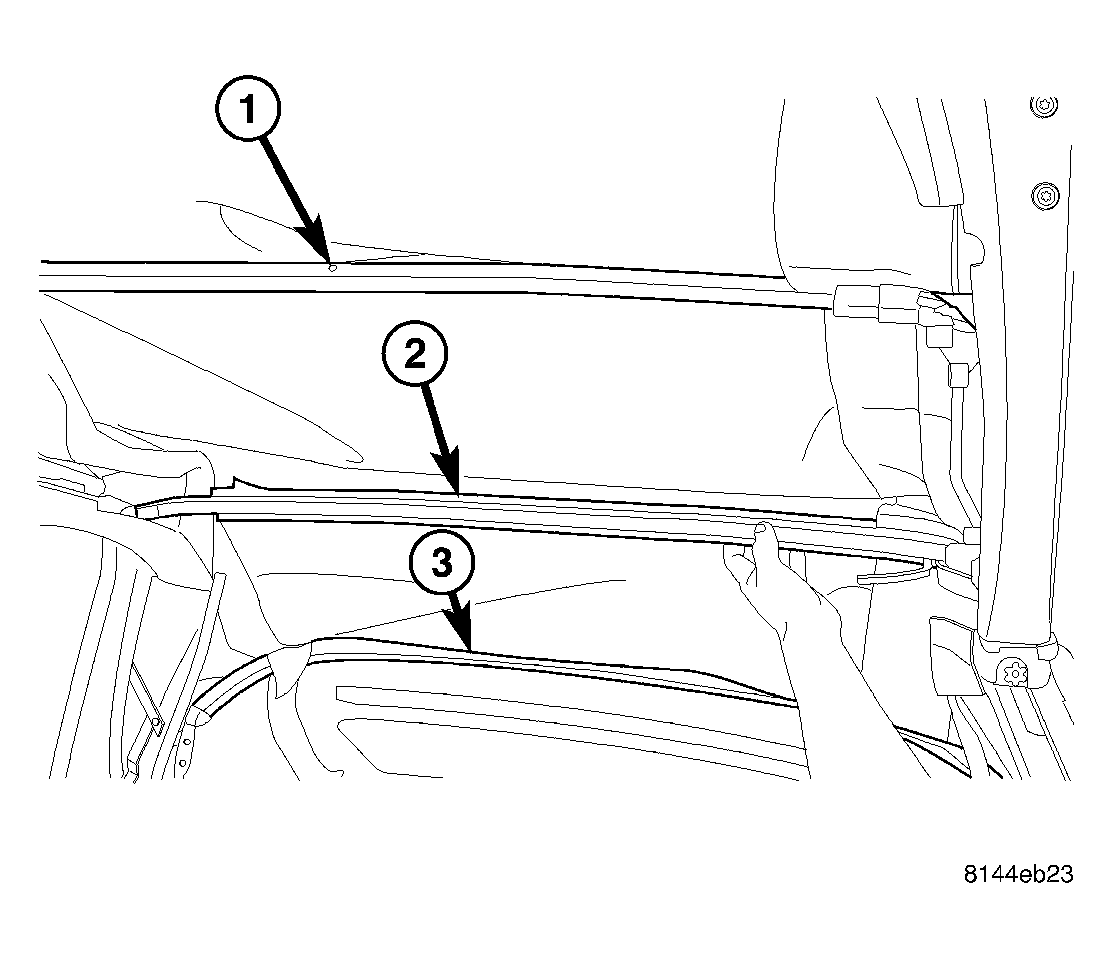

- To install bow(s) place bow into position. See Fig 1.
1 - BOW 1 2 - BOW 2 3 - BOW 3 - Connect both stay pads from number 3 bow.
- Install four screws attaching bow.
- With the bow installed, start plastic retainer strip into position.
- Snap top cover retainer strip into channel in roof bows, by tapping with a hand or a soft mallet.
- Install headliner. (Refer to BODY/CONVERTIBLE TOP/HEADLINER - INSTALLATION) .
- Lower top and latch top.
- Raise all windows.
