Specifications - Weld Locations - Jr-41 Only

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
INDEX

DESCRIPTION FIGURE
REAR RAIL BUMPER REINFORCEMENT ATTACHING REINFORCEMENT TO CENTER FLOOR PAN SIDE RAIL Fig 1.
CENTER PILLAR REINFORCEMENT TO INNER CENTER PILLAR TO INNER SIDE ROOF RAIL TO INNER SIDE Fig 2.
TAPPING PLATES, RETAINER & REINFORCEMENT TO CENTER PILLAR REINFORCEMENT Fig 3.
OUTER WHEELHOUSE TO UPPER INNER QUARTER PANEL REINFORCEMENT Fig 4.
INNER WINDSHIELD FRAME TO OUTER WINDSHIELD FRAME TO HINGE PILLAR REINFORCEMENT Fig 5.
CENTER PILLAR REINFORCEMENT & SILL BEAM REINFORCEMENT TO BODY SIDE APERTURE Fig 6.
CENTER PILLAR REINFORCEMENT TO BODY SIDE APERTURE Fig 7.
CENTER PILLAR REINFORCEMENT TO CENTER ROOF SUPPORT TO BODY SIDE APERTURE Fig 8.
LOWER DECK OPENING REINFORCEMENT TO LOWER DECK OPENING PANEL Fig 9.
CHILD SEAT TETHERS ANCHOR & SHOULDER BELT REINFORCEMENT TO SHELF PANEL Fig 10.
INNER BODY SIDE SILL TO DASH PANEL TO COWL SIDE PANEL Fig 11.
INNER TO OUTER WINDSHIELD FRAME, OUTER LOAD BEAM & HINGE PILLAR REINFORCEMENT TO BODY SIDE APERTURE Fig 12.
CENTER PILLAR REINFORCEMENT TO INNER CENTER PILLAR TO BODY SIDE APERTURE Fig 13.
INNER CENTER PILLAR, WINDSHIELD FRAME & INNER ROOF RAIL TO BODY SIDE APERTURE Fig 14.
HINGE PILLAR REINFORCEMENT TO SILL BEAM TO SIDE SILL REINFORCEMENT Fig 15.
OUTER REAR WHEELHOUSE & SEAT BELT ANCHOR REINFORCEMENT TO BODY SIDE APERTURE Fig 16.
INNER QUARTER PANEL REINFORCEMENT TO INNER QUARTER PANEL TO BODY SIDE APERTURE Fig 17.
DRIP RAIL/ROOF SUPPORT TO BODY SIDE APERTURE Fig 18.
OUTER WINDSHIELD FRAME TO INNER WINDSHIELD FRAME TO COWL SIDE PANEL Fig 19.
OUTER REAR WHEELHOUSE & REAR SILL TO BODY SIDE APERTURE ROOF BOWS TO CENTER PILLAR REINFORCEMENT Fig 20.
REAR INNER WHEELHOUSE TO REAR OUTER WHEELHOUSE Fig 21.
INNER BODY SILL TO HINGE PILLAR REINFORCEMENT TO SILL BEAM TO BODY SIDE APERTURE Fig 22.
INNER SILL EXTENSION TO SIDE SILL REINFORCEMENT TO BODY SIDE APERTURE & INNER REAR WHEELHOUSE Fig 23.
REAR SHELF SUPPORT TO WHEELHOUSE TO REAR OUTER WHEELHOUSE Fig 24.
UPPER OUTER LOAD BEAM TO UPPER INNER LOAD BEAM TO BODY SIDE APERTURE Fig 25.
INNER BODY SIDE SILL TO COWL SIDE PANEL TO BODY SIDE APERTURE TO DASH PANEL Fig 26.
REAR SHELF PANEL SUPPORTS TO WHEELHOUSE TO SHELF PANEL REINFORCEMENT Fig 27.
LOWER DECK OPENING PANEL TO QUARTER EXTENSION TO REAR FLOOR PAN Fig 28.
REAR FLOOR PAN SIDE RAIL TO LOWER DECK OPENING PANEL/REAR WHEELHOUSE TO QUARTER EXTENSION TO REAR FLOOR PAN Fig 29.
INNER WINDSHIELD FRAME TO WINDSHIELD FRAME & REAR WINDOW FRAME TO UPPER INNER QUARTER PANEL TO OUTER ROOF PANEL Fig 30.
REAR BUMPER ATTACHING REINFORCEMENT TO REAR RAIL BUMPER ATTACHING BRACKET Fig 31.
REAR SHELF PANEL SUPPORT TO REINFORCEMENT TO INNER REAR WHEELHOUSE TO REAR SHOCK MOUNTING BRACKET Fig 32.
INNER UPPER QUARTER PANEL TO REINFORCEMENT TO OUTER REAR WHEELHOUSE TO BODY SIDE APERTURE Fig 33.
INNER UPPER QUARTER PANEL REINFORCEMENT TO BODY SIDE APERTURE TO OUTER QUARTER PANEL Fig 34.
FRONT CONSOLE BRACKET TO FRONT FLOOR PAN Fig 35.
CROSSMEMBER REINFORCEMENT, CROSSMEMBER TO REAR FLOOR PAN Fig 36.
INNER REAR WHEELHOUSE TO REAR FLOOR PAN Fig 37.
SILL EXTENSION REAR WHEELHOUSE TO REAR FLOOR PAN Fig 38.
INNER BODY SIDE SILL TO COWL SIDE PANEL Fig 39.

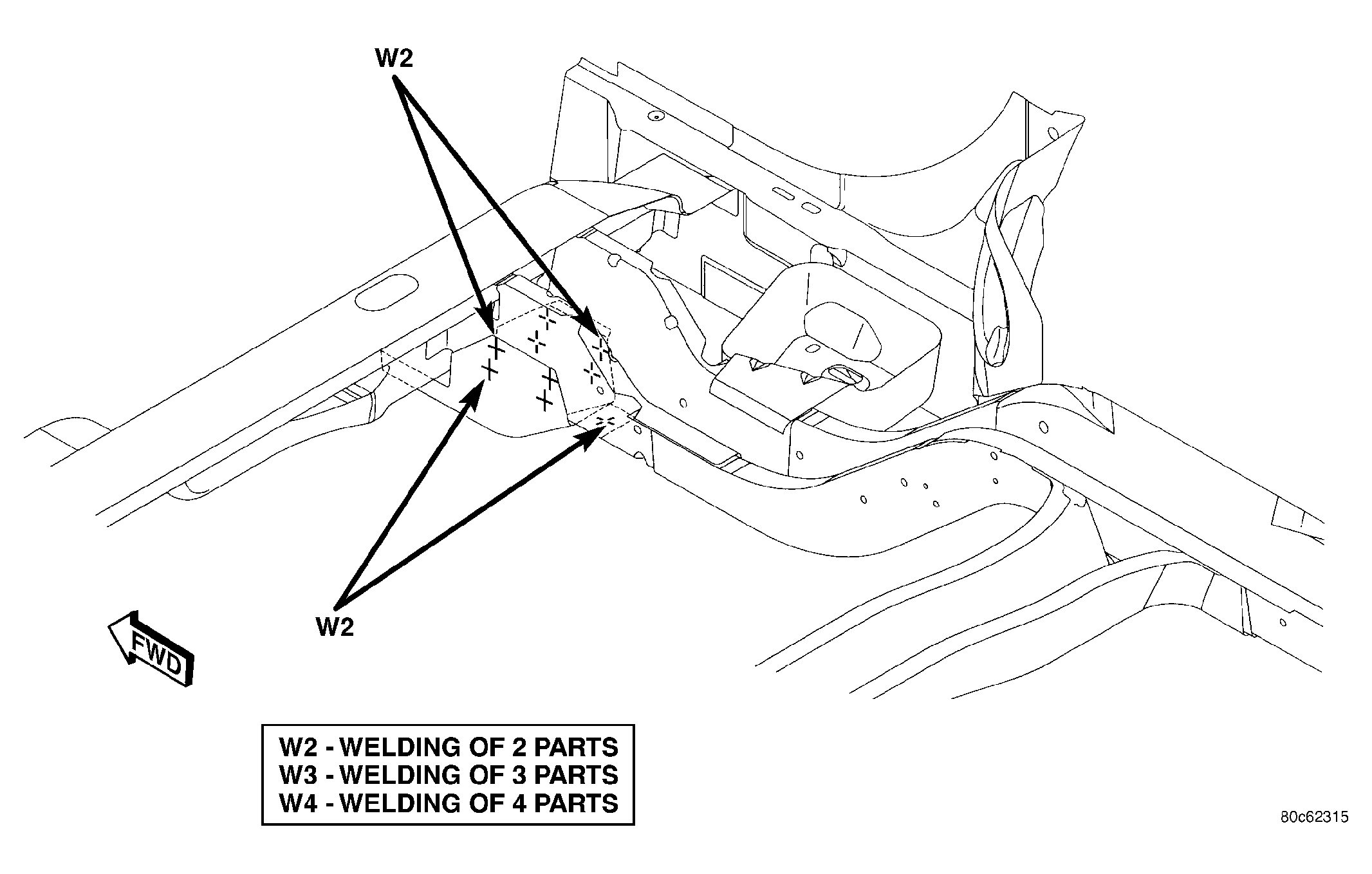

Fig 1: Rear Rail Bumper Reinforcement Attaching Reinforcement To Center Floor Pan Side Rail
GC0031707Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Center Pillar Reinforcement To Inner Center Pillar To Inner Side Roof Rail To In
GC0031782Courtesy of DAIMLERCHRYSLER CORP.

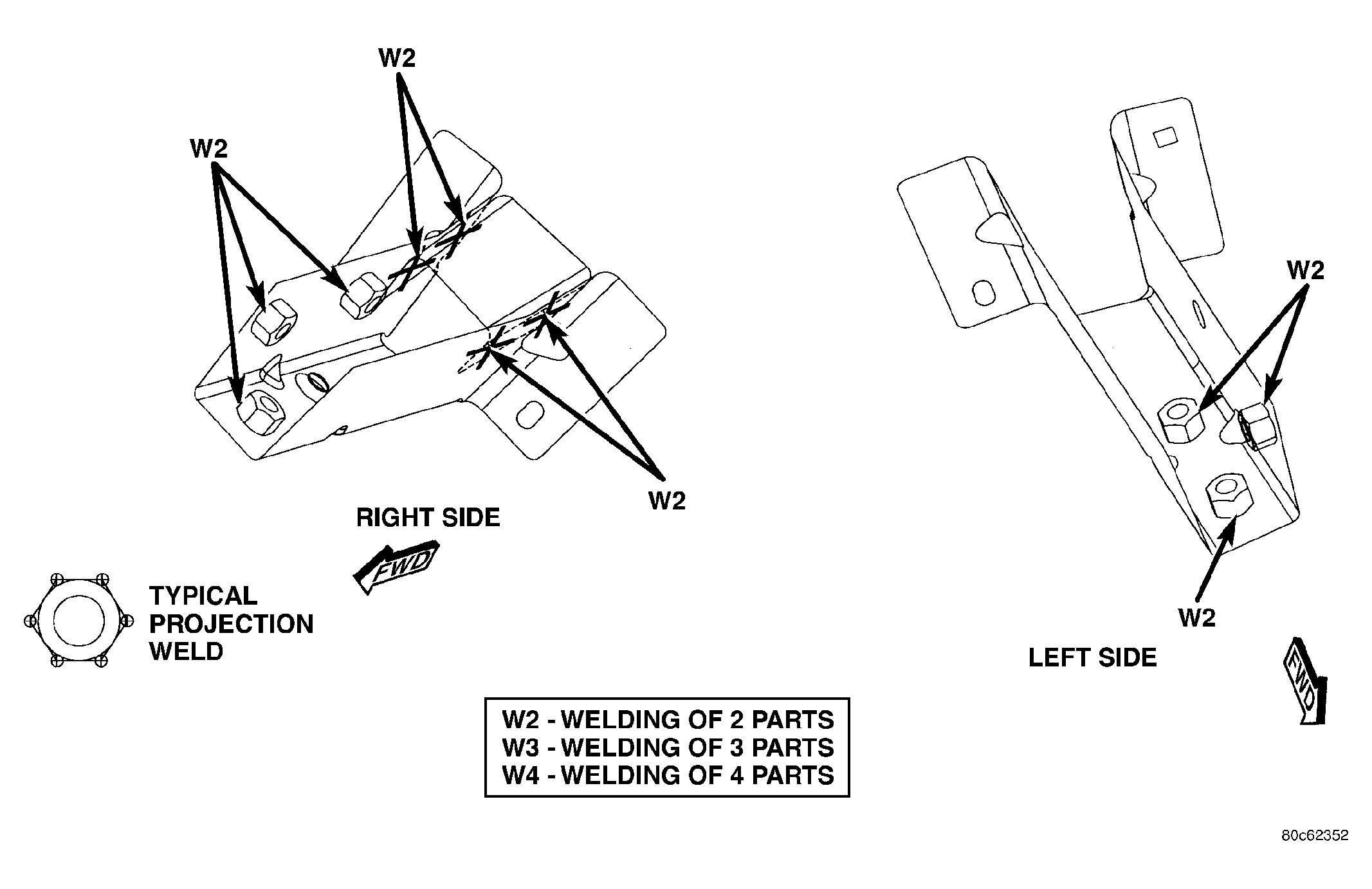

Fig 3: Tapping Plates, Retainer & Reinforcement To Center Pillar Reinforcement
GC0031783Courtesy of DAIMLERCHRYSLER CORP.

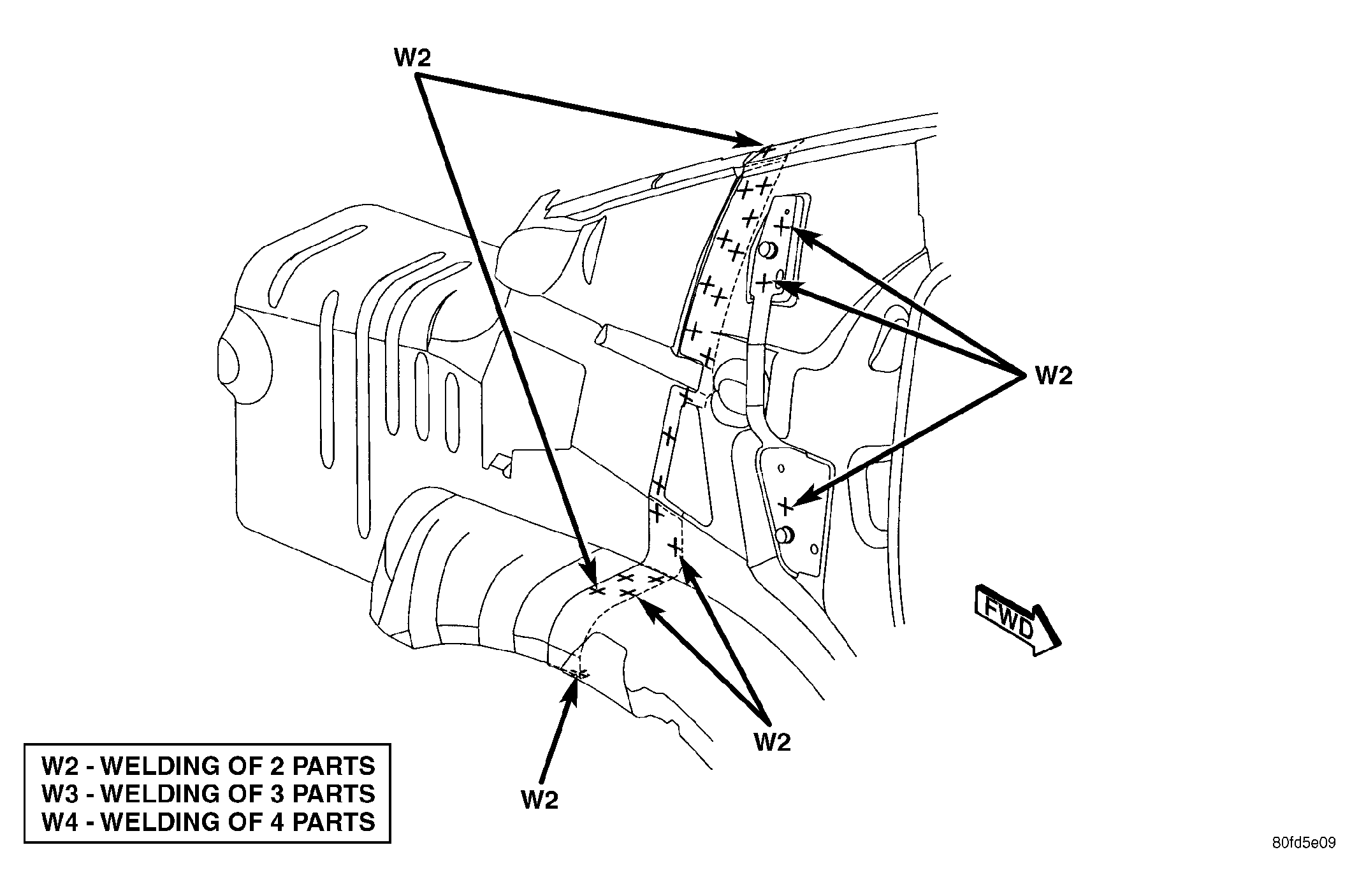

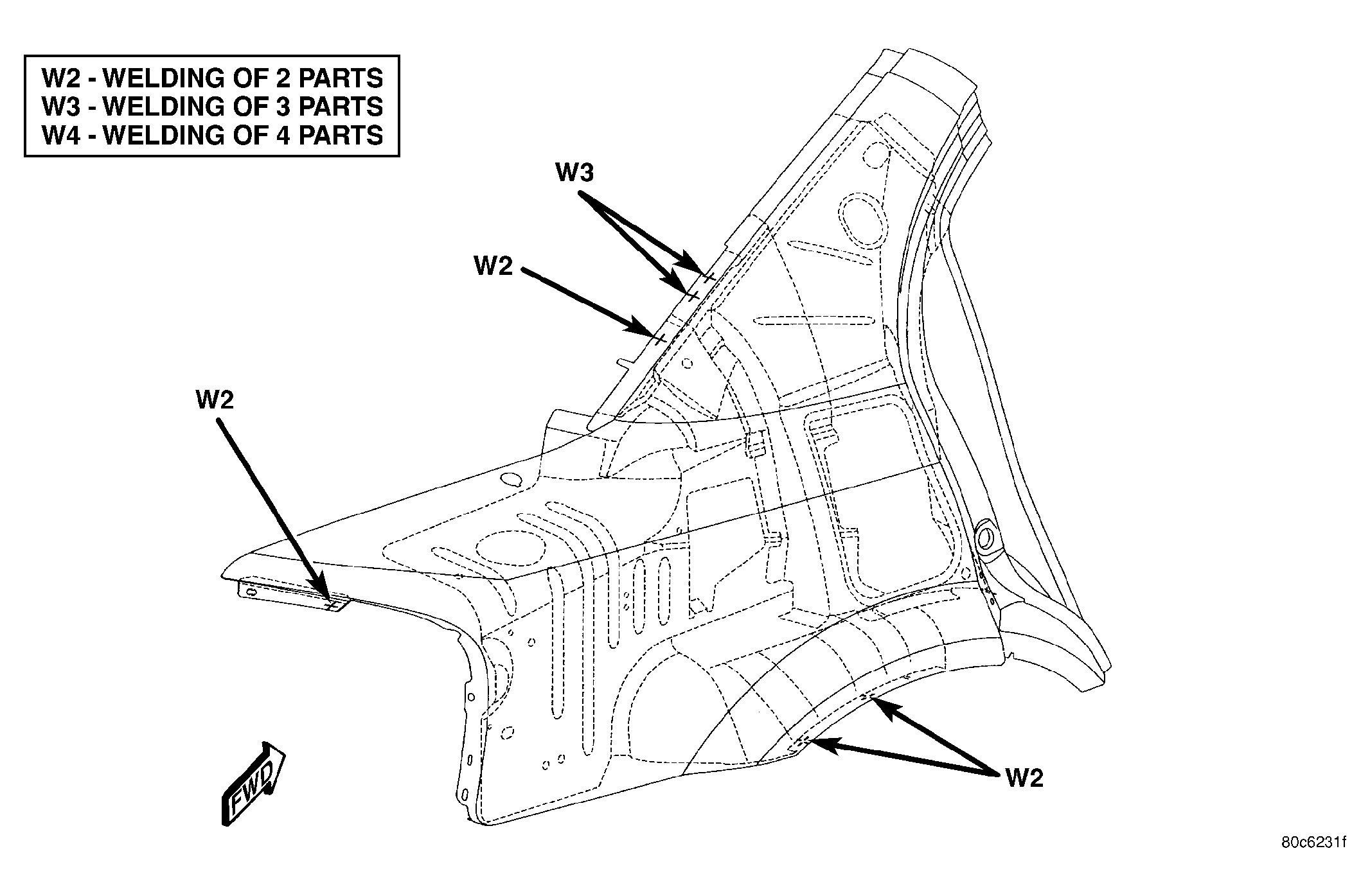

Fig 4: Outer Wheelhouse To Upper Inner Quarter Panel Reinforcement
GC0031814Courtesy of DAIMLERCHRYSLER CORP.

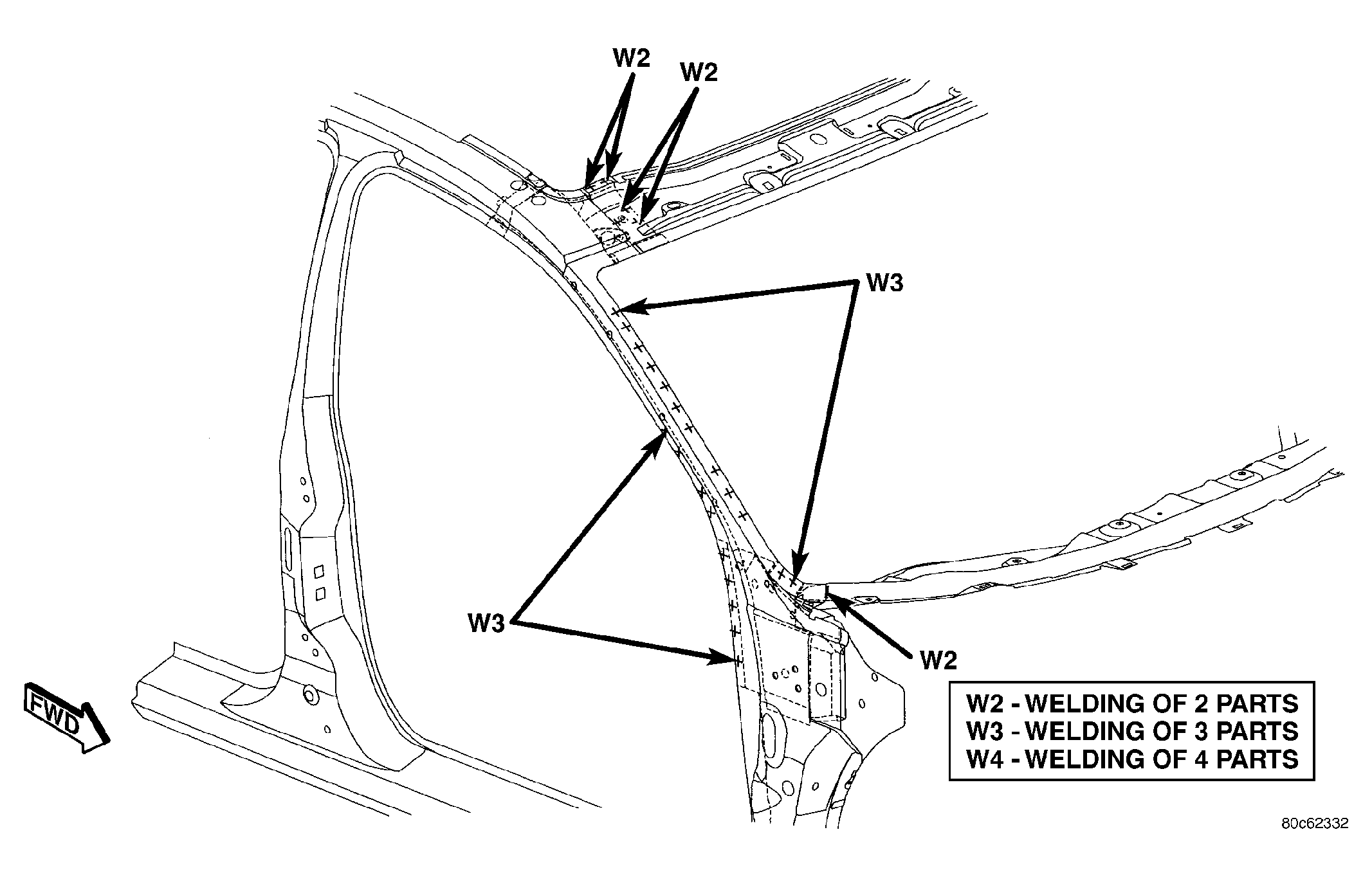

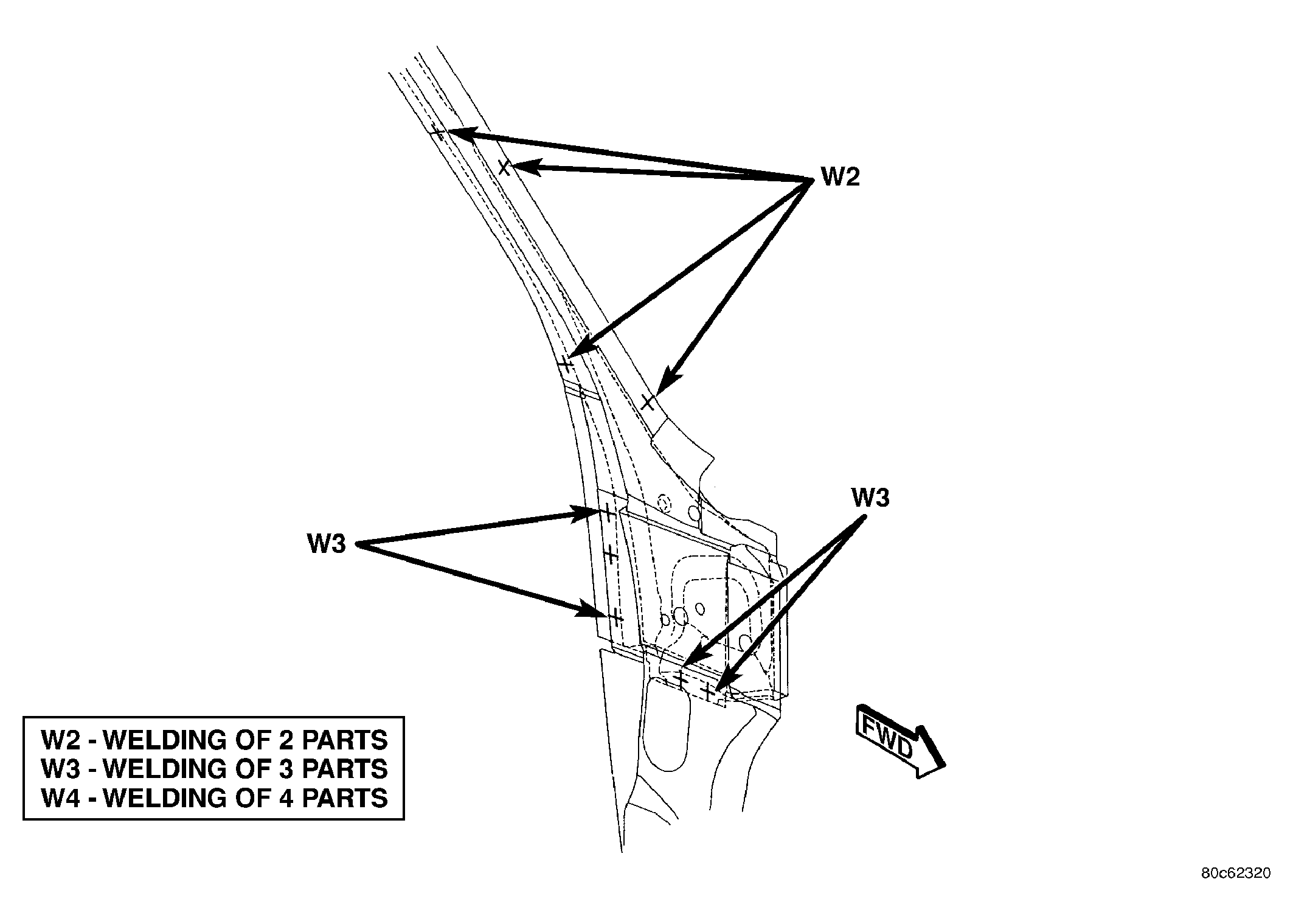

Fig 5: Inner Windshield Frame To Outer Windshield Frame To Hinge Pillar Reinforcement
GC0031784Courtesy of DAIMLERCHRYSLER CORP.

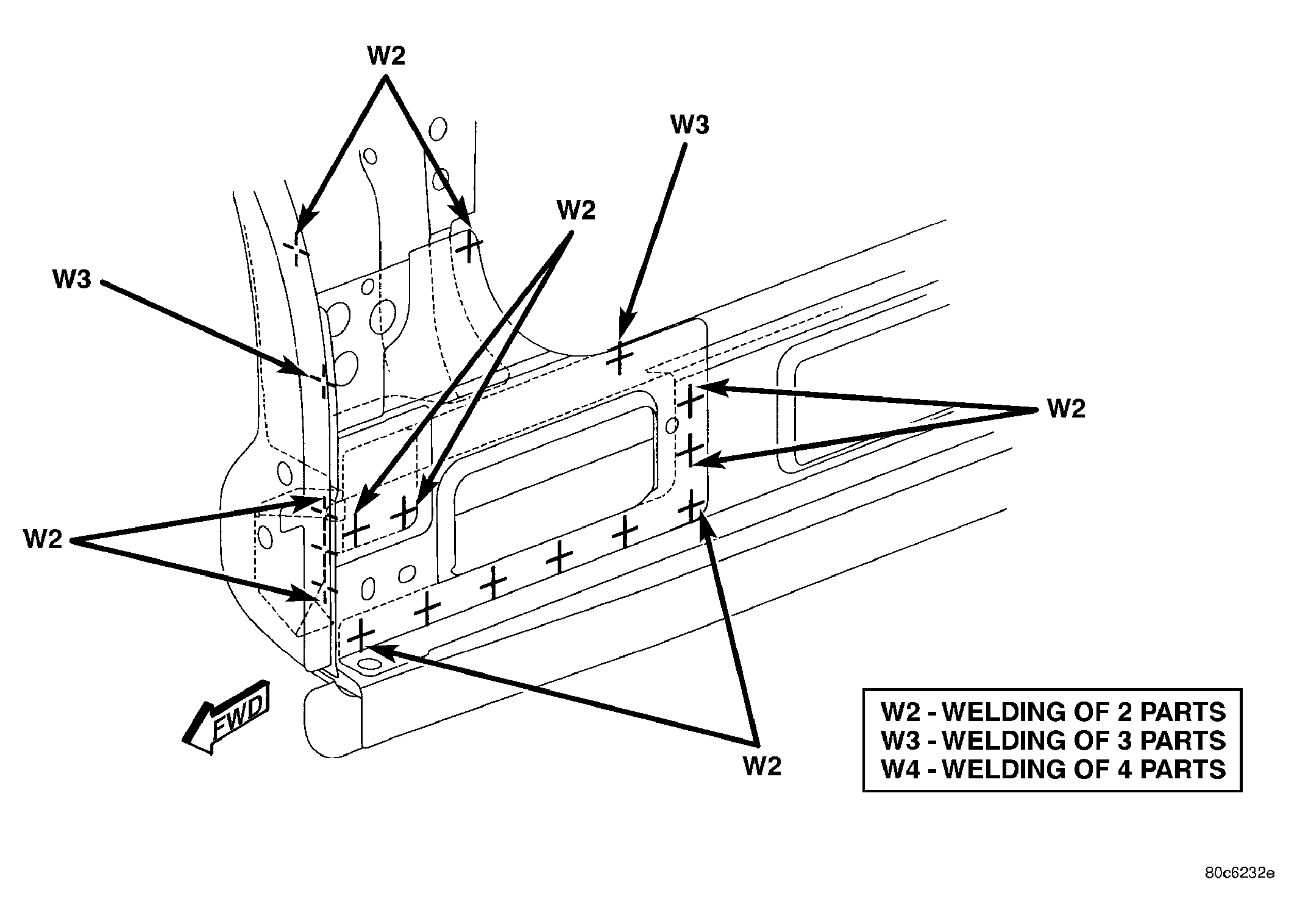

Fig 6: Center Pillar Reinforcement & Sill Beam Reinforcement To Body Side Aperture
GC0031785Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Center Pillar Reinforcement To Body Side Aperture
GC0031786Courtesy of DAIMLERCHRYSLER CORP.

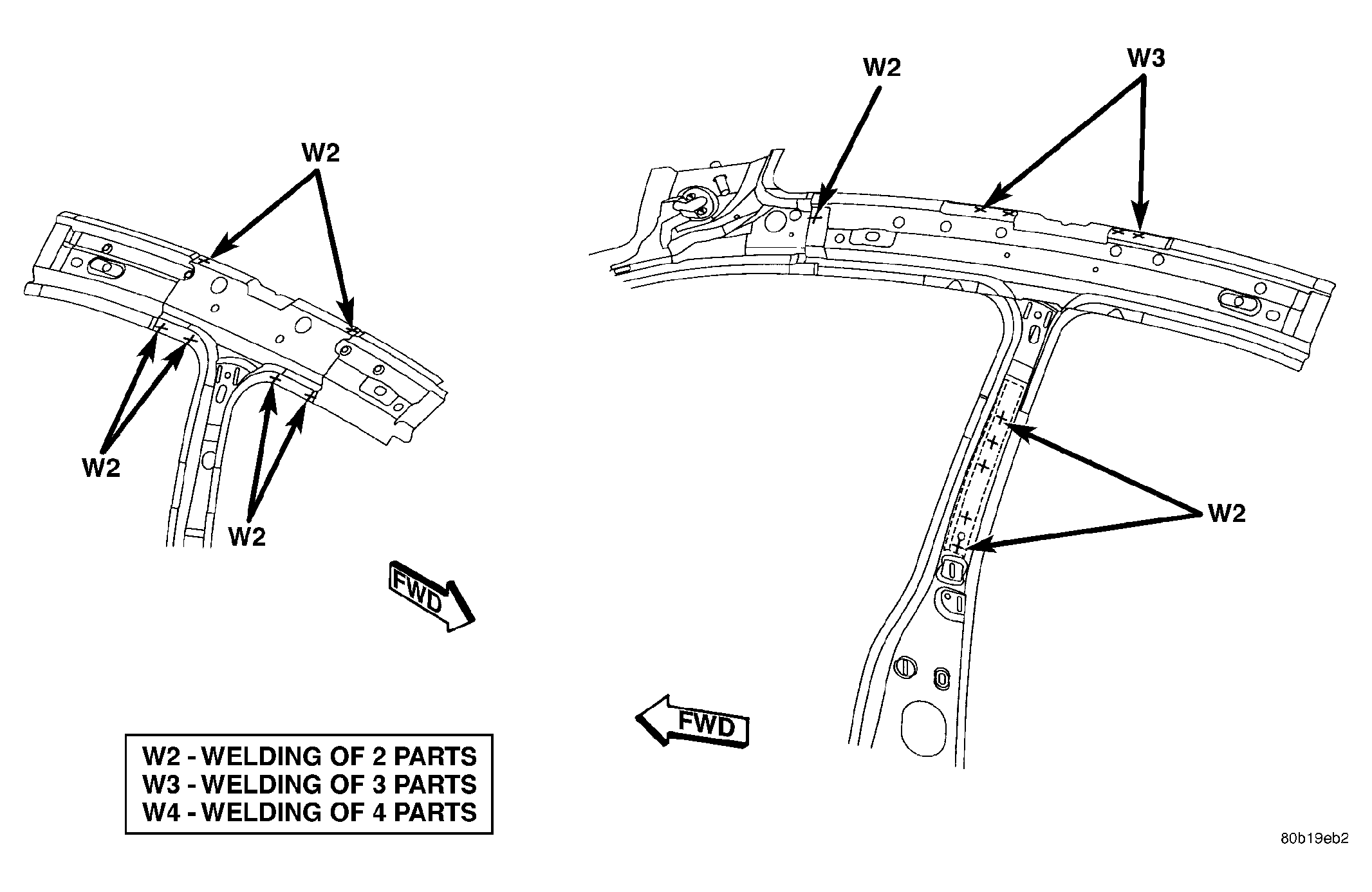

Fig 8: Center Pillar Reinforcement To Center Roof Support To Body Side Aperture
GC0031787Courtesy of DAIMLERCHRYSLER CORP.

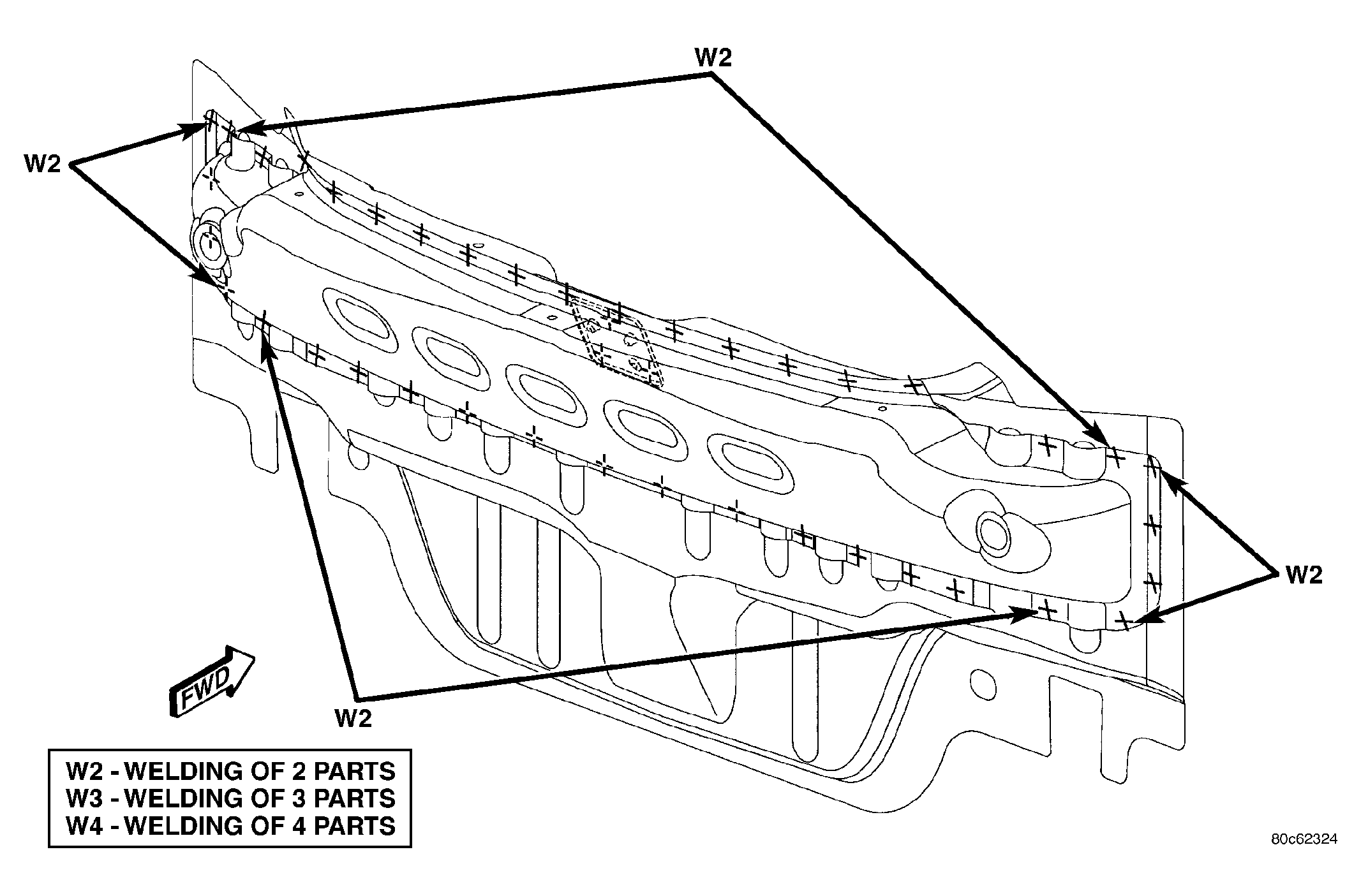

Fig 9: Lower Deck Opening Reinforcement To Lower Deck Opening Panel
GC0031788Courtesy of DAIMLERCHRYSLER CORP.

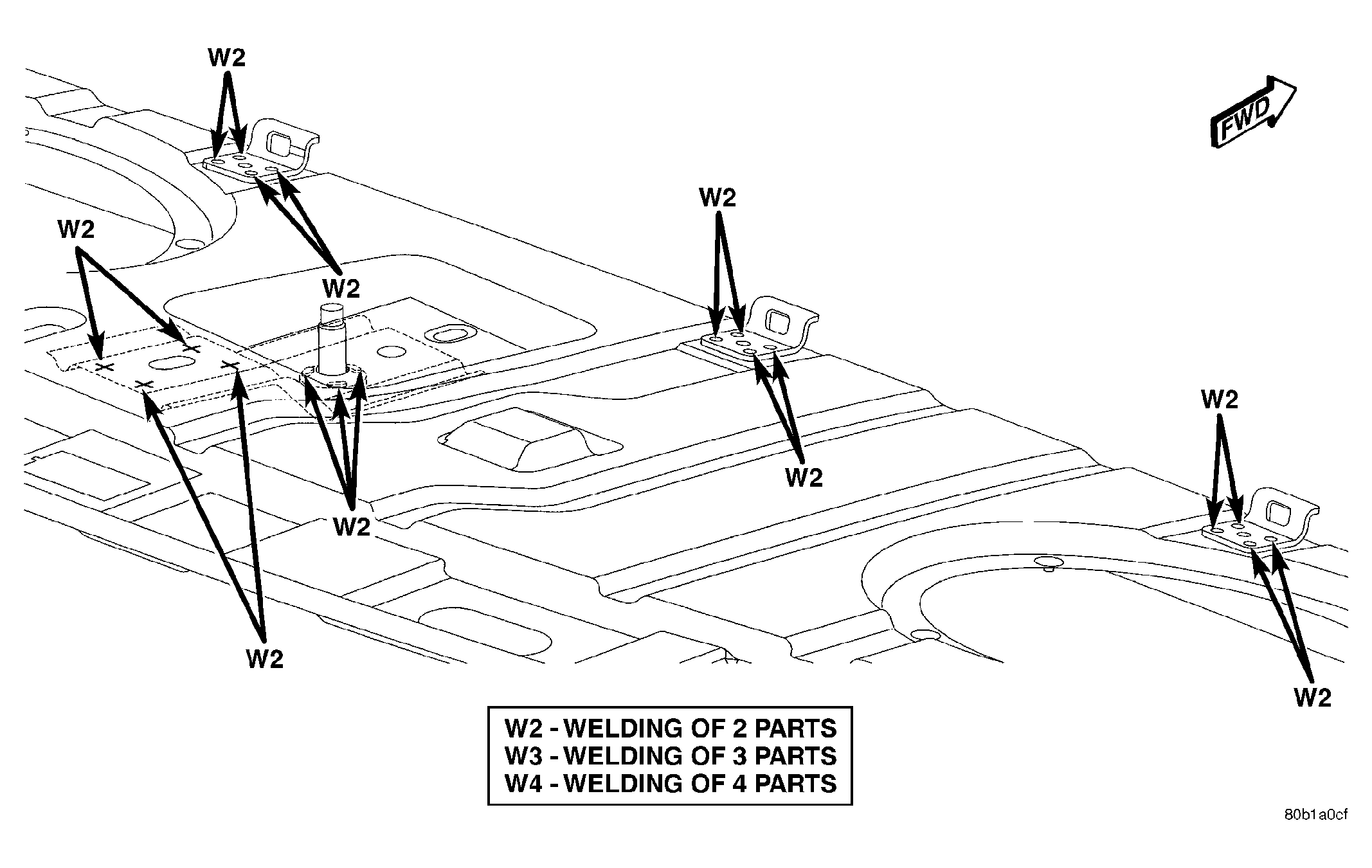

Fig 10: Child Seat Tethers Anchor & Shoulder Belt Reinforcement To Shelf Panel
GC0031789Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Inner Body Side Sill To Dash Panel To Cowl Side Panel
GC0031790Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Inner To Outer Windshield Frame, Outer Load Beam & Hinge Pillar Reinforcement To Body Side Aperture
GC0031791Courtesy of DAIMLERCHRYSLER CORP.

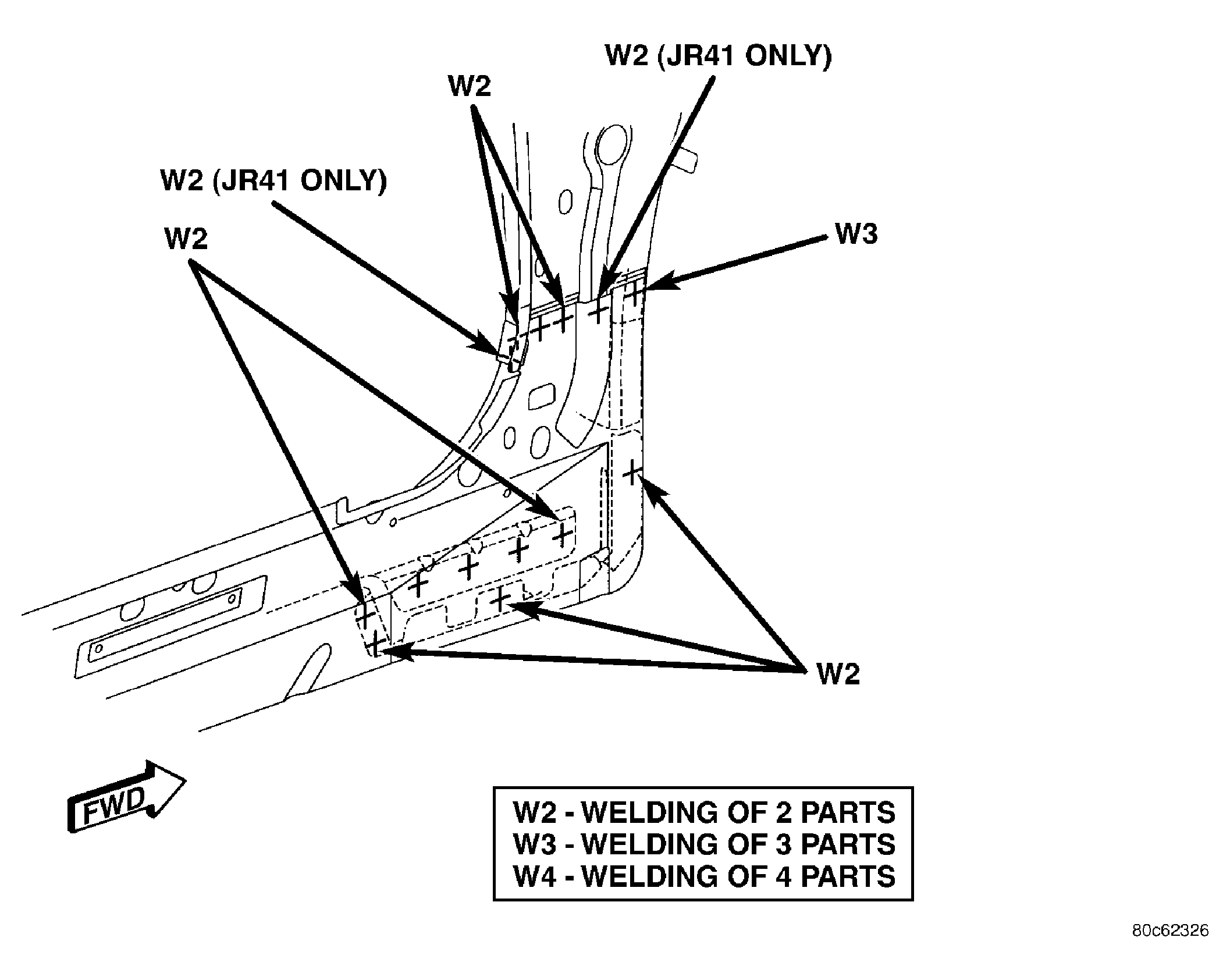

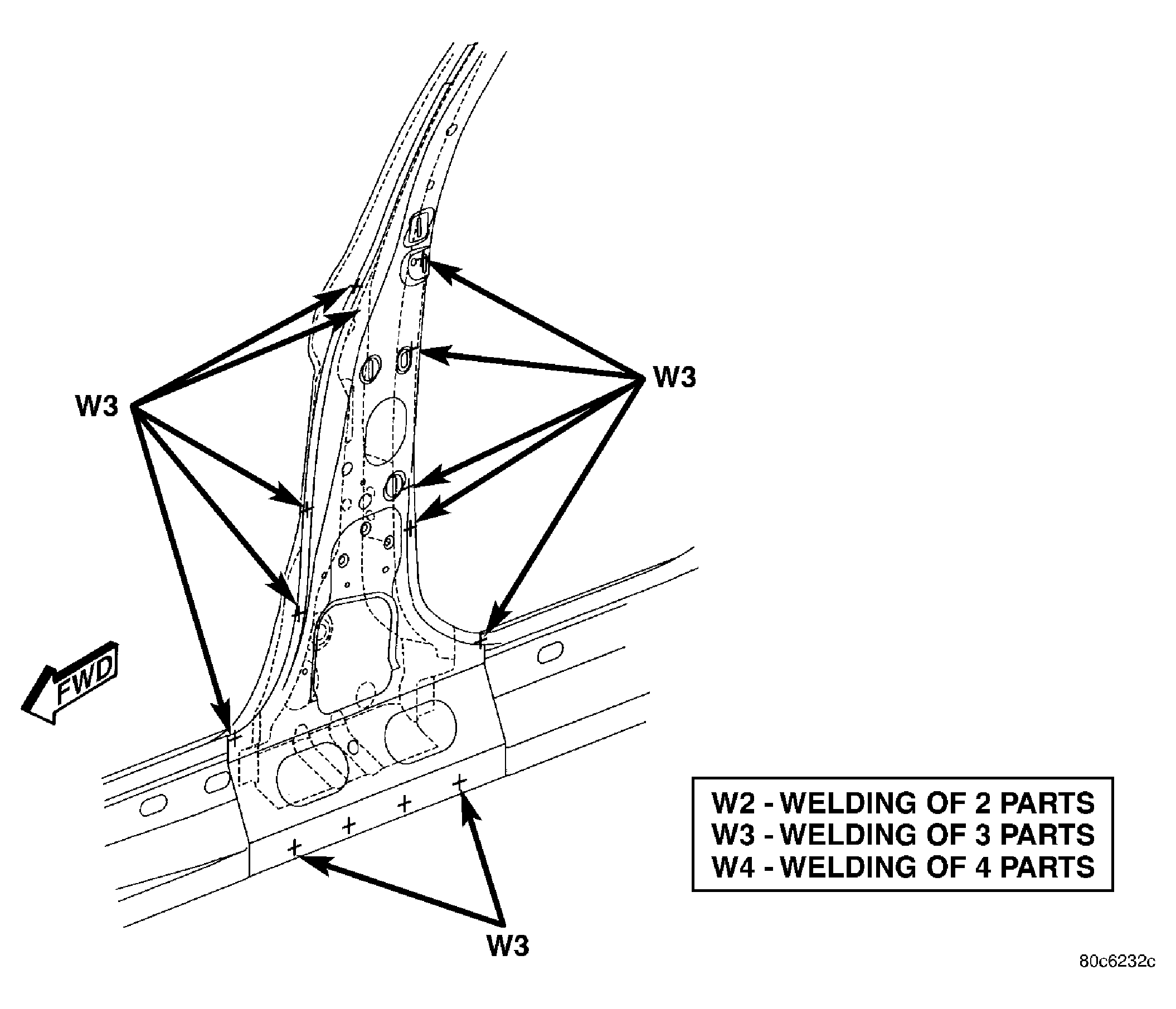

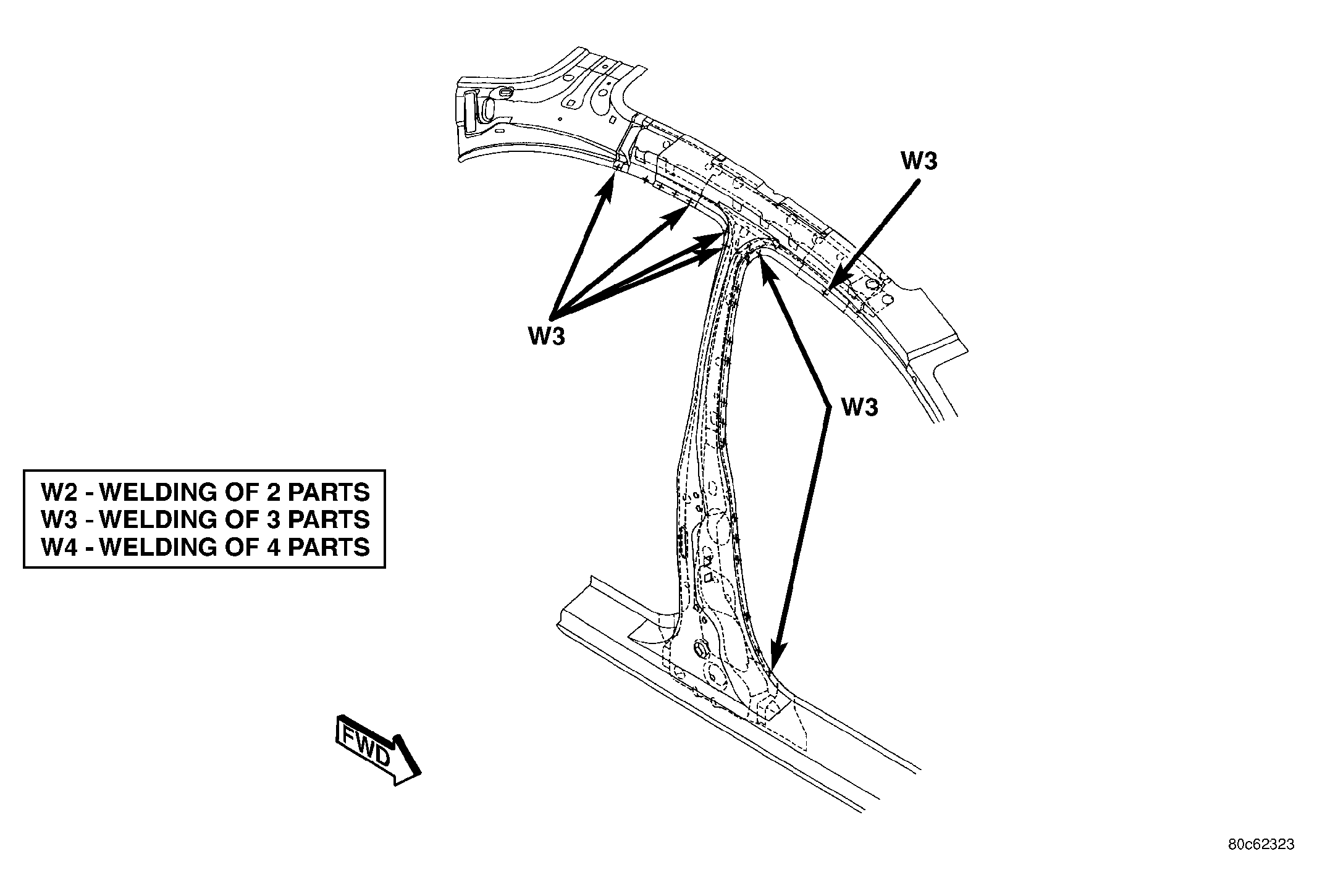

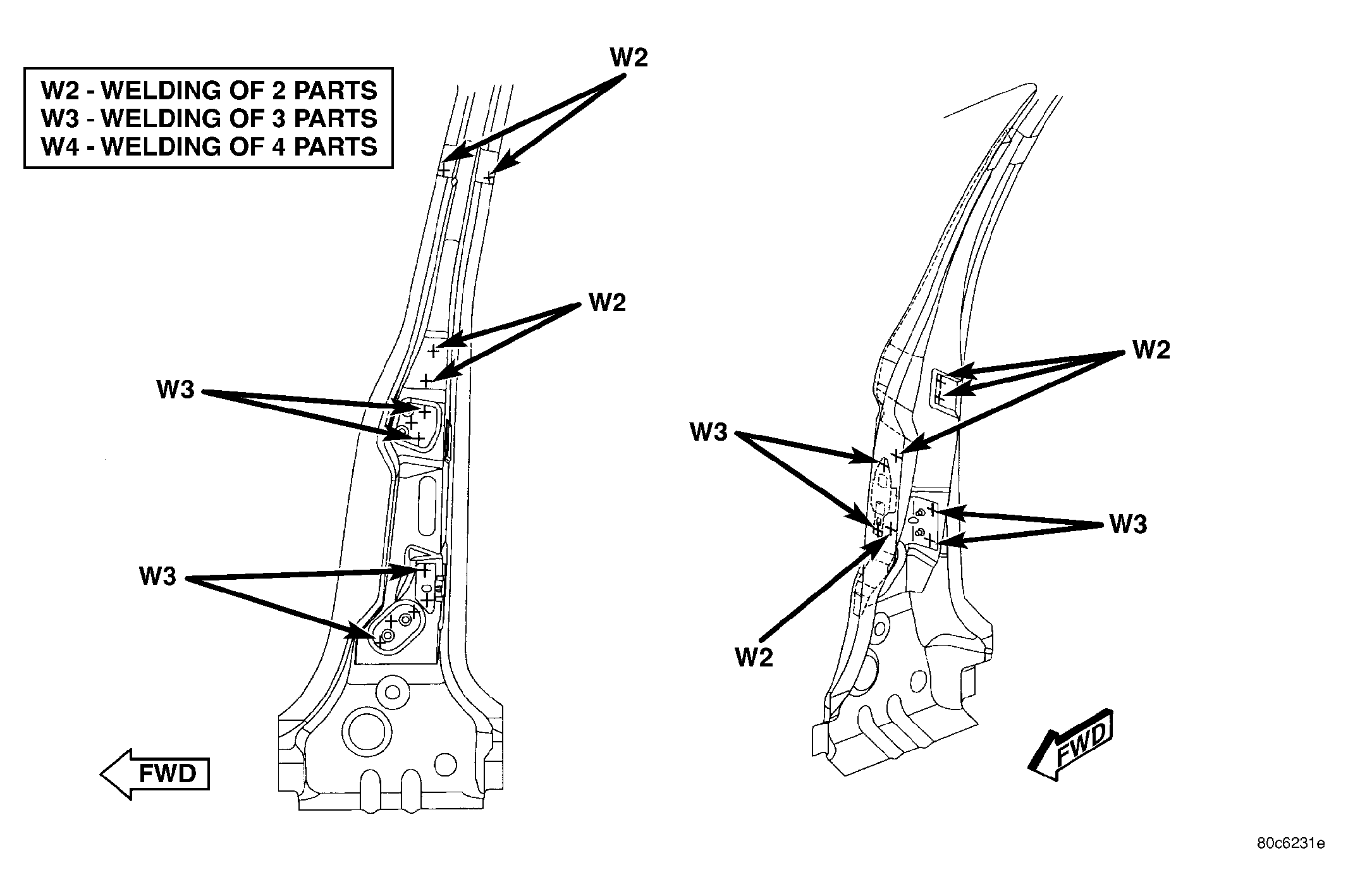

Fig 13: Center Pillar Reinforcement To Inner Center Pillar To Body Side Aperture
GC0031792Courtesy of DAIMLERCHRYSLER CORP.

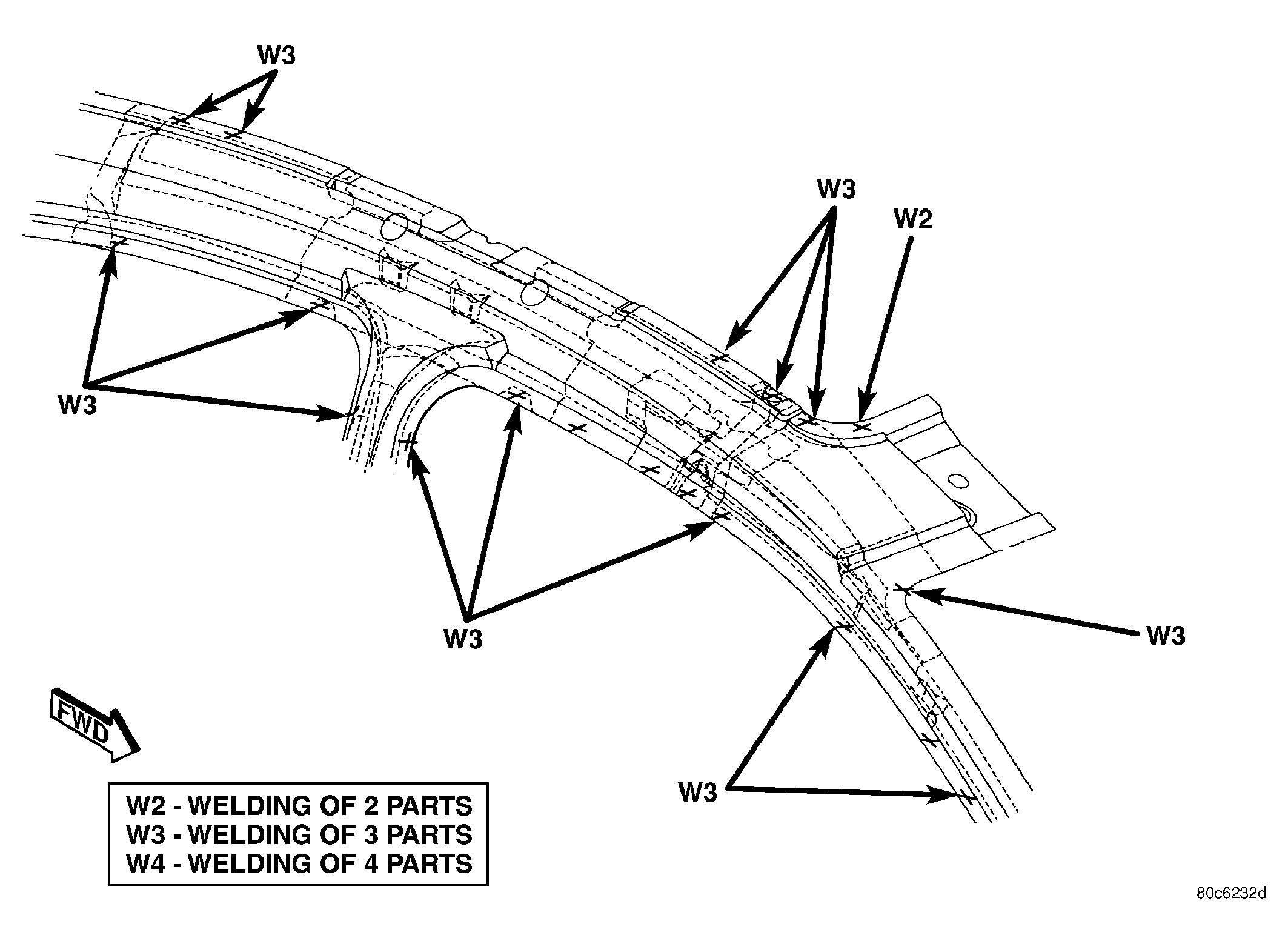

Fig 14: Inner Center Pillar, Windshield Frame & Inner Roof Rail To Body Side Aperture
GC0031793Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Hinge Pillar Reinforcement To Sill Beam To Side Sill Reinforcement
GC0031794Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Outer Rear Wheelhouse & Seat Belt Anchor Reinforcement To Body Side Aperture
GC0031815Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Inner Quarter Panel Reinforcement To Inner Quarter Panel To Body Side Aperture
GC0031816Courtesy of DAIMLERCHRYSLER CORP.

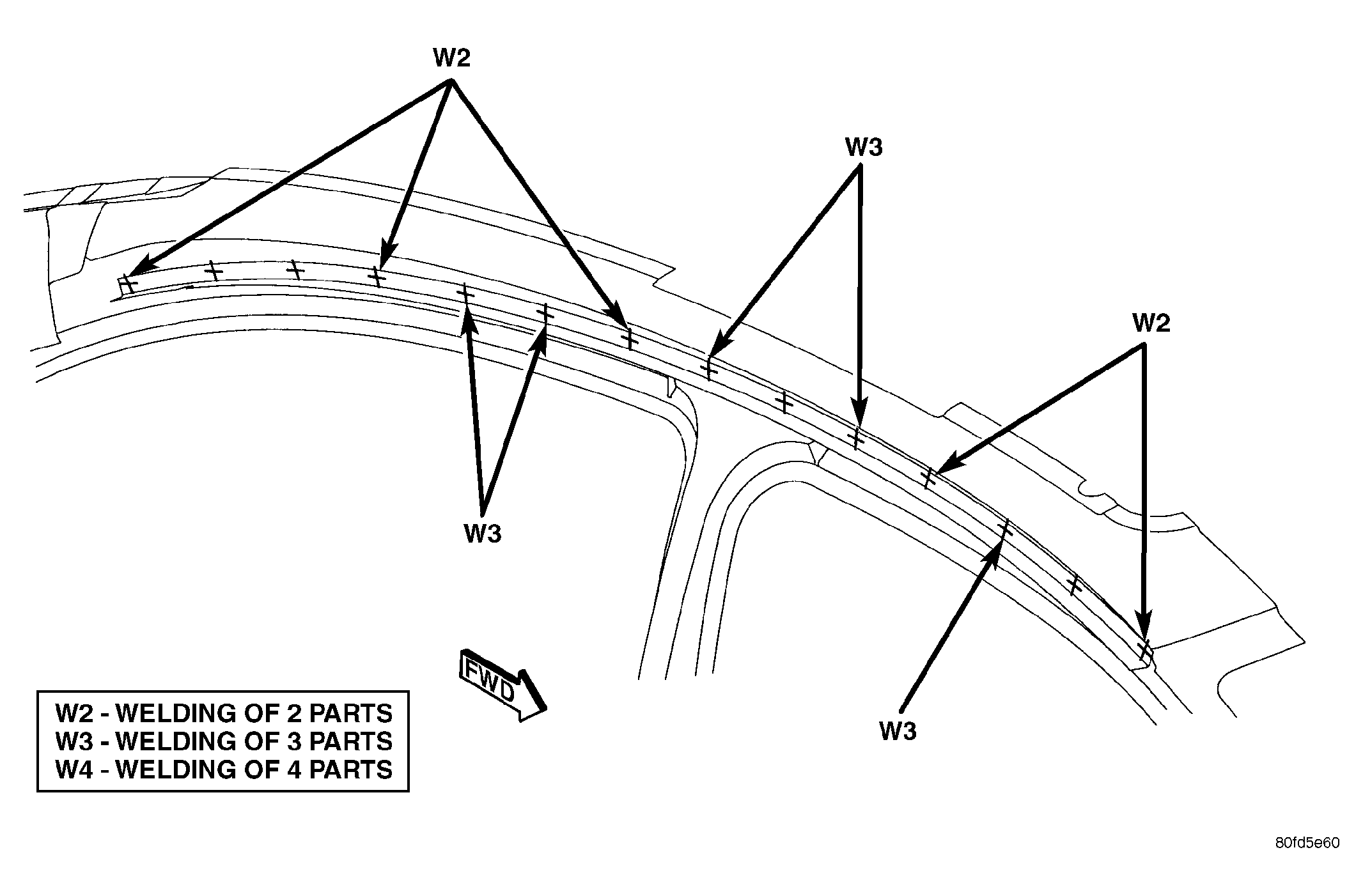

Fig 18: Drip Rail/Roof Support To Body Side Aperture
GC0031817Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Outer Windshield Frame To Inner Windshield Frame To Cowl Side Panel
GC0031798Courtesy of DAIMLERCHRYSLER CORP.

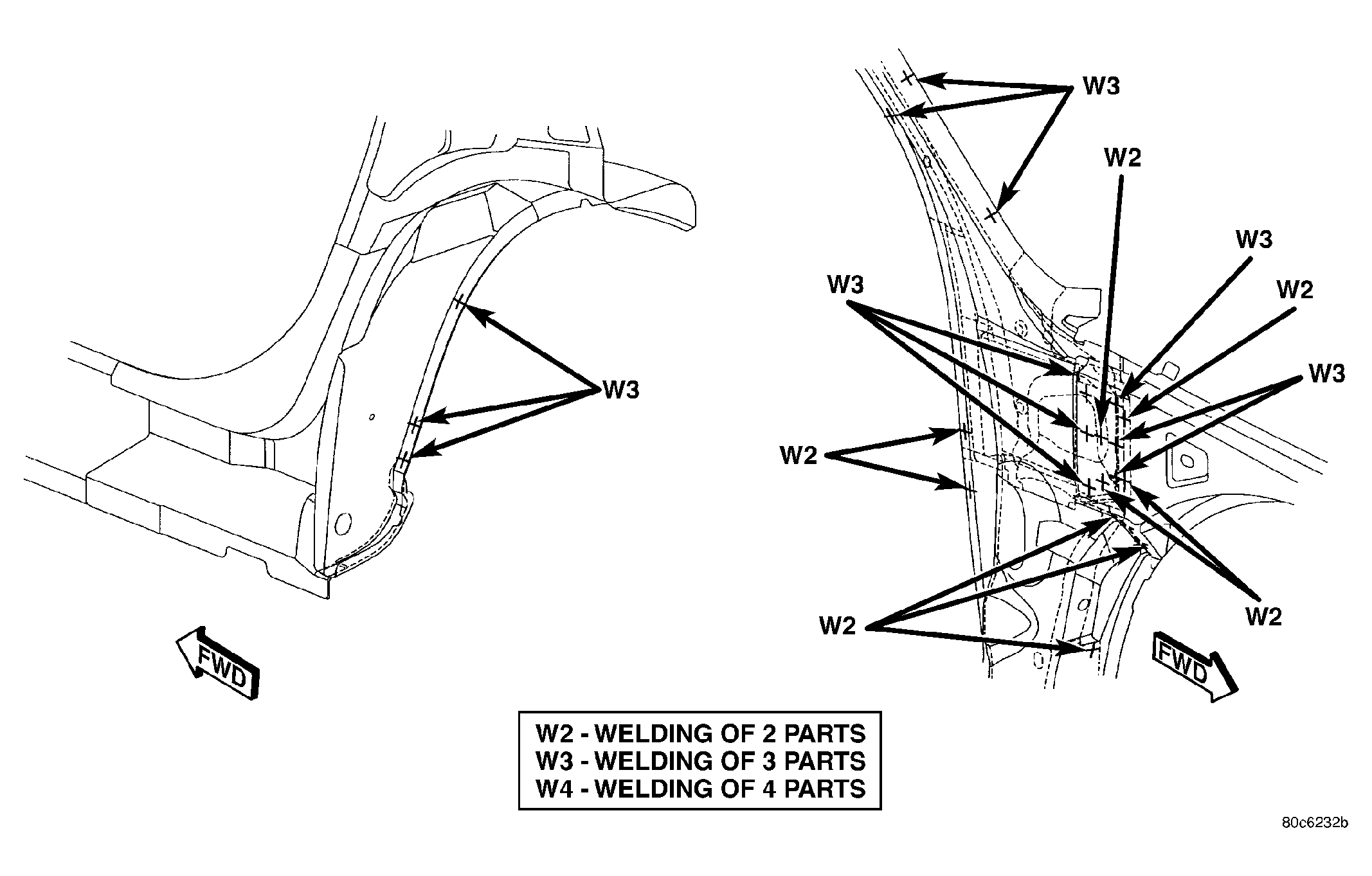

Fig 20: Outer Rear Wheelhouse & Rear Sill To Body Side Aperture Roof Bows To Center Pillar Reinforcement
GC0031799Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Rear Inner Wheelhouse To Rear Outer Wheelhouse
GC0031800Courtesy of DAIMLERCHRYSLER CORP.

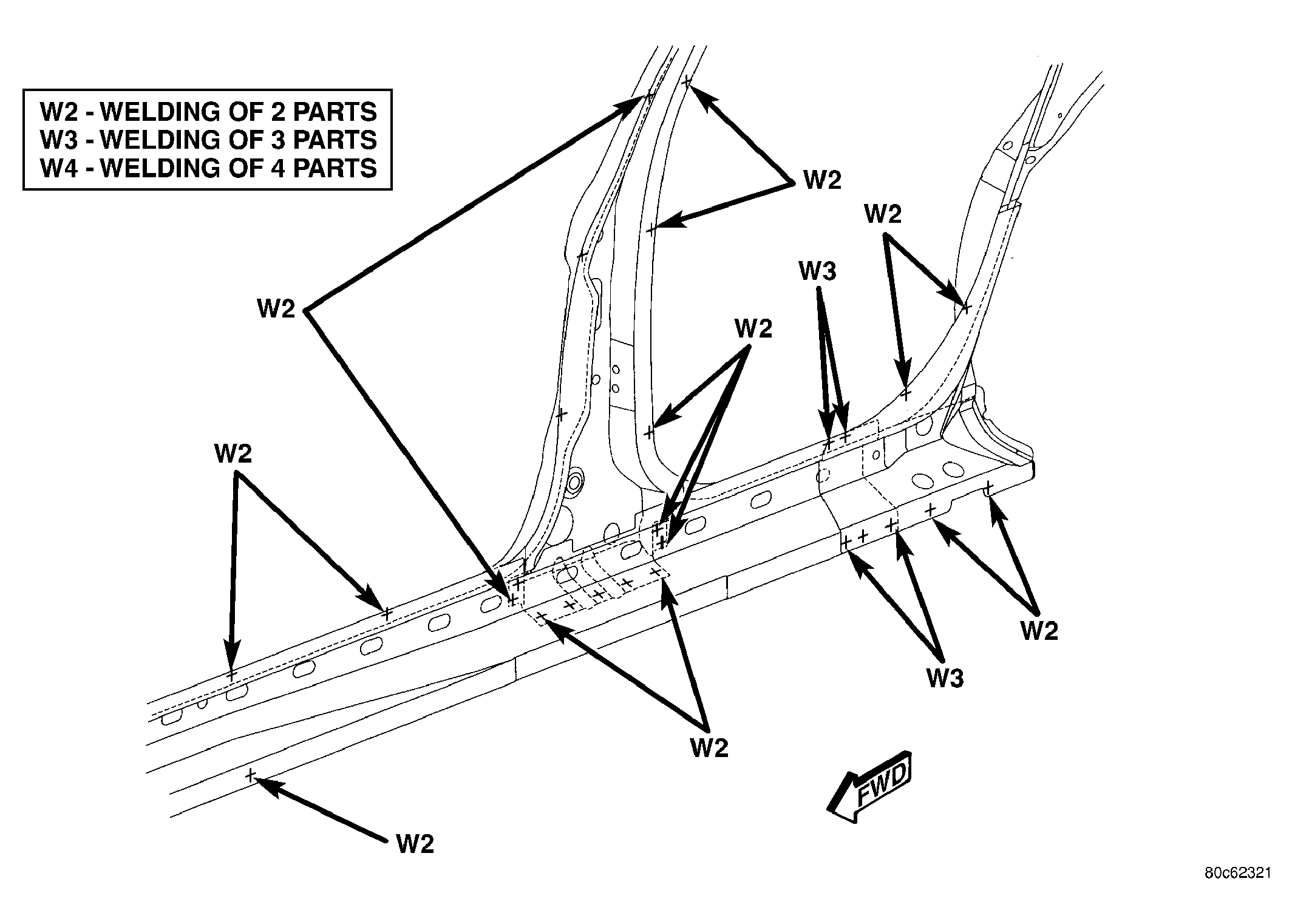

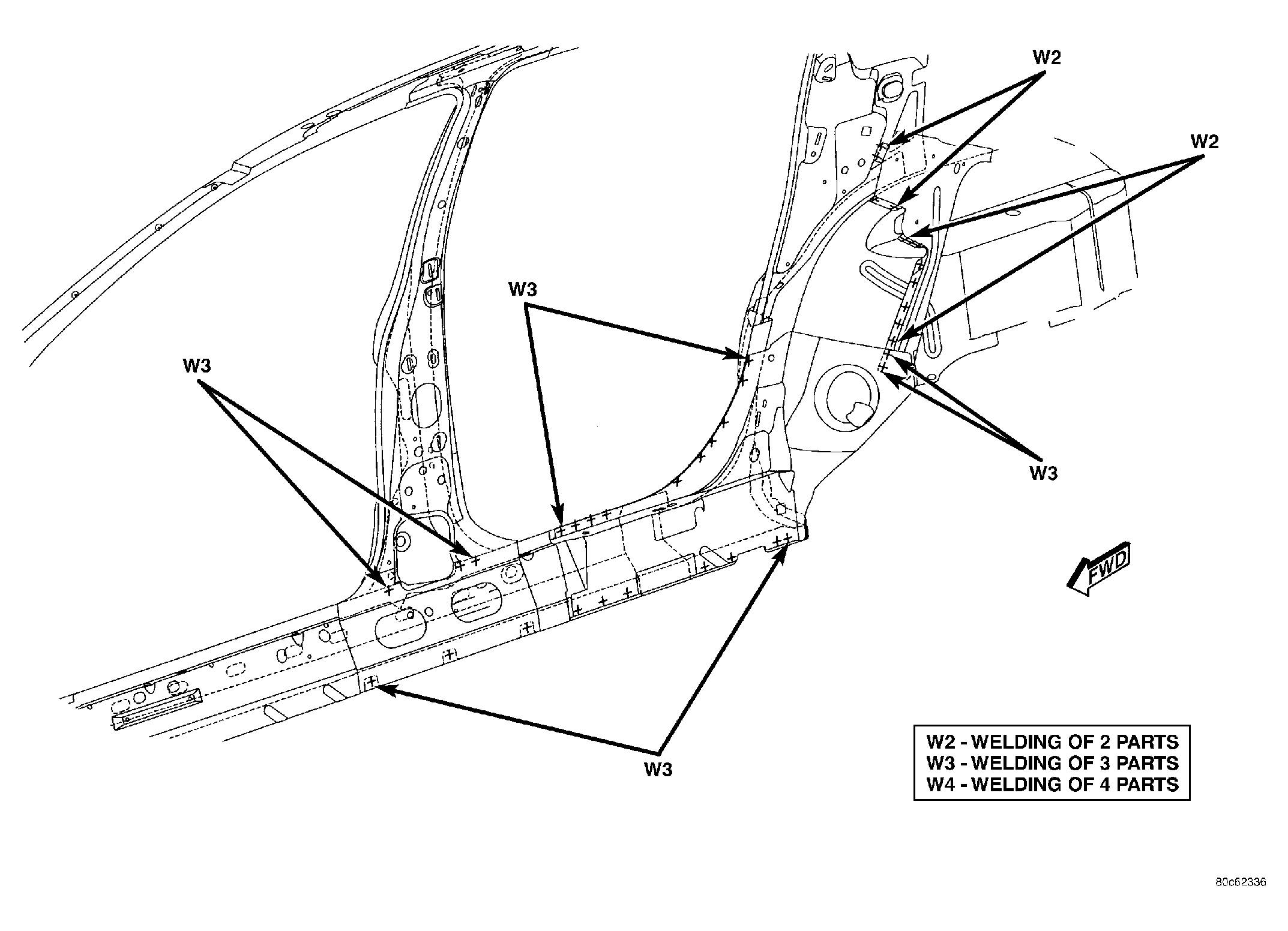

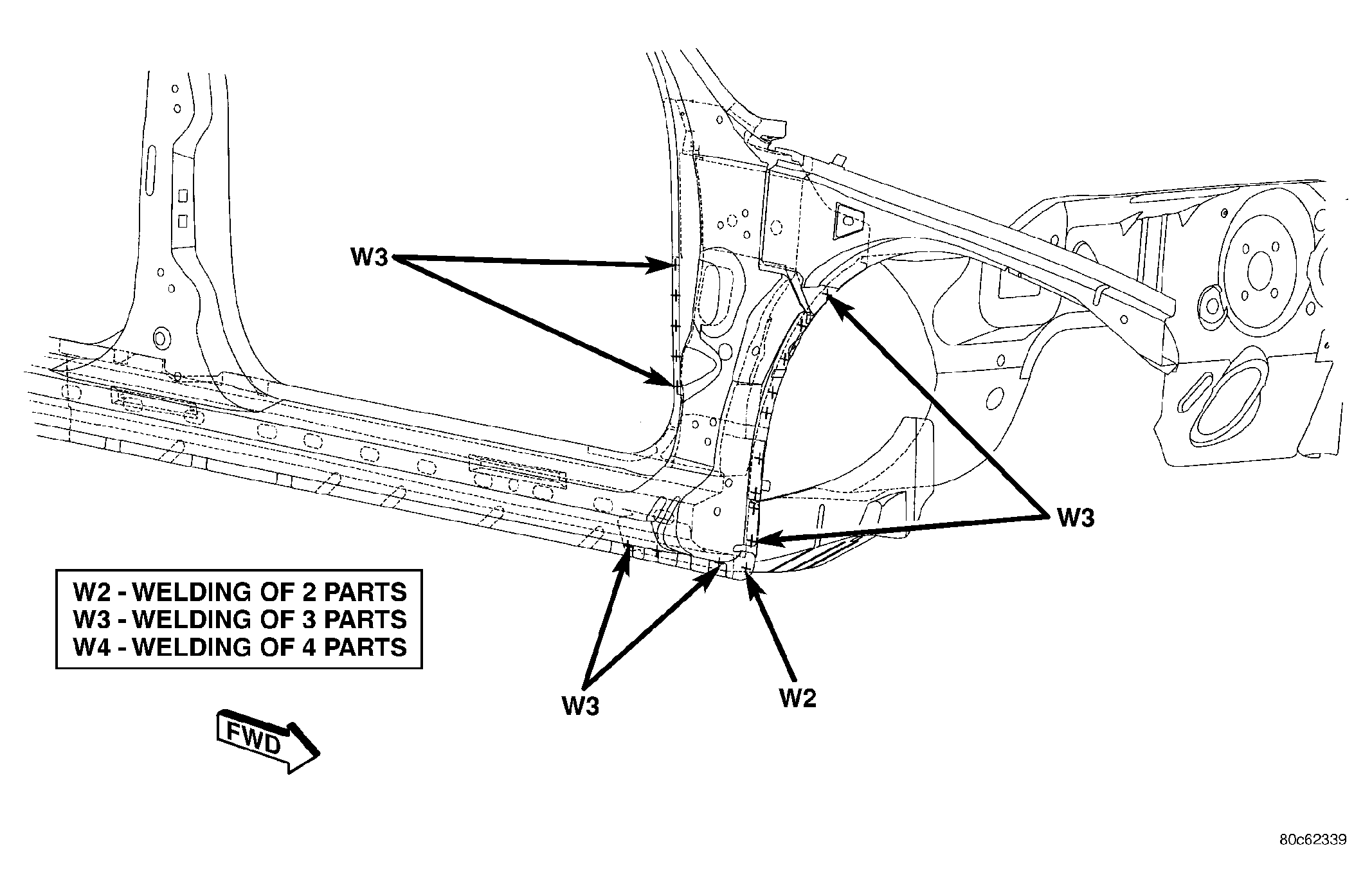

Fig 22: Inner Body Sill To Hinge Pillar Reinforcement To Sill Beam To Body Side Aperture
GC0031801Courtesy of DAIMLERCHRYSLER CORP.

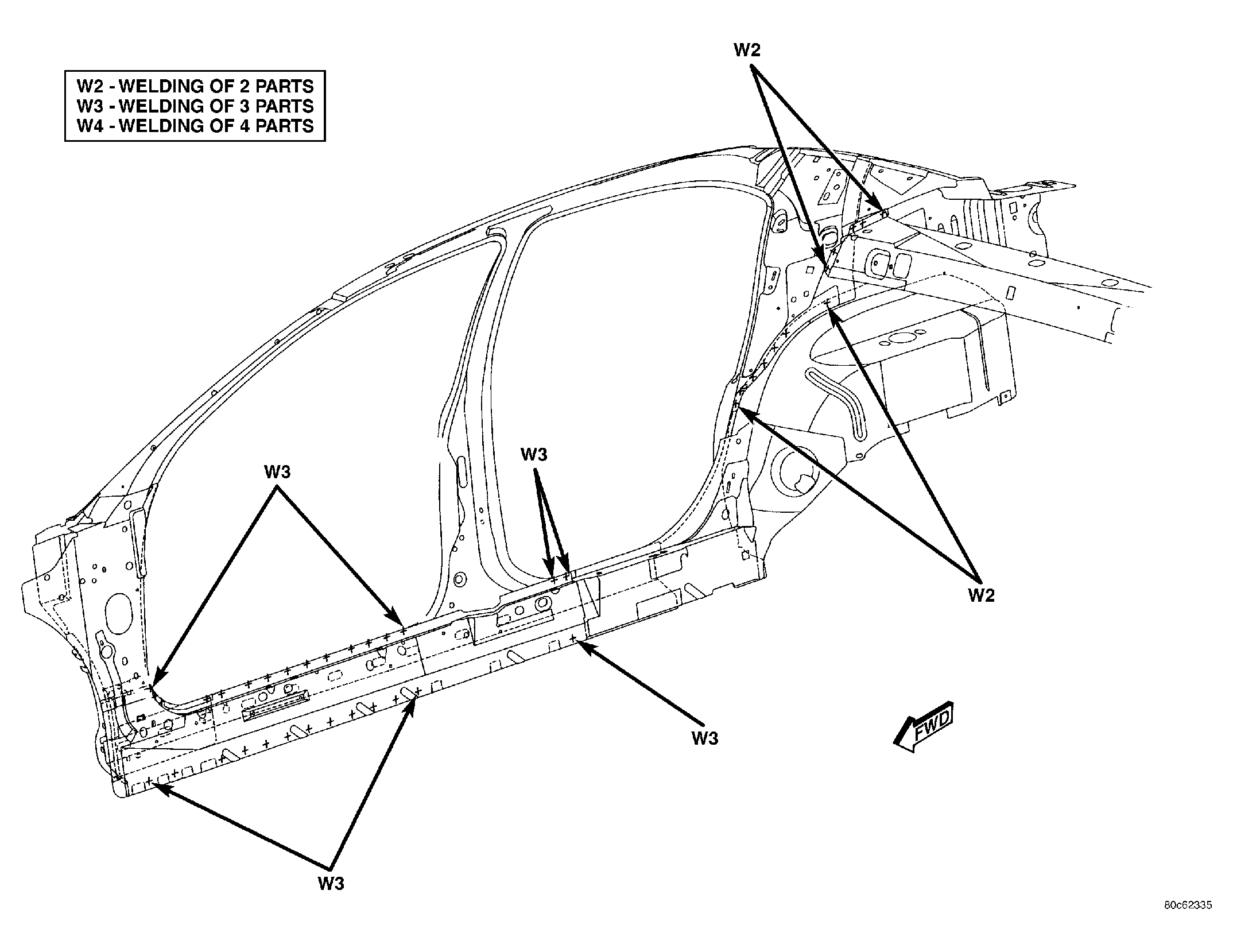

Fig 23: Inner Sill Extension To Side Sill Reinforcement To Body Side Aperture & Inner Rear Wheelhouse
GC0031802Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Rear Shelf Support To Wheelhouse To Rear Outer Wheelhouse
GC0031803Courtesy of DAIMLERCHRYSLER CORP.

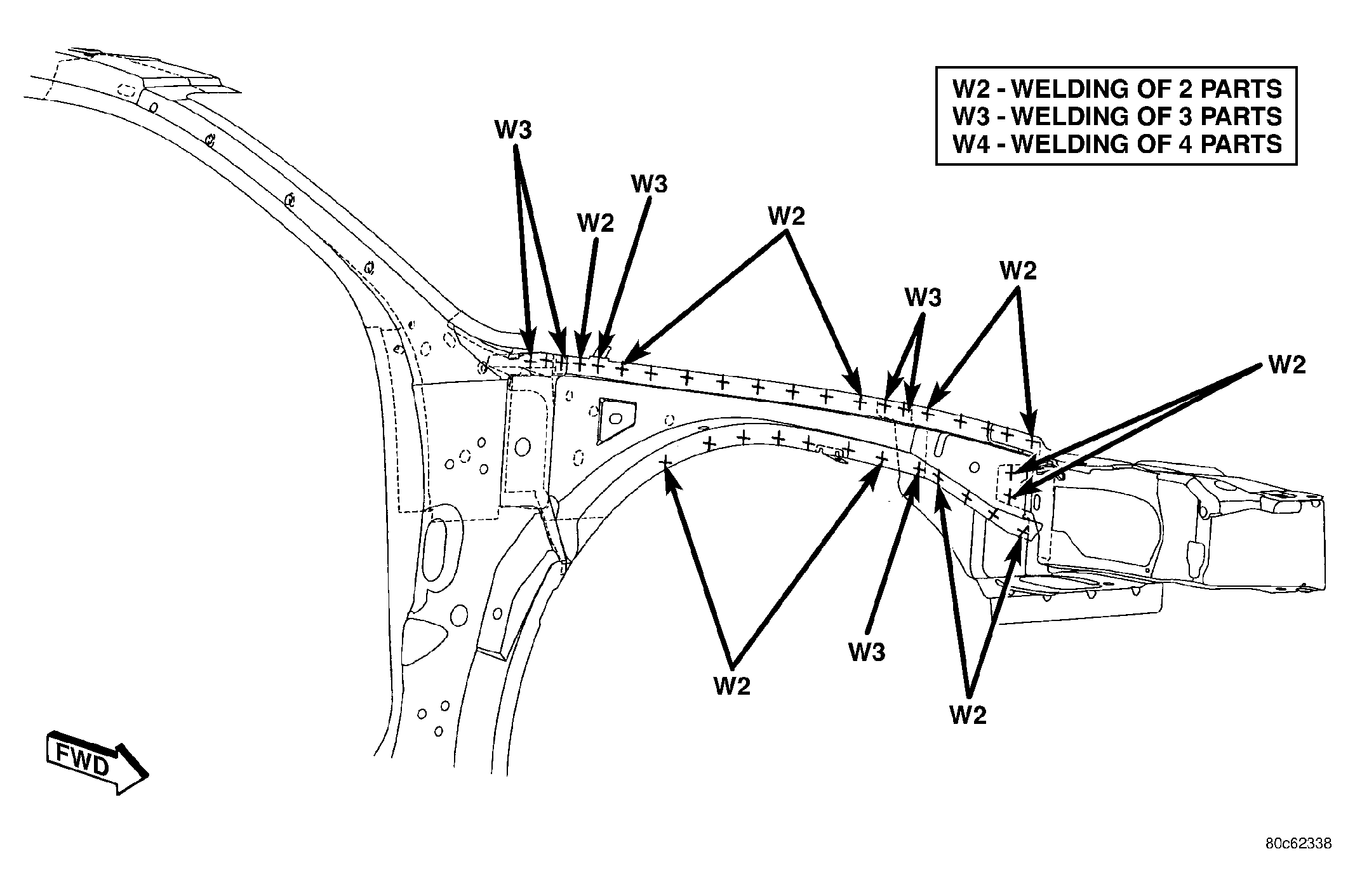

Fig 25: Upper Outer Load Beam To Upper Inner Load Beam To Body Side Aperture
GC0031804Courtesy of DAIMLERCHRYSLER CORP.

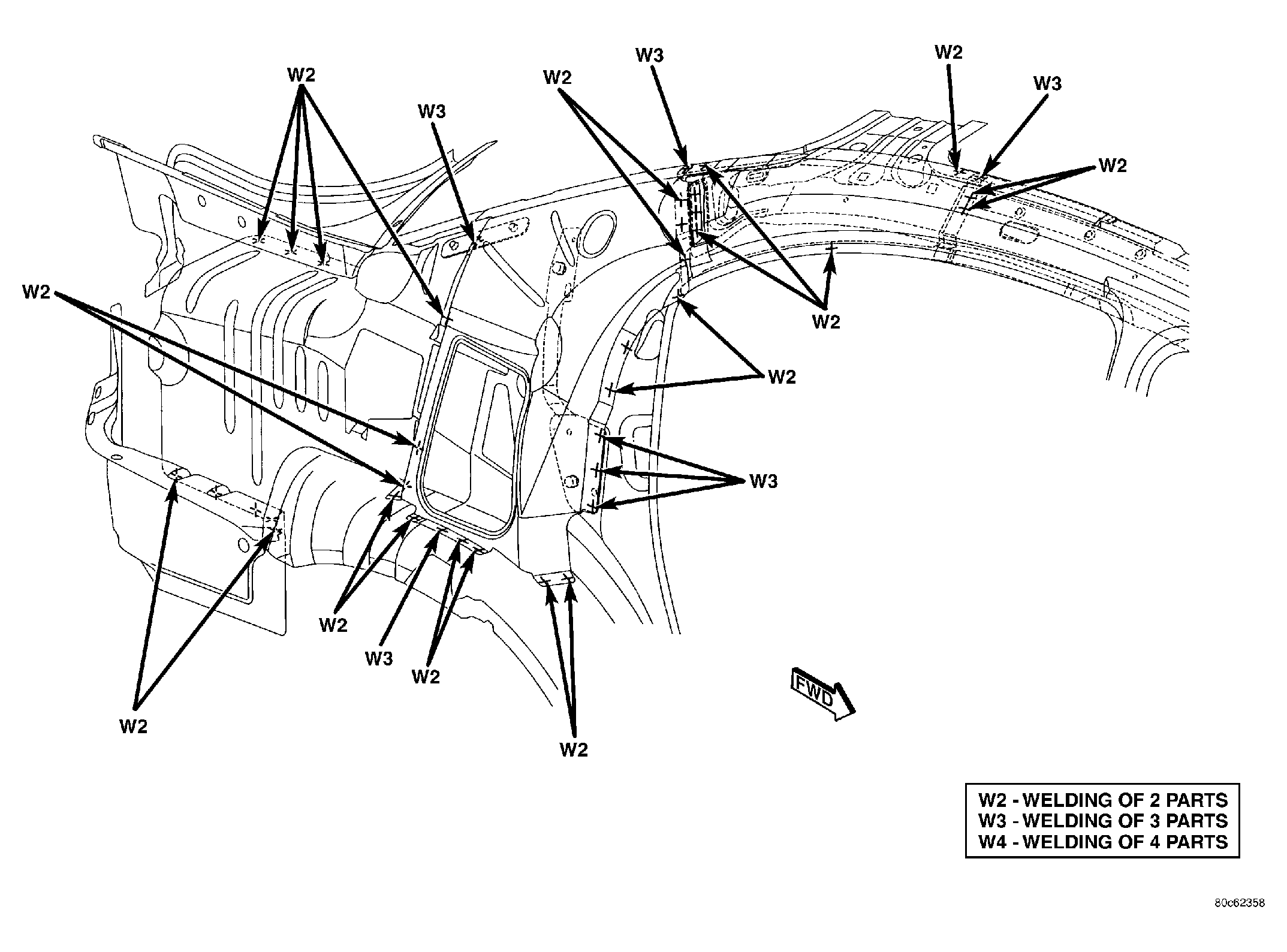

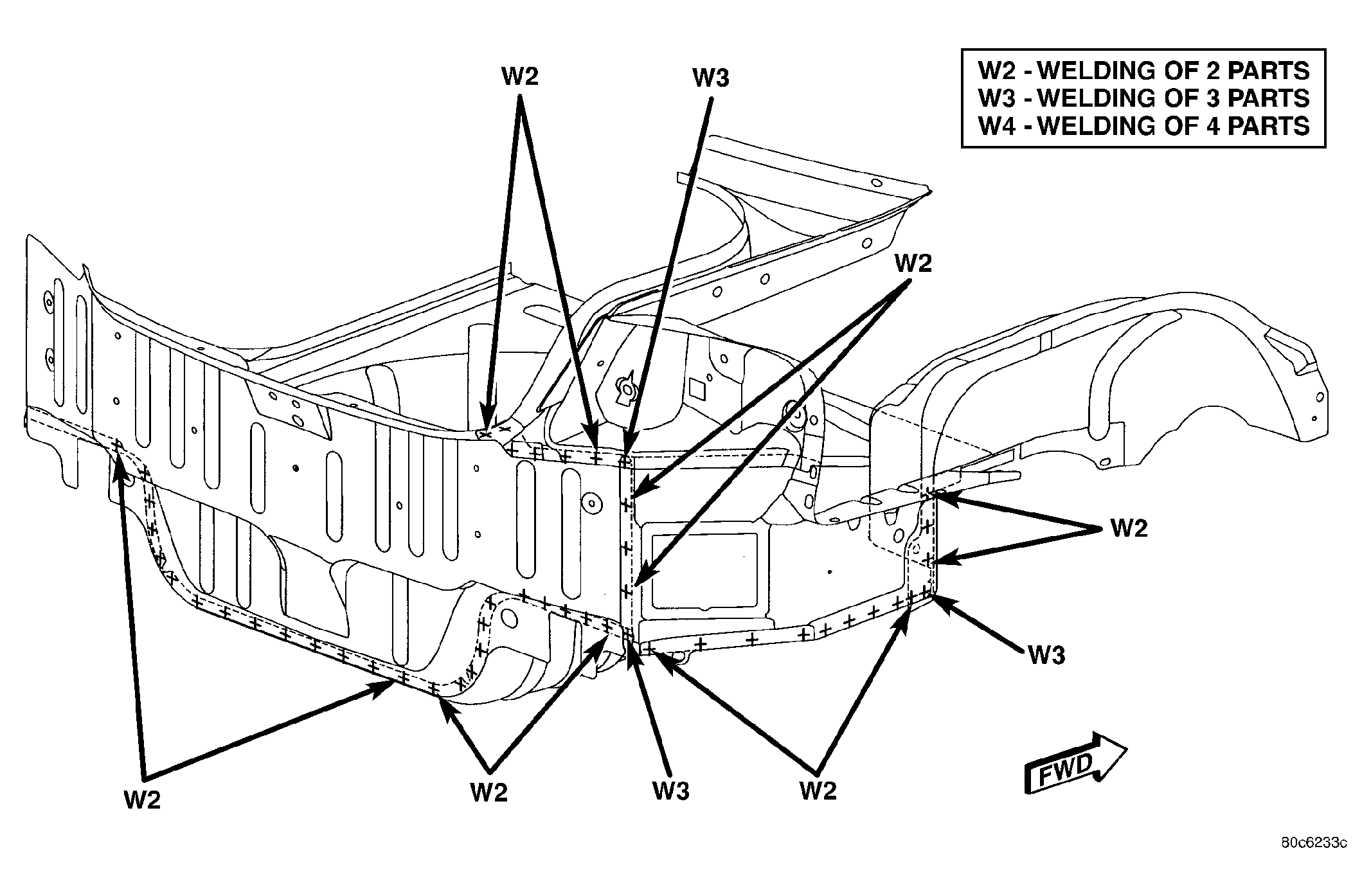

Fig 26: Inner Body Side Sill To Cowl Side Panel To Body Side Aperture To Dash Panel
GC0031805Courtesy of DAIMLERCHRYSLER CORP.

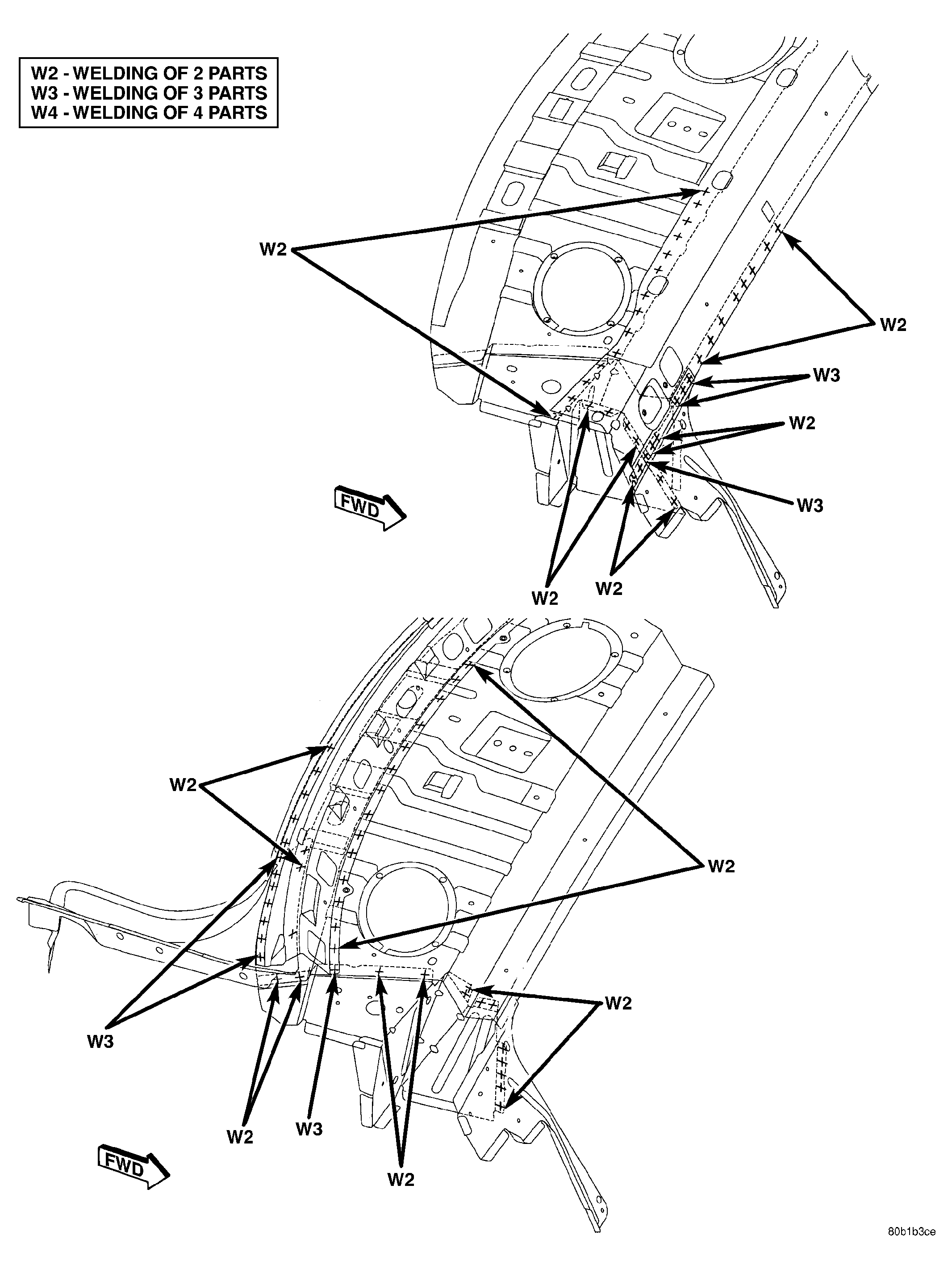

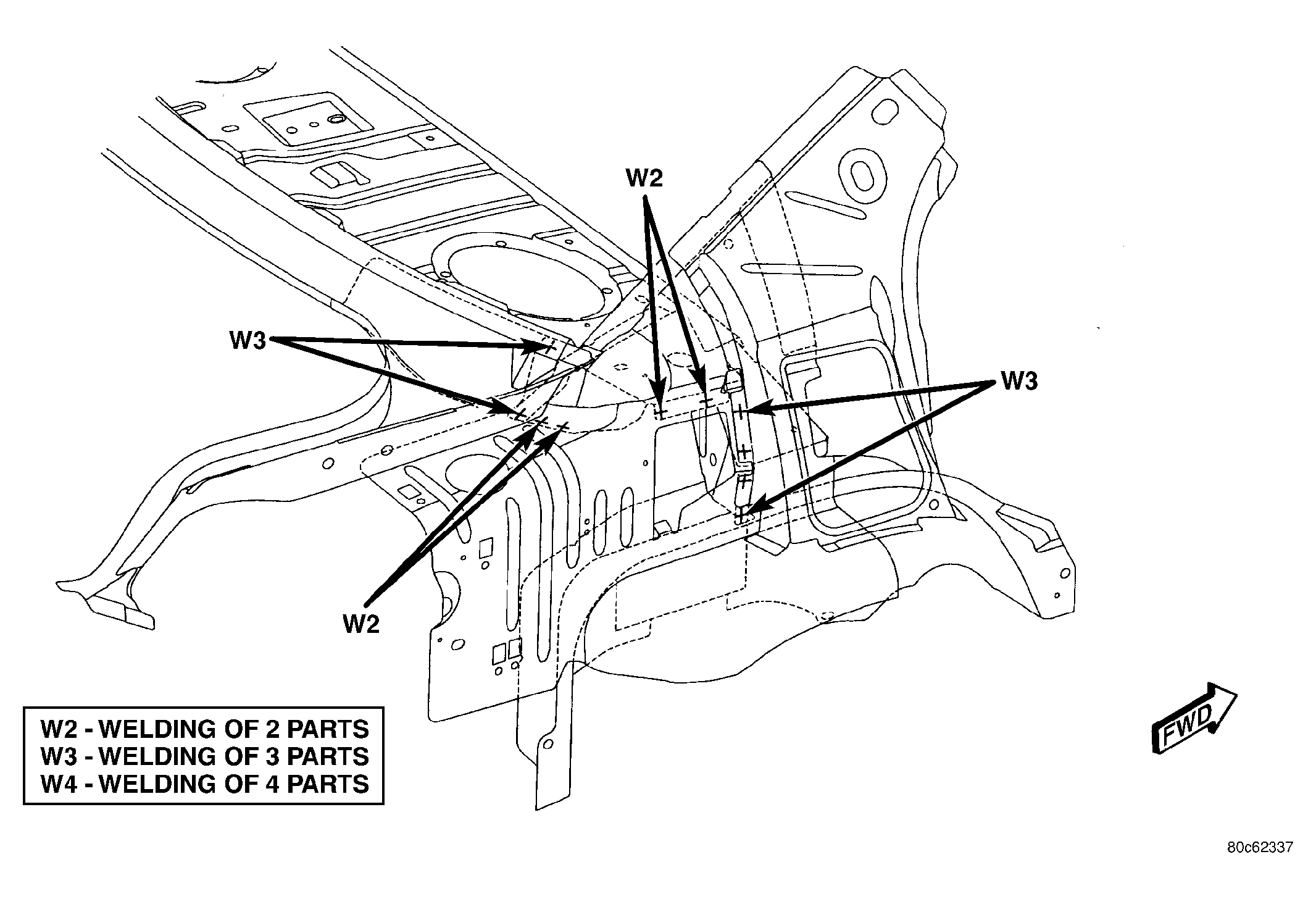

Fig 27: Rear Shelf Panel Supports To Wheelhouse To Shelf Panel Reinforcement
GC0031806Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Lower Deck Opening Panel To Quarter Extension To Rear Floor Pan
GC0031807Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: Rear Floor Pan Side Rail To Lower Deck Opening Panel/Rear Wheelhouse To Quarter Extension To Rear Floor Pan
GC0031808Courtesy of DAIMLERCHRYSLER CORP.

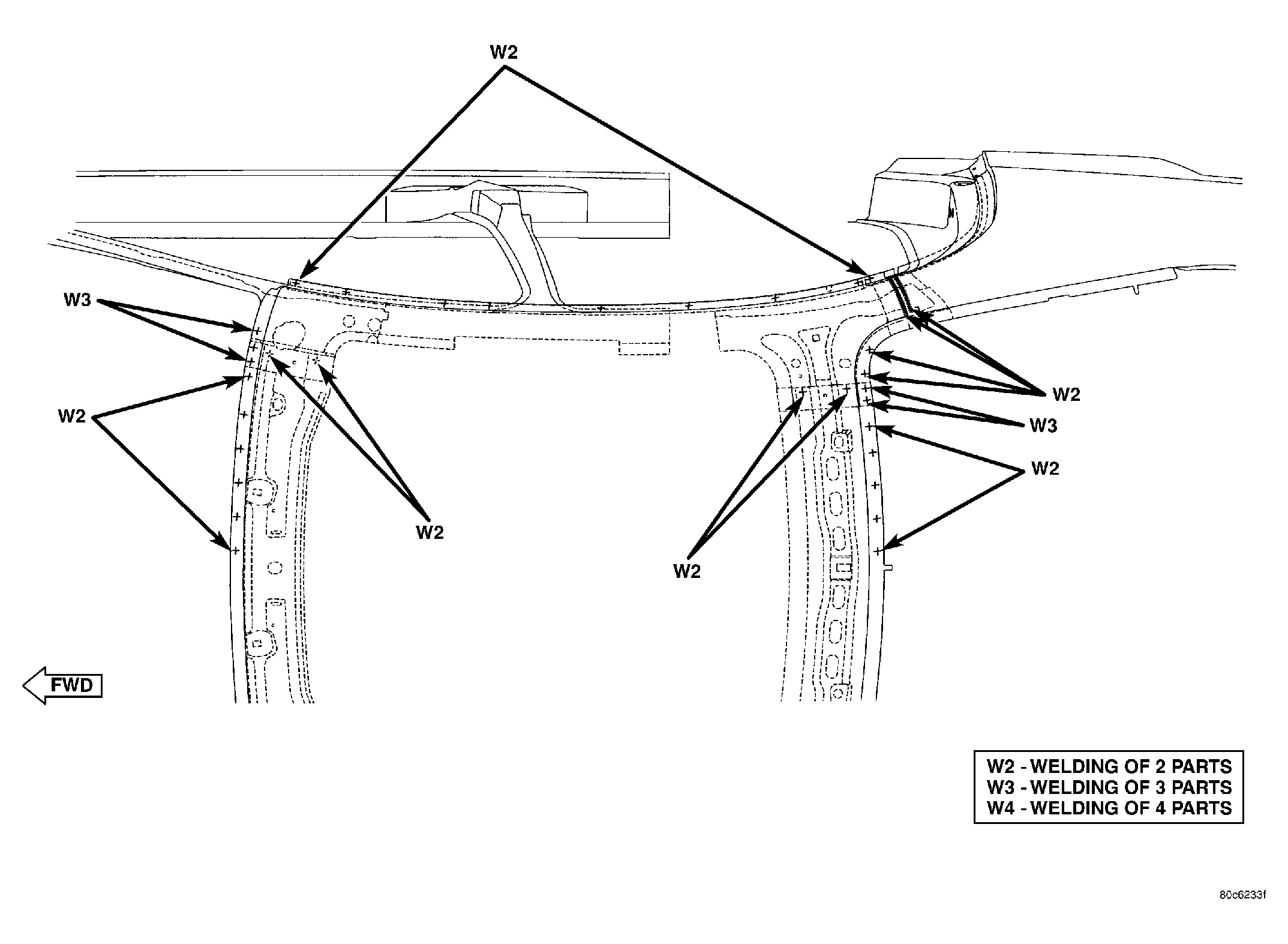

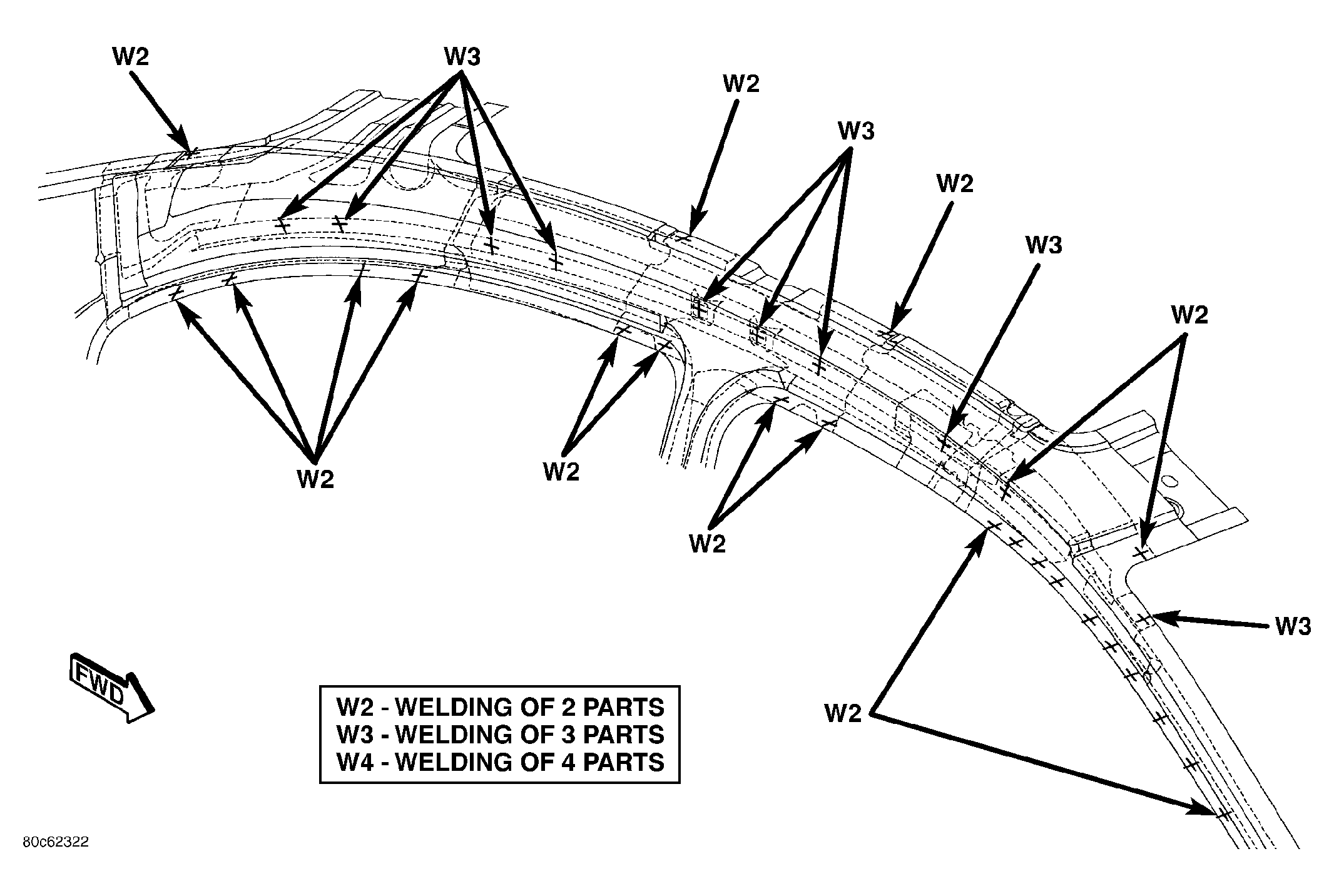

Fig 30: Inner Windshield Frame To Windshield Frame & Rear Window Frame To Upper Inner Quarter Panel To Outer Roof Panel
GC0031809Courtesy of DAIMLERCHRYSLER CORP.

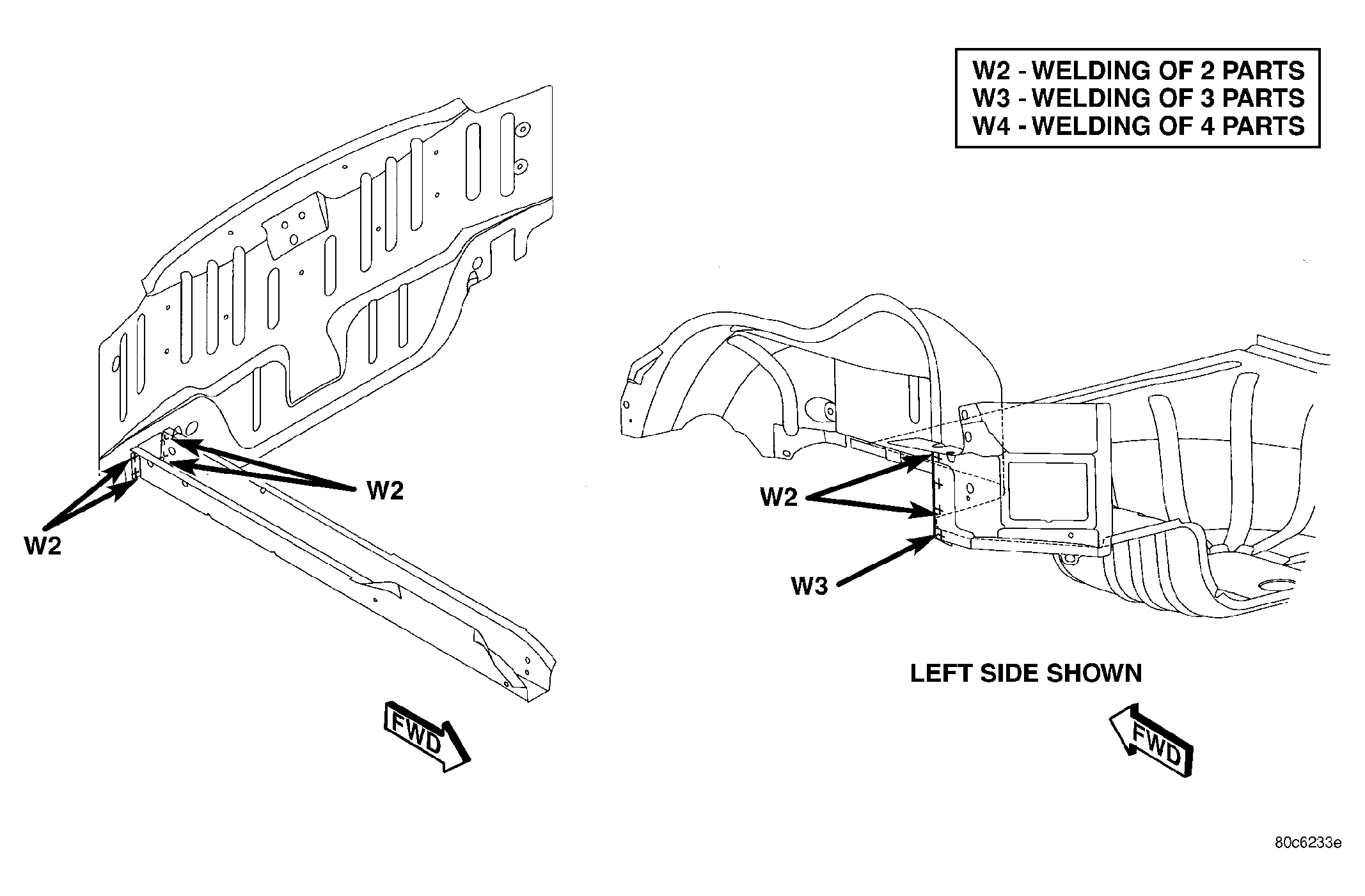

Fig 31: Rear Bumper Attaching Reinforcement To Rear Rail Bumper Attaching Bracket
GC0031810Courtesy of DAIMLERCHRYSLER CORP.

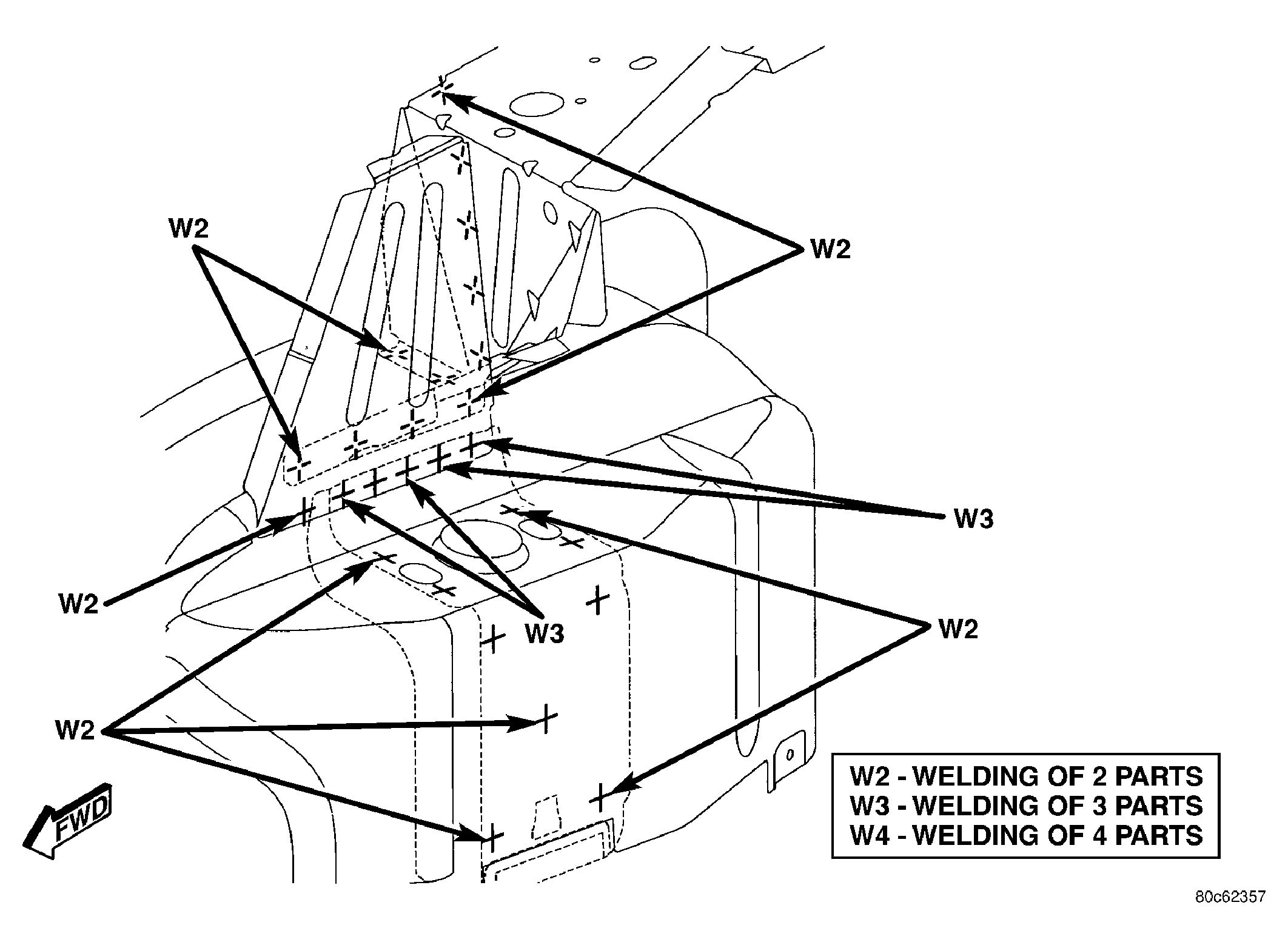

Fig 32: Rear Shelf Panel Support To Reinforcement To Inner Rear Wheelhouse To Rear Shock Mounting Bracket
GC0031811Courtesy of DAIMLERCHRYSLER CORP.

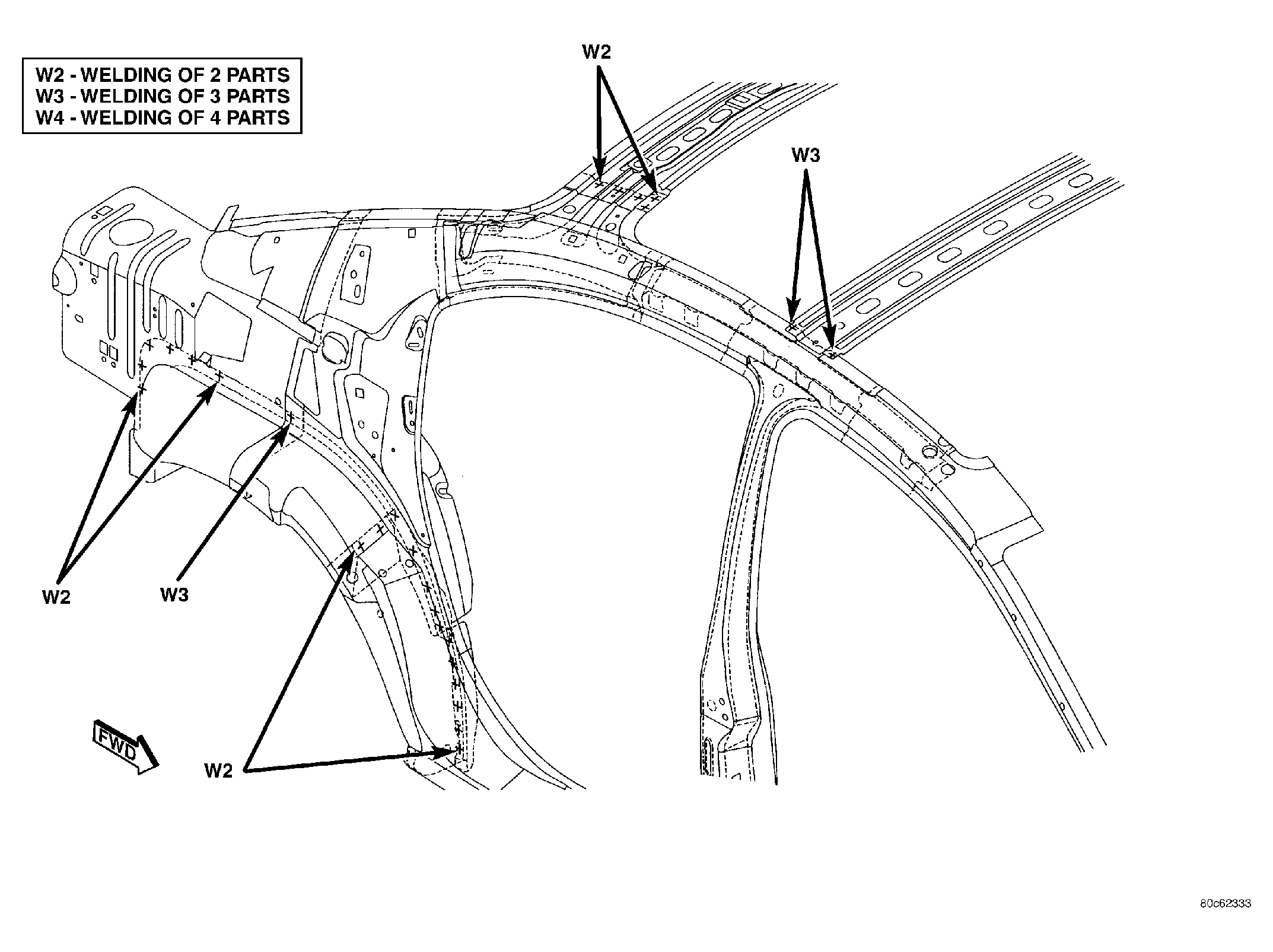

Fig 33: Inner Upper Quarter Panel To Reinforcement To Outer Rear Wheelhouse To Body Side Aperture
GC0031812Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Inner Upper Quarter Panel Reinforcement To Body Side Aperture To Outer Quarter Panel
GC0031813Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Front Console Bracket To Front Floor Pan
GC0031682Courtesy of DAIMLERCHRYSLER CORP.

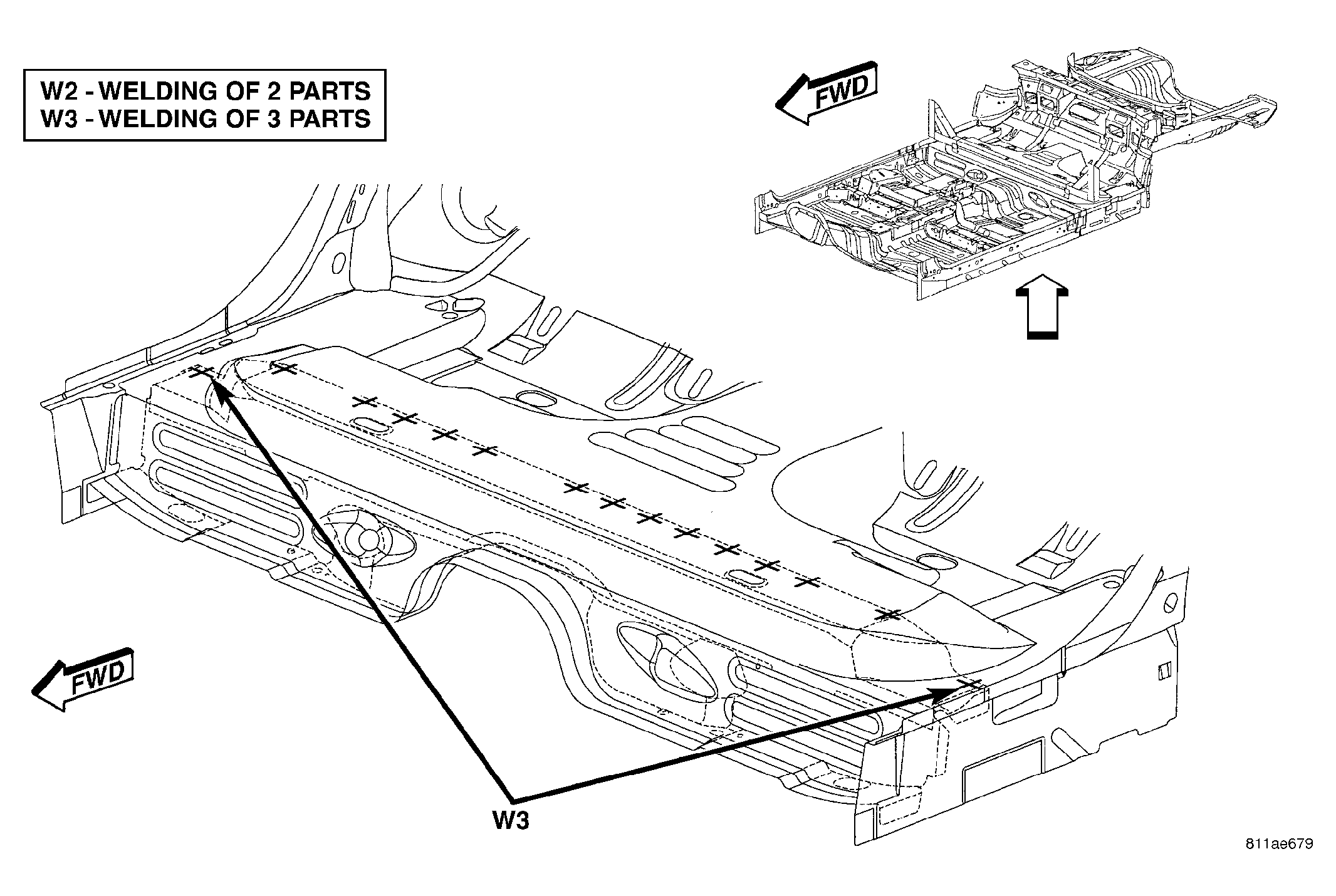

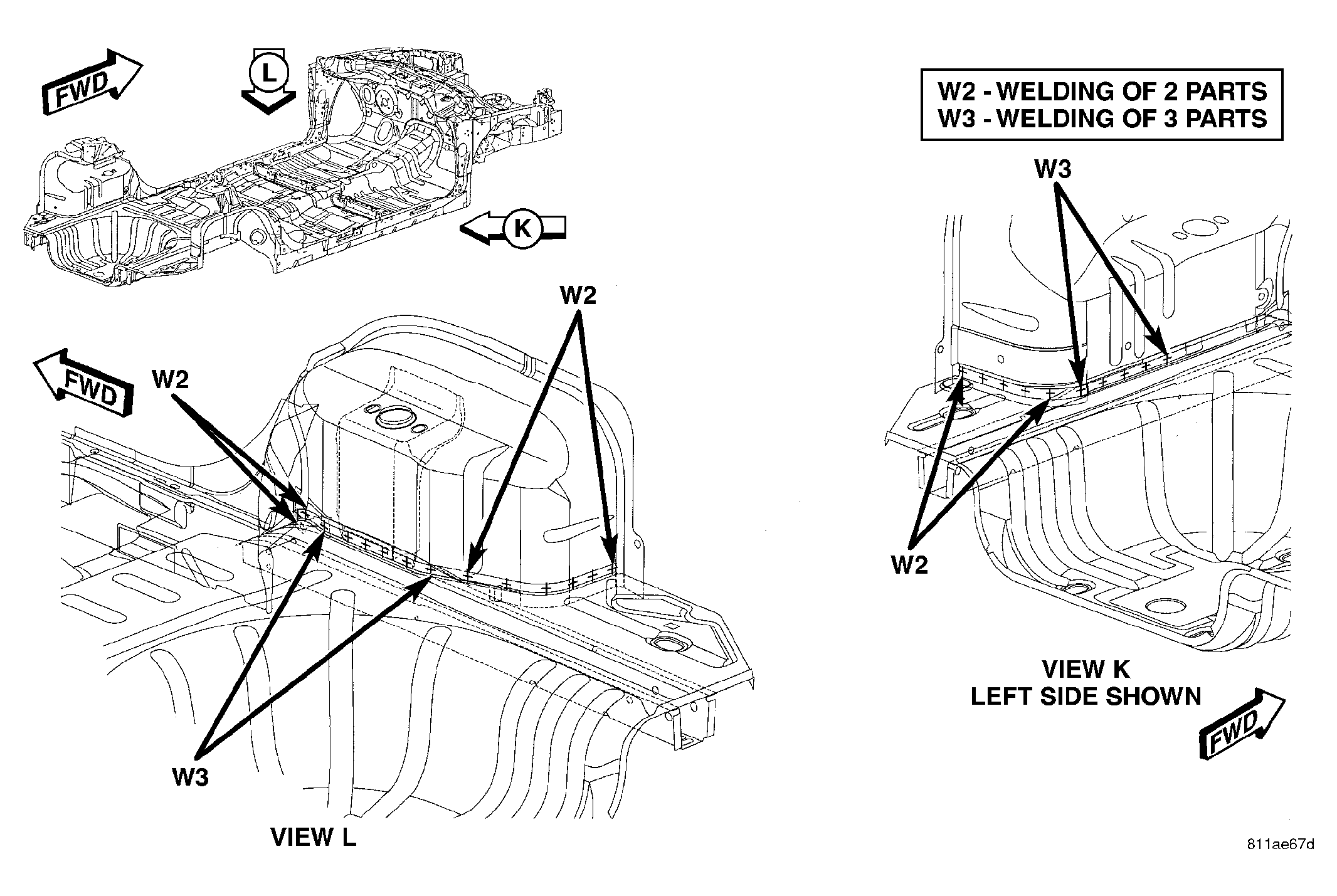

Fig 36: Crossmember Reinforcement, Crossmember To Rear Floor Pan
GC0031818Courtesy of DAIMLERCHRYSLER CORP.

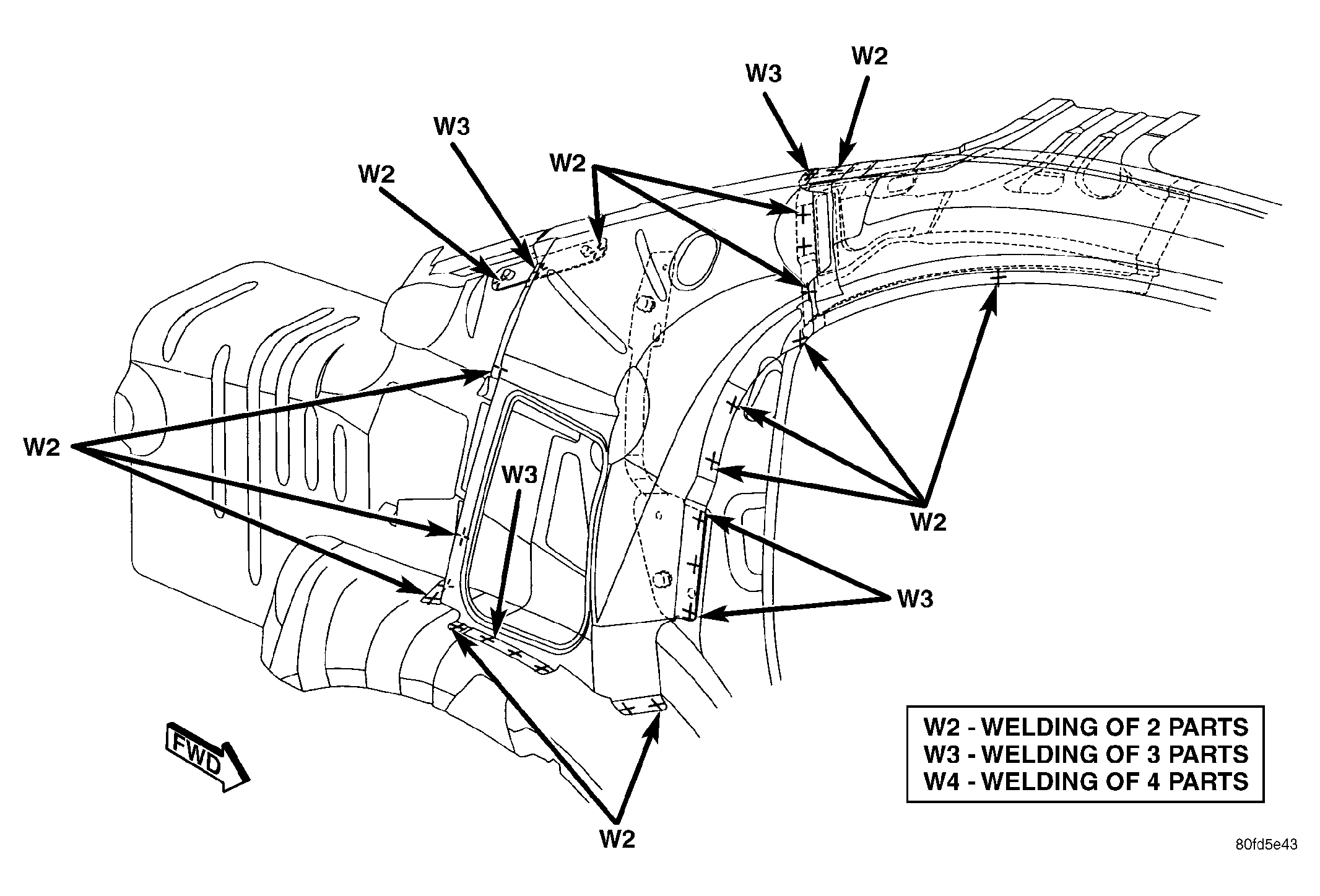

Fig 37: Inner Rear Wheelhouse To Rear Floor Pan
GC0031819Courtesy of DAIMLERCHRYSLER CORP.

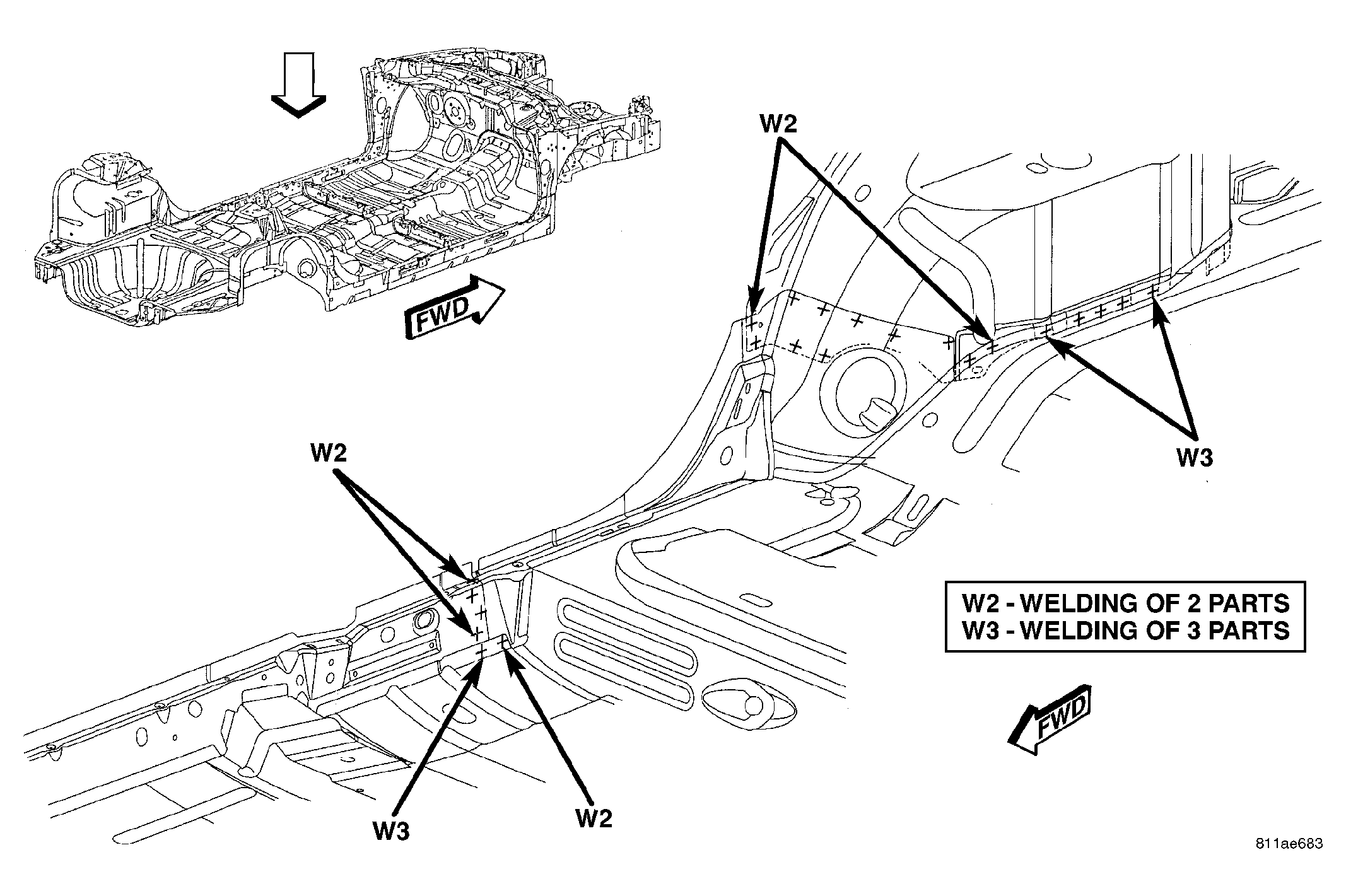

Fig 38: Sill Extension, Inner Rear Wheelhouse To Rear Floor Pan
GC0031820Courtesy of DAIMLERCHRYSLER CORP.
Fig 39: Inner Body Side Sill To Cowl Side Panel
GC0031821Courtesy of DAIMLERCHRYSLER CORP.
