Specifications - Weld Locations - Jr-27 Only

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
INDEX

DESCRIPTION FIGURE
PARK BRAKE BRACKET AND SHIFTER MOUNTING STUDS TO FRONT CONSOLE MOUNTING BRACKET/SEAT TRACK REINFORCEMENT TO FRONT FLOOR PAN Fig 1.
REAR SEAT REINFORCEMENT REAR FLOOR PAN BRACKET AND INNER REAR WHEELHOUSE CROSSMEMBER SUPPORTS TO REAR FLOOR PAN Fig 2.
REAR SEAT REINFORCEMENT, REAR FLOOR PAN BRACKET AND SHOULDER BELT SUPPORT GUSSET TO REAR FLOOR PAN Fig 3.
REAR WHEELHOUSE CROSSMEMBER SUPPORT AND REAR FLOOR PAN BRACKET TO SHOULDER BELT SUPPORT GUSSET Fig 4.
SHOULDER BELT SUPPORT GUSSET AND INNER REAR WHEELHOUSE CROSSMEMBER SUPPORT TO REAR FLOOR PAN BRACKET Fig 5.
DECK OPENING REINFORCEMENT AND STRIKER PLATE REINFORCEMENT TO LOWER DECK OPENING Fig 6.
INNER BODY SIDE SILL TO COWL SIDE PANEL Fig 7.
SILL EXTERIOR PANEL AND REAR RAIL EXTENSION TO INNER SILL EXTENSION Fig 8.
REAR FLOOR PAN SIDE RAIL AND REAR BUMPER ATTACHING REINFORCEMENT TO REAR RAIL EXTENSION Fig 9.
OUTER WINDSHIELD FRAME TO INNER REINFORCEMENT TO INNER WINDSHIELD FRAME TO UPPER LOAD PATH BEAM Fig 10.
OUTER QUARTER PANEL REINFORCEMENT TO OUTER BELT REINFORCEMENT TO OUTER QUARTER PANEL Fig 11.
OUTER QUARTER PANEL TO QUARTER PANEL REINFORCEMENT TO INNER QUARTER PANEL Fig 12.
OUTER BODY SIDE PANEL TO FRONT OUTER QUARTER PANEL REINFORCEMENT Fig 13.
OUTER REAR WHEELHOUSE TO OUTER QUARTER PANEL REINFORCEMENT Fig 14.
OUTER REAR WHEELHOUSE TO OUTER QUARTER PANEL Fig 15.
INNER QUARTER WHEELHOUSE EXTENSION TO OUTER QUARTER WHEELHOUSE Fig 16.
INNER REAR QUARTER PANEL TO REAR LOWER QUARTER PANEL EXTENSION Fig 17.
REAR REINFORCEMENT BRACKET TO REAR SEAT FLOOR PAN REINFORCEMENT TO REAR INNER QUARTER PANEL Fig 18.
LOWER WINDSHIELD HEADER TO UPPER WINDSHIELD HEADER Fig 19.
OUTER WINDSHIELD SIDE FRAME TO INNER WINDSHIELD SIDE FRAME Fig 20.
INNER AND OUTER WINDSHIELD FRAME TO OUTER BODY SIDE PANEL TO INNER UPPER LOAD PATH BEAM Fig 21.
INNER AND OUTER BODY SIDE SILL TO COWL SIDE PANEL Fig 22.
INNER BODY SIDE SILL TO OUTER BODY SIDE PANEL TO INNER SIDE SILL EXTENSION Fig 23.
INNER REAR WHEELHOUSE TO INNER QUARTER PANEL TO REAR INNER WHEELHOUSE QUARTER EXTENSION Fig 24.
LOWER OUTER QUARTER PANEL EXTENSION TO REAR INNER QUARTER PANEL TO REAR INNER WHEELHOUSE Fig 25.
REAR INNER QUARTER PANEL TO INNER WHEELHOUSE EXTENSION TO FRONT INNER QUARTER PANEL Fig 26.
LOWER REAR QUARTER PANEL EXTENSION TO REAR FLOOR PAN AND LOWER DECK PANEL Fig 27.
FRONT UPPER DECK PANEL TROUGH TO UPPER DECK PANEL TROUGH Fig 28.
UPPER DECK TROUGH PANEL TO UPPER DECK PANEL FRONT REINFORCEMENT TO DECK PANEL REAR REINFORCEMENT Fig 29.
WHEELHOUSE UPPER DECK REINFORCEMENT TO UPPER DECK REAR REINFORCEMENT AND UPPER FRONT REINFORCEMENT Fig 30.
UPPER DECK PANEL FRONT REINFORCEMENT TO WHEELHOUSE UPPER DECK REINFORCEMENT EXTENSION Fig 31.
FRONT CONSOLE BRACKET TO FRONT FLOOR PAN Fig 32.
INNER SIDE SILL, CROSSMEMBER REINFORCEMENT, CROSSMEMBER TO REAR FLOOR PAN Fig 33.
SIDE RAILS, CENTER SIDE RAIL EXTENSIONS TO REAR FLOOR PAN Fig 34.
REAR SUSPENSION CROSSMEMBER, SEAT BACK SUPPORT TO REAR FLOOR PAN Fig 35.
PARK BRAKE BRACKET AND SHIFTER MOUNTING STUDS TO FRONT CONSOLE Fig 36.

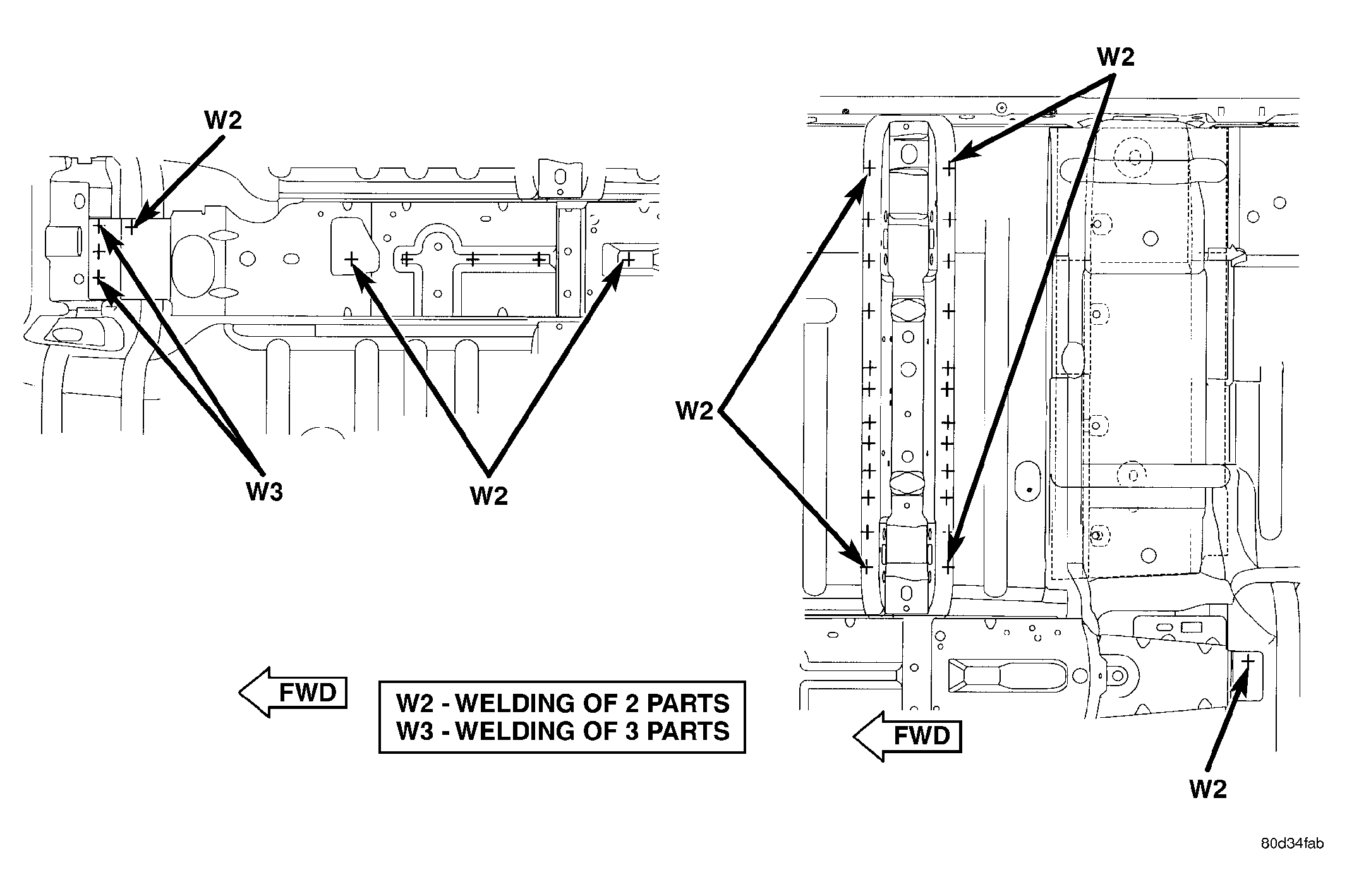

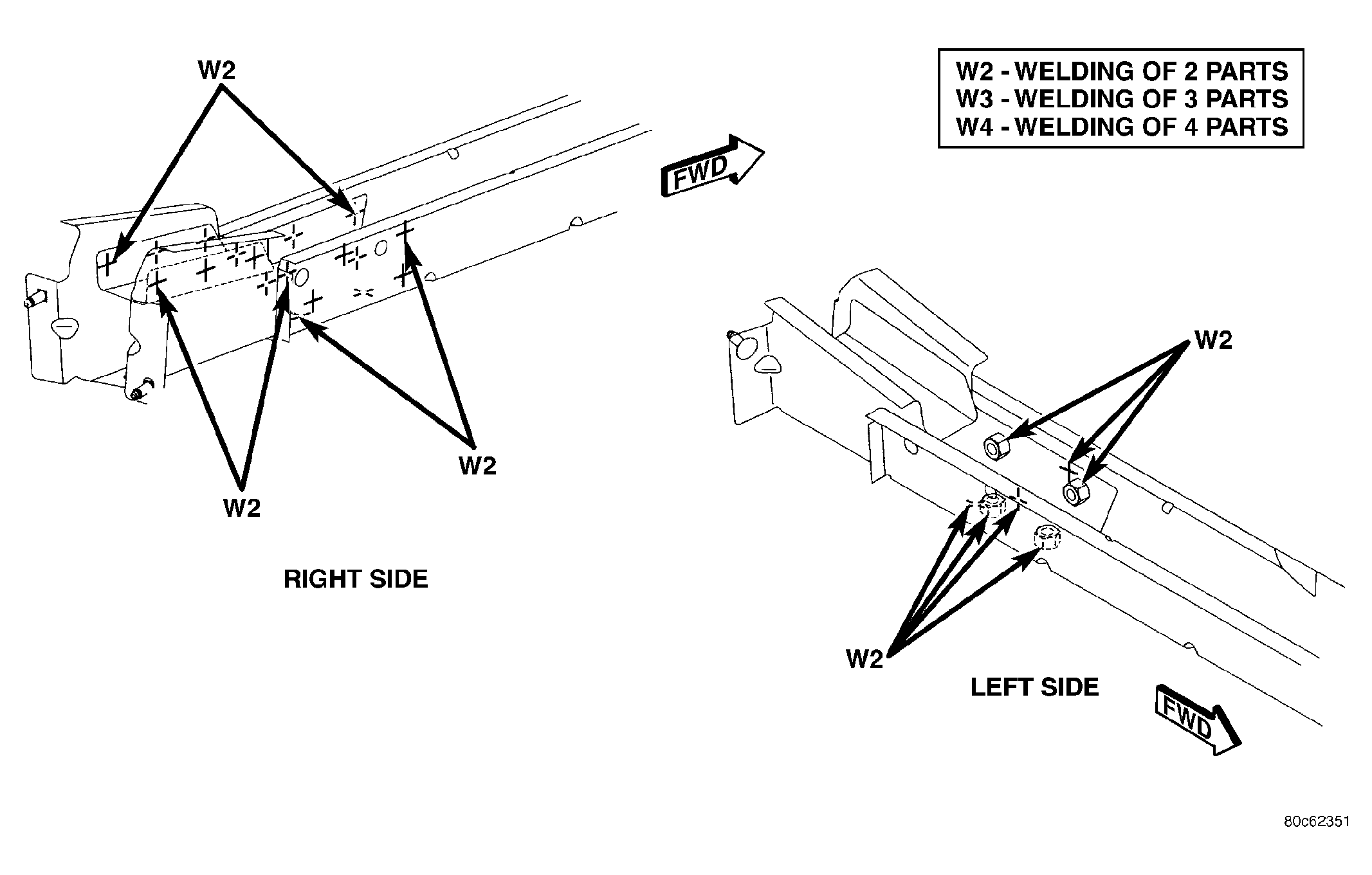

Fig 1: Park Brake Bracket And Shifter Mounting Studs To Front Console Mounting Bracket
GC0031744Courtesy of DAIMLERCHRYSLER CORP.

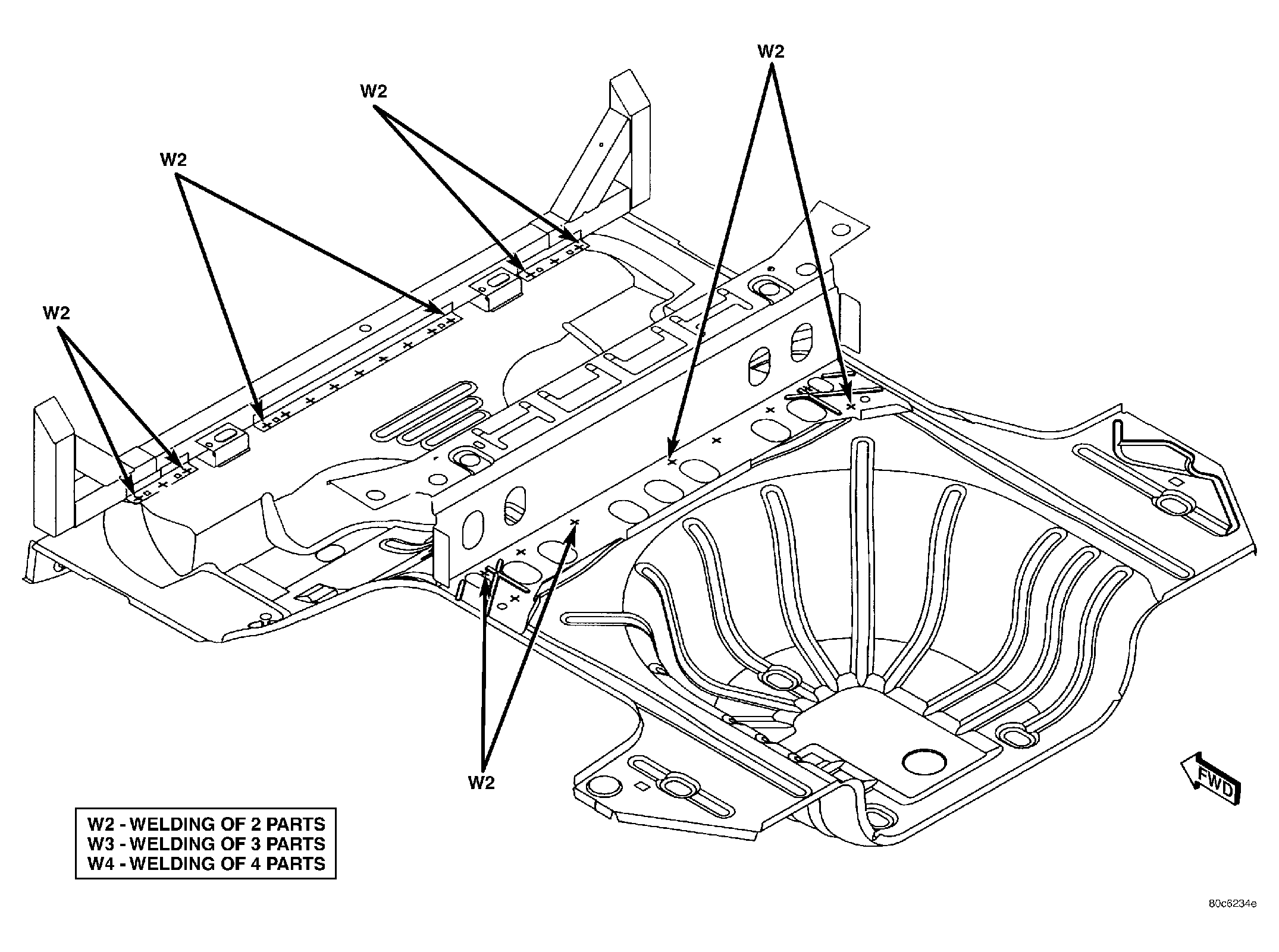

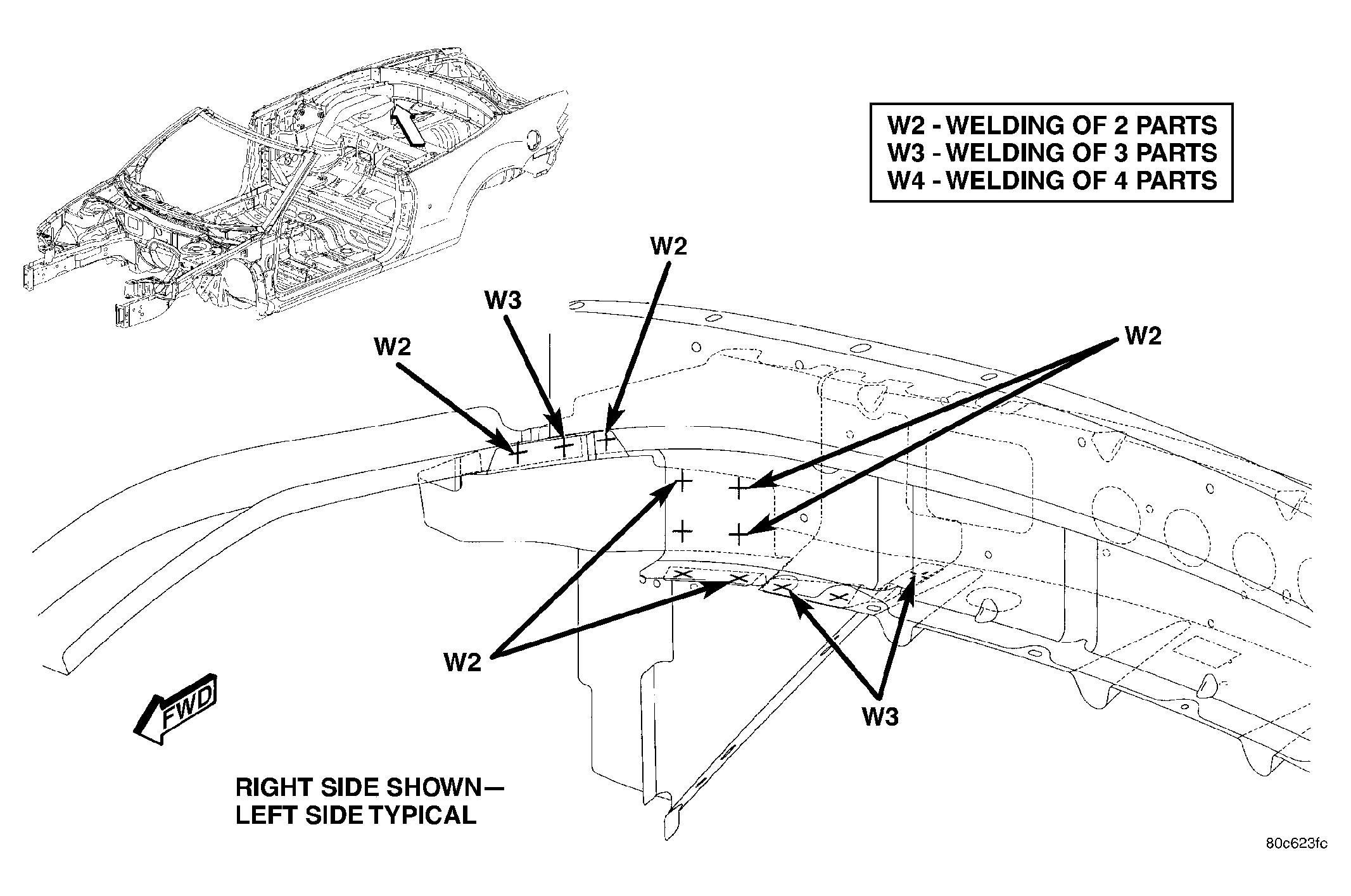

Fig 2: Rear Seat Reinforcement Rear Floor Pan Bracket And Inner Rear Wheelhouse Crossmember Supports To Rear Floor Pan
GC0031746Courtesy of DAIMLERCHRYSLER CORP.

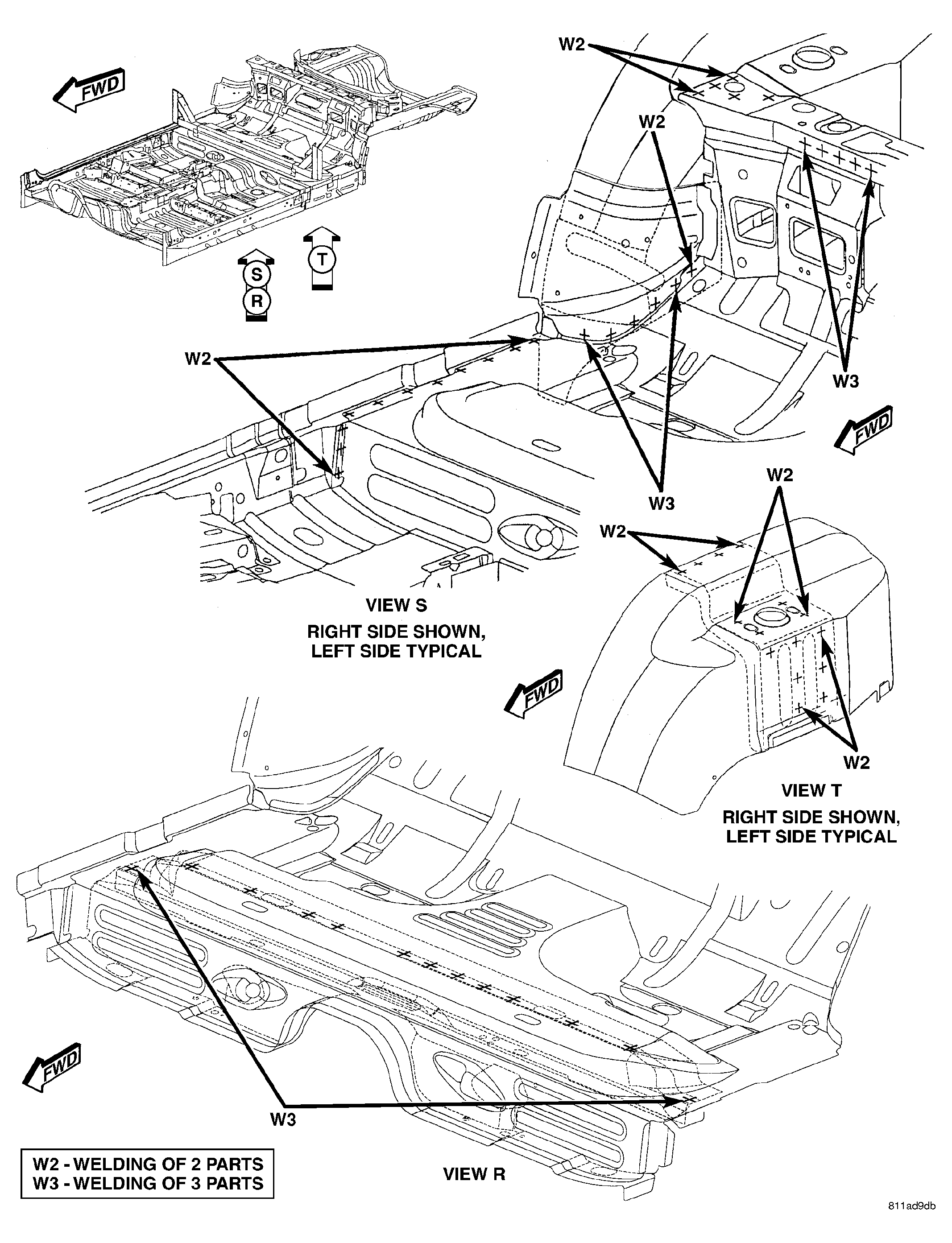

Fig 3: Rear Seat Reinforcement, Rear Floor Pan Bracket And Shoulder Belt Support Gusset To Rear Floor Pan
GC0031747Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Rear Wheelhouse Crossmember Support And Rear Floor Pan Bracket To Shoulder Belt Support Gusset
GC0031748Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Shoulder Belt Support Gusset And Inner Rear Wheelhouse Crossmember Support To Rear Floor Pan Bracket
GC0031749Courtesy of DAIMLERCHRYSLER CORP.

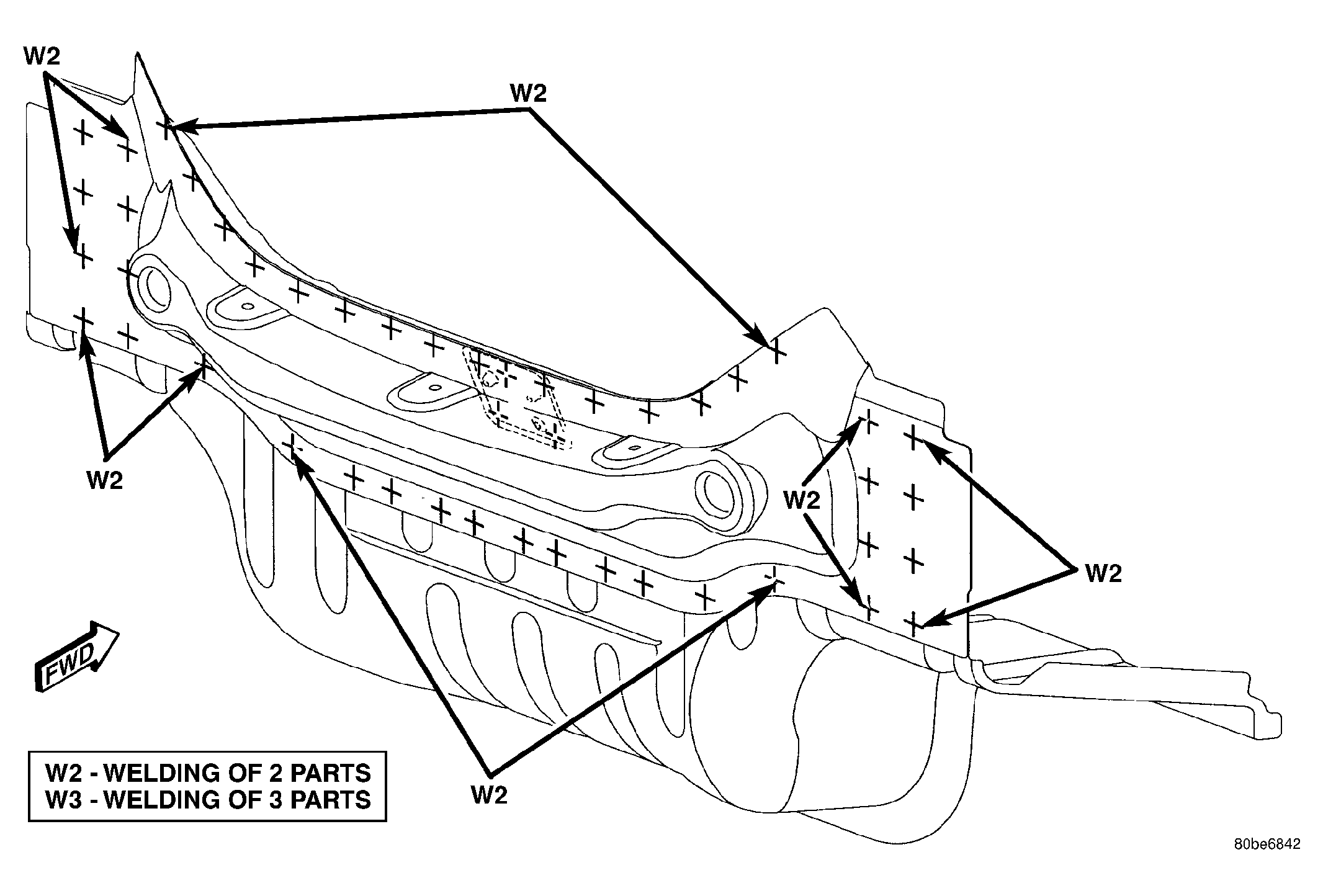

Fig 6: Deck Opening Reinforcement And Striker Plate Reinforcement To Lower Deck Opening
GC0031750Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Inner Body Side Sill To Cowl Side Panel
GC0031751Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Sill Exterior Panel And Rear Rail Extension To Inner Sill Extension
GC0031752Courtesy of DAIMLERCHRYSLER CORP.

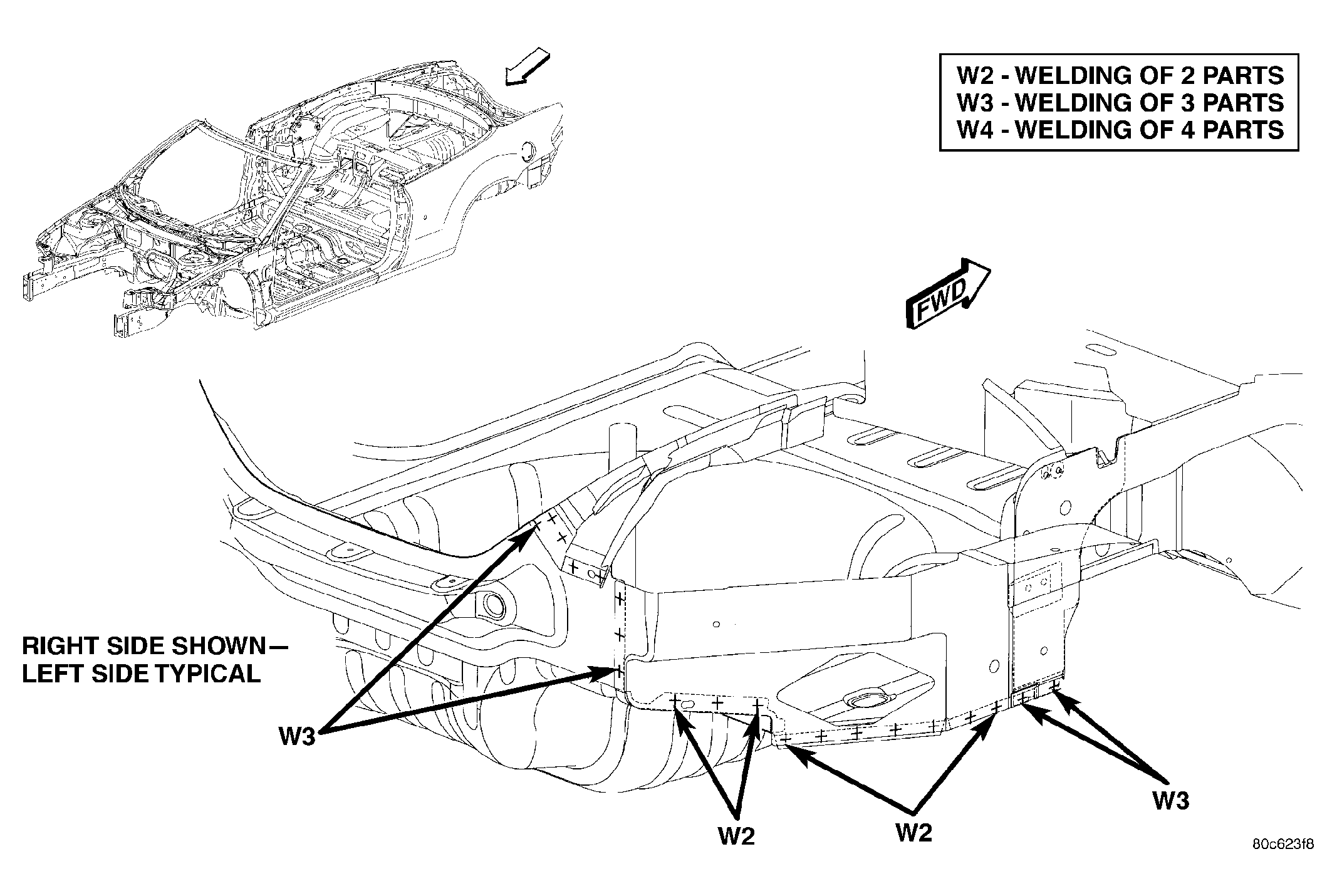

Fig 9: Rear Floor Pan Side Rail And Rear Bumper Attaching Reinforcement To Rear Rail Extension
GC0031753Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Outer Windshield Frame To Inner Reinforcement To Inner Windshield Frame To Upper Load Path Beam
GC0031754Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Outer Quarter Panel Reinforcement To Outer Belt Reinforcement To Outer Quarter Panel
GC0031755Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Outer Quarter Panel To Quarter Panel Reinforcement To Inner Quarter Panel
GC0031756Courtesy of DAIMLERCHRYSLER CORP.

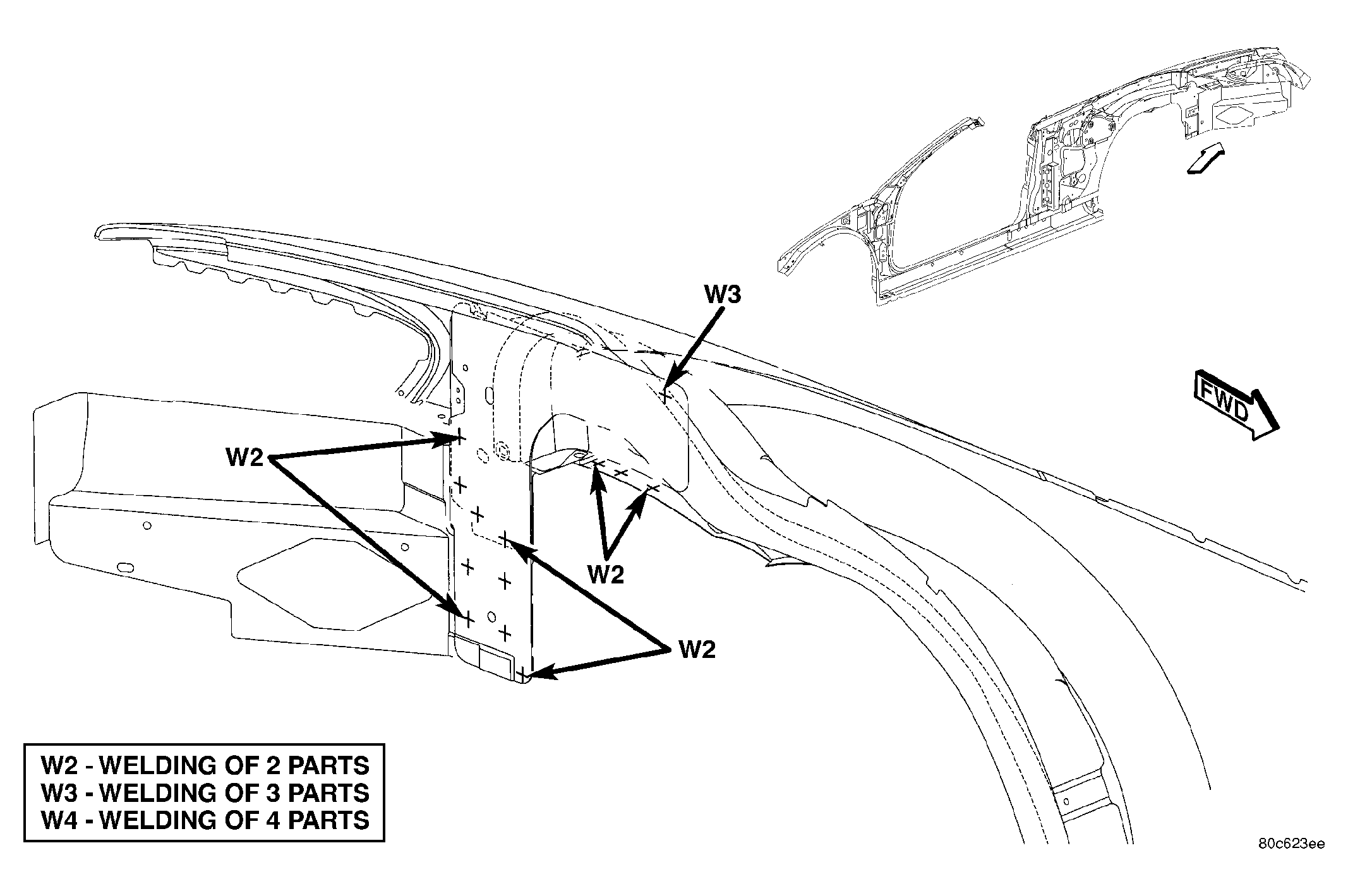

Fig 13: Outer Body Side Panel To Front Outer Quarter Panel Reinforcement
GC0031757Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Outer Rear Wheelhouse To Outer Quarter Panel Reinforcement
GC0031758Courtesy of DAIMLERCHRYSLER CORP.

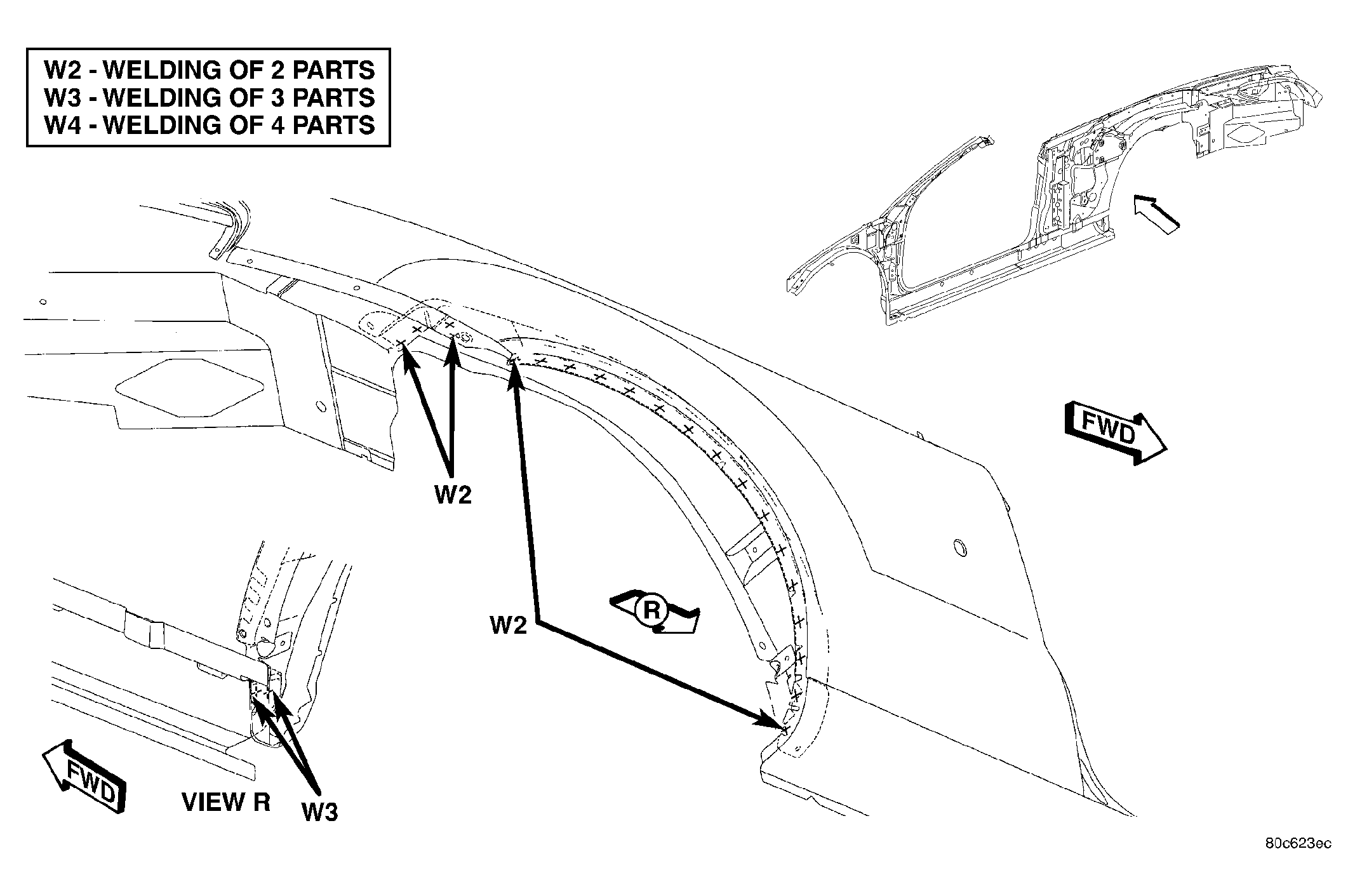

Fig 15: Outer Rear Wheelhouse To Outer Quarter Panel
GC0031759Courtesy of DAIMLERCHRYSLER CORP.

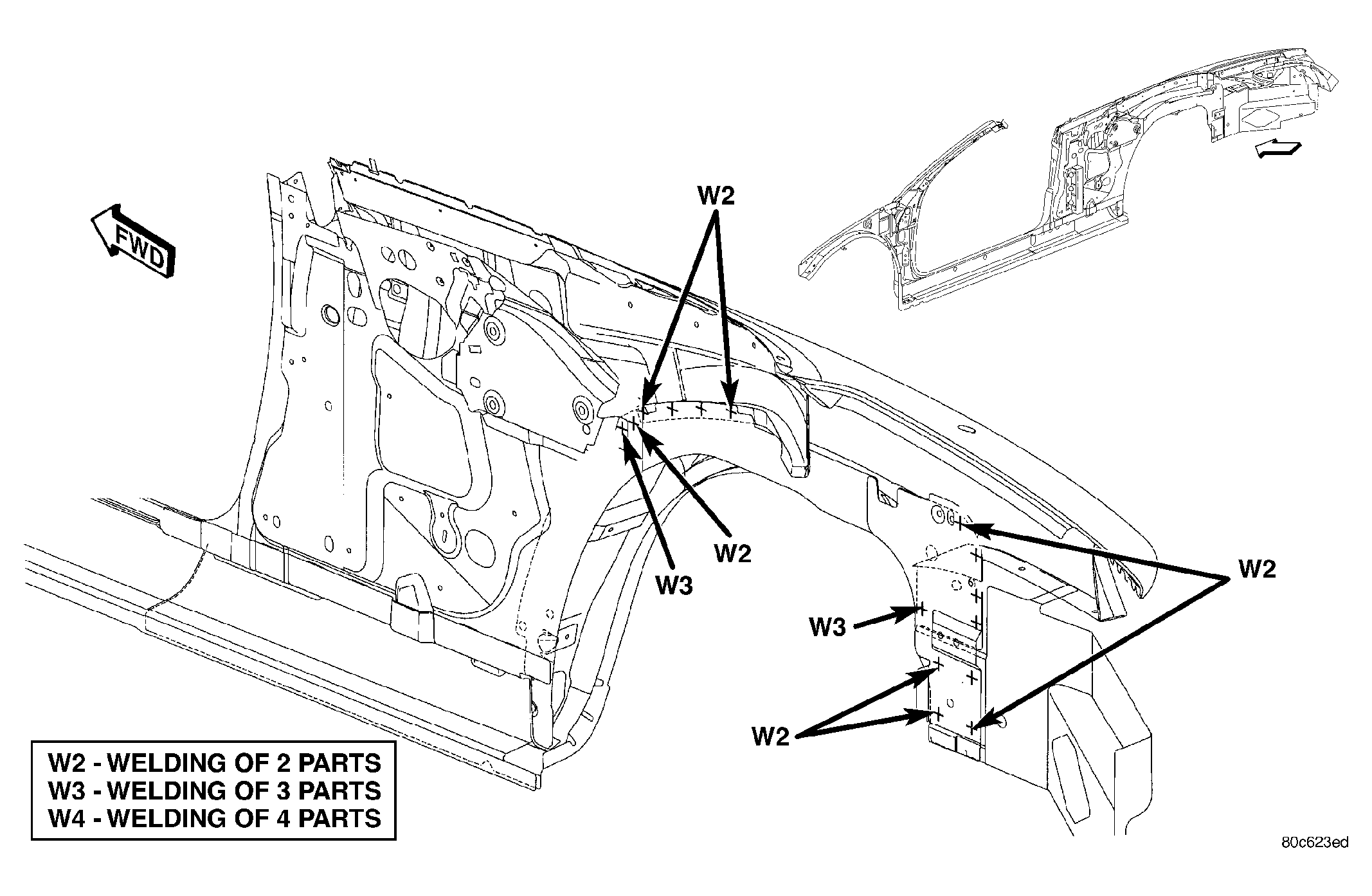

Fig 16: Inner Quarter Wheelhouse Extension To Outer Quarter Wheelhouse
GC0031760Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Inner Rear Quarter Panel To Rear Lower Quarter Panel Extension
GC0031761Courtesy of DAIMLERCHRYSLER CORP.

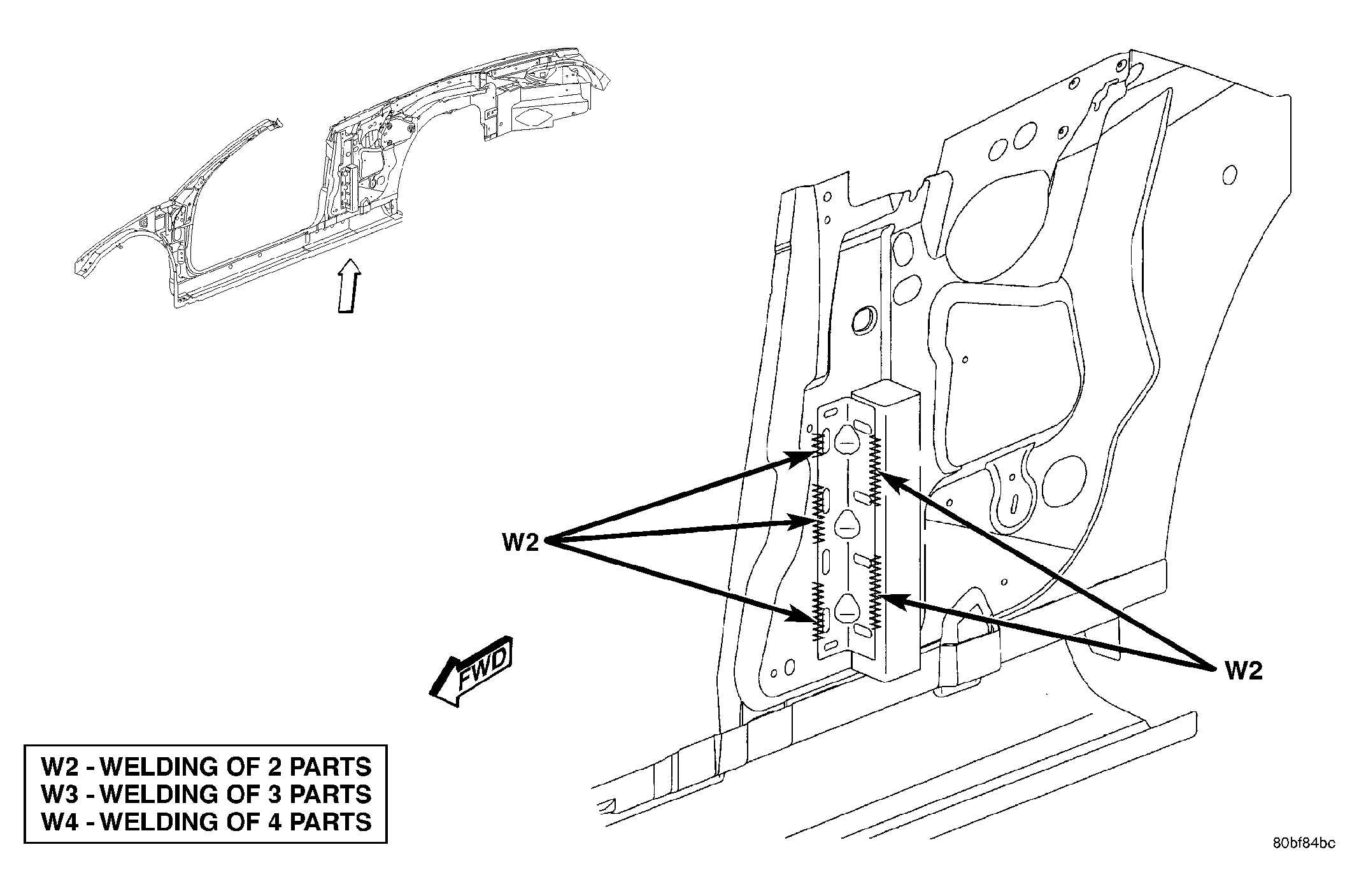

Fig 18: Rear Reinforcement Bracket To Rear Seat Floor Pan Reinforcement To Rear Inner Quarter Panel
GC0031762Courtesy of DAIMLERCHRYSLER CORP.

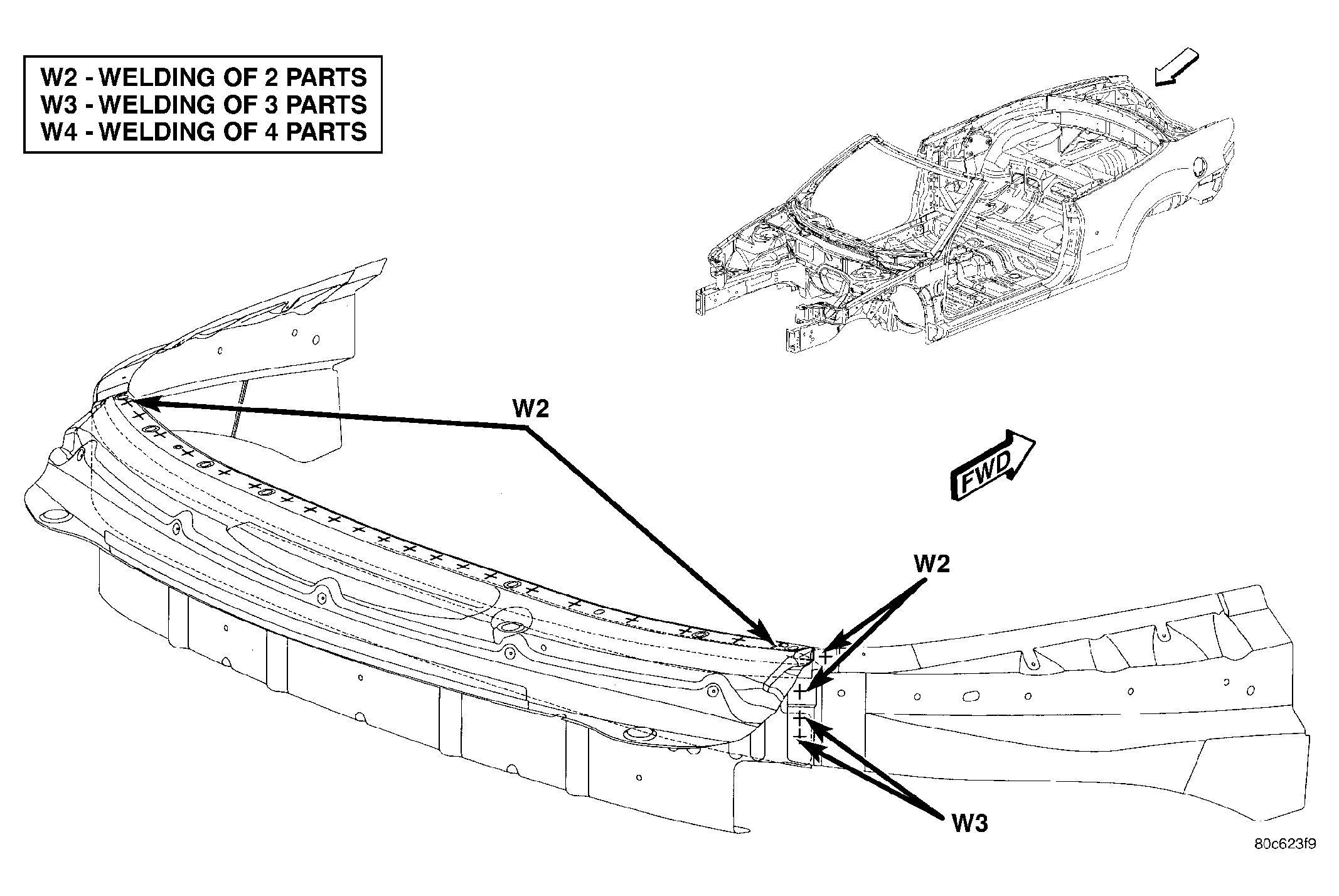

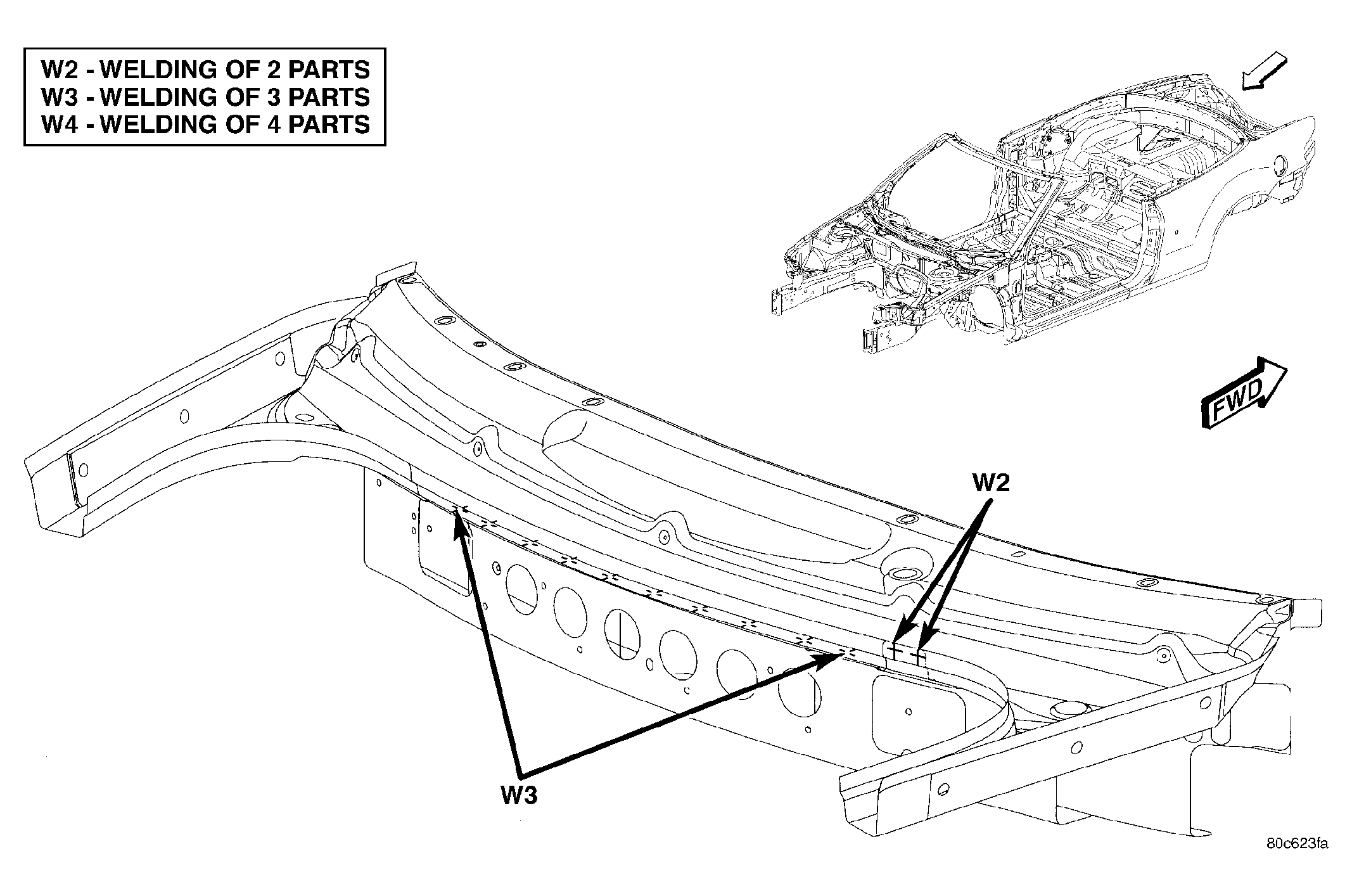

Fig 19: Lower Windshield Header To Upper Windshield Header
GC0031763Courtesy of DAIMLERCHRYSLER CORP.

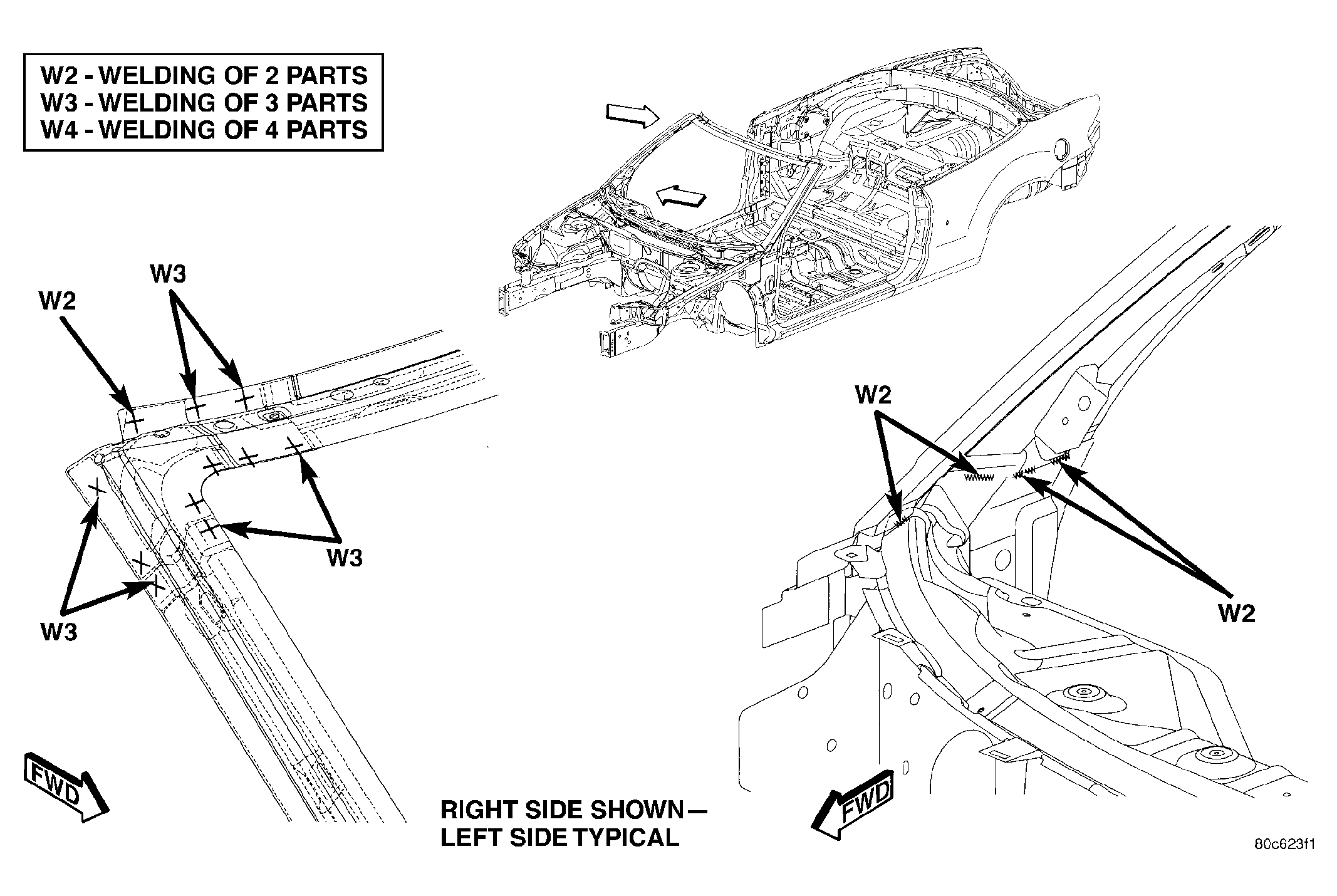

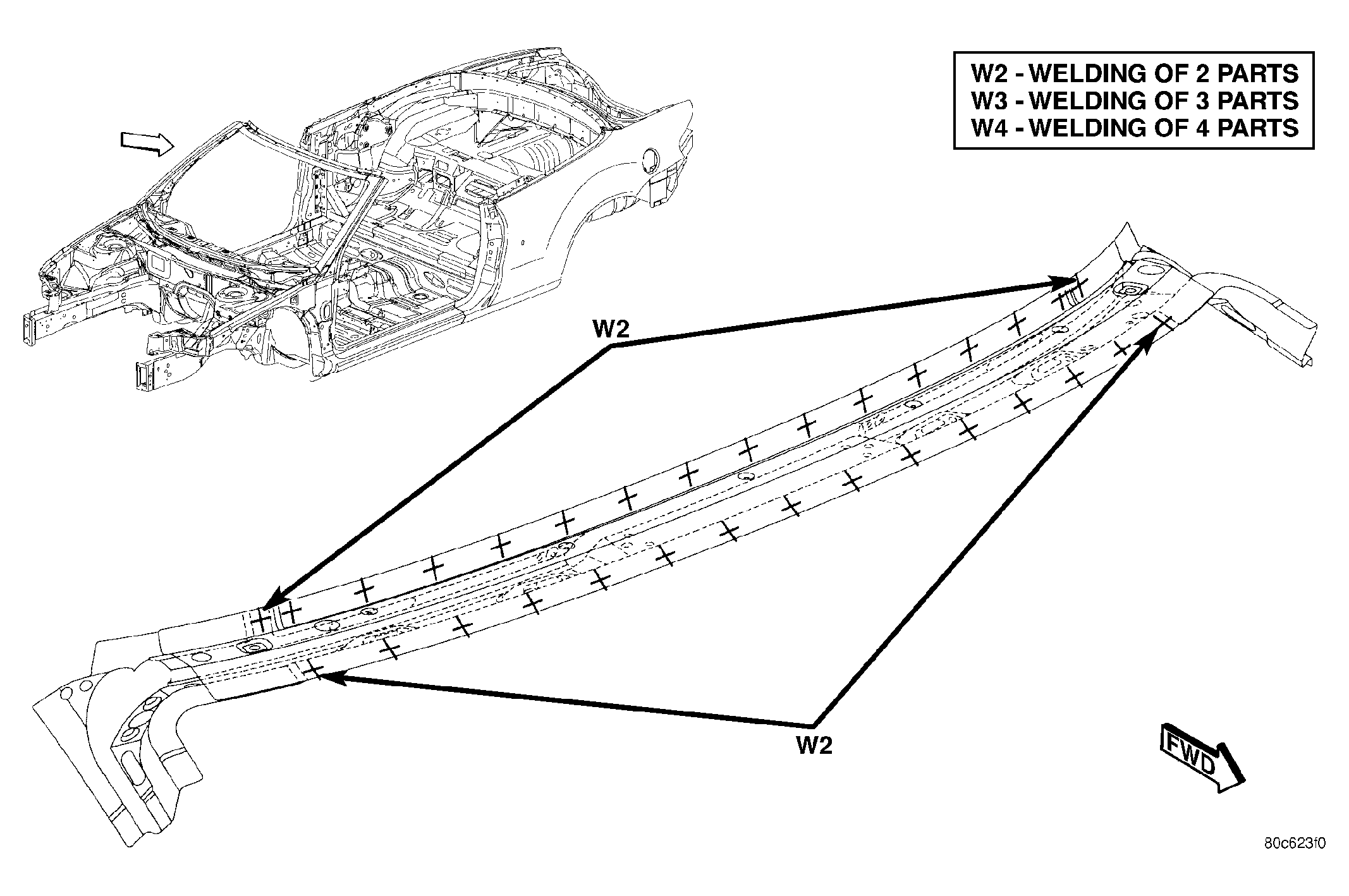

Fig 20: Outer Windshield Side Frame To Inner Windshield Side Frame
GC0031764Courtesy of DAIMLERCHRYSLER CORP.

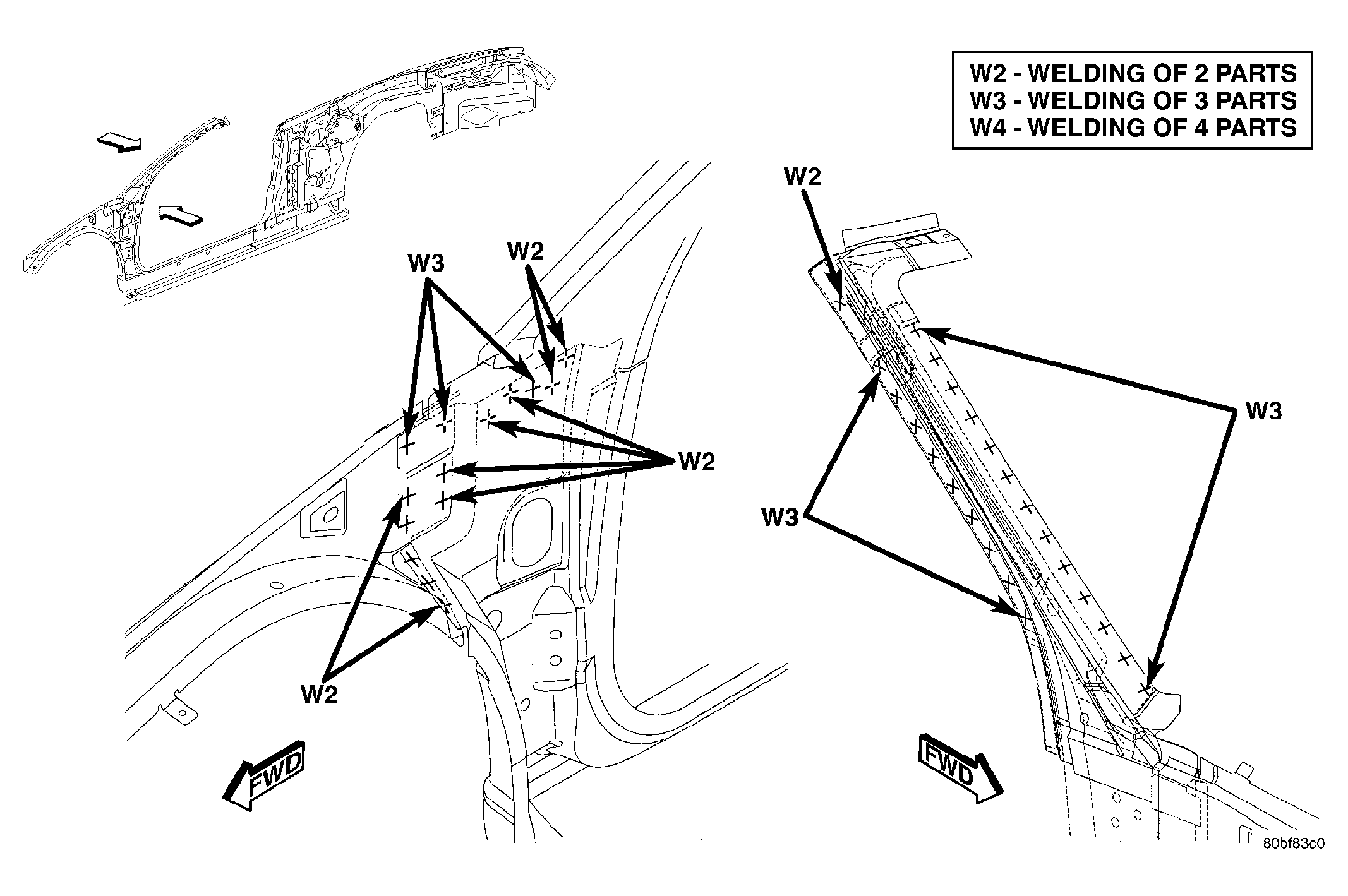

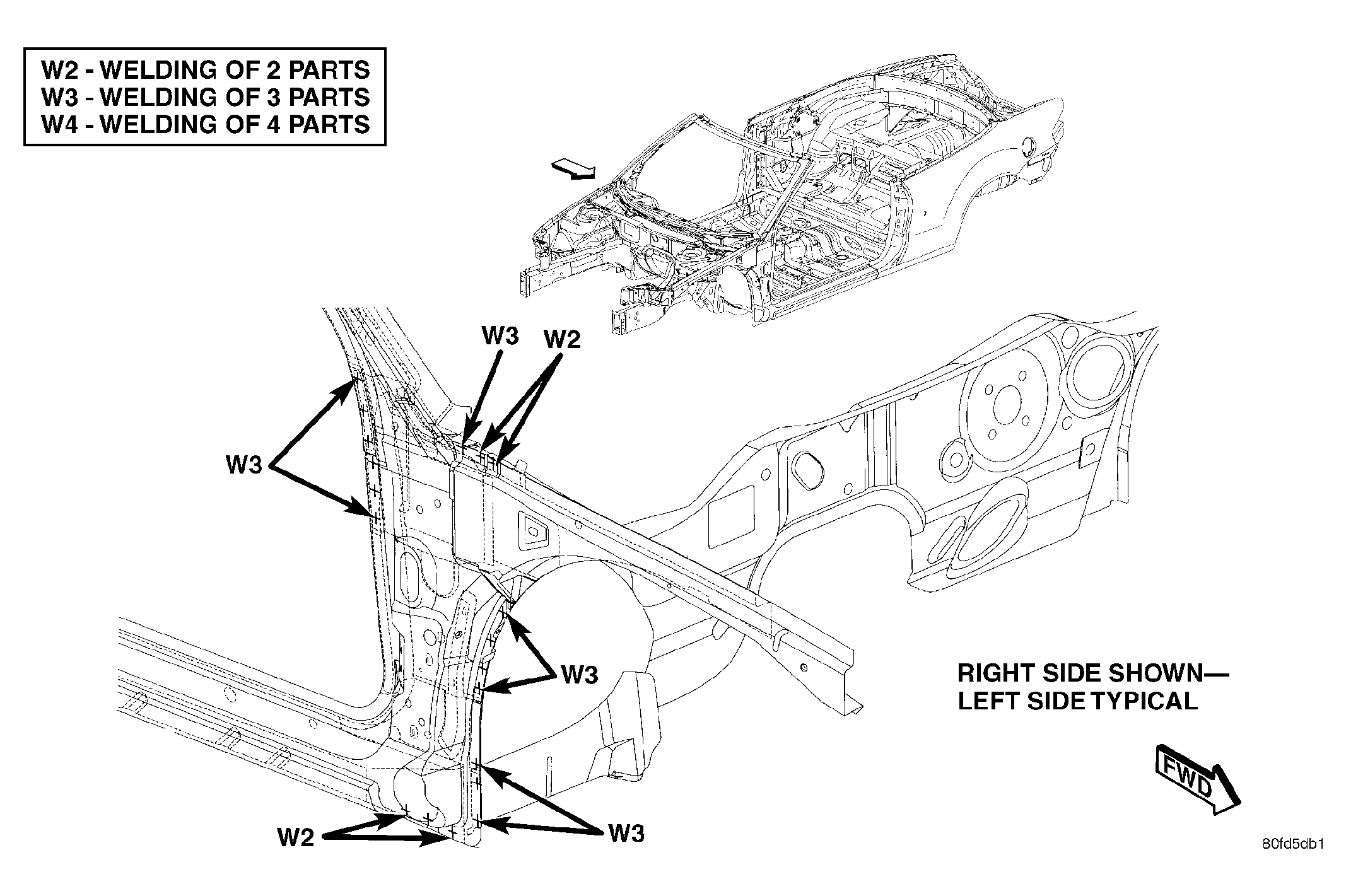

Fig 21: Inner And Outer Windshield Frame To Outer Body Side Panel To Inner Upper
GC0031778Courtesy of DAIMLERCHRYSLER CORP.

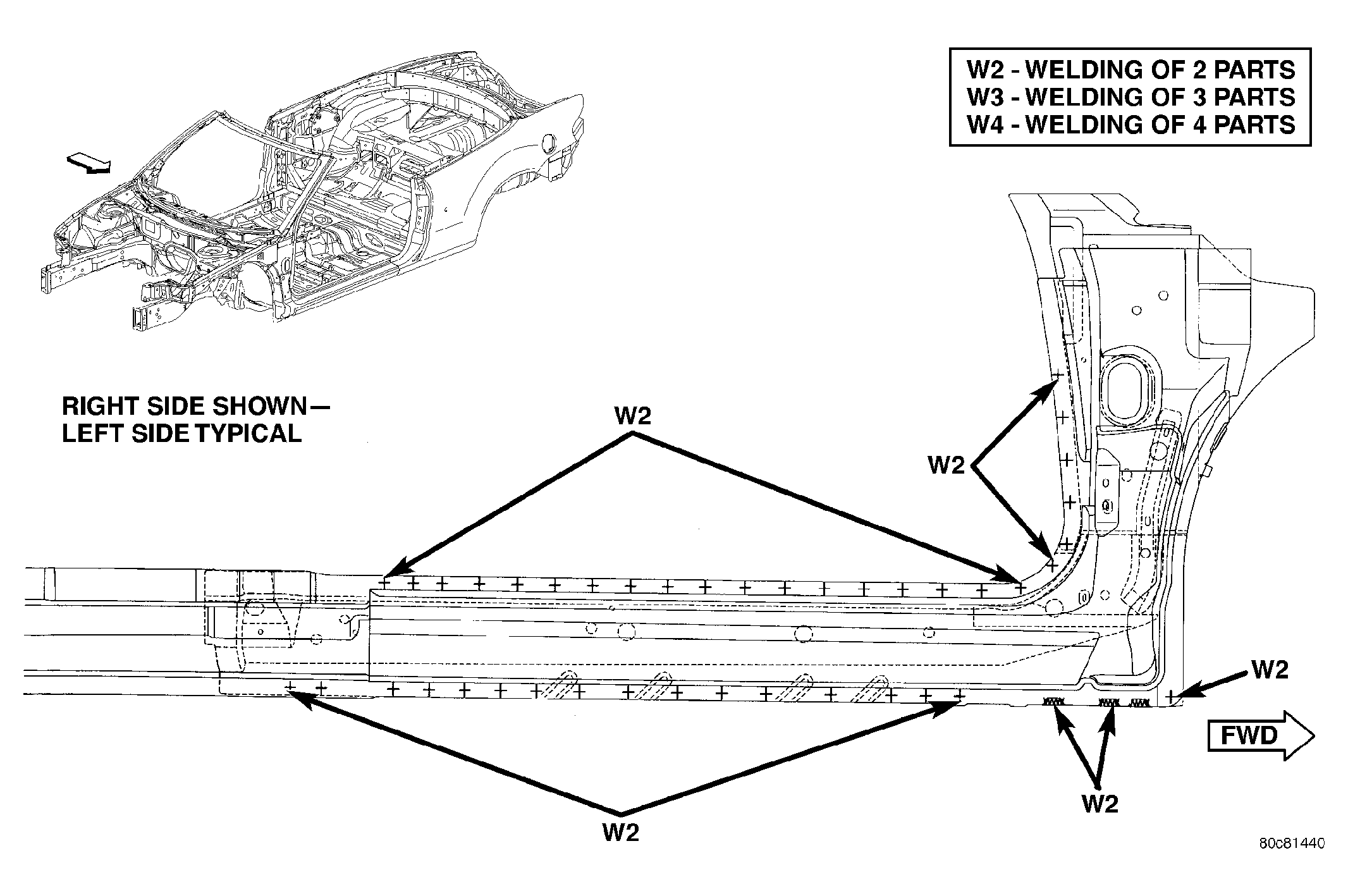

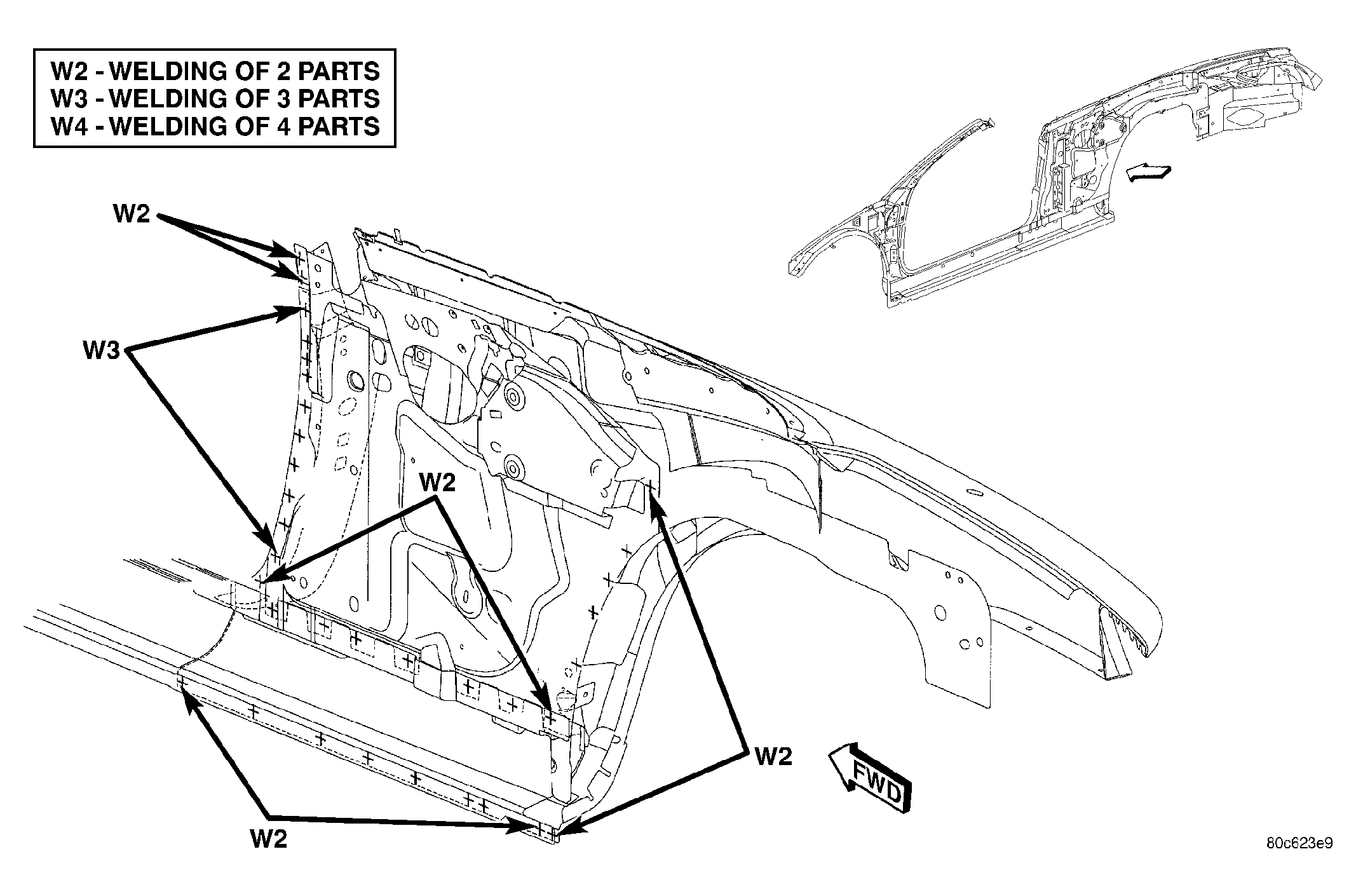

Fig 22: Inner And Outer Body Side Sill To Cowl Side Panel
GC0031766Courtesy of DAIMLERCHRYSLER CORP.

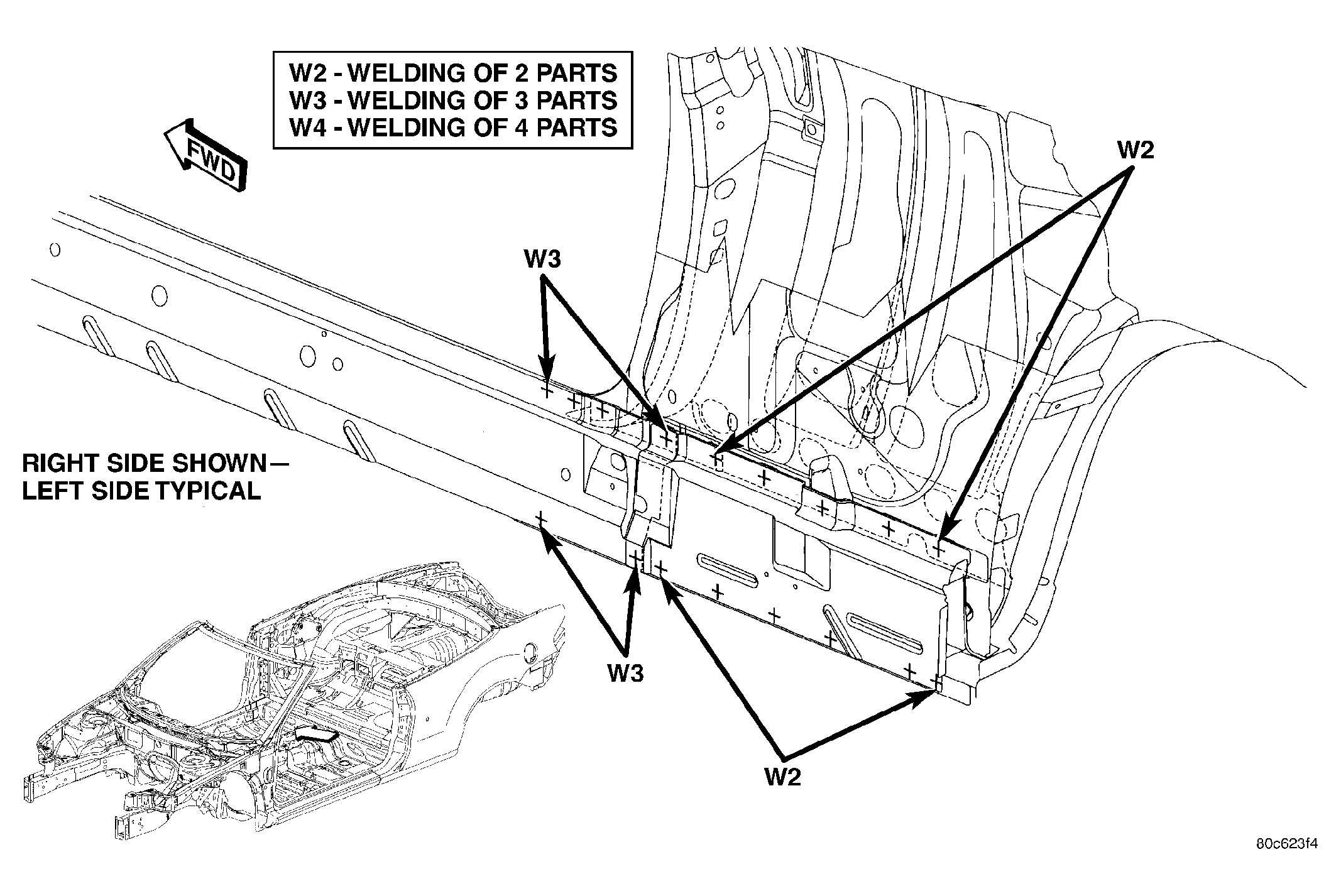

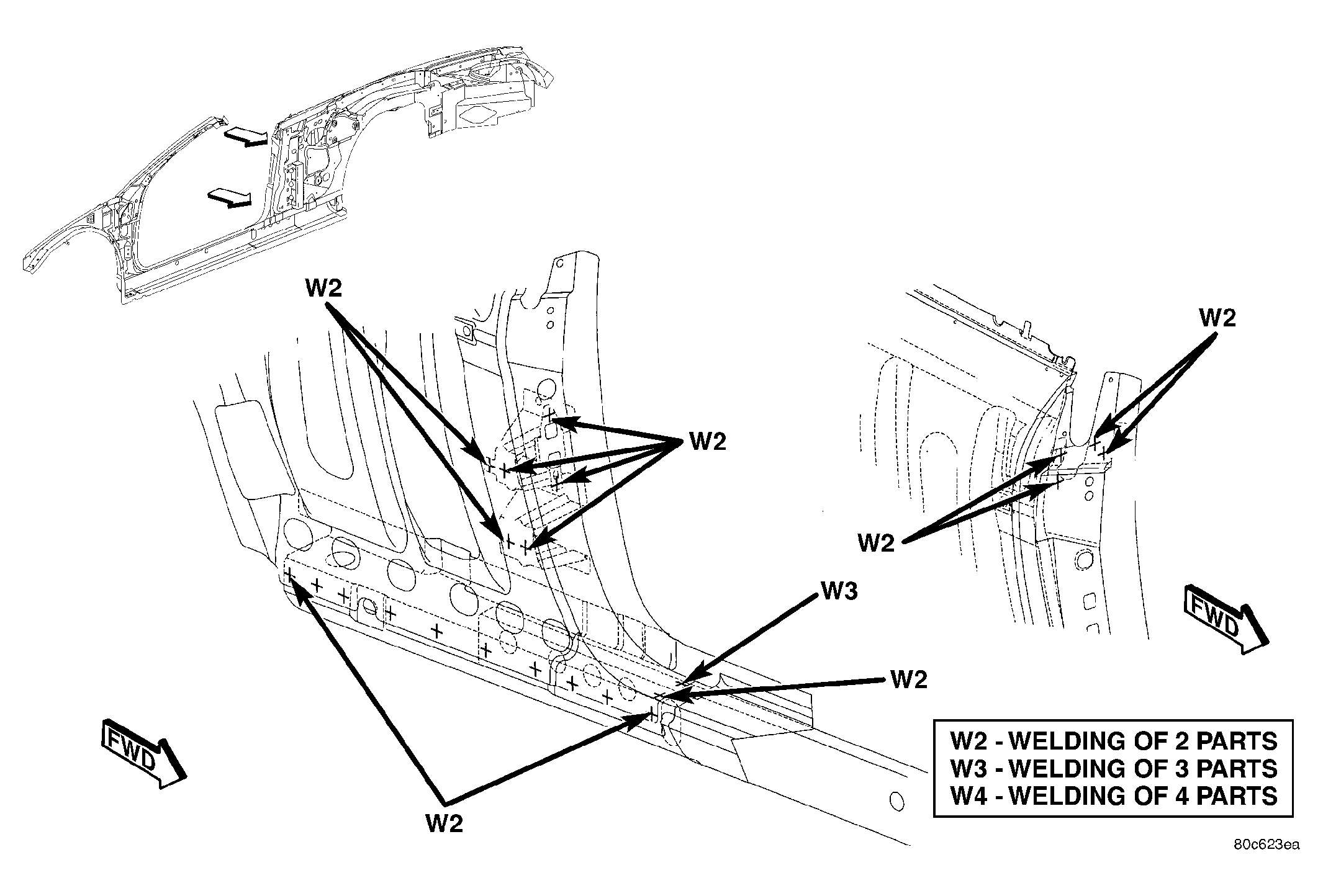

Fig 23: Inner Body Side Sill To Outer Body Side Panel To Inner Side Sill Extension
GC0031767Courtesy of DAIMLERCHRYSLER CORP.

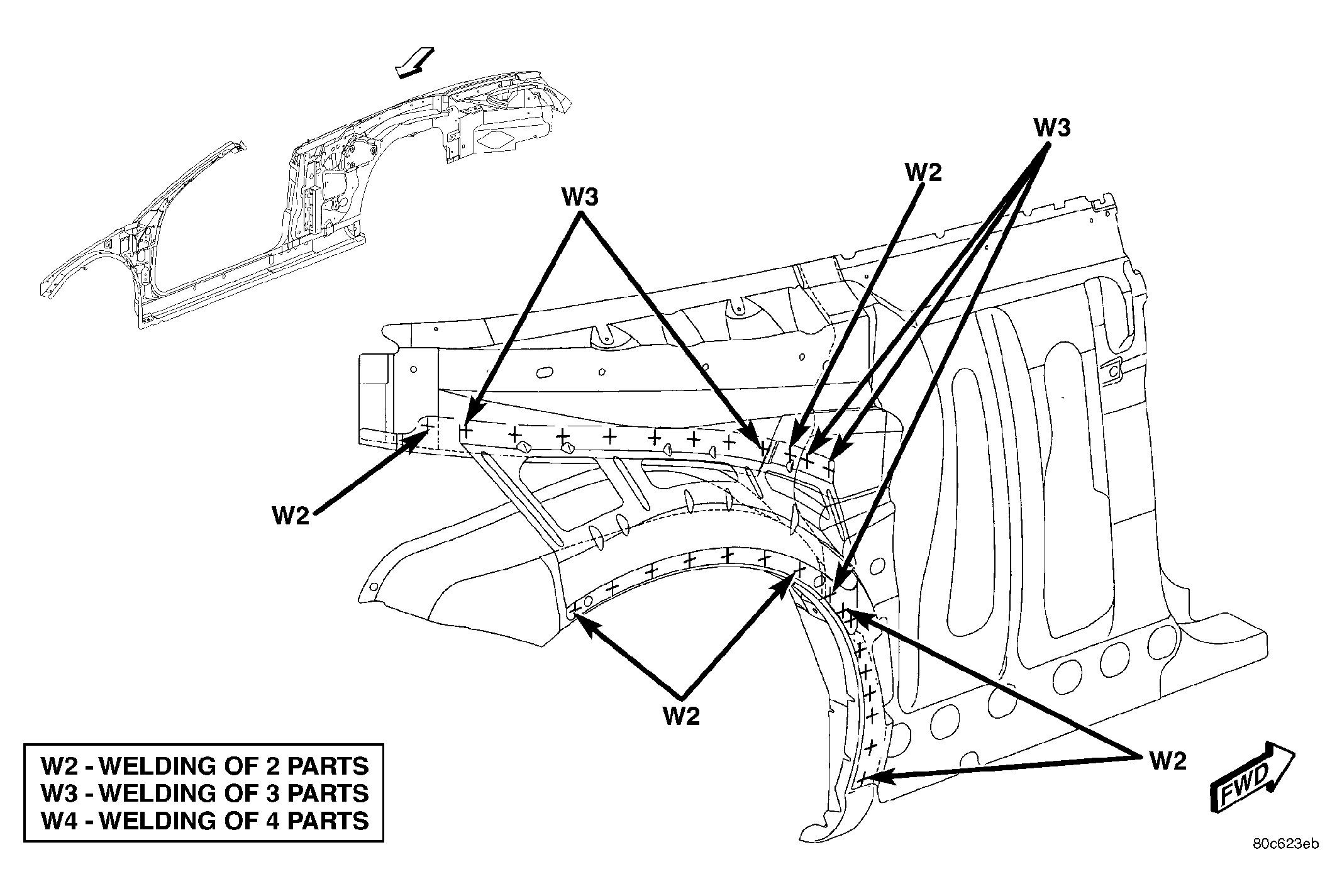

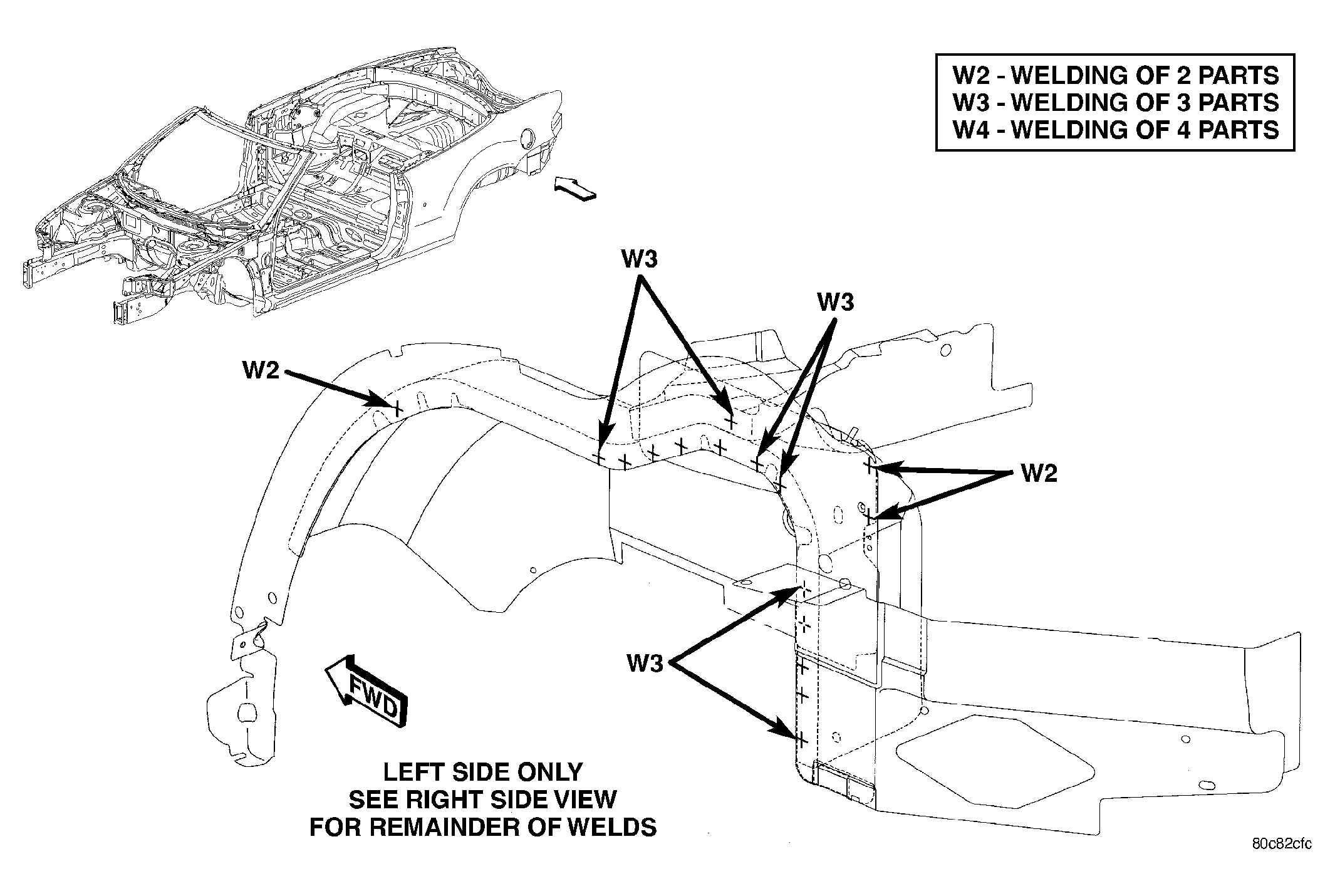

Fig 24: Inner Rear Wheelhouse To Inner Quarter Panel To Rear Inner Wheelhouse Quarter Extension
GC0031768Courtesy of DAIMLERCHRYSLER CORP.

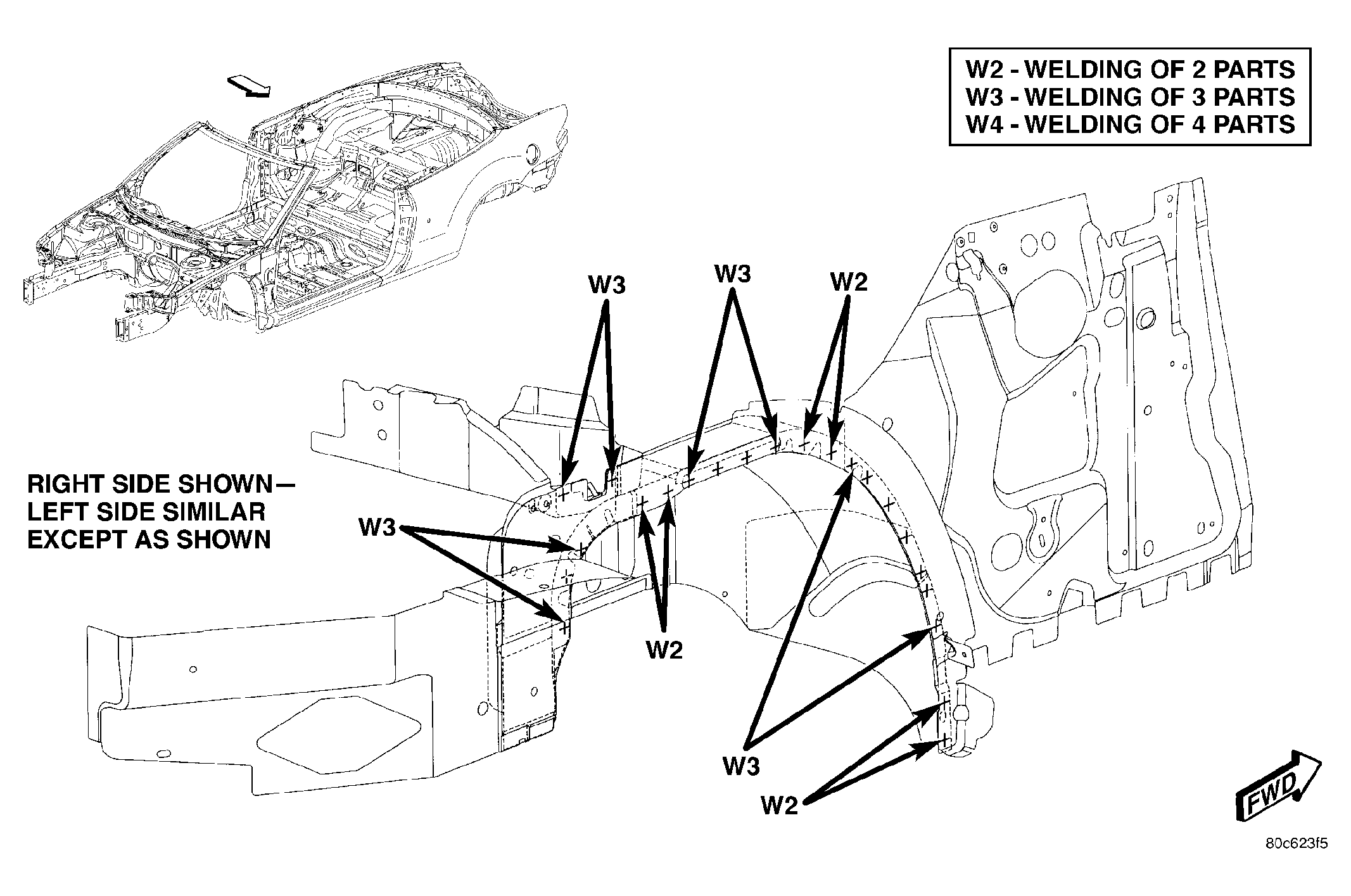

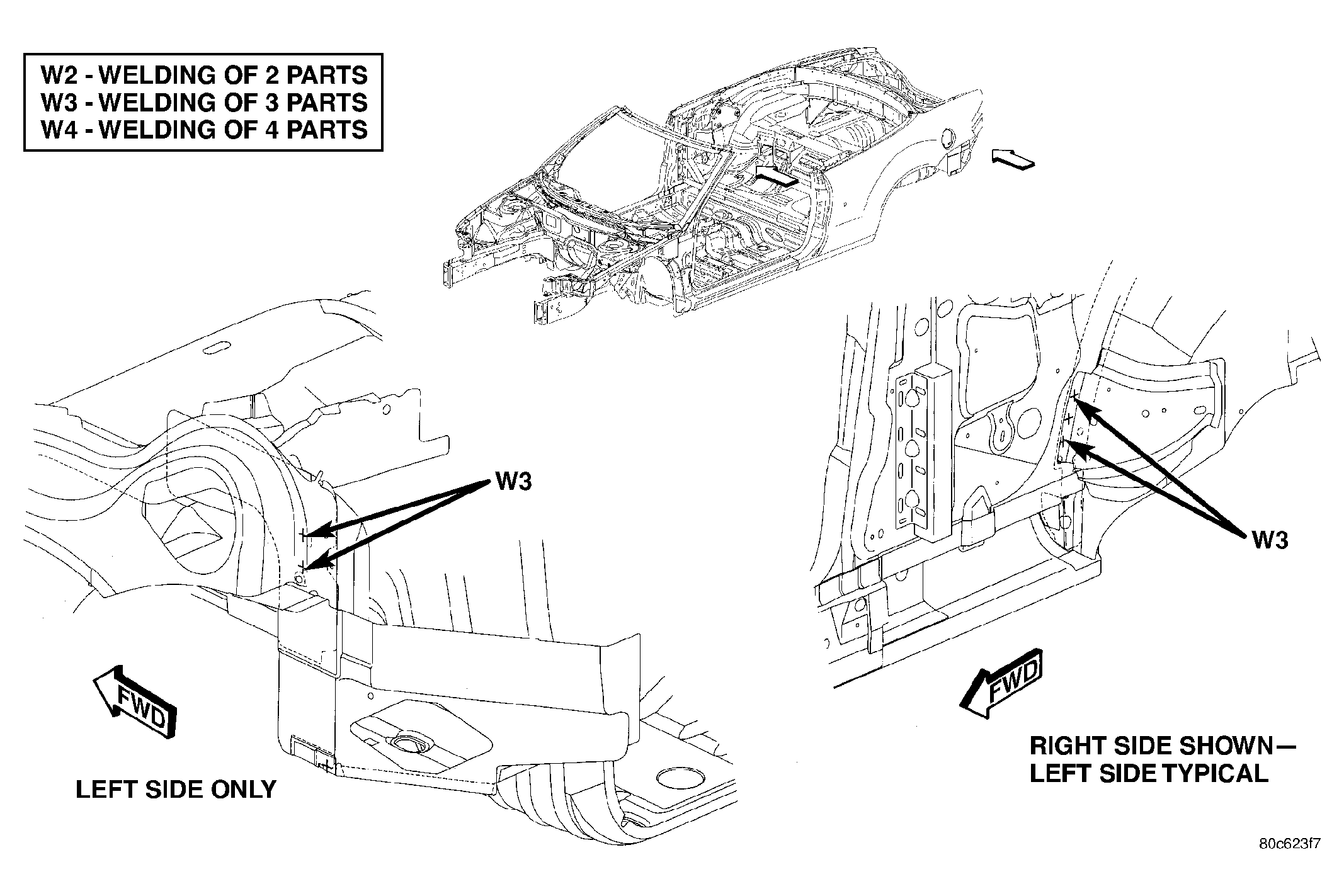

Fig 25: Lower Outer Quarter Panel Extension To Rear Inner Quarter Panel To Rear Inner Wheelhouse
GC0031769Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Rear Inner Quarter Panel To Inner Wheelhouse Extension To Front Inner Quarter Panel
GC0031770Courtesy of DAIMLERCHRYSLER CORP.

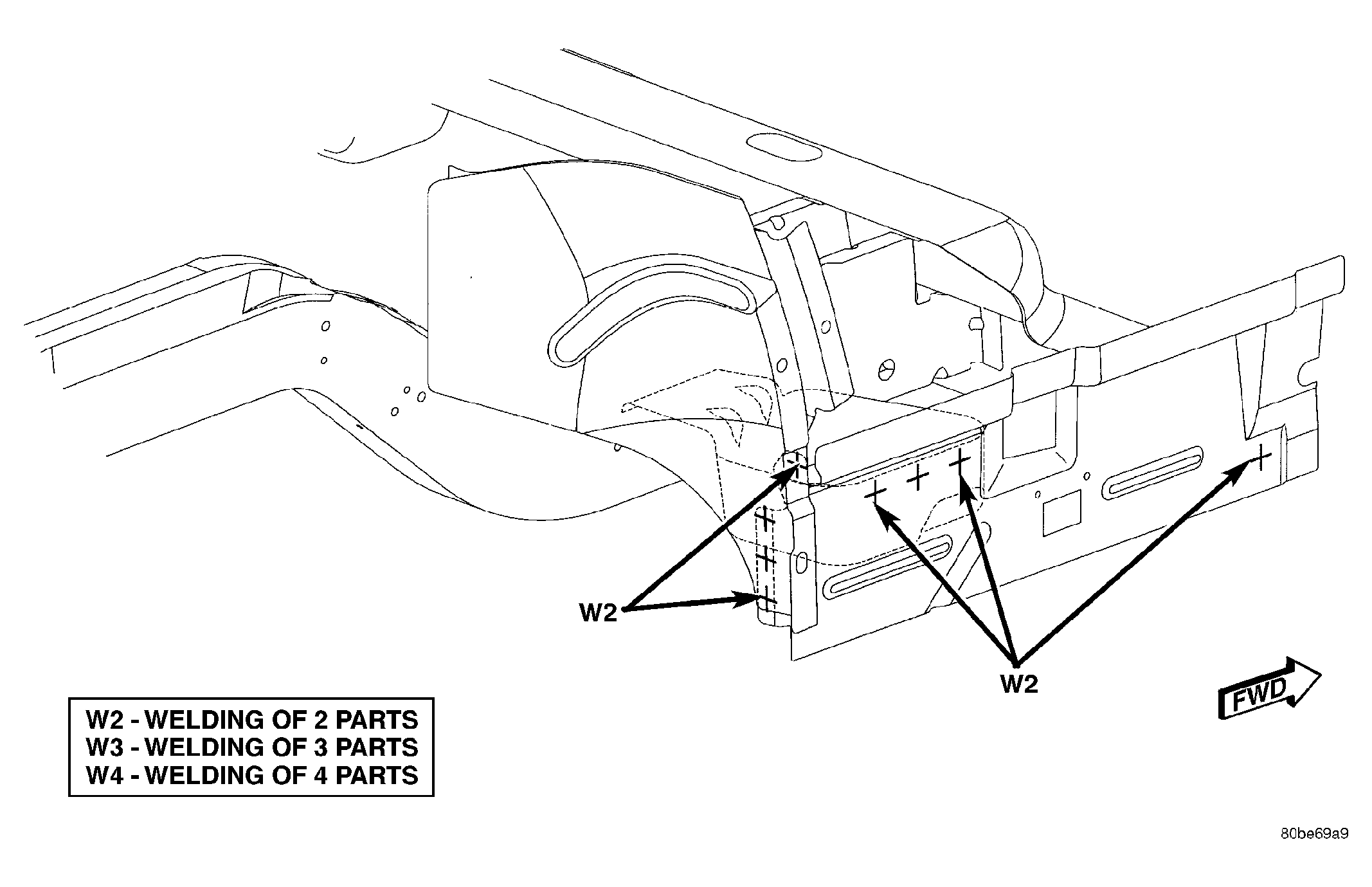

Fig 27: Lower Rear Quarter Panel Extension To Rear Floor Pan And Lower Deck Panel
GC0031771Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Front Upper Deck Panel Trough To Upper Deck Panel Trough
GC0031772Courtesy of DAIMLERCHRYSLER CORP.

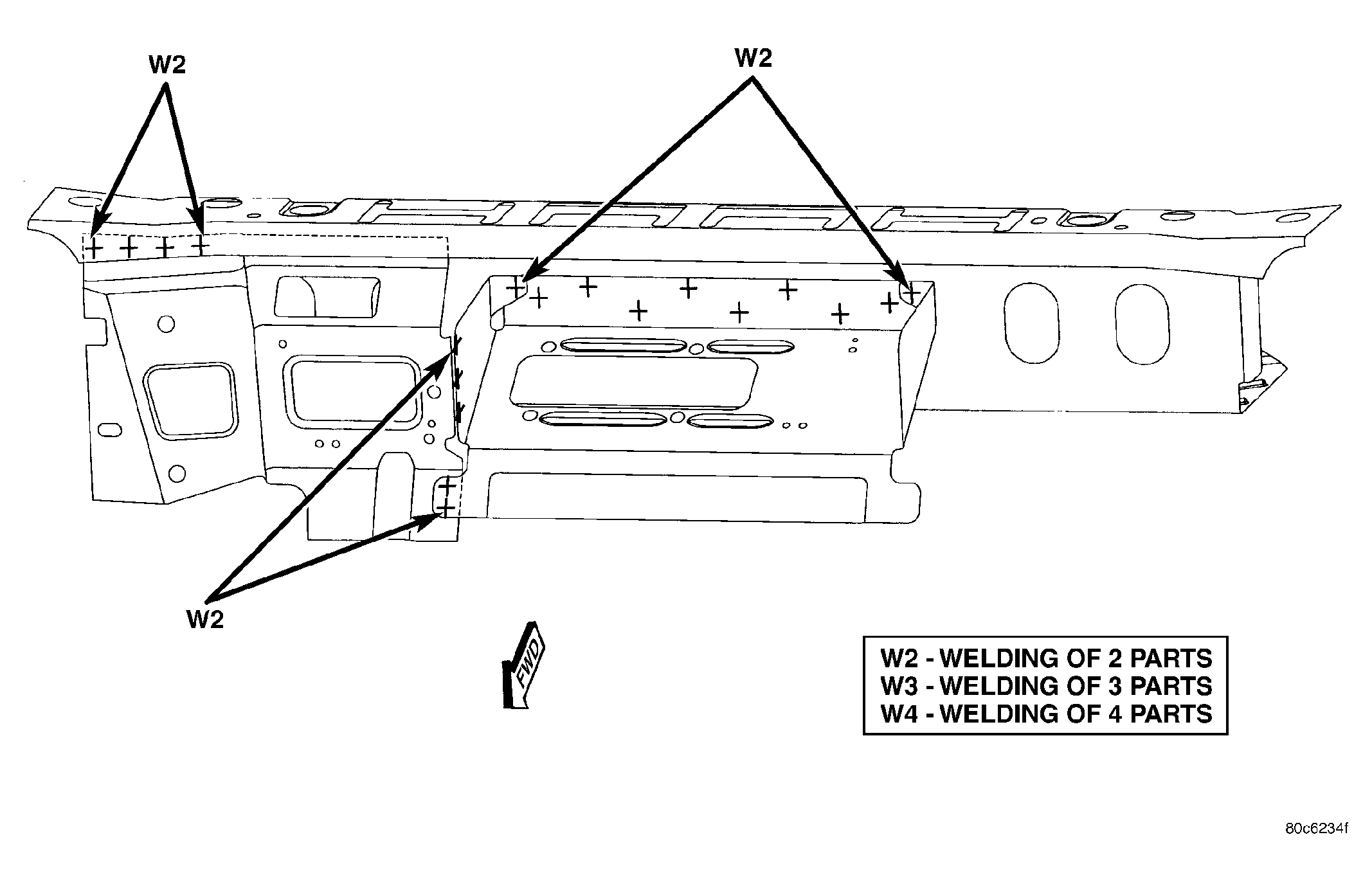

Fig 29: Upper Deck Trough Panel To Upper Deck Panel Front Reinforcement To Deck Panel Rear Reinforcement
GC0031773Courtesy of DAIMLERCHRYSLER CORP.

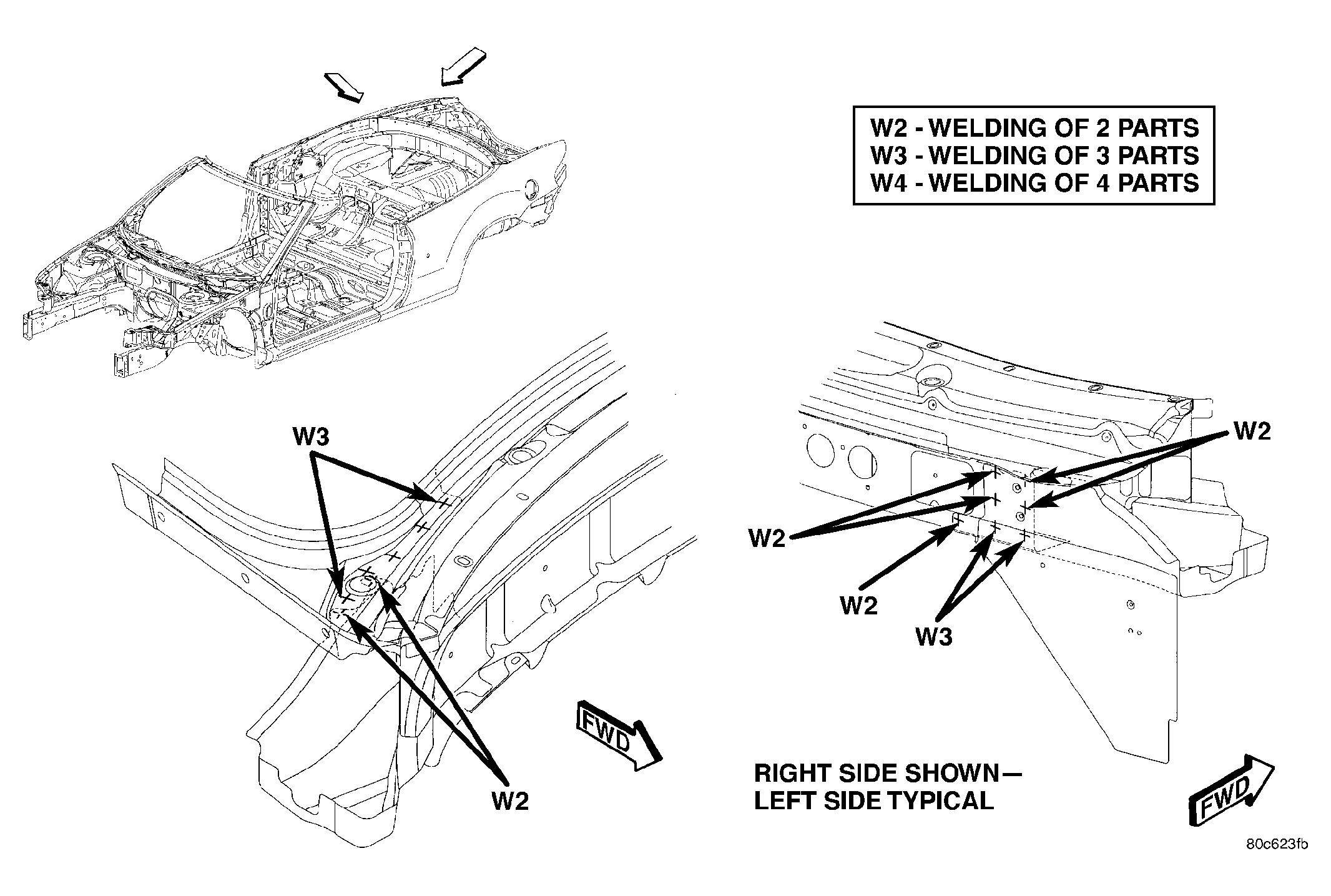

Fig 30: Wheelhouse Upper Deck Reinforcement To Upper Deck Rear Reinforcement And Upper Front Reinforcement
GC0031774Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Upper Deck Panel Front Reinforcement To Wheelhouse Upper Deck Reinforcement Extension
GC0031775Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Front Console Bracket To Front Floor Pan
GC0031776Courtesy of DAIMLERCHRYSLER CORP.

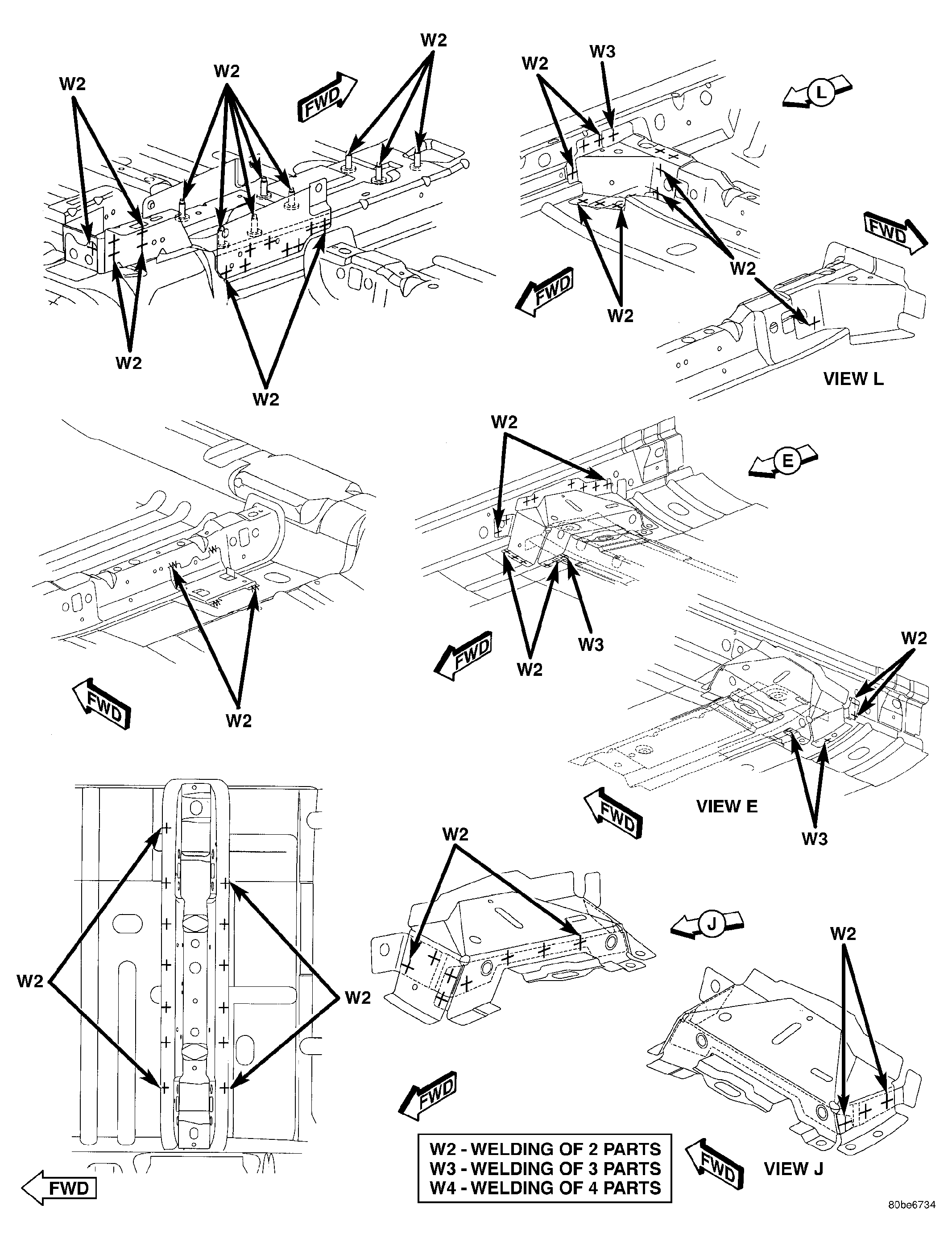

Fig 33: Inner Side Sill, Crossmember Reinforcement, Crossmember To Rear Floor Pan
GC0031779Courtesy of DAIMLERCHRYSLER CORP.

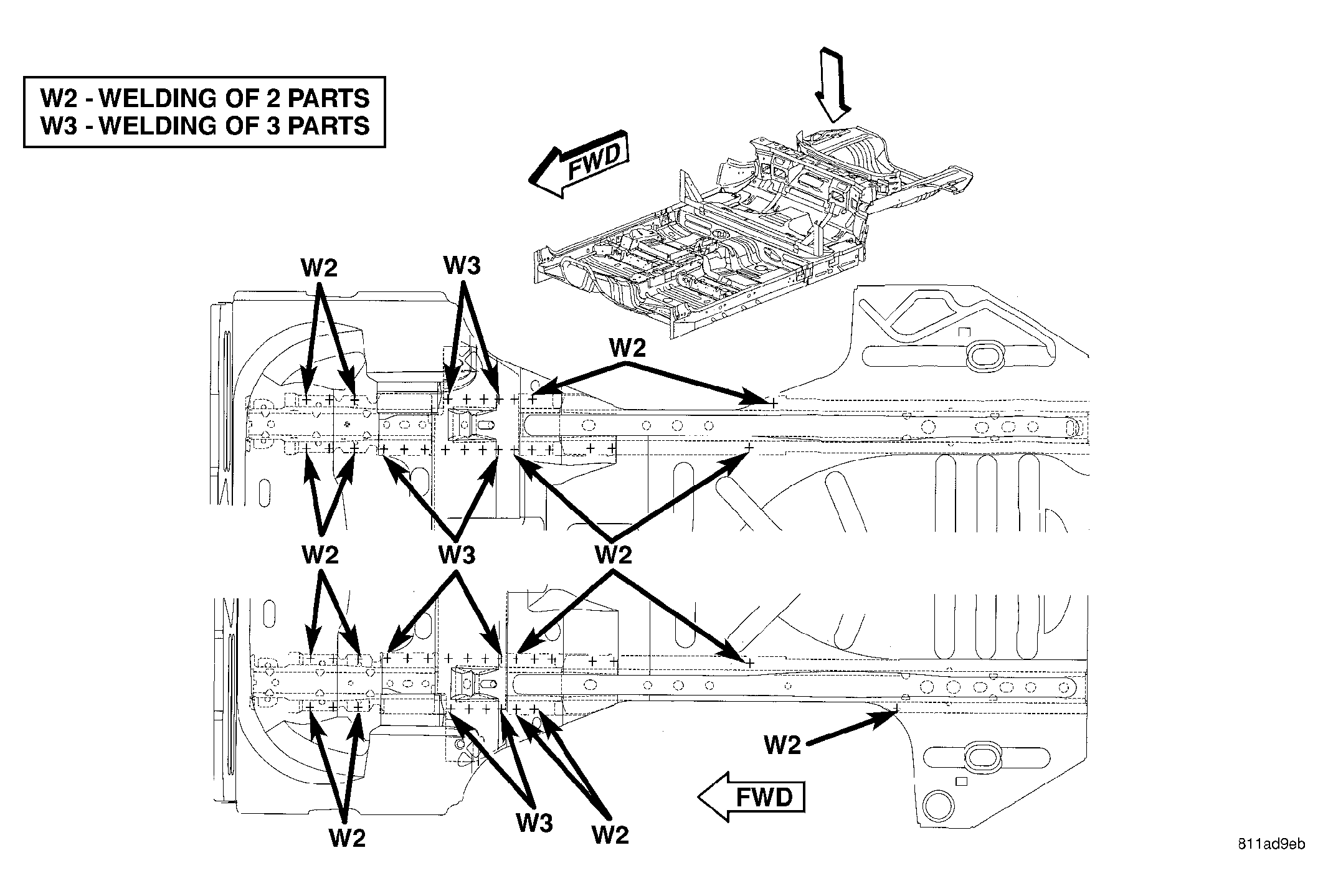

Fig 34: Side Rails, Center Side Rail Extensions To Rear Floor Pan
GC0031780Courtesy of DAIMLERCHRYSLER CORP.

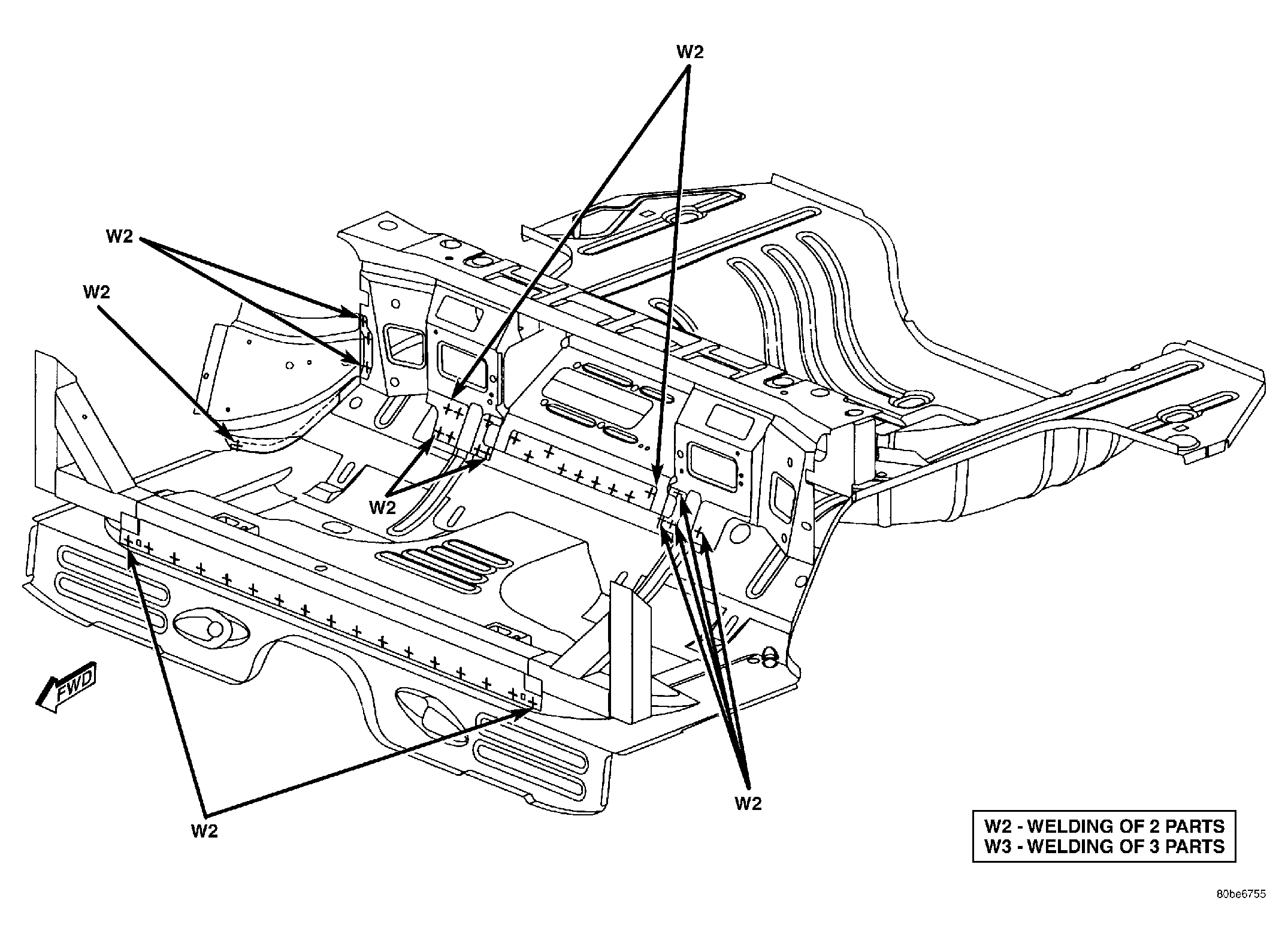

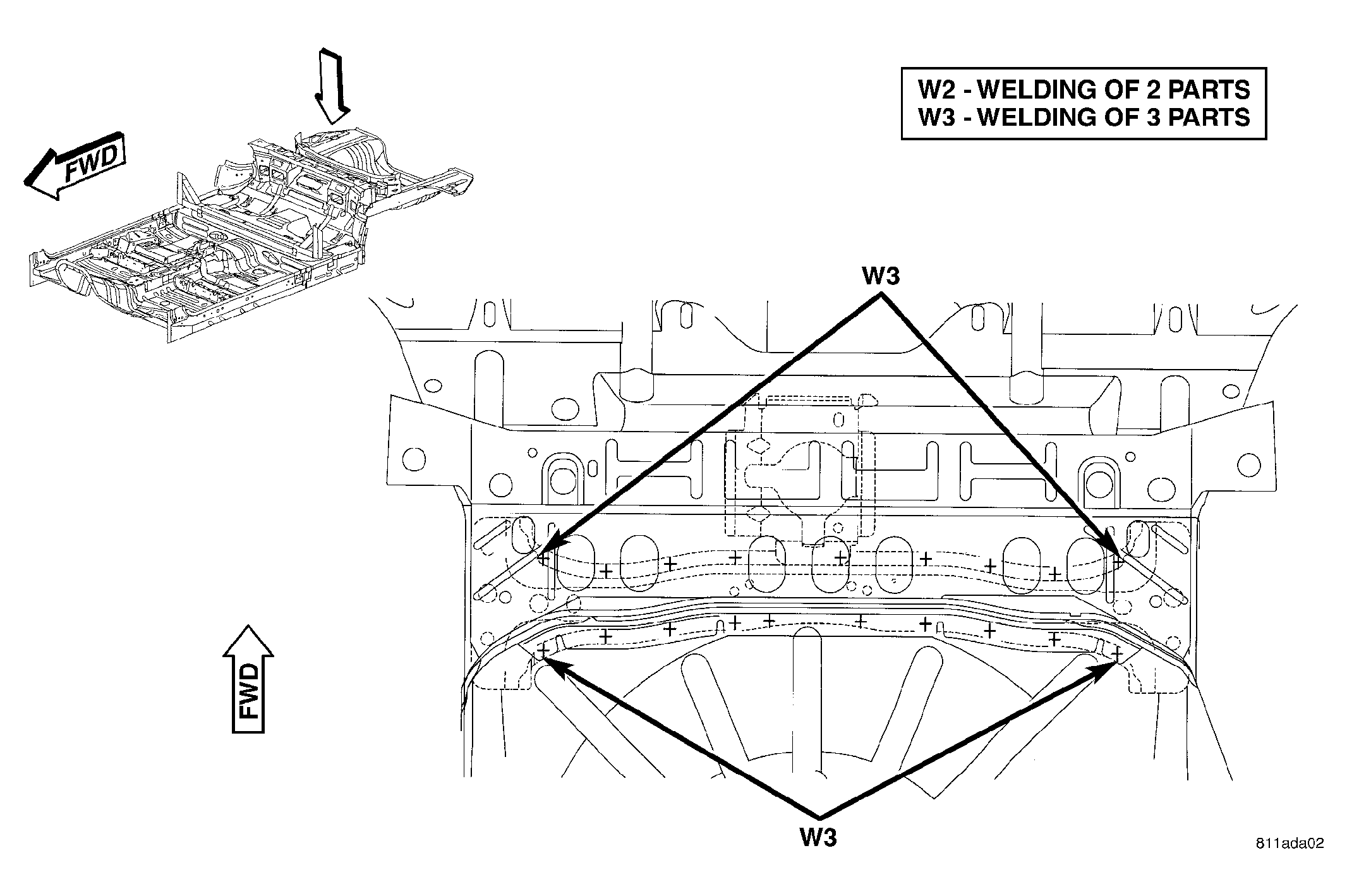

Fig 35: Rear Suspension Crossmember, Seat Back Support To Rear Floor Pan
GC0031781Courtesy of DAIMLERCHRYSLER CORP.

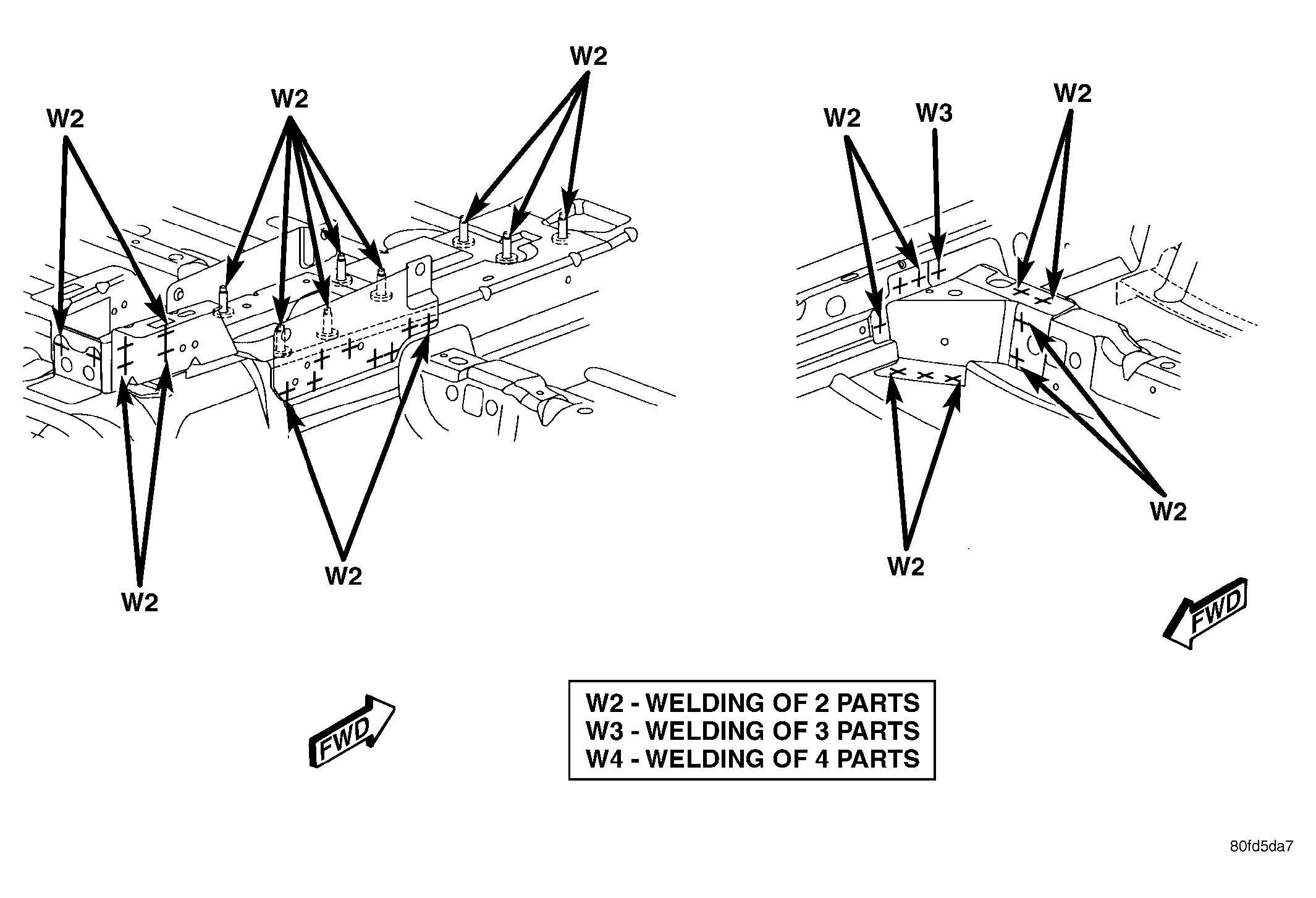

Fig 36: Park Brake Bracket And Shifter Mounting Studs To Front Console
GC0031777Courtesy of DAIMLERCHRYSLER CORP.
