Specifications - Weld Locations - Jr-27 And Jr-41

DESCRIPTION	FIGURE

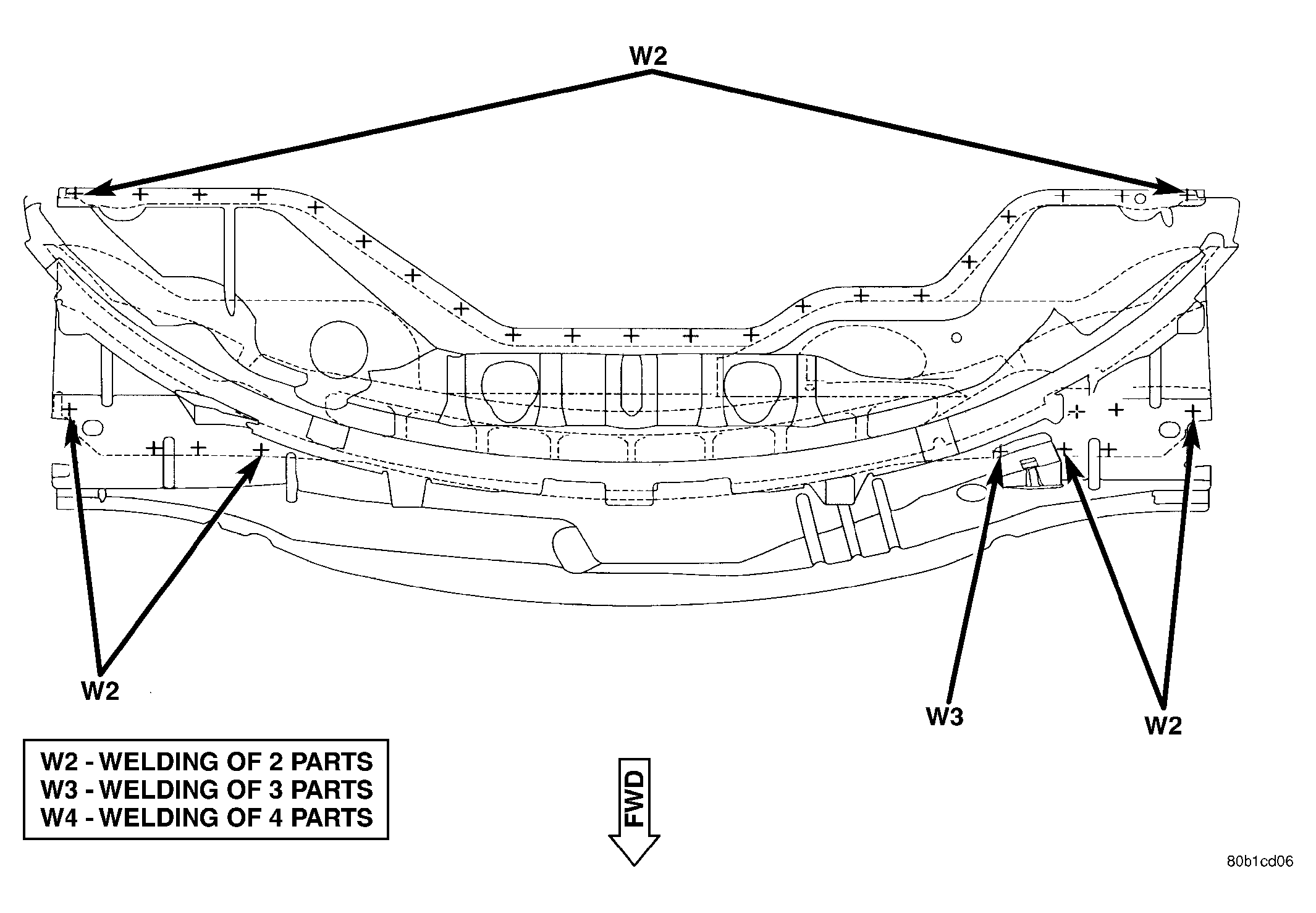

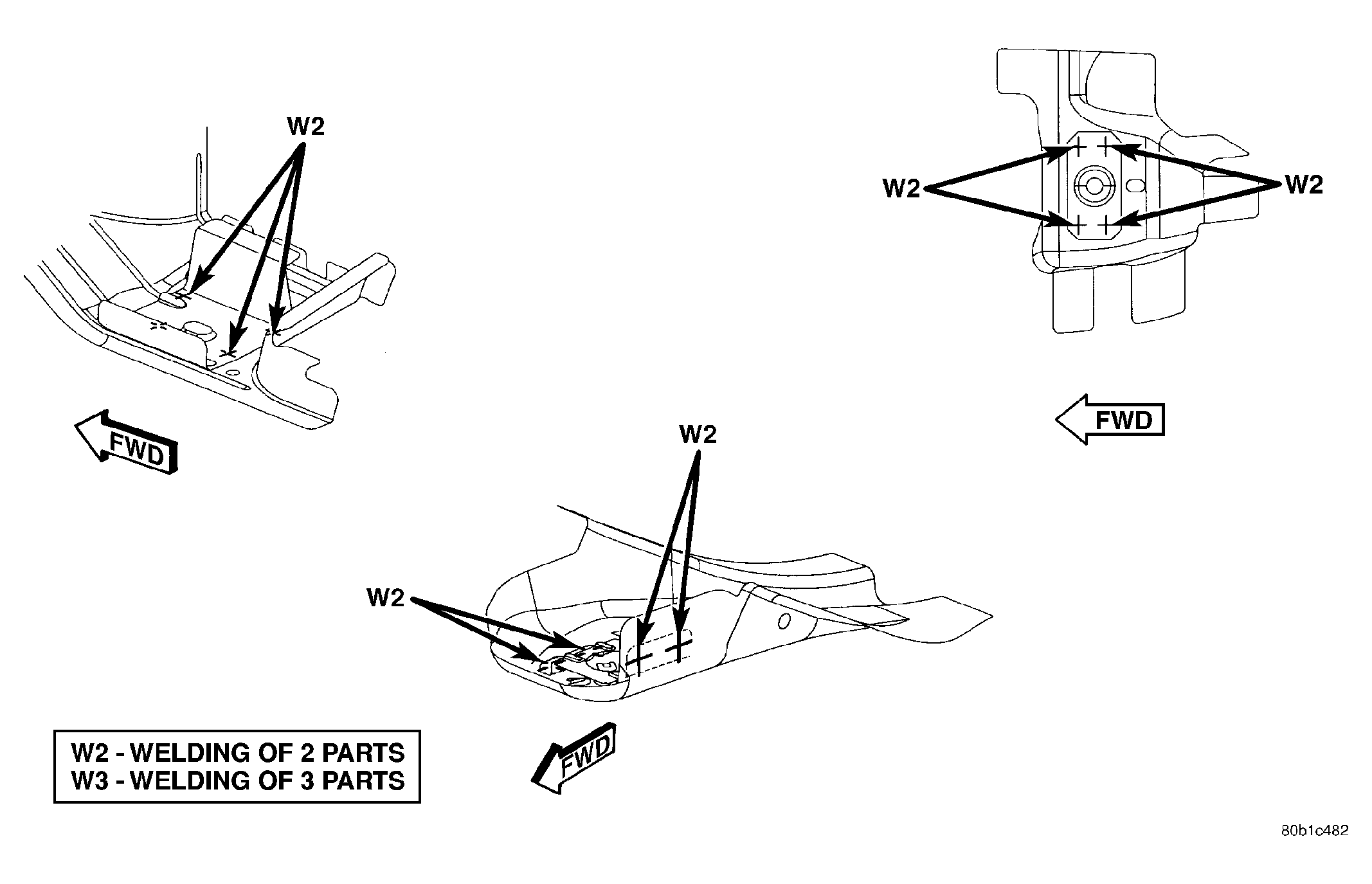

LOWER RADIATOR CROSSMEMBER, UPPER SUPPORT TO LOWER RADIATOR CROSSMEMBER LOWER SUPPORT	Fig 1.

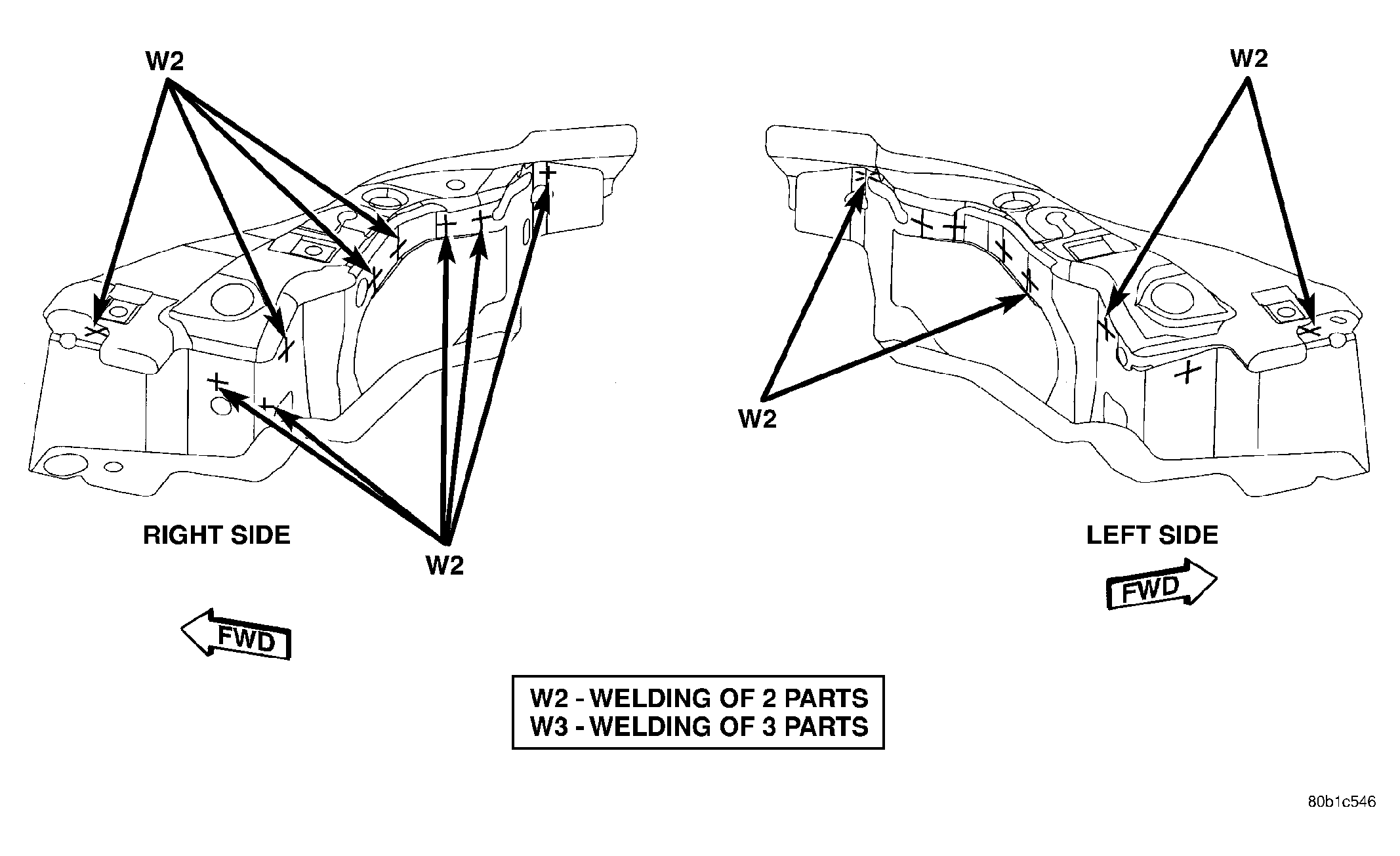

UPPER RADIATOR MOUNTING CROSSMEMBER TO HOOD LATCH REINFORCEMENT	Fig 2.

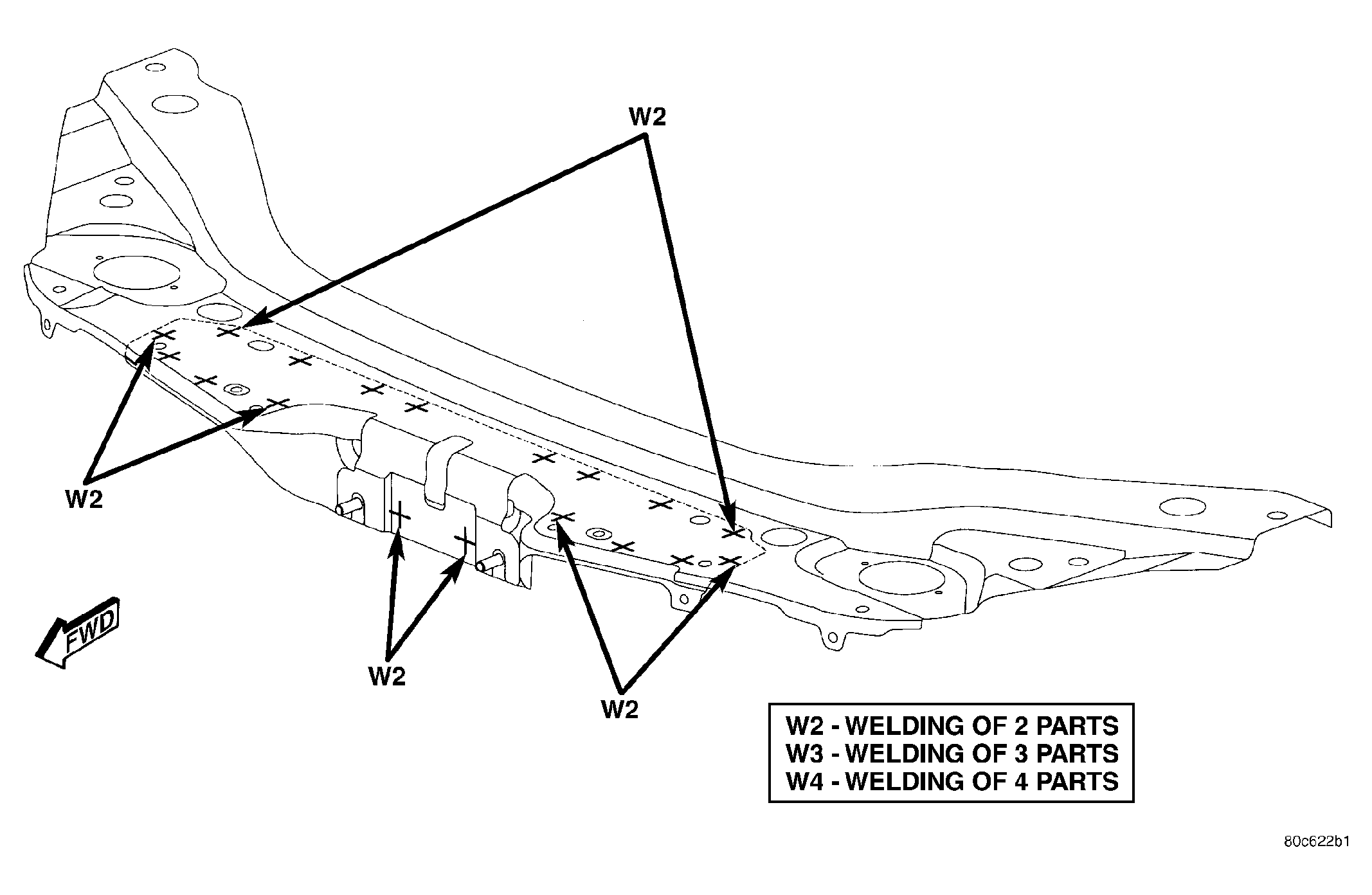

FRONT ENGINE MOUNT SUPPORTS & RADIATOR BRACKET SUPPORT TO LOWER RADIATOR CROSSMEMBER	Fig 3.

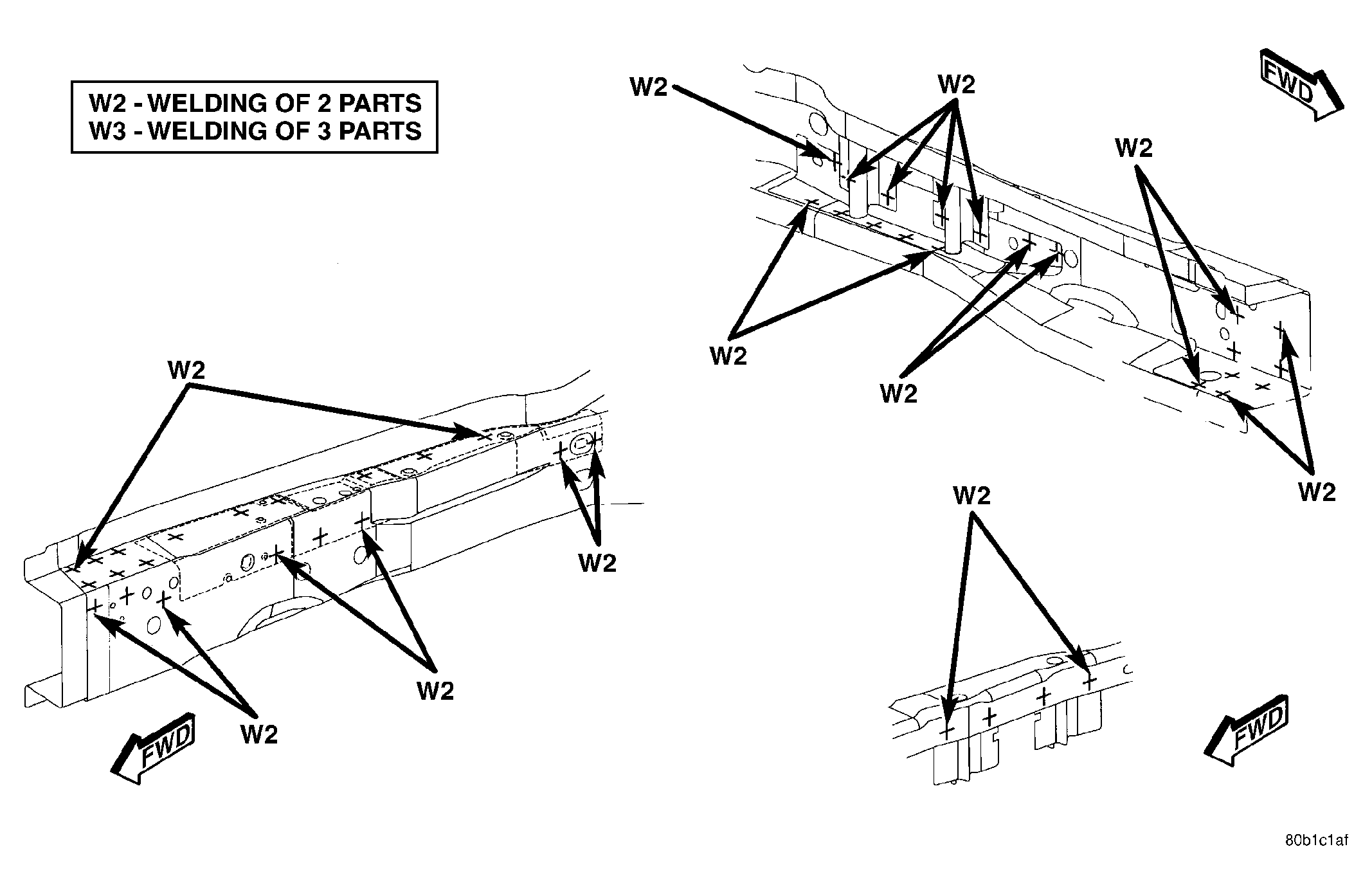

REAR FRONT SIDE RAIL TO REAR FRONT RAIL CAP TO SILL REINFORCEMENT	Fig 4.

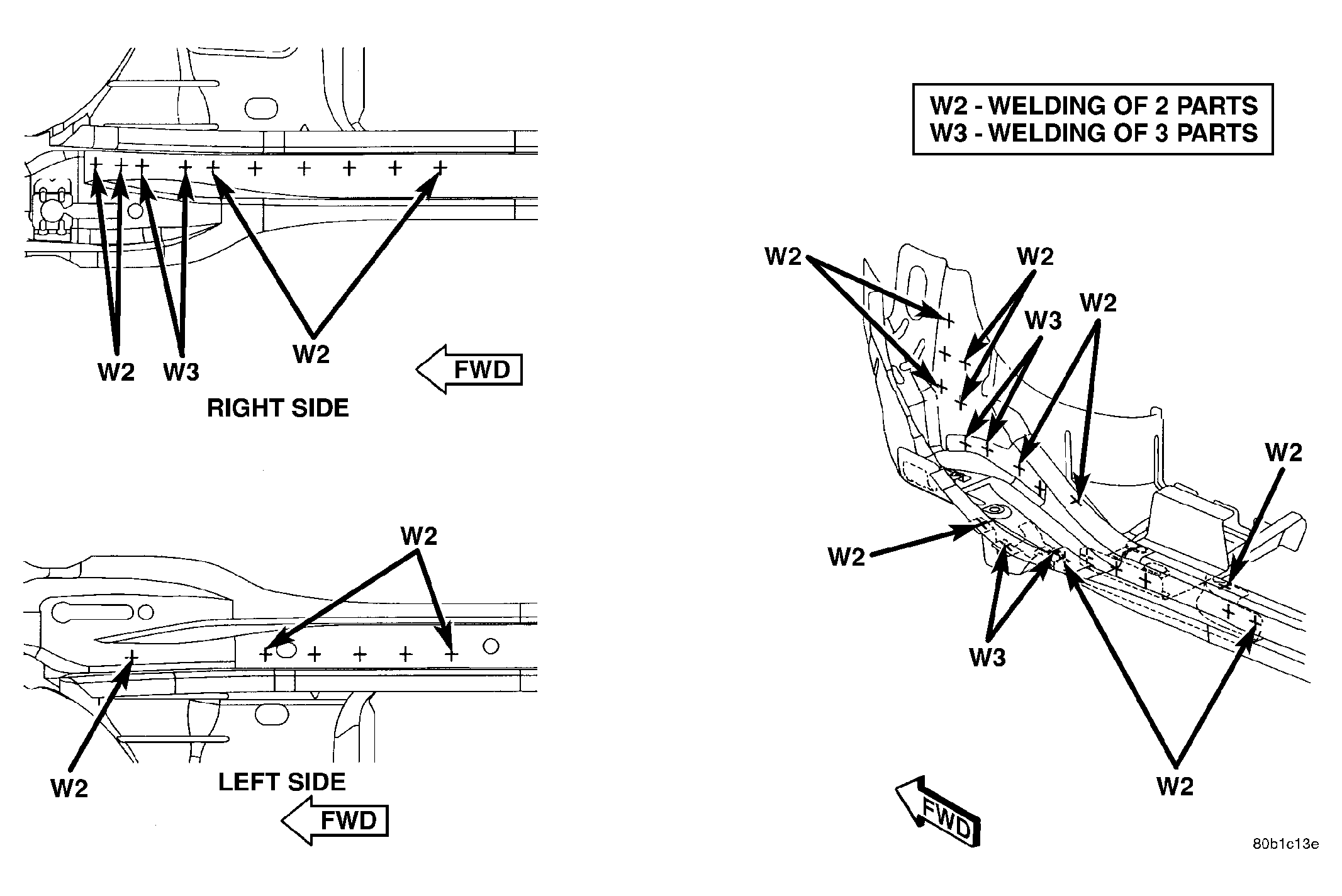

BUMPER EXTENSION, HEADLAMP SUPPORT RAIL TO REAR FRONT SIDE RAIL	Fig 5.

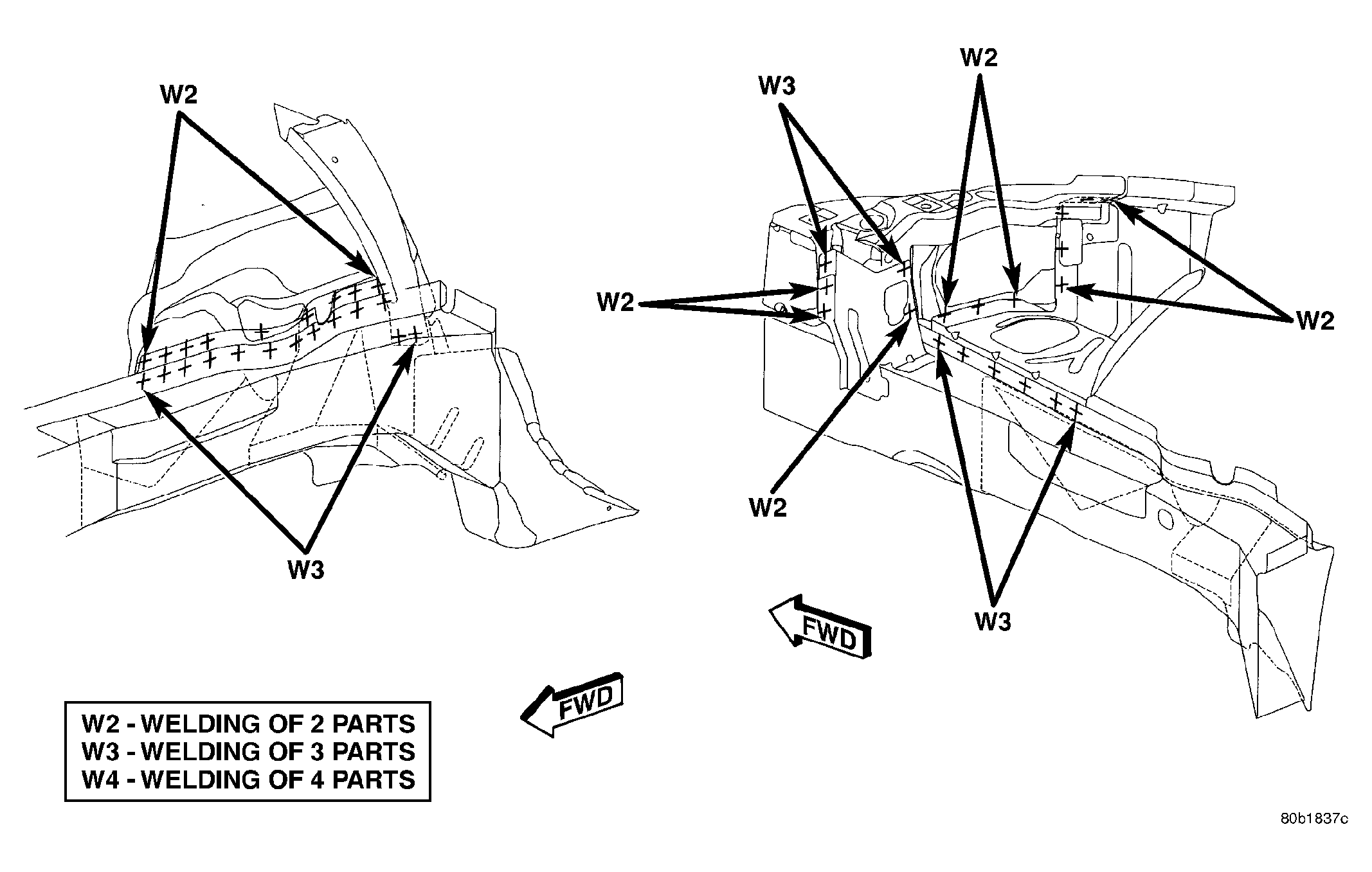

REAR FRONT SIDE RAIL TO REAR FRONT RAIL CAP TO REAR FRONT SIDE RAIL PLATE	Fig 6.

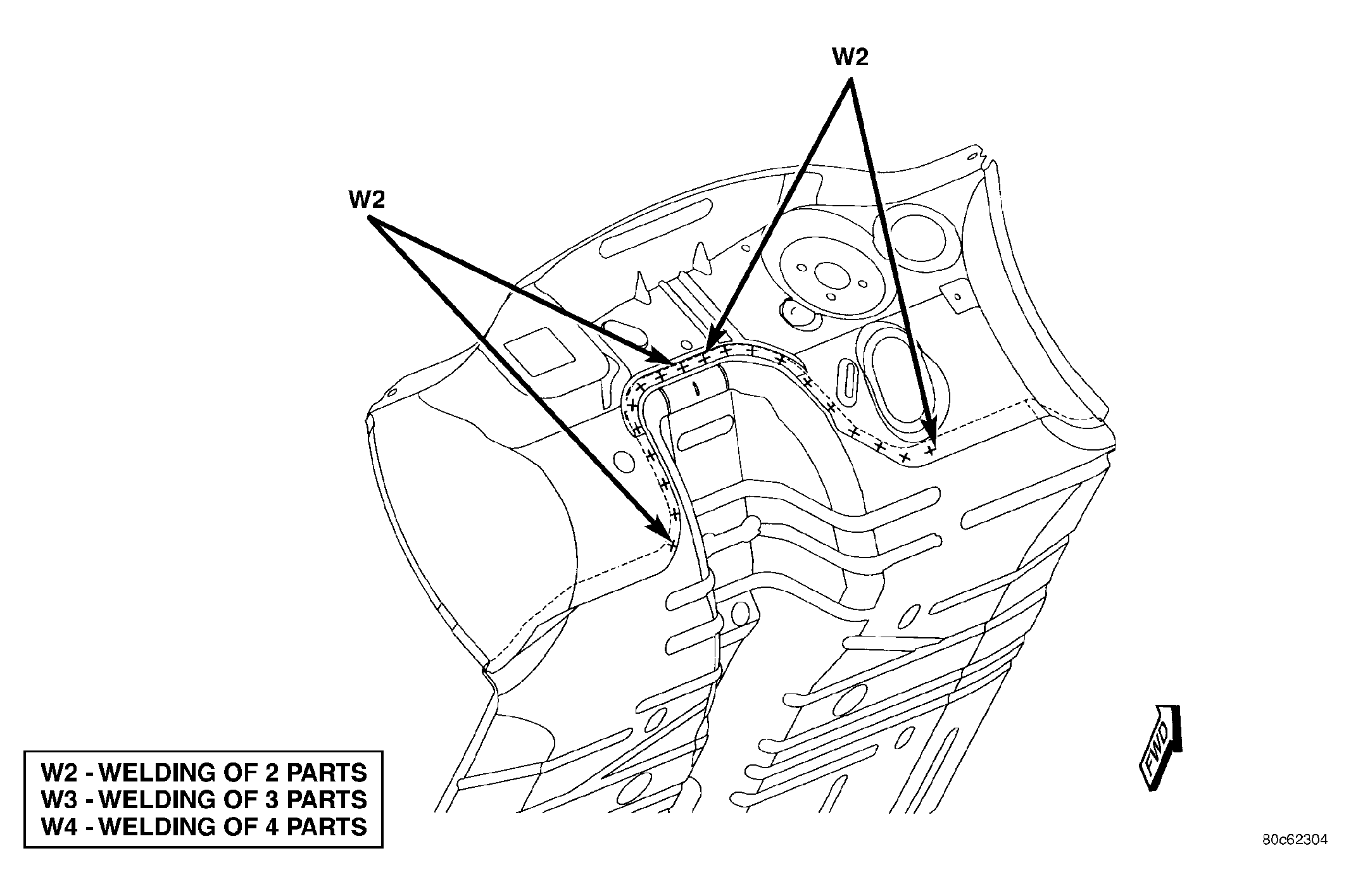

UPPER FRONT SUSPENSION MOUNTING CAP & REINFORCEMENT TO UPPER LOAD BEAM	Fig 7.

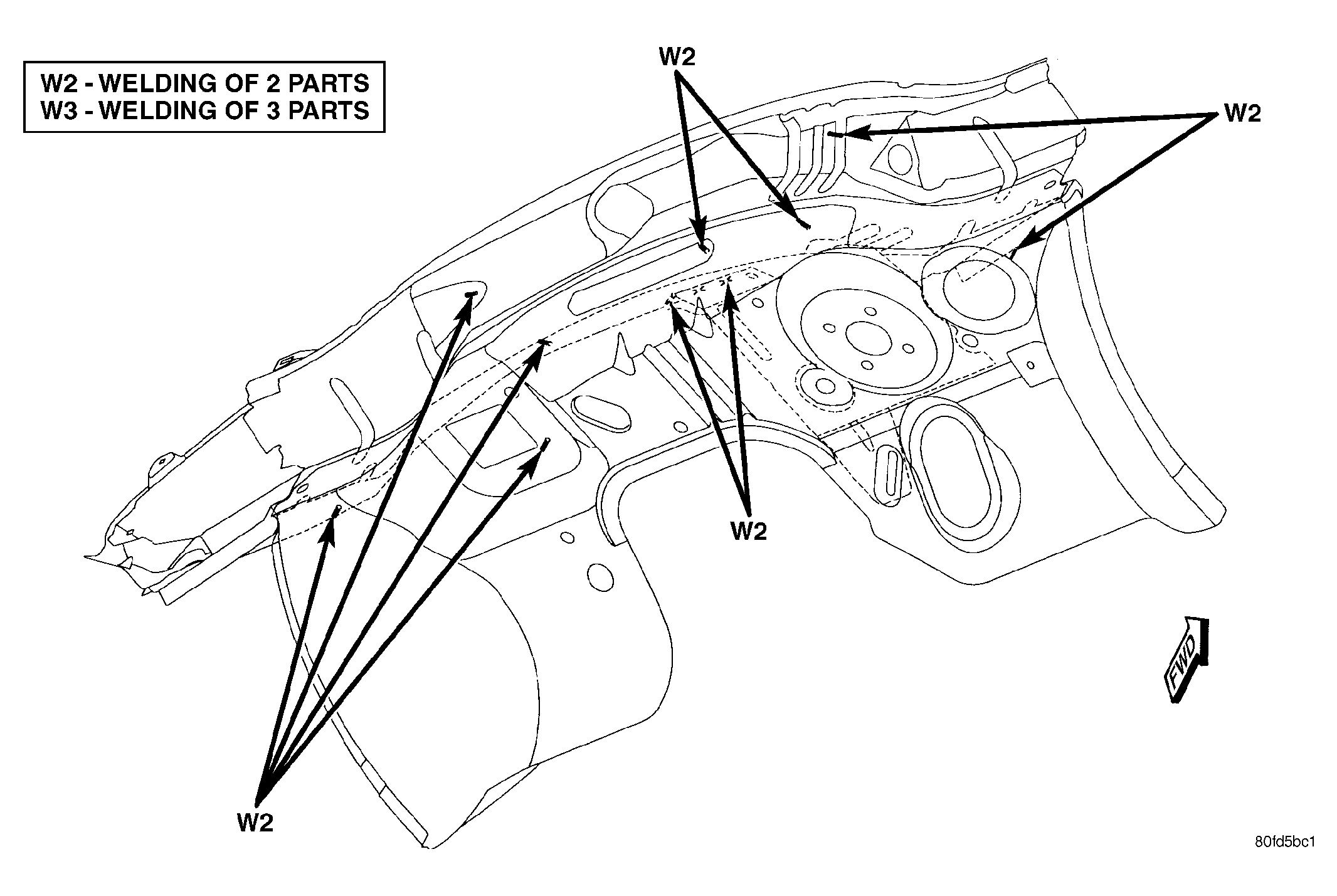

FRONT SUSPENSION UPPER MOUNTING PANEL TO FRONT FENDER SHIELD	Fig 8.
FRONT WHEELHOUSE TO FRONT SIDE RAIL AND HEADLAMP	Fig 9.
FRONT SIDE RAIL REINFORCEMENT TO FRONT SIDE RAIL	Fig 10.
FRONT SUSPENSION CROSSMEMBER BRACKET TO FRONT SIDE RAIL REINFORCEMENT TO FRONT SIDE RAIL	Fig 11.
REAR FRONT SIDE RAIL TO REAR FRONT RAIL CAP	Fig 12.
FRONT SUSPENSION CROSSMEMBER BRACKET TO LOWER RADIATOR SUPPORT & REAR FRONT SIDE RAIL TO FRONT SIDE RAIL	Fig 13.
FRONT SUSPENSION UPPER MOUNTING CAP TO MOUNTING PANEL TO UPPER LOAD BEAM	Fig 14.
FRONT WHEELHOUSE TO FRONT SIDE RAIL AND HEADLAMP	Fig 15.
BRAKE BOOSTER REINFORCEMENT TO DASH PANEL & LOWER CONTROL PLENUM	Fig 16.
DASH PANEL TO LOWER COWL PLENUM & UPPER COWL PLENUM TO COWL PLENUM CLOSURE	Fig 17.
UPPER COWL PLENUM AND DASH PANEL TO LOWER COWL PLENUM	Fig 18.
COWL SIDE PANEL TO DASH PANEL TO LOWER COWL PLENUM	Fig 19.
FRONT FLOOR PAN TO DASH PANEL	Fig 20.
LOWER COWL PLENUM TO INNER LOAD BEAM BUMPER ATTACHING REINFORCEMENT	Fig 21.
SHOCK TOWER EXTENSION TO DASH PANEL	Fig 22.
FRONT CONSOLE MOUNTING BRACKET TO FRONT FLOOR PAN	Fig 23.
SEAT TRACK CROSSMEMBER & FRONT FLOOR PAN TO INNER BODY SIDE SILL	Fig 24.
FRONT SEAT TRACK CROSSMEMBER TO FRONT FLOOR PAN	Fig 25.
PARK BRAKE BRACKET & SHIFTER MOUNTING STUDS TO FRONT CONSOLE MOUNTING BRACKET	Fig 26.
SEAT MOUNTING CROSSMEMBER TO TUNNEL REINFORCEMENT TO FRONT CONSOLE MOUNTING BRACKET	Fig 27.
WIRING HARNESS WELD STUDS & FUEL TANK STRAP BRACKET TO REAR FLOOR PAN	Fig 28.
CENTER SEAT BELT REINFORCEMENT TO SEAT BELT ANCHOR TO REAR FLOOR PAN	Fig 29.
SPARE WHEEL ANCHOR REINFORCEMENT FUEL TANK SUPPORT BRACKET TO REAR FLOOR PAN	Fig 30.
WELD STUD TO SEAT BELT ANCHOR REINFORCEMENT & SPARE WHEEL BRACKET	Fig 31.
REAR SEAT CROSSMEMBER REINFORCEMENT TO REAR FLOOR PAN FRONT CROSSMEMBER	Fig 32.
REAR RAIL EXTENSION BODY SIDE APERTURE BRACKET, REAR FLOOR PAN CROSSMEMBER TO INNER BODY SIDE SILL EXTENSION	Fig 33.
CENTER FLOOR PAN CROSSMEMBER TO REAR FLOOR PAN SIDE RAIL REAR EXTENSION TO CENTER FLOOR SIDE RAIL	Fig 34.
CENTER FLOOR PAN SIDE RAIL TO CENTER SIDE RAIL EXTENSION TO REAR FLOOR PAN SIDE RAIL	Fig 35.
CENTER FLOOR REAR SUSPENSION CROSSMEMBER TO CENTER SIDE RAIL EXTENSION TO REAR SIDE RAIL	Fig 36.
REAR FLOOR PAN FRONT CROSSMEMBER TO REAR FLOOR PAN TO FRONT FLOOR PAN	Fig 37.
FUEL TANK SUPPORT TO REAR SUSPENSION CROSSMEMBER & SIDE RAIL EXTENSION TO REAR FLOOR PAN	Fig 38.
REAR SIDE RAIL EXTENSION TO CENTER FLOOR PAN SIDE RAIL & REAR SUSPENSION CROSSMEMBER TO REAR FLOOR PAN	Fig 39.
REAR SIDE RAIL & REAR SUSPENSION CROSSMEMBER TO REAR FLOOR PAN	Fig 40.
INNER SILL EXTENSION TO BODY SIDE APERTURE BRACKET TO REAR FLOOR PAN	Fig 41.
INNER WINDSHIELD FRAME TO OUTER WINDSHIELD FRAME/HINGE PILLAR REINFORCEMENT TO SILL BEAM	Fig 42.
FRONT RAIL REAR CAP TO DASH PANEL TO FLOOR PAN	Fig 43.
FRONT SIDE RAIL & REAR CAP TO FRONT FLOOR PAN	Fig 44.
FRONT SEAT BELT ANCHORAGE TO INNER BODY SILL	Fig 45.
FRONT FLOOR PAN RAIL	Fig 46.
ENGINE MOUNT TAPPING PLATE & BUMPER EXTENSION TO FRONT SIDE RAIL	Fig 47.
BUMPER EXTENSION, FRONT RAIL REINFORCEMENT & SPACERS TO FRONT SIDE RAIL	Fig 48.
RIGHT UPPER FRONT SUSPENSION MOUNT, UPPER FRONT SUSPENSION MOUNT	Fig 49.
UPPER FRONT SUSPENSION REINFORCEMENT & UPPER FRONT SUSPENSION MOUNT TO UPPER FRONT SUSPENSION MOUNT CAP	Fig 50.
SWAY BAR BRACKET TO SIDE RAIL PLATE & FRONT SIDE RAIL REINFORCEMENT TO FRONT SIDE RAIL REAR	Fig 51.
FRONT SIDE RAIL REINFORCEMENT/SWAY BAR BRACKET TO TOPPING PLATE/FRONT SUSPENSION RETAINER TO FRONT SIDE RAIL PLATE	Fig 52.
BUMPER EXTENSION TO FRONT BUMPER MOUNTING BRACKET FRONT SIDE RAIL PLATE TO FRONT SIDE RAIL	Fig 53.
WINDSHIELD WIPER TAPPING PLATE TO WINDSHIELD WIPER CENTER ATTACHING PLATE & LOWER WIPER MODULE PLENUM BRACKET	Fig 54.
WHEELHOUSE DEADENER PANEL & DASH PANEL DEADENER PANEL TO DASH PANEL	Fig 55.
PLENUM LOWER SUPPORT PLENUM CLOSURE & WINDSHIELD WIPER SUPPORT TO LOWER COWL PLENUM	Fig 56.
HEADLAMP MOUNTING REINFORCEMENT TO HEADLAMP MOUNTING PANEL	Fig 57.
FRONT FLOOR PAN RAIL EXTENSION & REINFORCEMENT TO FRONT FLOOR PAN RAIL	Fig 58.
