Specifications - Sealer Locations - Jr-27 And Jr-41

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
INDEX

DESCRIPTION FIGURE
HOOD HEM FLANGE Fig 1.
DASH PANEL TO LOWER COWL PLENUM PANEL Fig 2.
DASH PANEL TO FRONT FLOOR PAN Fig 3.
FRONT SUSPENSION UPPER MOUNTING Fig 4.
"A" PILLAR TO UPPER COWL Fig 5.
DASH PANEL & LOWER COWL PLENUM Fig 6.
COWL PLENUM CLOSURE, LOWER COWL PLENUM & UPPER COWL PLENUM Fig 7.

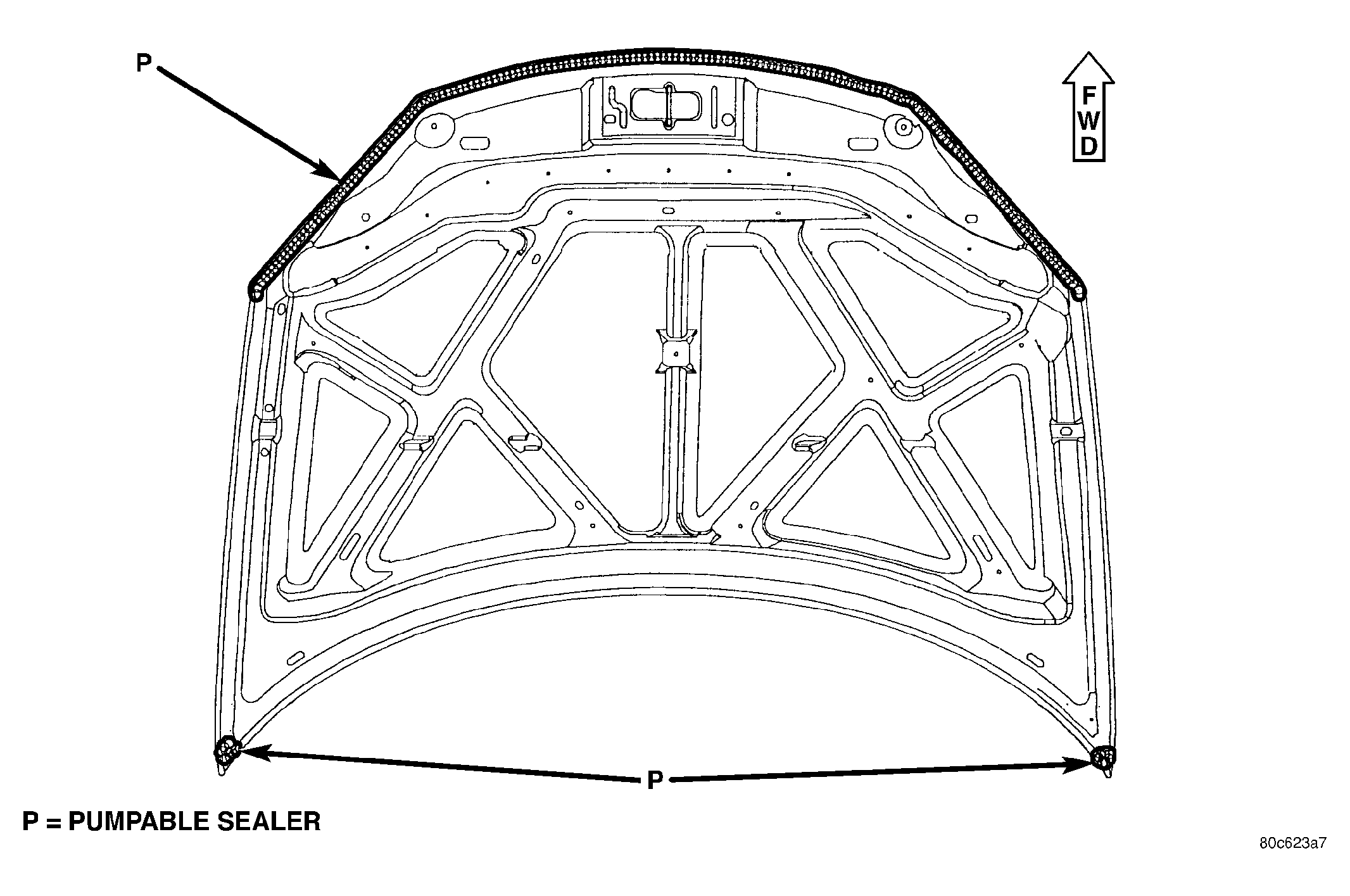

Fig 1: Hood Hem Flange
GC0031577Courtesy of DAIMLERCHRYSLER CORP.

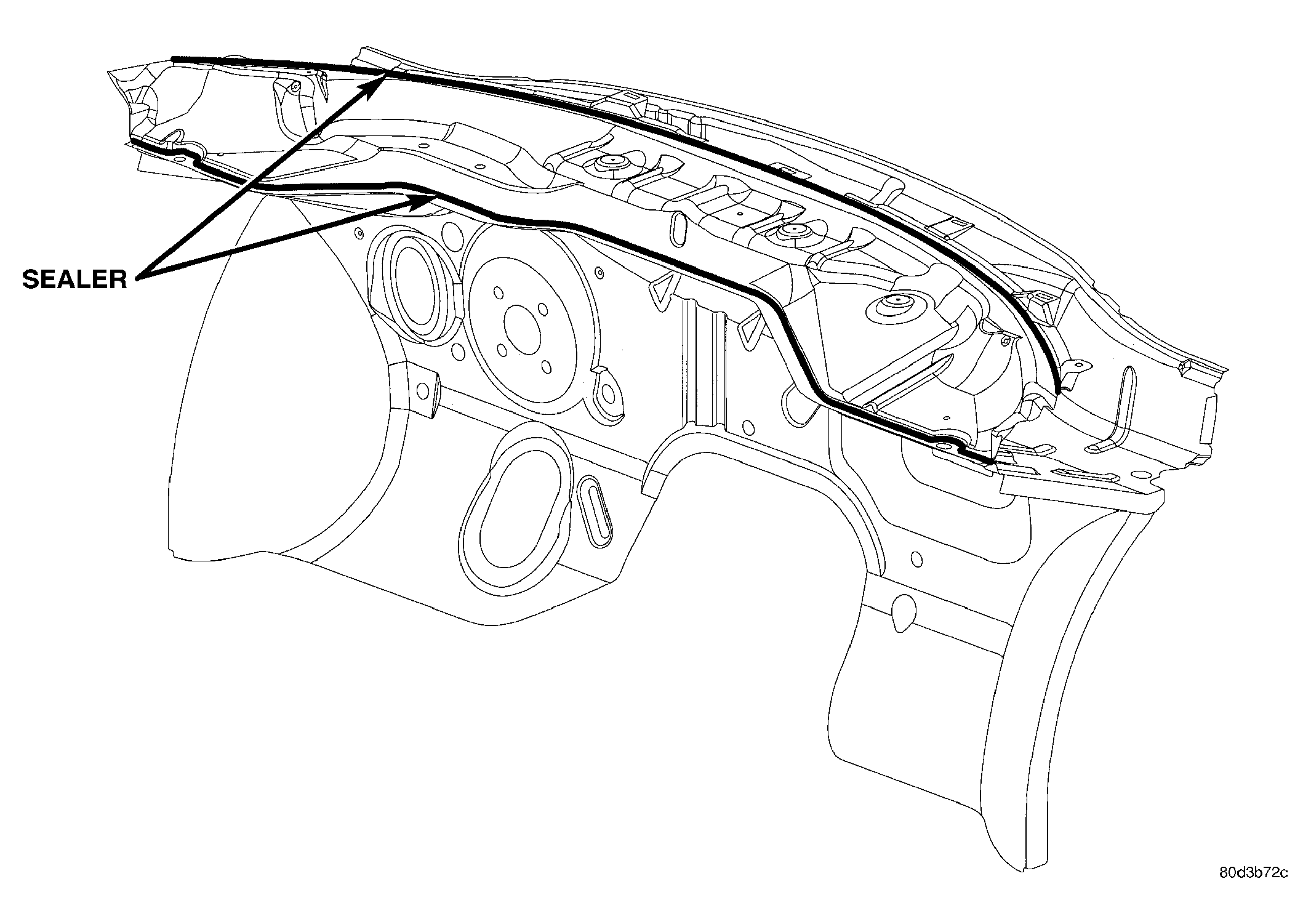

Fig 2: Dash Panel To Lower Cowl Plenum Panel
GC0031578Courtesy of DAIMLERCHRYSLER CORP.

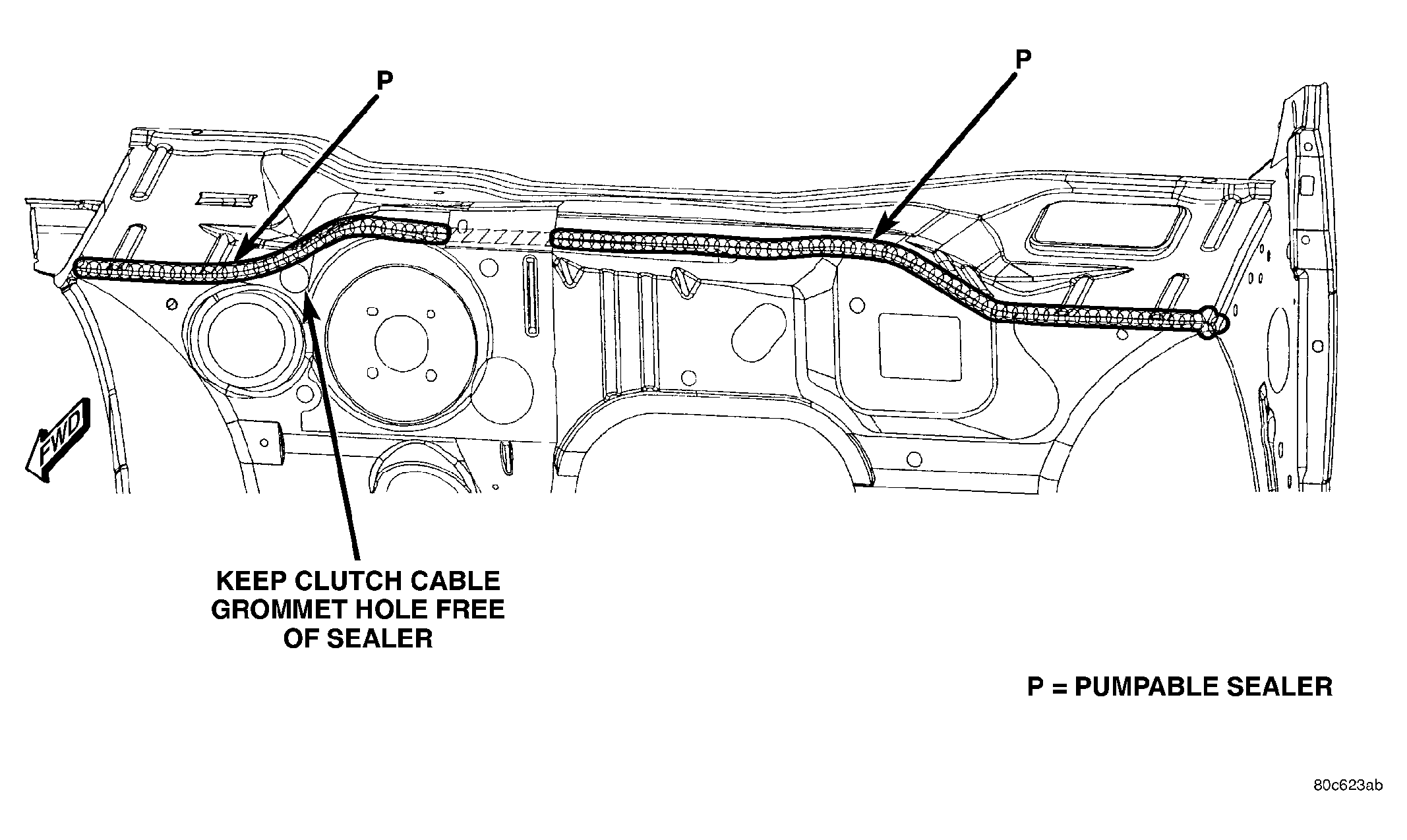

Fig 3: Dash Panel To Front Floor Pan
GC0031579Courtesy of DAIMLERCHRYSLER CORP.

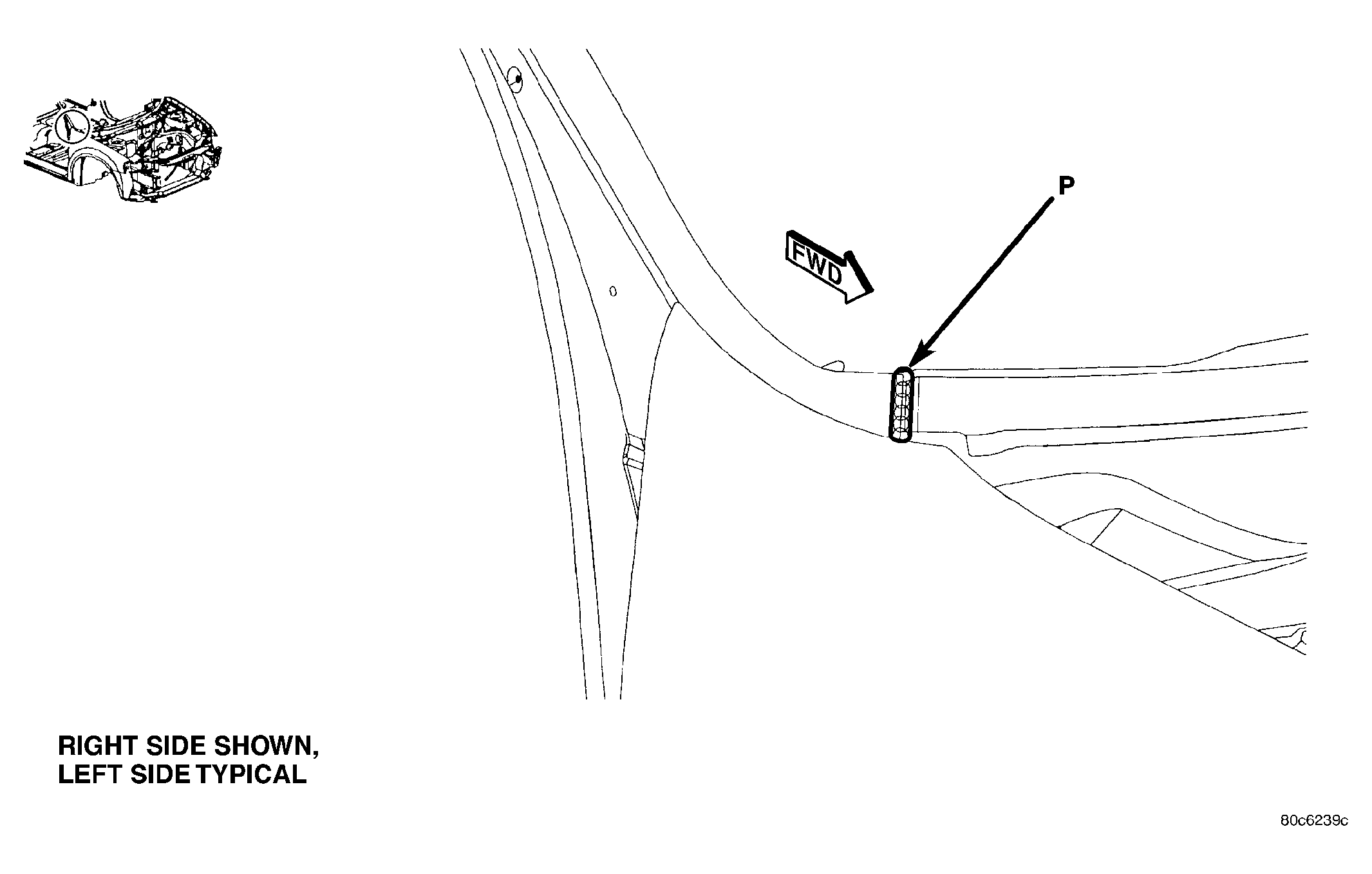

Fig 4: Front Suspension Upper Mounting
GC0031581Courtesy of DAIMLERCHRYSLER CORP.

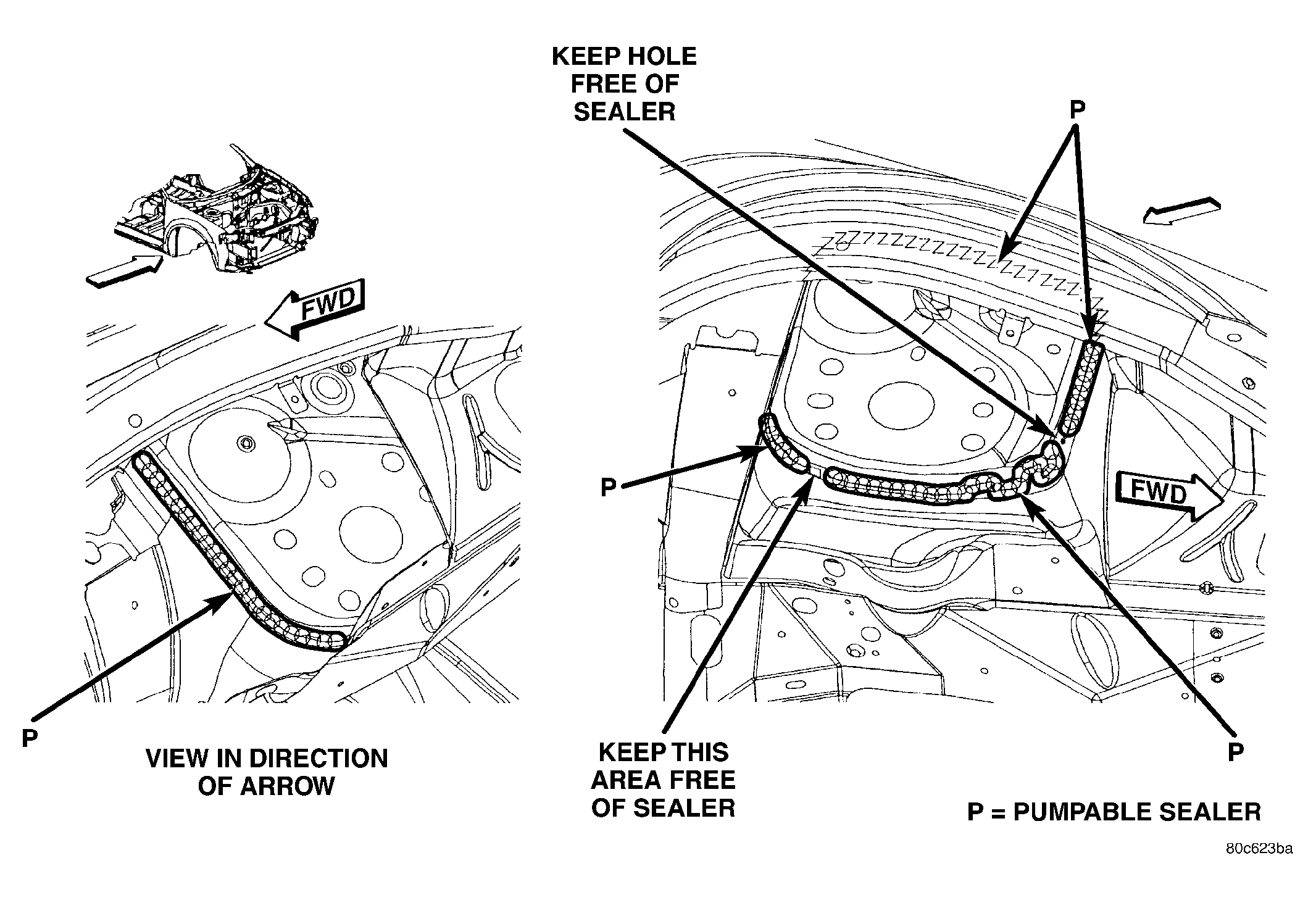

Fig 5: "A" Pillar To Upper Cowl
GC0031582Courtesy of DAIMLERCHRYSLER CORP.

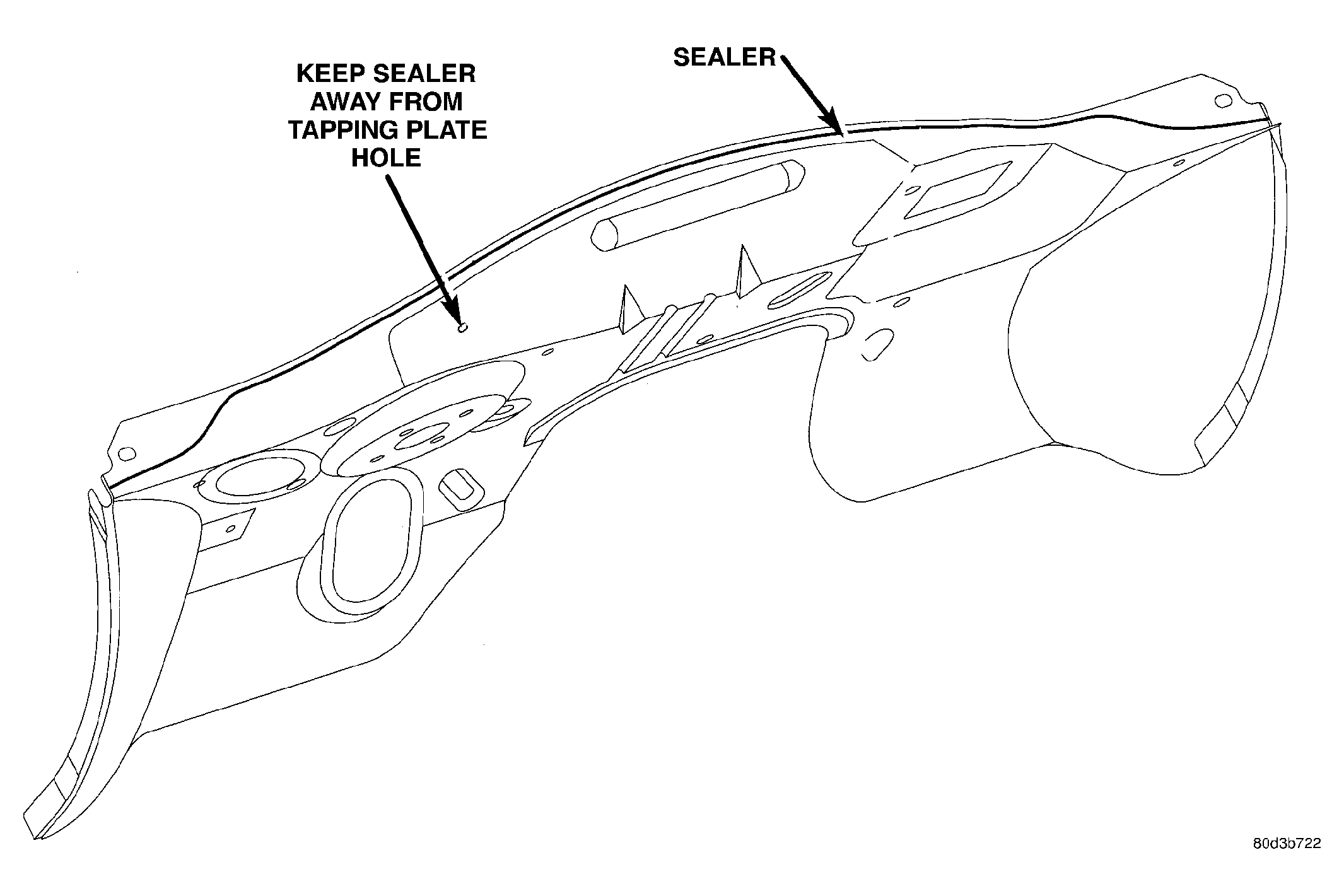

Fig 6: Dash Panel & Lower Cowl Plenum
GC0031583Courtesy of DAIMLERCHRYSLER CORP.

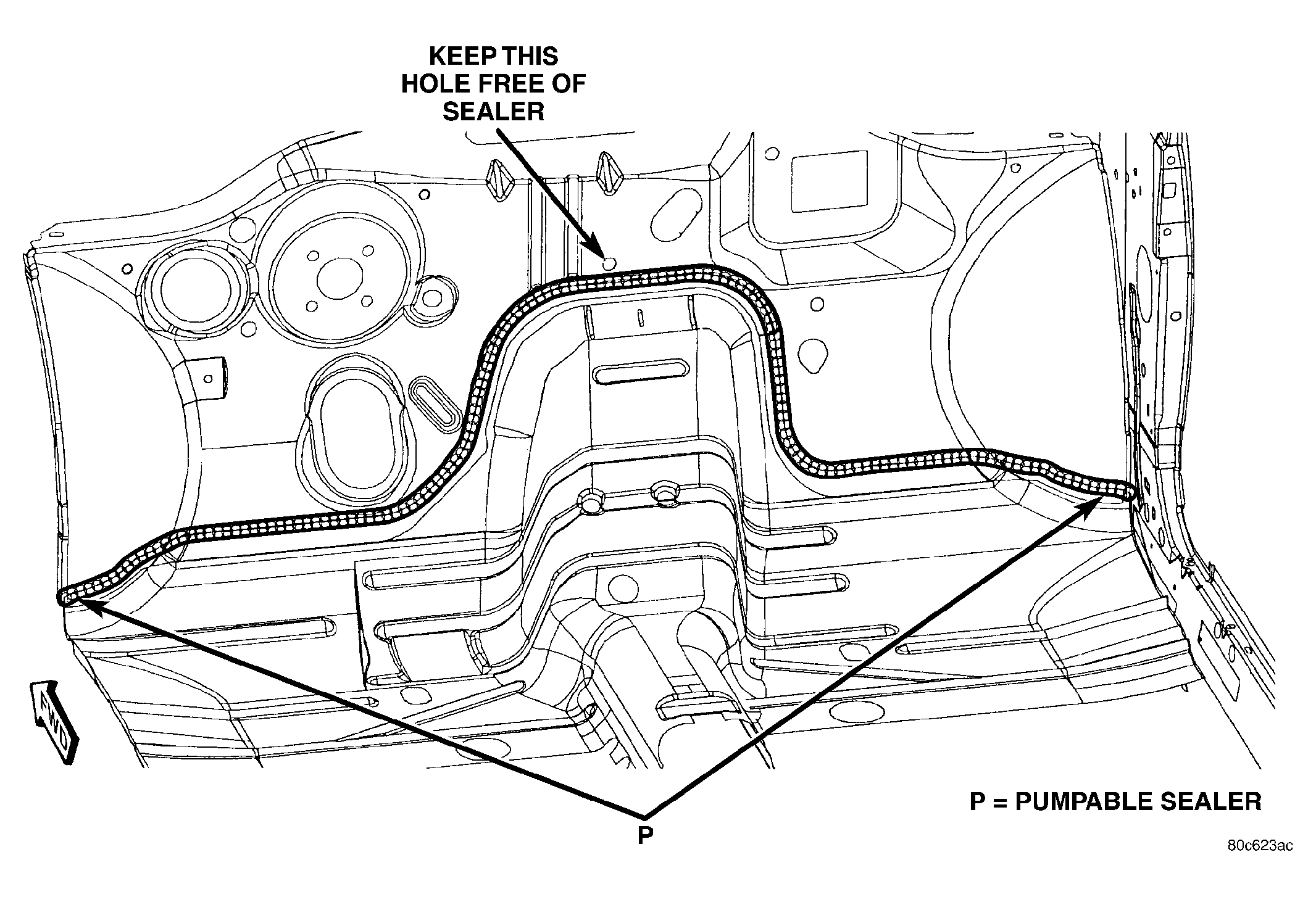

Fig 7: Cowl Plenum Closure, Lower Cowl Plenum & Upper Cowl Plenum
GC0031584Courtesy of DAIMLERCHRYSLER CORP.
