Specifications - Body Opening Dimensions - Jr-41

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

INDEX

DESCRIPTION	FIGURE
WINDSHIELD OPENING	Fig 1.
REAR WINDOW AND TRUNK OPENING	Fig 2.
DOOR OPENINGS	Fig 3.

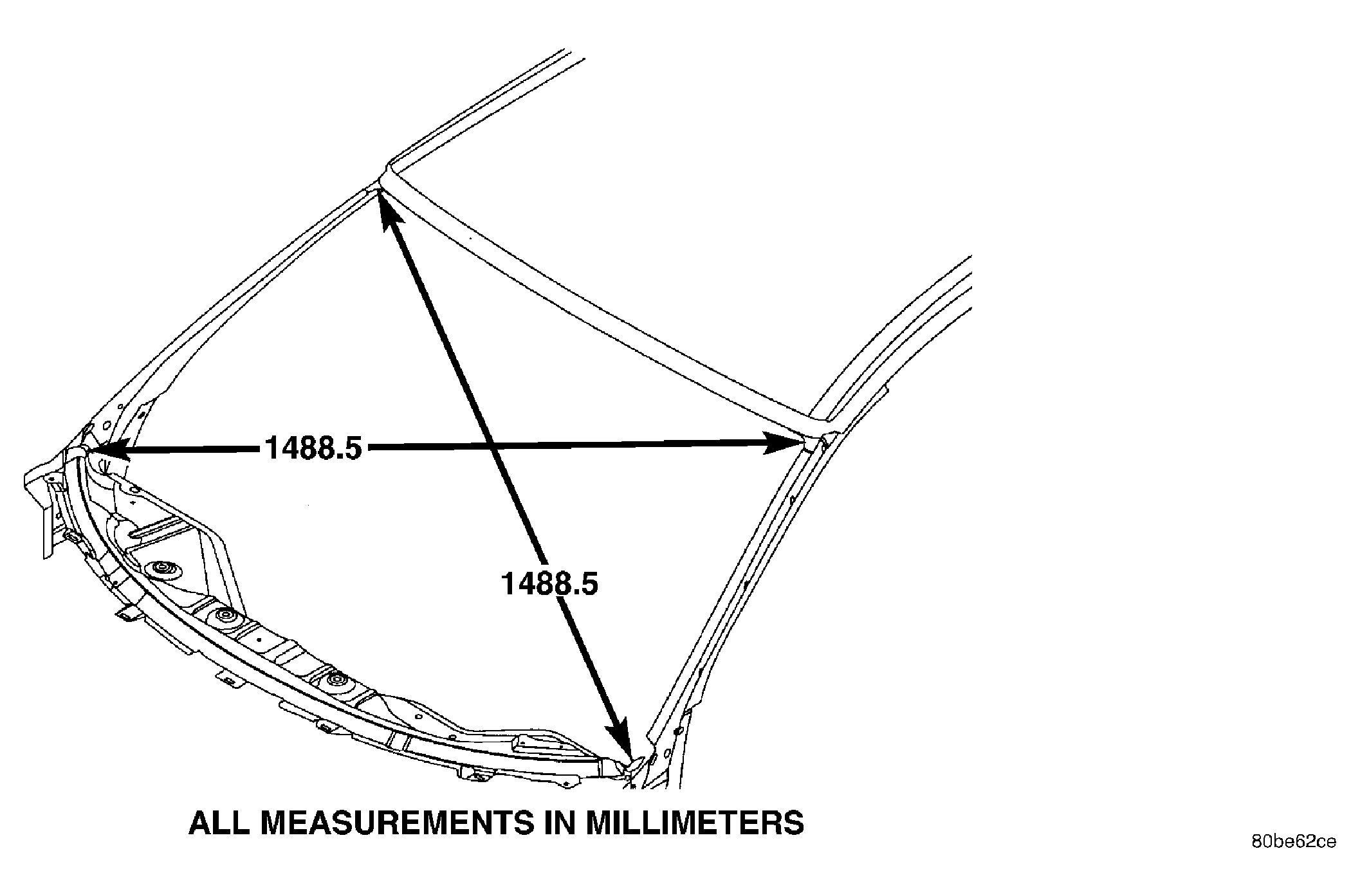

Fig 1: Windshield Opening

Courtesy of DAIMLERCHRYSLER CORP.

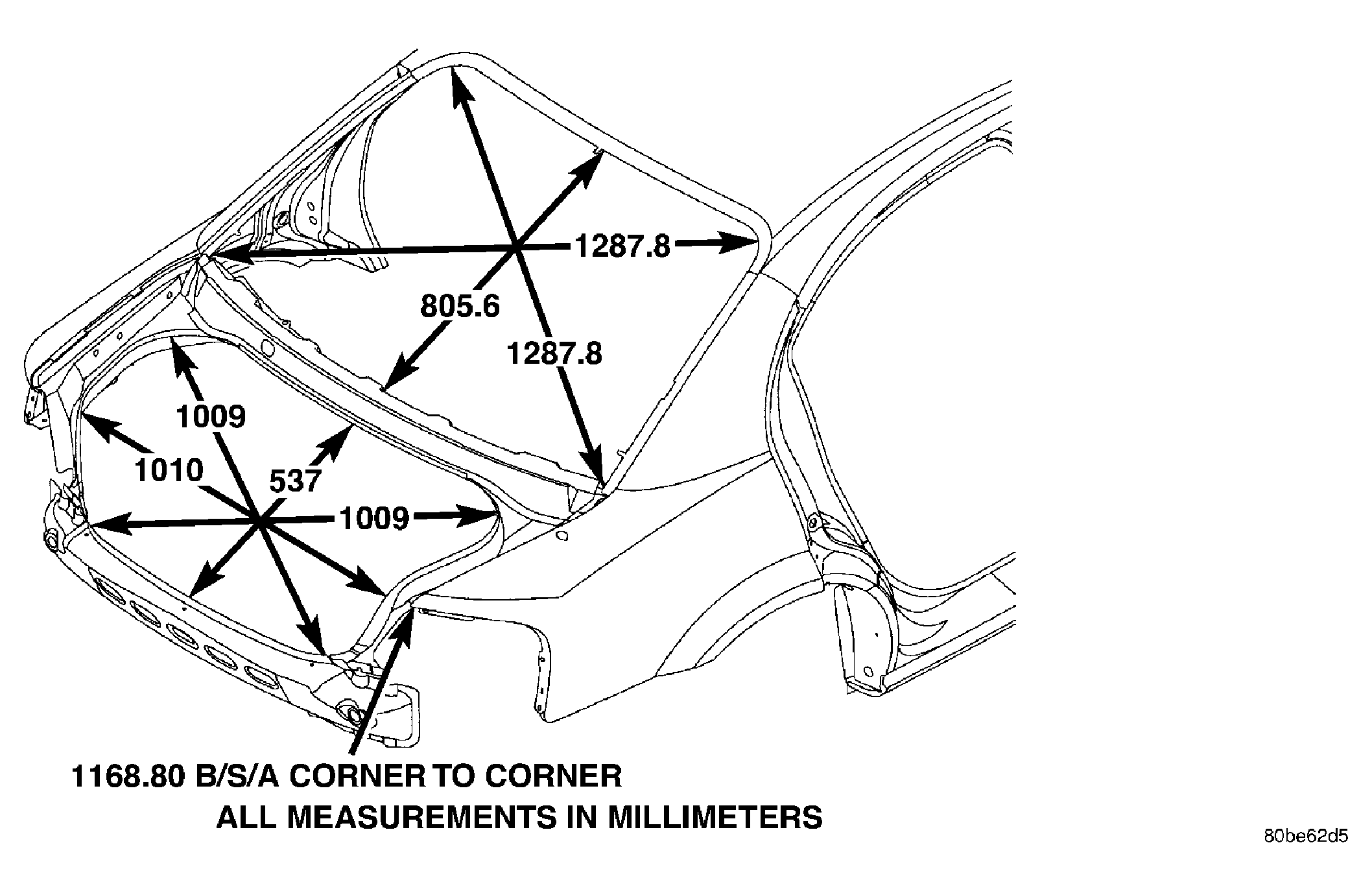

Fig 2: Rear Window And Trunk Opening

Courtesy of DAIMLERCHRYSLER CORP.

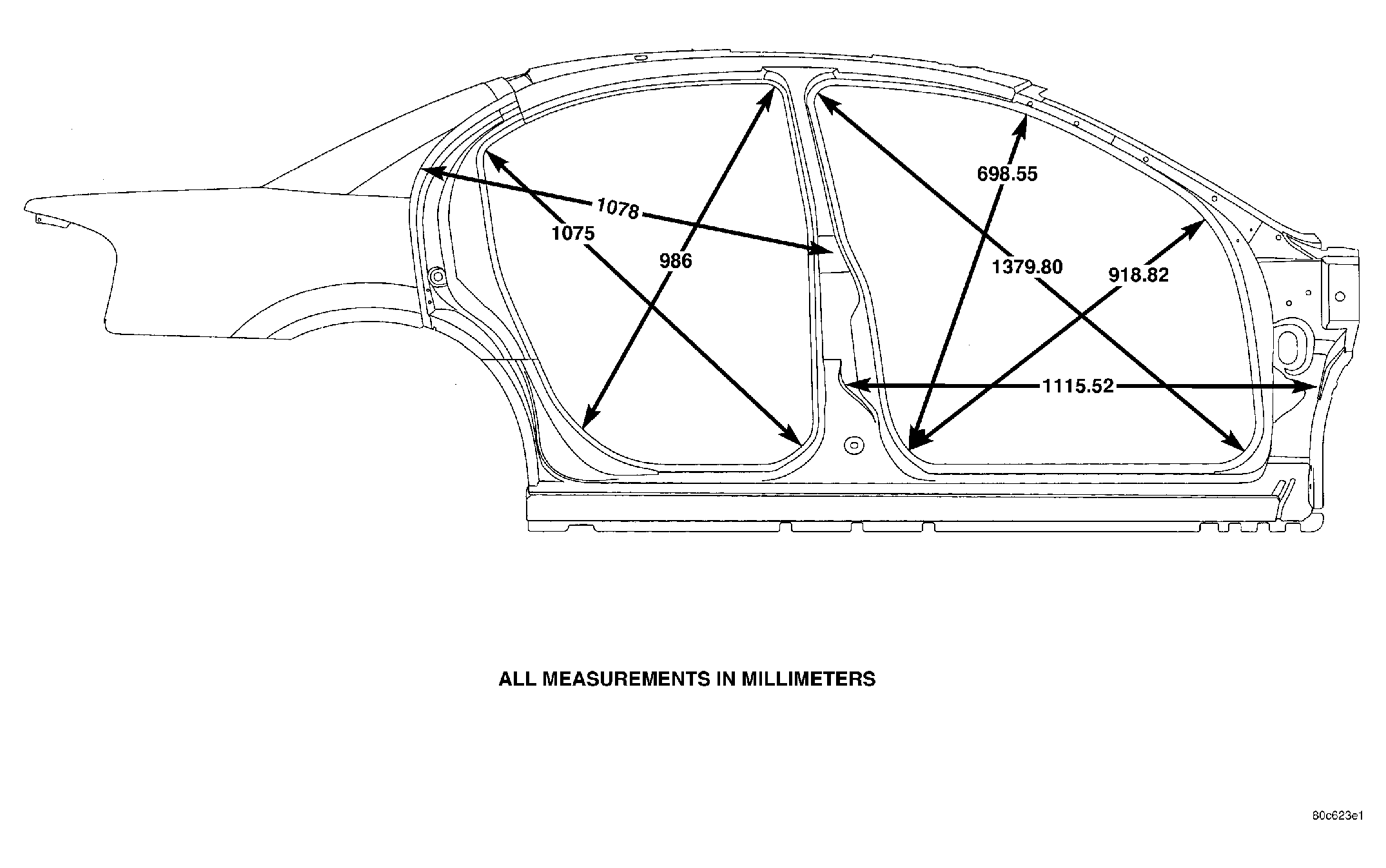

Fig 3: Door Openings

Courtesy of DAIMLERCHRYSLER CORP.
