Specifications - Body Opening Dimension - Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

INDEX

DESCRIPTION	FIGURE
WINDSHIELD OPENING	Fig 1.
TRUNK OPENING	Fig 2.
DOOR OPENINGS	Fig 3.

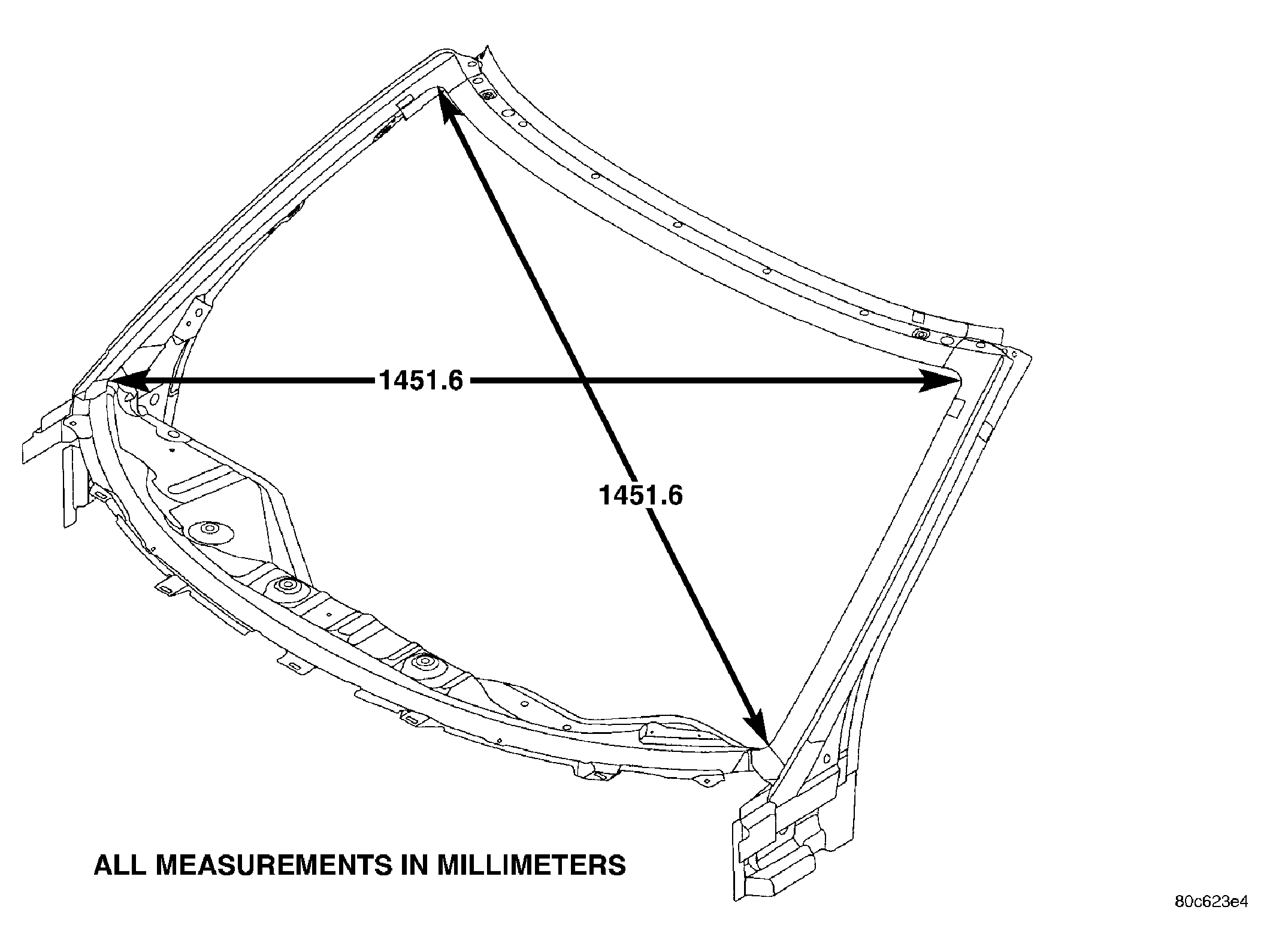

Fig 1: Windshield Opening

Courtesy of DAIMLERCHRYSLER CORP.

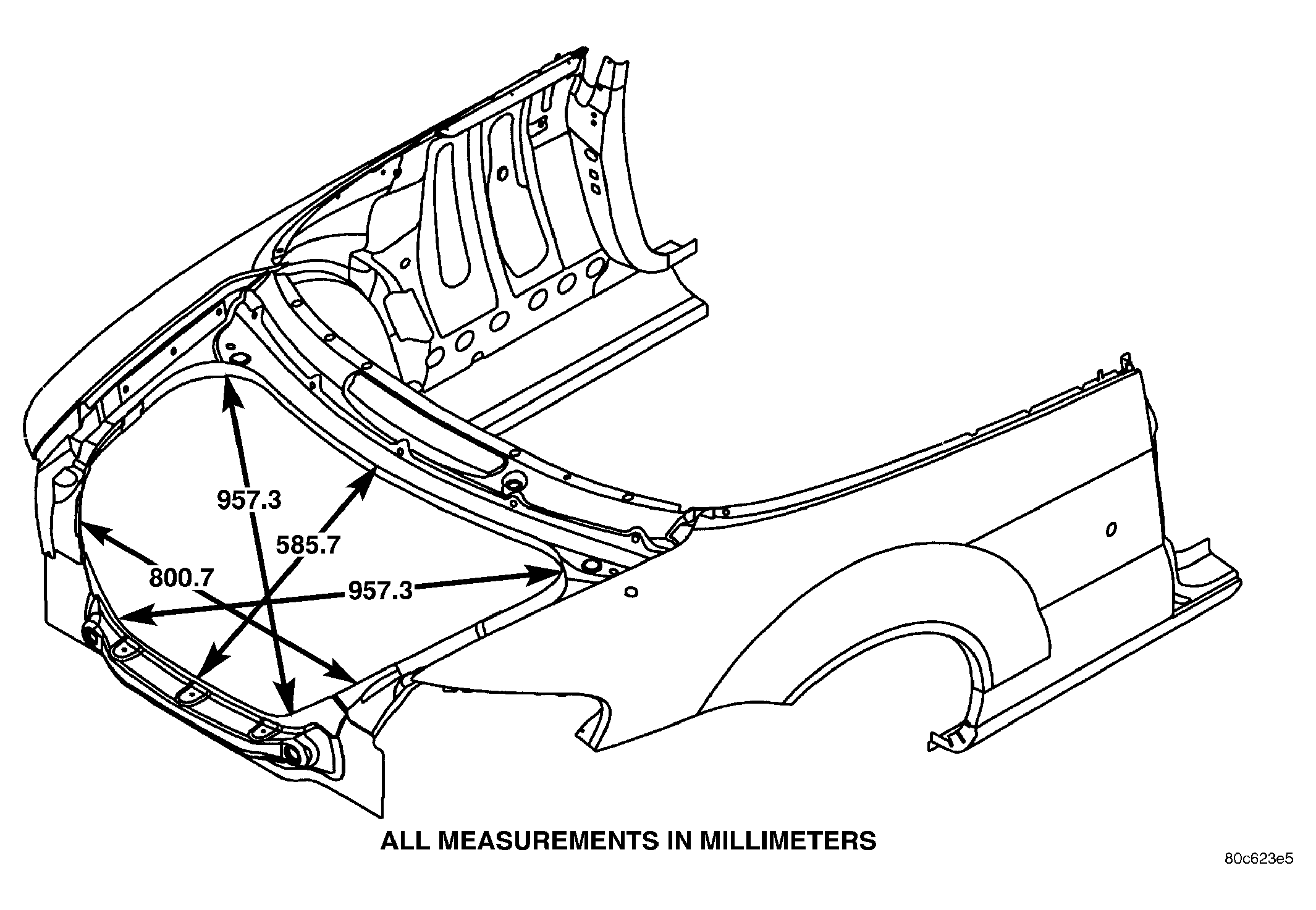

Fig 2: Trunk Opening

Courtesy of DAIMLERCHRYSLER CORP.

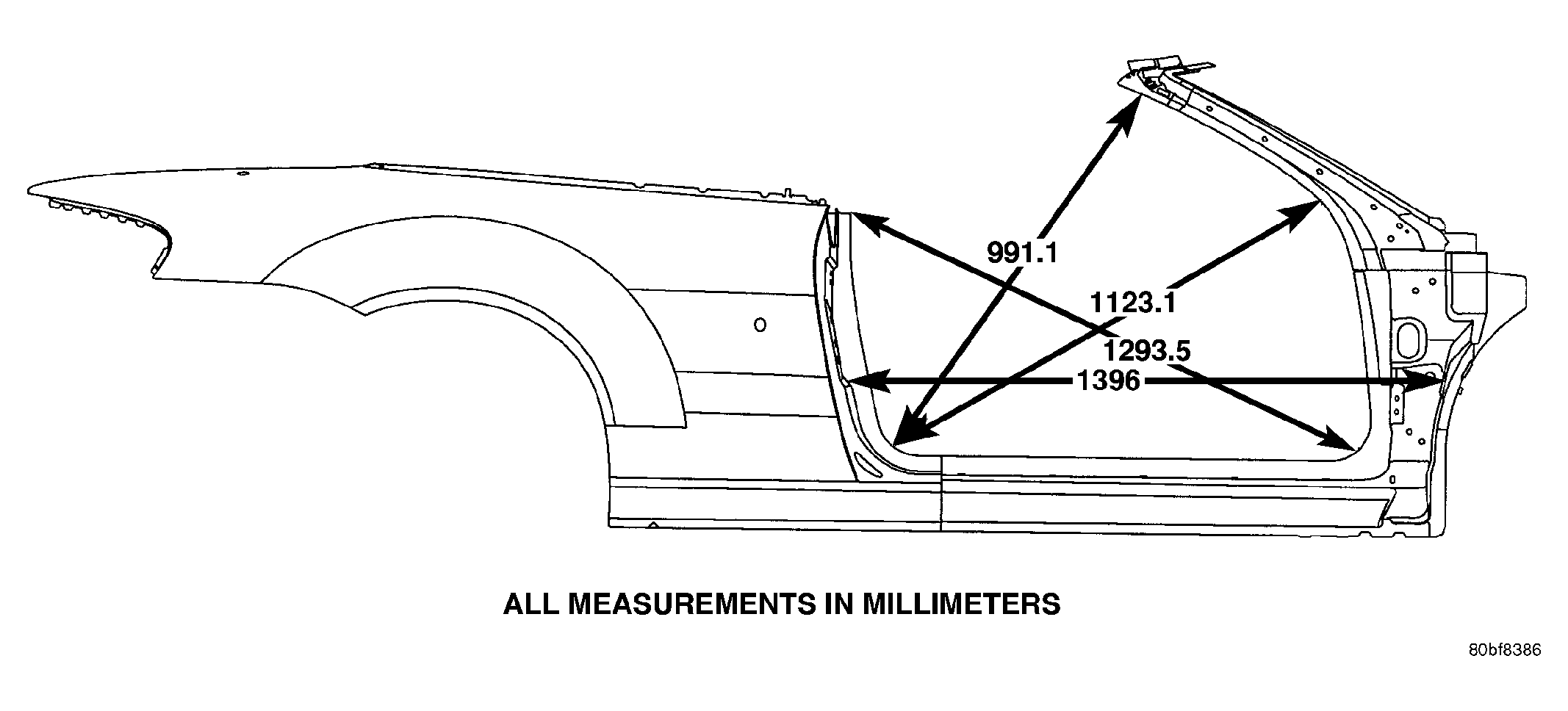

Fig 3: Door Opening

Courtesy of DAIMLERCHRYSLER CORP.
