Specifications - Body Gap And Flush Measurements - Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

INDEX

DESCRIPTION	FIGURE
BODY GAP AND FLUSH	Fig 1.

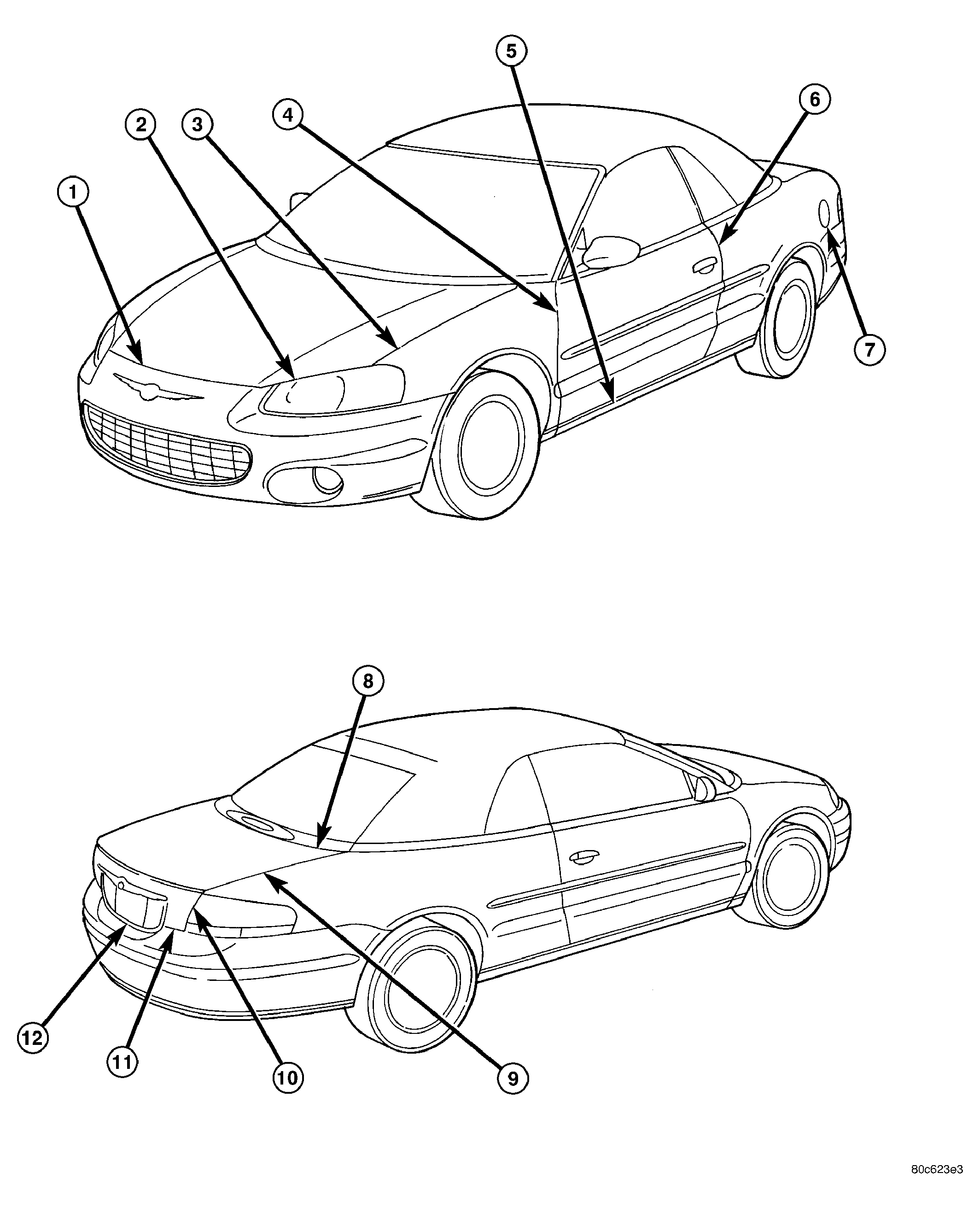

Fig 1: Body Gap And Flush

GC0031569

Courtesy of DAIMLERCHRYSLER CORP.

	LOCATION	GAP	FLUSH
1	Fascia to Hood	6.0 Blending to 8.0 +/- 2.5 Parallel within 2.5	1.6 Under Flush +/- 2.5 Consistent within 2.5
2	Headlamp to Hood	8.0 +/- 2.5 Parallel within 2.0
3	Hood to Fender	4.0 +/- 1.0 Parallel within 1.5	Flush +/- 1.5 Consistent within 2.0
4	Fender to Door	5.0 +/- 1.0 Parallel within 2.5	0.8 Over Flush +/- 1.5 Consistent within 2.0
5	Doors to Body Side Sill	6.0 +/- 1.5 Parallel within 2.0	6.0 Under Flush +/- 1.5 Consistent within 2.5
6	Door to Quarter Panel	4.0 +/- 1.0 Parallel within 1.5	Flush +/- 1.5 Consistent within 2.0
7	Fuel Filter Door to Quarter Panel	3.0 +/- 0.75 Uniform within 1.0	Flush +/- 1.0
8	Deck Lid Molding to Deck Lid	4.5 +/- 2.0 Parallel within 2.5	-
9	Deck Lid to Quarter Panel	4.0 +/- 1.0 Parallel within 1.0	Flush +/- 1.5 Consistent within 1.5
10	Tail Lamp to Deck Lid	5.0 Blending to 5.5 +/- 1.5 LH & RH to be within 2.0	-
11	Fascia to Deck Lid	7.0 +/- 2.0 Parallel Within 1.5	-
12	Deck Lid Applique to Fascia	9.0 +/- 2.0 Parallel within 2.0	-
NOTE: ALL MEASUREMENTS ARE IN mm
