Up-Stop Adjustments

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Up-stop nuts are behind the quarter panel speakers, and can be accessed without removing the trim panel.

Remove the speaker cover, speaker and speaker cup, if equipped. Peel back the sealing patch to access forward up-stop. See Fig 1.

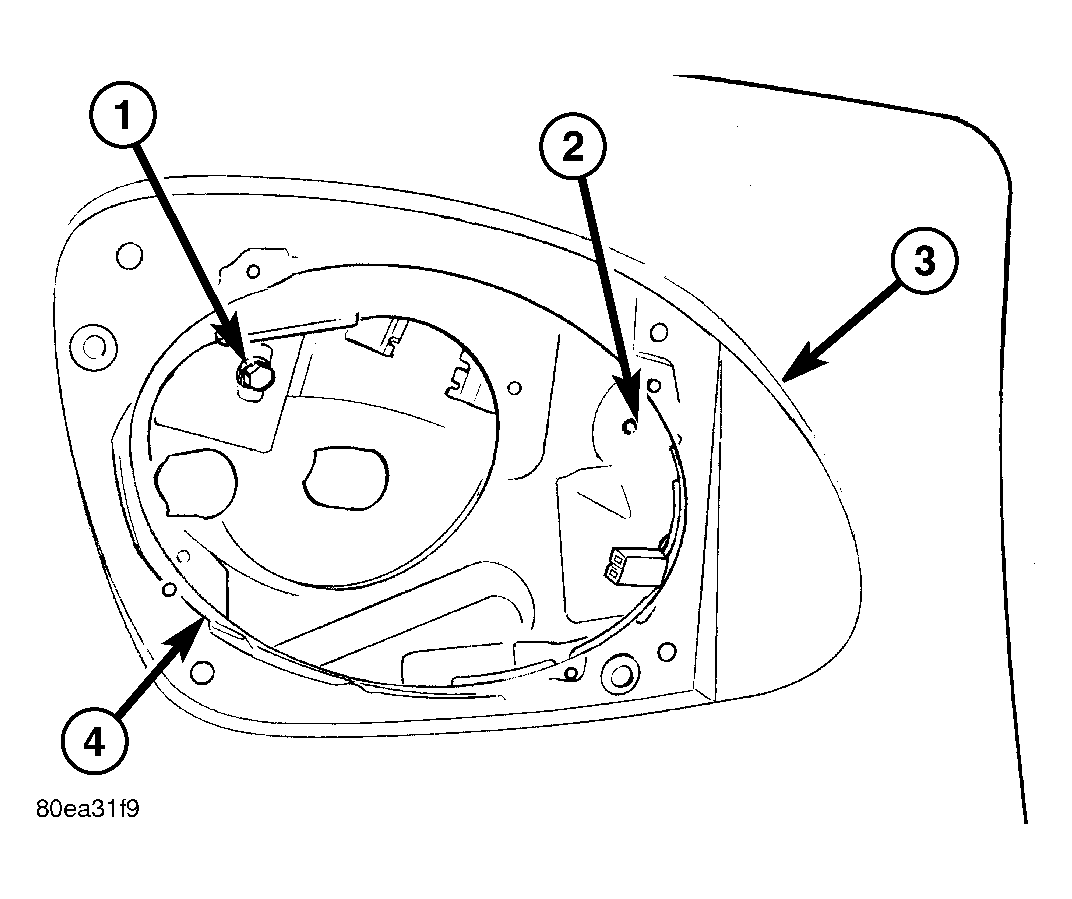

Fig 1: Up Stop Adjustments

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR UP STOP BOLT

2 - FRONT UP STOP BOLT

3 - QUARTER TRIM PANEL

4 - SPEAKER OPENING

Remove center and rear side rail weatherstrips from side rail weatherstrip retainer channels.
Loosen up-stop nuts.
Raise quarter glass.
Slide up-stop to achieve proper glass to weatherstrip retainer gap. See Fig 2.
Tighten all fasteners.
Install center and rear side rail weatherstrips to side rail weatherstrip retainer channels.
Cycle quarter glass between full up and full down positions. Verify operation and adjust as necessary.
Verify that the top edge of the door glass is beneath the lip of the weatherstrip.
Re-apply the sealing patch. Install the speaker cup, speaker and speaker cover.

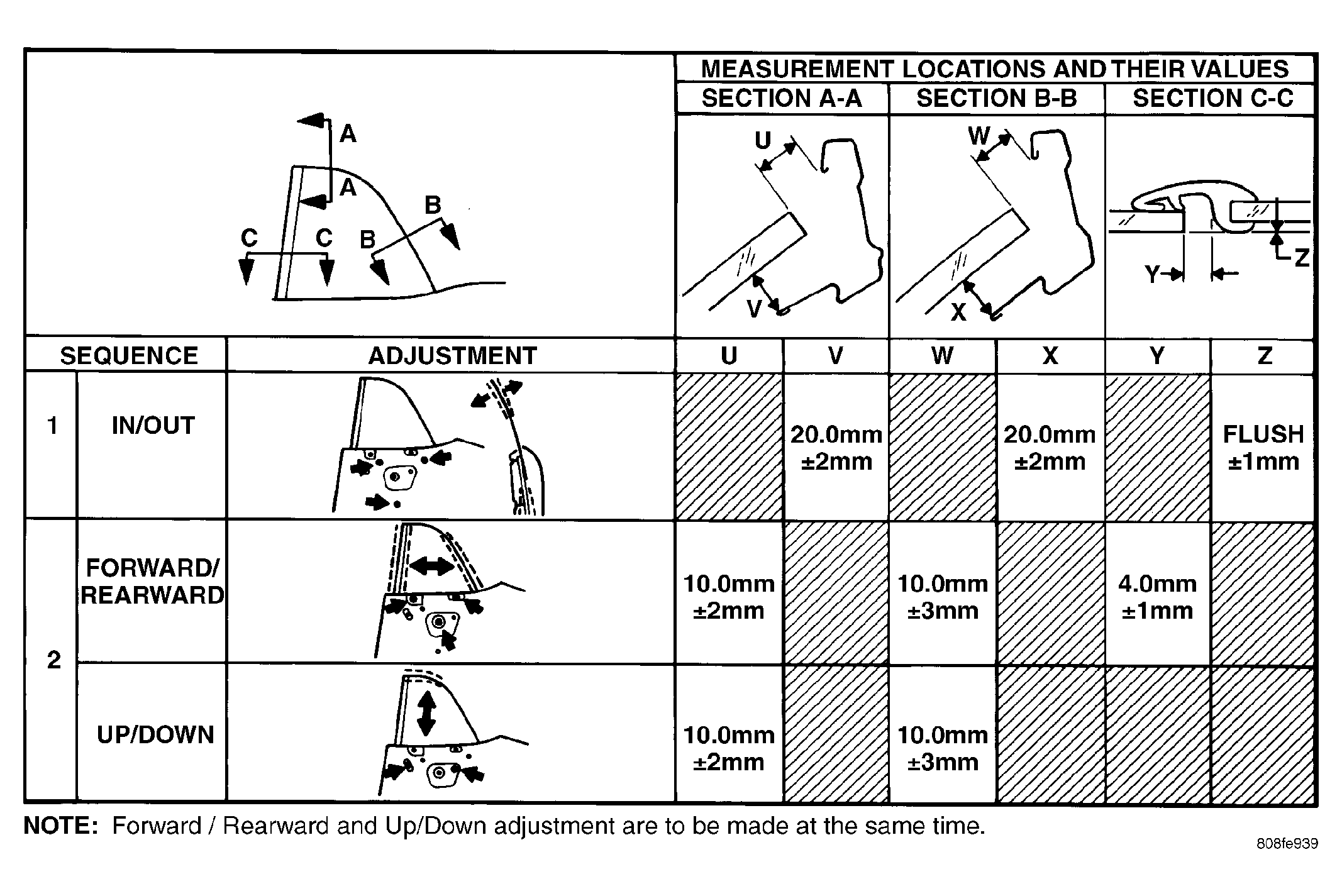

Fig 2: Quarter Glass Adjustment Specifications

Courtesy of DAIMLERCHRYSLER CORP.
