Bottom Of Glass - Inboard/Outboard Adjustments
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the speaker cover, speaker and speaker cup, if equipped.
- Using a suitable offset wrench, loosen the upper forward jack screw set nut. See Fig 1.
- Using a suitable Allen wrench, rotate the jack-screw to achieve the proper gap between the door glass and the quarter glass seal. See Fig 2 and Figure. Tighten all fasteners prior to measuring the gaps.
- Install speaker cup, if equipped, speaker and cover.

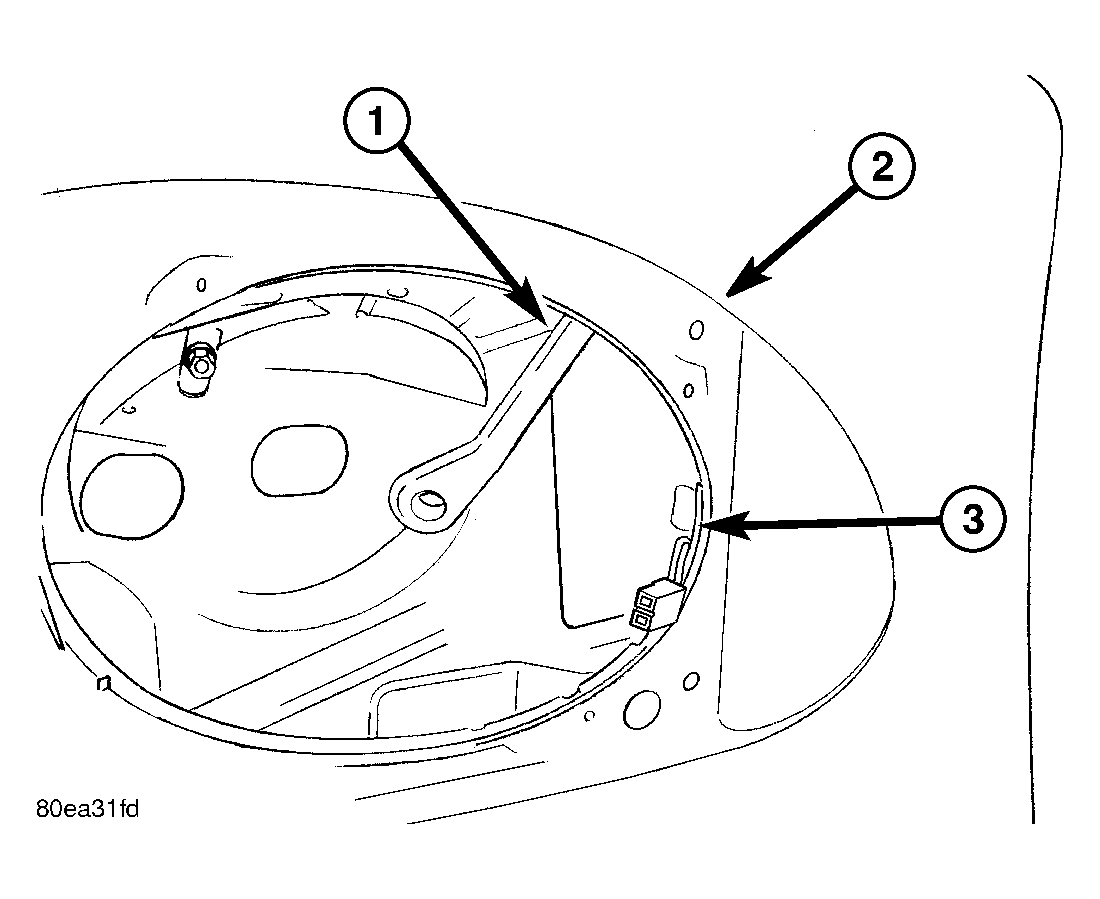

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - JACK SCREW ADJUSTMENT |
| 2 - QUARTER TRIM PANEL |
| 3 - SPEAKER OPENING |

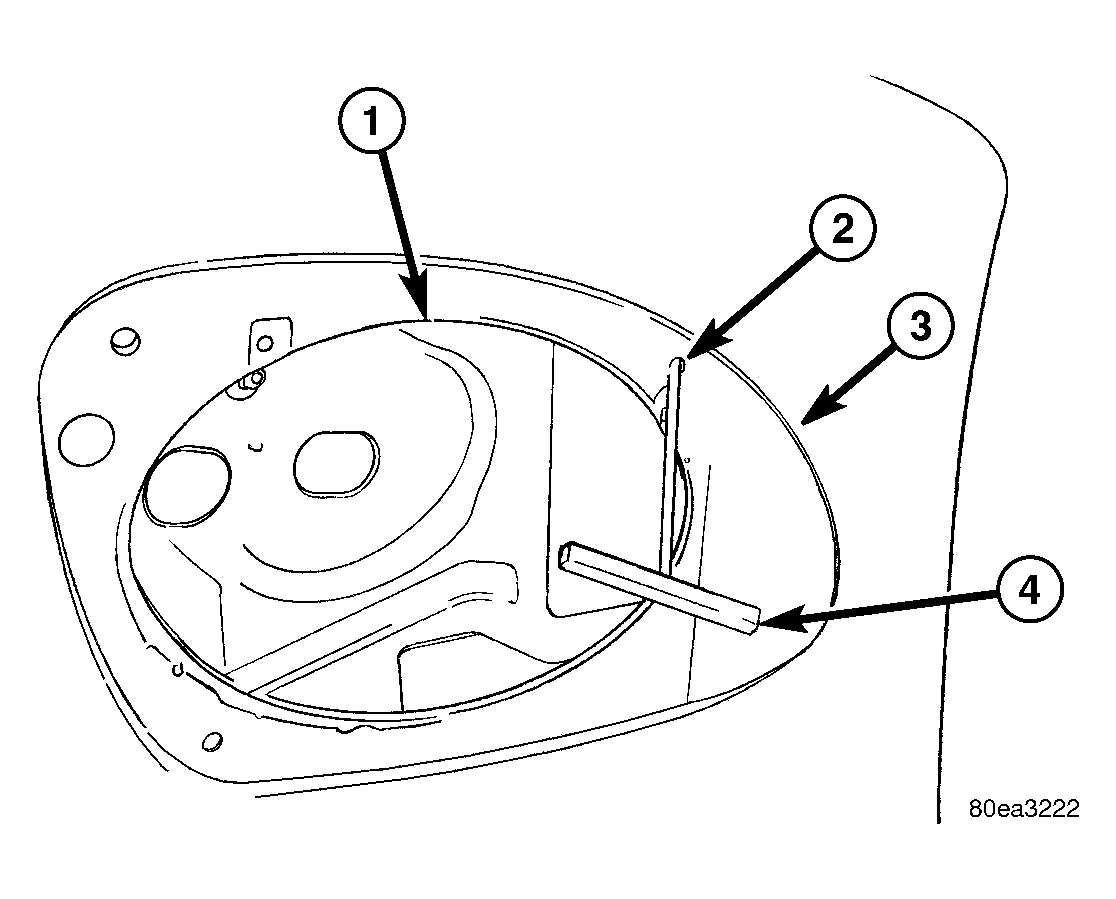

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - SPEAKER OPENING |
| 2 - TRIM PANEL HOLE |
| 3 - QUARTER TRIM PANEL |
| 4 - ALLEN WRENCH |
