Vacuum Reservoir: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect vacuum hose to reservoir by inserting nail head pegs on reservoir into the keyhole slots in the frame rail and slide down to lock it into place.

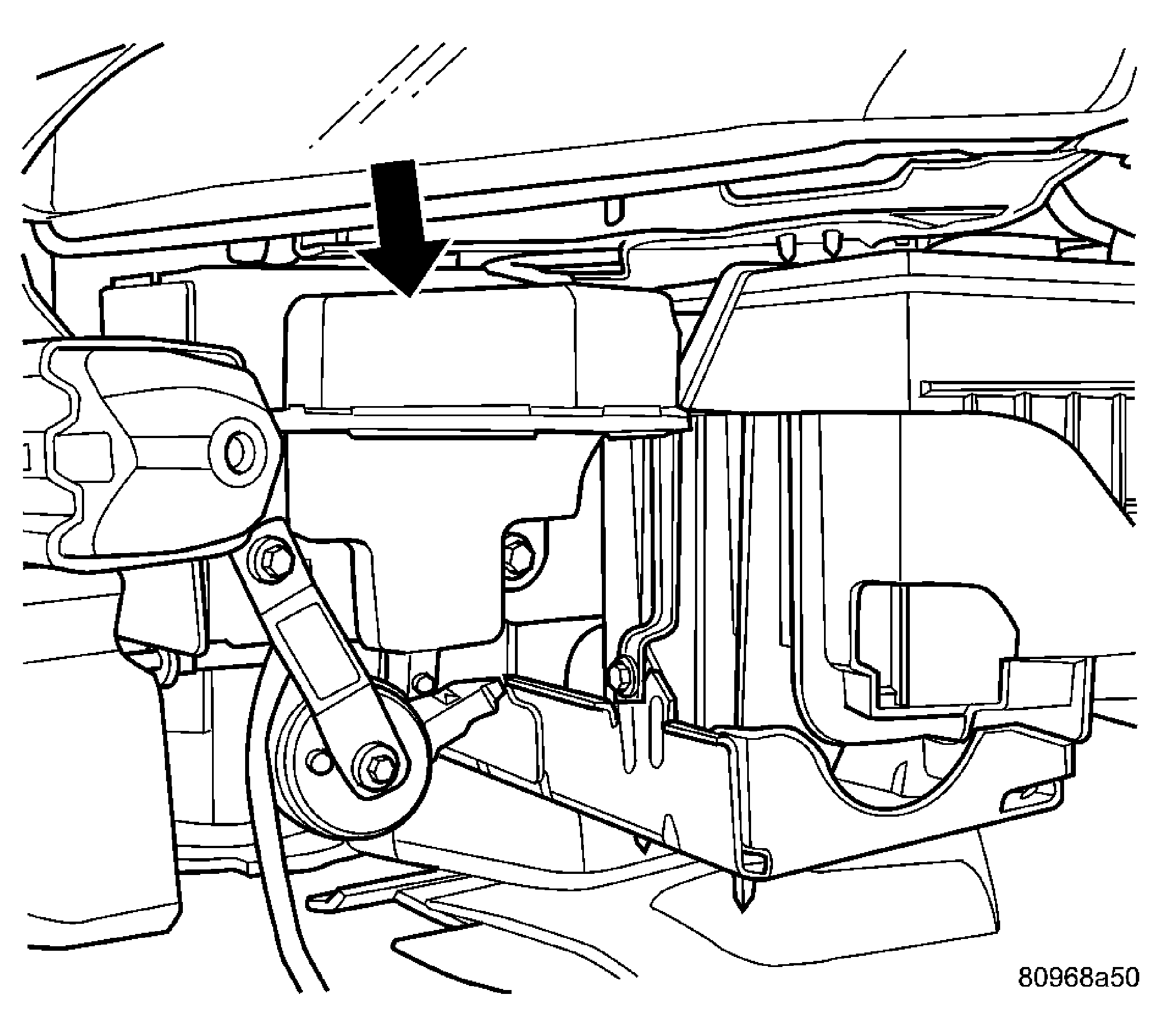

  2. Install the vacuum reservoir. See Figure.
  3. Install bolt through to reservoir to frame rail.
  4. Install the front fascia, refer to FRONT FASCIA for more information.
