Rear Speaker - Jr41

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Fold down the rear seat backs.
  3. Remove C-pillar trim.
  4. Remove lower quarter trim behind rear seat backs.
  5. Remove fasteners from rear shelf trim. Pull out trim to access speaker.
  6. Remove speaker screws.

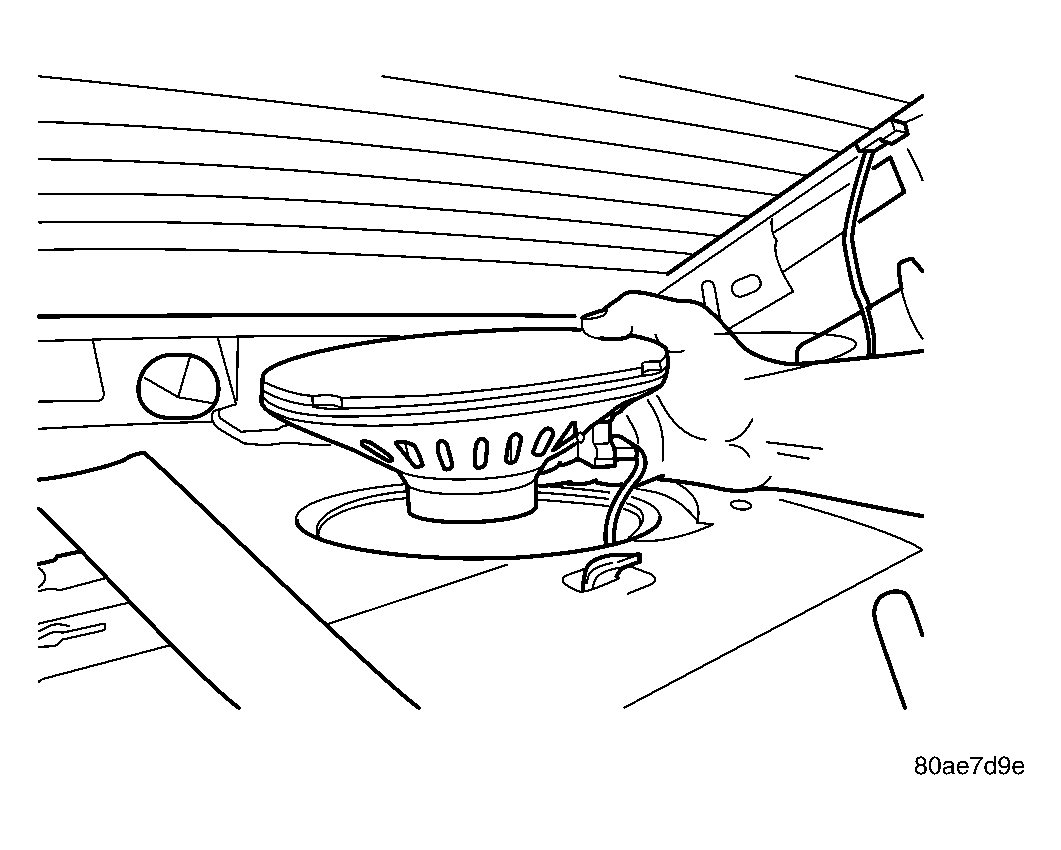

    Fig 1: Rear Speaker - JR41
    GC0031197Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect wire harness connector.
  8. Remove speaker. See Fig 1.
