Rear Speaker - Jr27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, pry the speaker grill from the trim panel.
  3. Remove speaker mounting screws. See Fig 1.

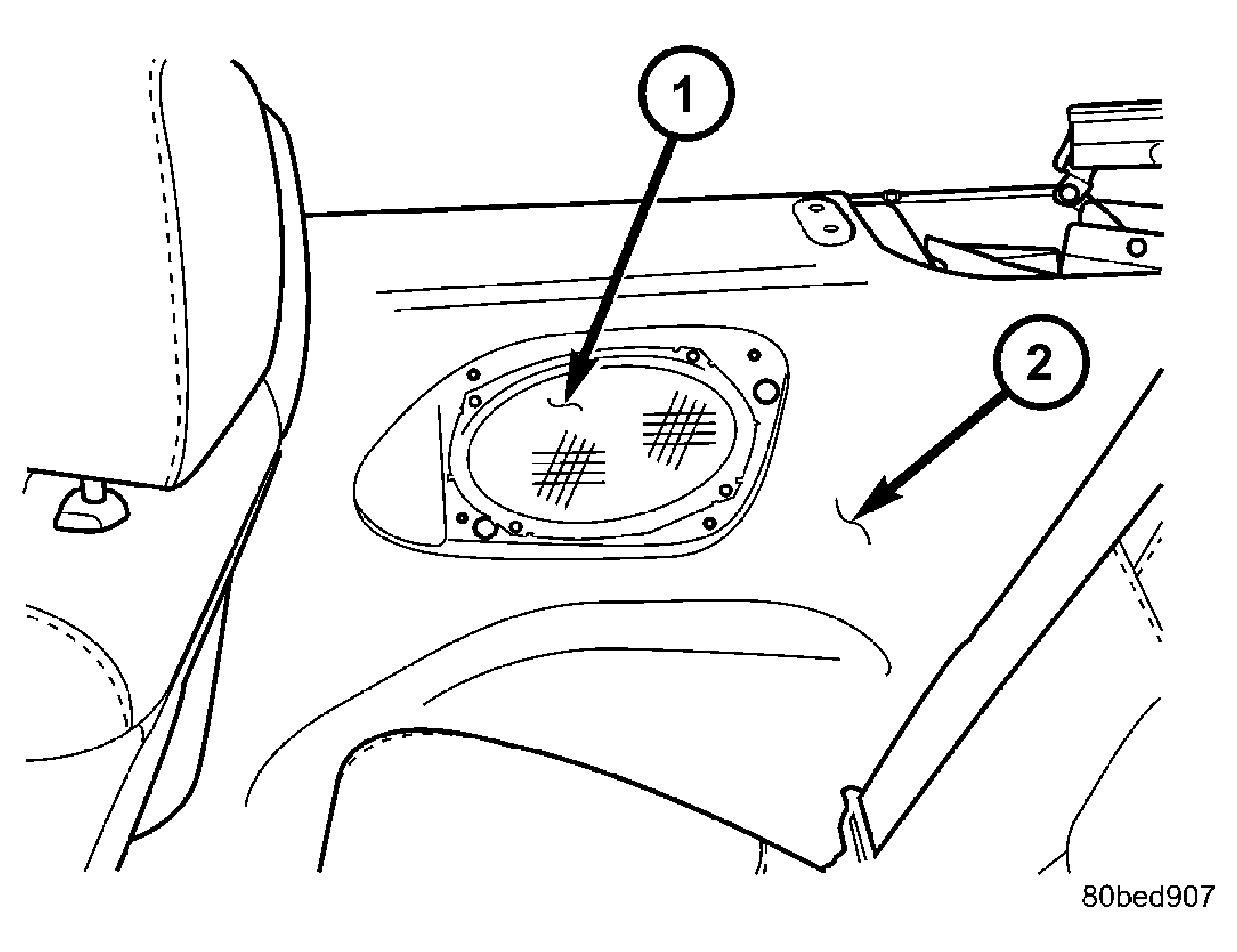

    Fig 1: Rear Speaker - JR27
    GC0031199Courtesy of DAIMLERCHRYSLER CORP.
    1 - REAR SPEAKER
    2 - TRIM PANEL
  4. Remove speaker from trim panel.
  5. Disconnect wire harness connector from speaker.
