Front Door - Jr41

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  3. Remove speaker screws.

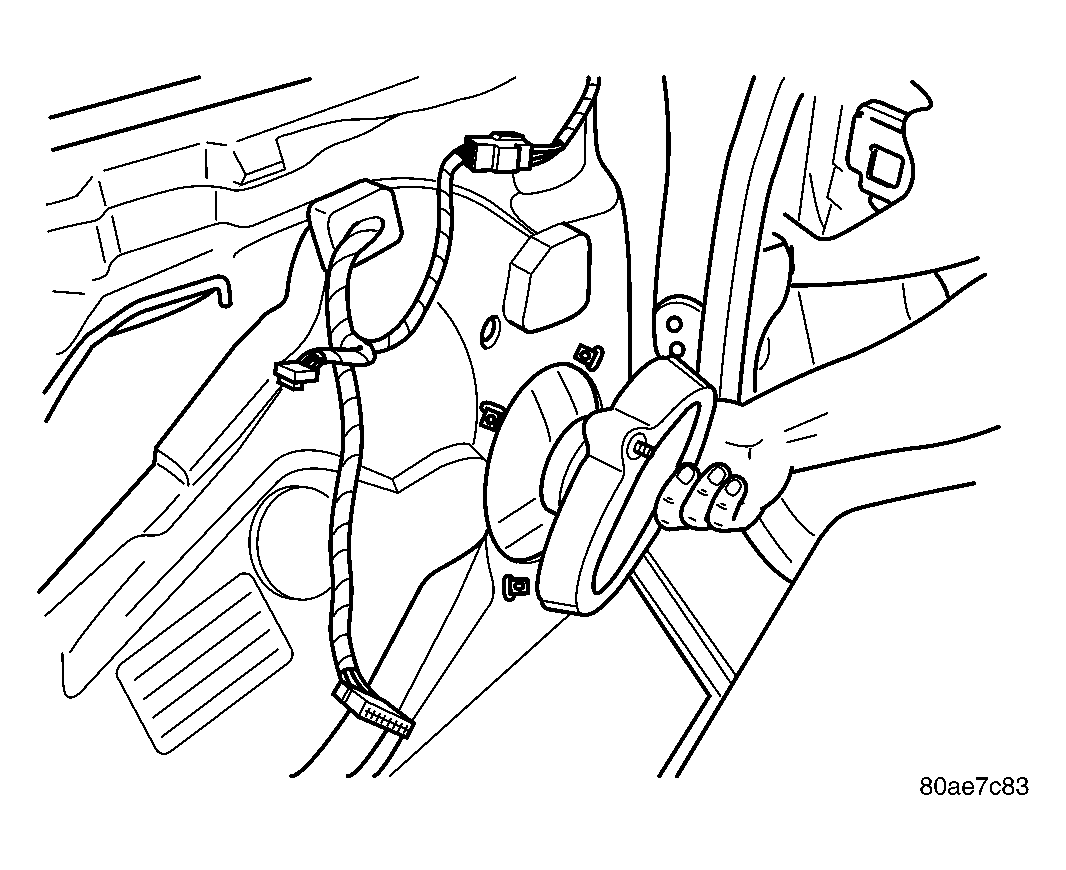

    Fig 1: Door Speaker - JR41
    GC0031195Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect wire harness connector from speaker.
  5. Remove speaker from door. See Fig 1.
