Front Door - Jr27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, pry speaker grill from door trim panel. See Fig 1.

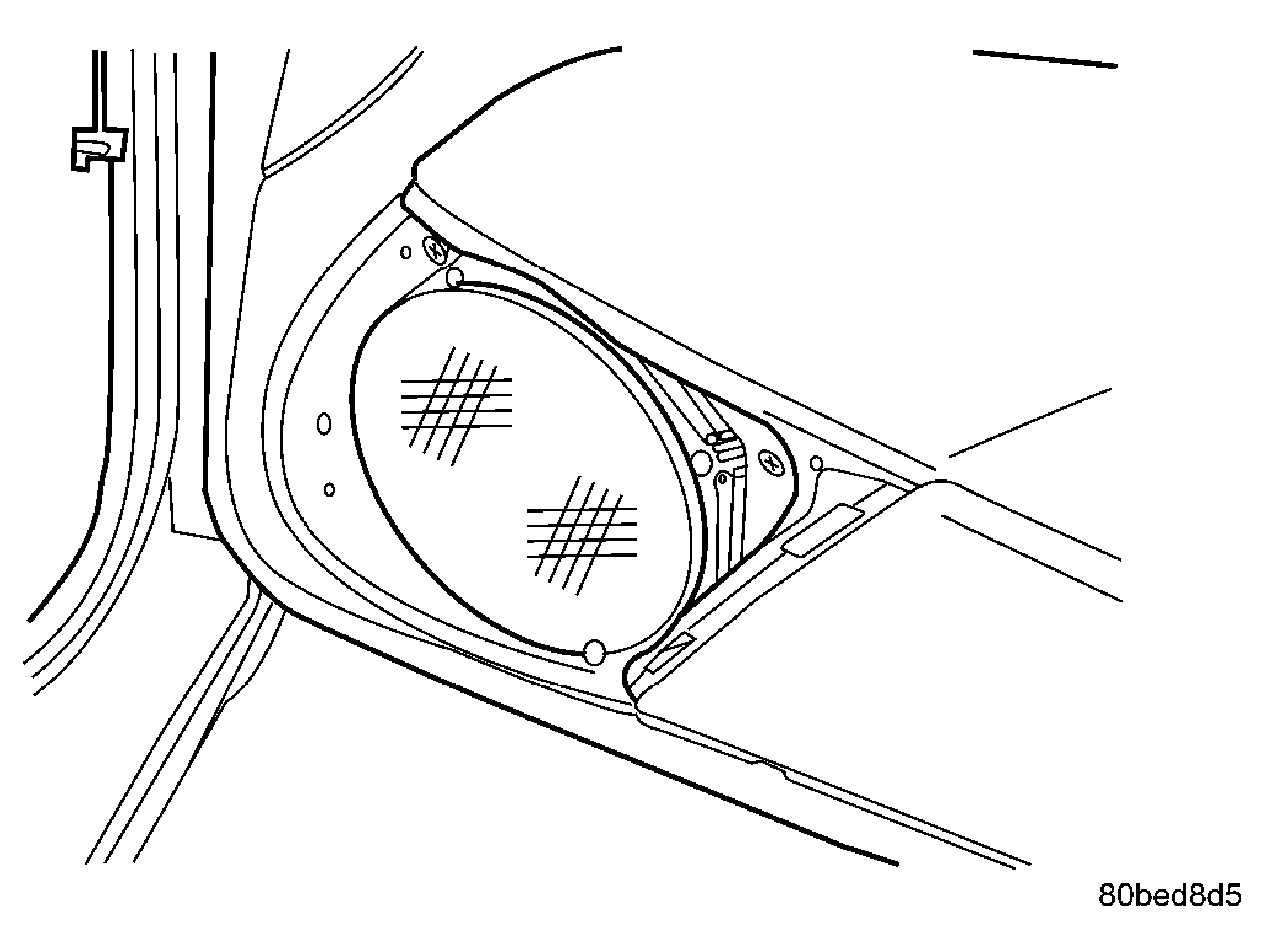

    Fig 1: Door Speaker - JR27
    GC0031198Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the speaker mounting fasteners.
  4. Remove speaker from door trim panel.
  5. Disconnect wire harness connector from speaker.
