Engine Torque Strut Adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 Dodge SRT-4, 2005 Chrysler PT Cruiser, 2004 Dodge SRT-4, 2004 Chrysler PT Cruiser, and 2003 Dodge SRT-4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Whenever a torque strut bolt(s) is loosened, this procedure must be performed. Upper and lower torque struts need to be adjusted together to assure proper engine positioning and engine mount loading.
NOTE:

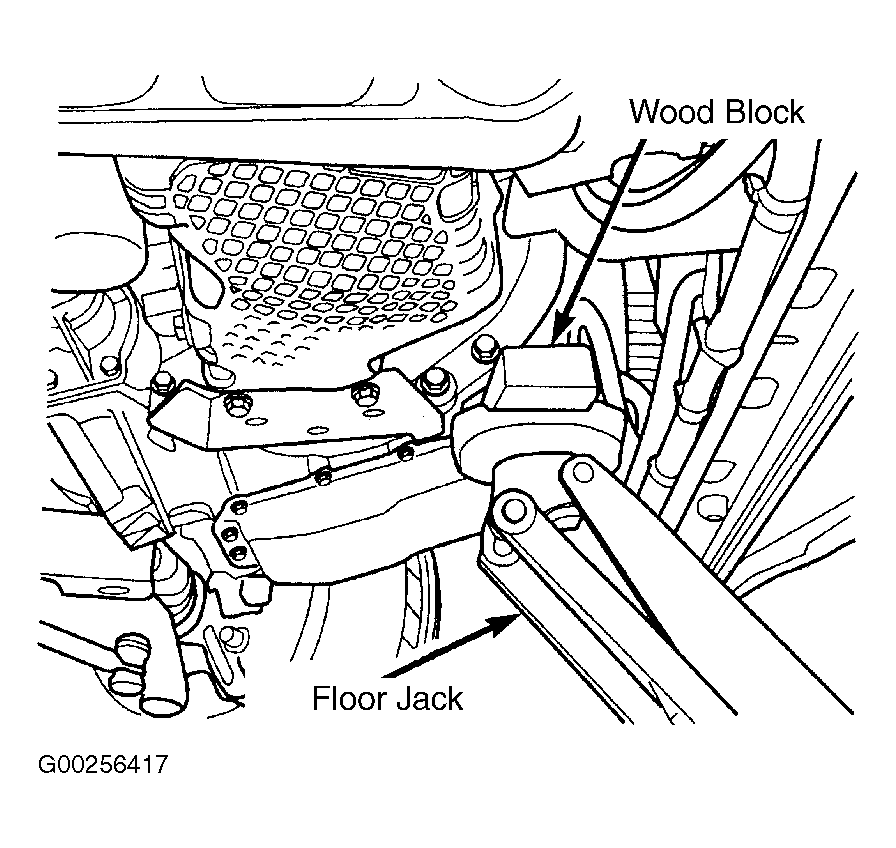

To prevent minimal upward lifting of engine, floor jack must be positioned as shown. See Fig 1.
- Remove pencil strut. See Fig 2. Loosen upper and lower torque strut attaching bolt at suspension crossmember and shock tower bracket. Engine position may now be adjusted by positioning a suitable floor jack on the forward edge of transmission bellhousing. See Fig 1.
- With engine supported, remove upper and lower torque struts attachment bolt(s) at shock tower bracket and suspension crossmember. See Fig 3. Verify that torque struts are free to move within shock tower bracket and crossmember. Reinstall torque strut bolt(s), but DO NOT tighten.
- Carefully apply upward force, allowing upper engine to rotate rearward until distance between center of rearmost attaching stud on engine mount bracket (point "A") and center of hole for washer hose clip on shock tower bracket (point "B") is 4.7" (119 mm). See Fig 4.
- With engine held at proper position, tighten both upper and lower torque strut bolts to specification. See TORQUE SPECIFICATIONS . Install pencil strut, and tighten nuts to specification. Remove floor jack.CAUTION: Engine must be held in position with jack until both upper and lower torque strut bolts are tightened.
