Heater Core: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

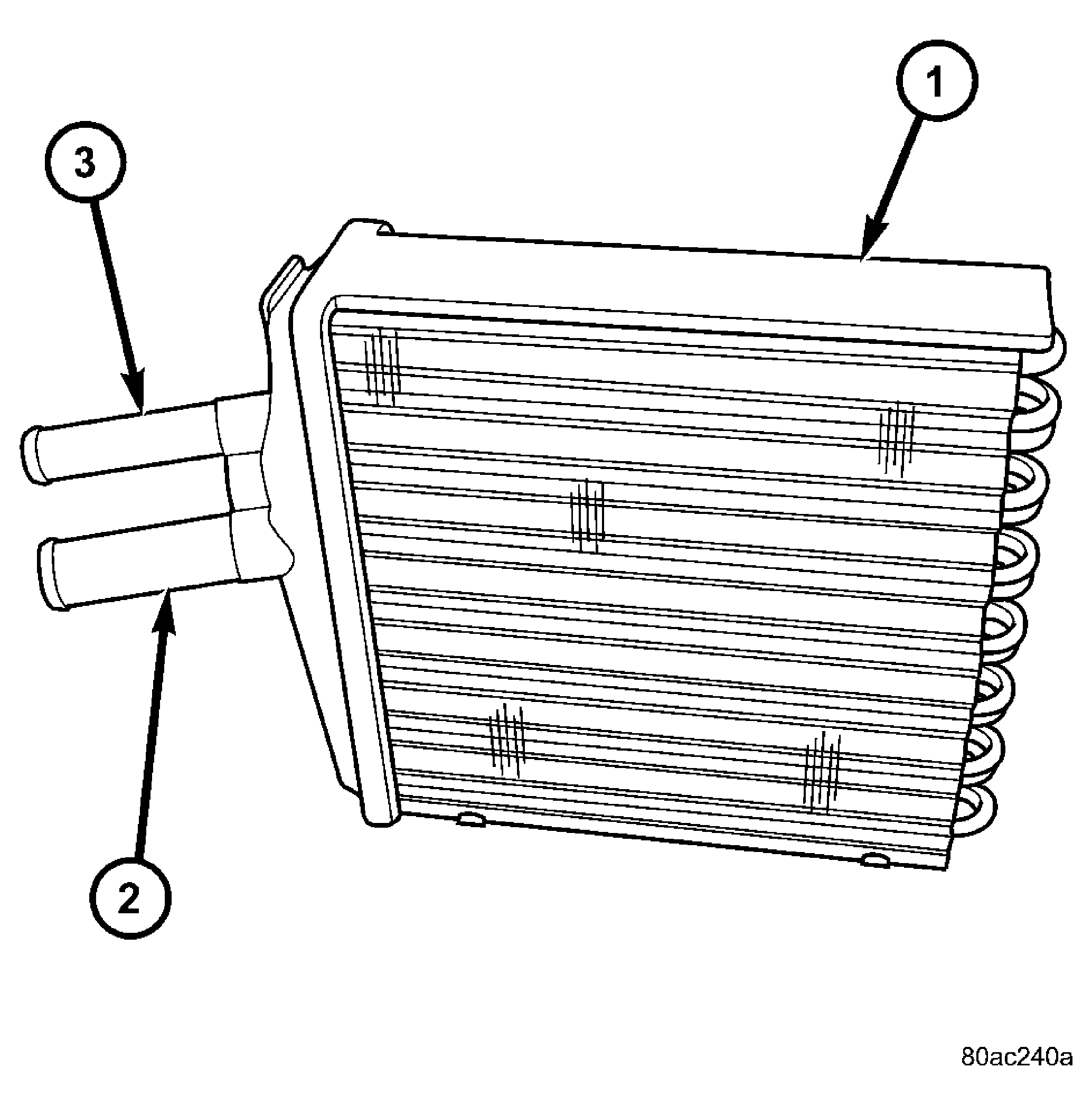

The heater core is located in the HVAC housing, behind the instrument panel. The heater core is a heat exchanger made of rows of tubes and fins. The heater core tubes are attached to the side of the heater core and cannot be serviced separately. See Fig 1.
| 1 - HEATER CORE |
| 2 - INLET TUBE |
| 3 - OUTLET TUBE |
