A/C Condenser: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
The A/C condenser is located in the front of the engine compartment behind the front fascia. The A/C condenser is a heat exchanger that allows the high-pressure refrigerant gas being discharged by the A/C compressor to give up its heat to the air passing over the condenser fins, which causes the refrigerant to cool and change to a liquid state. See Fig 1.
The A/C condenser is equipped with tapping blocks or a quick connect fitting for refrigerant line connections (depending on engine application), tapping blocks for the integral automatic transmission cooler and mounting provisions for the power steering cooler, when equipped.

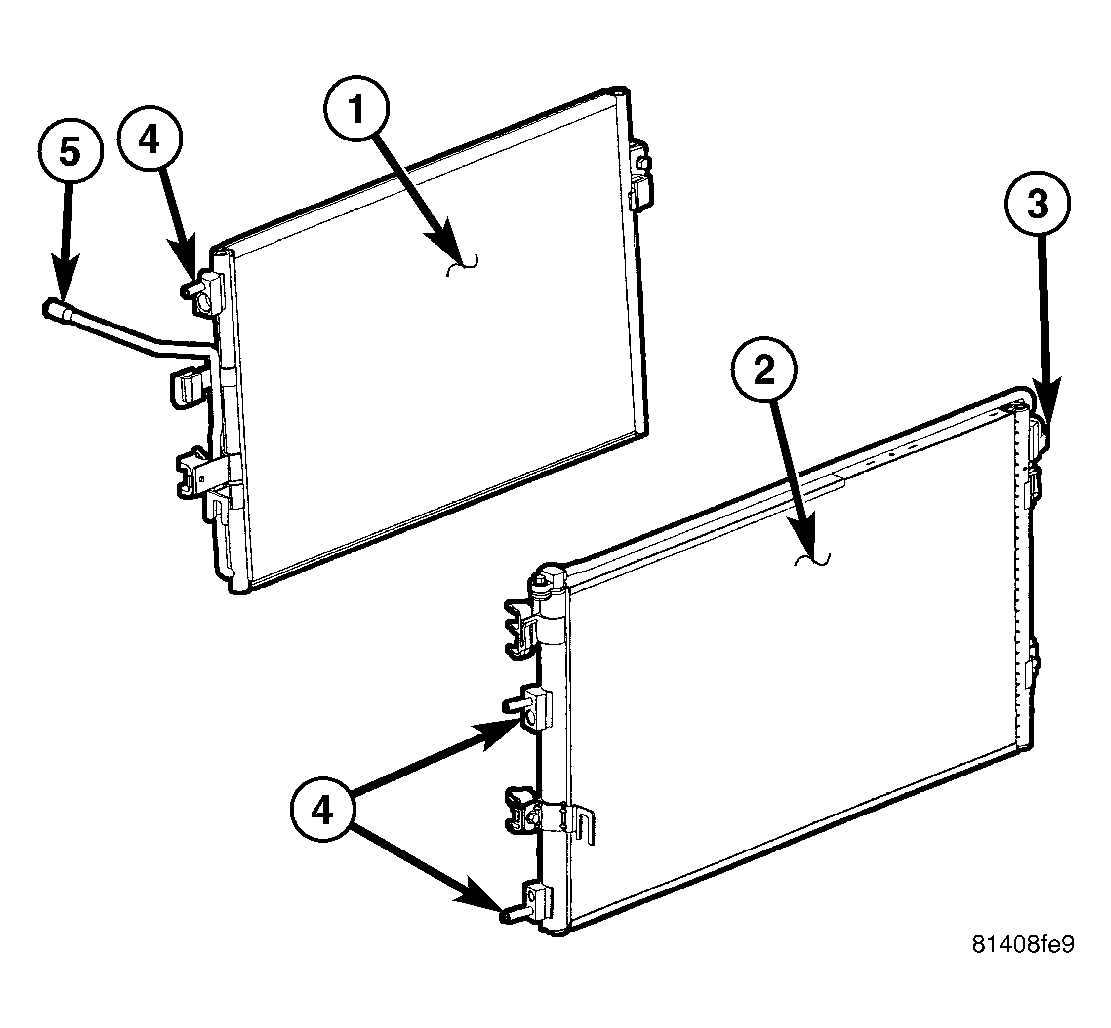

| 1 - A/C CONDENSER (2.4L TURBO) |
| 2 - A/C CONDENSER (2.0L, 2.4L NA, 2.7L) |
| 3 - AUTO TRANS COOLER TAPPING BLOCK |
| 4 - REFRIGERANT LINE TAPPING BLOCK |
| 5 - REFRIGERANT LINE QUICK CONNECT FITTING |
