Defroster Duct: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel top pad (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP PAD - REMOVAL) .
  2. Pull the defroster duct straight up to disconnect it from the top of the HVAC housing. See Fig 1.
  3. Remove the defroster duct from instrument panel.

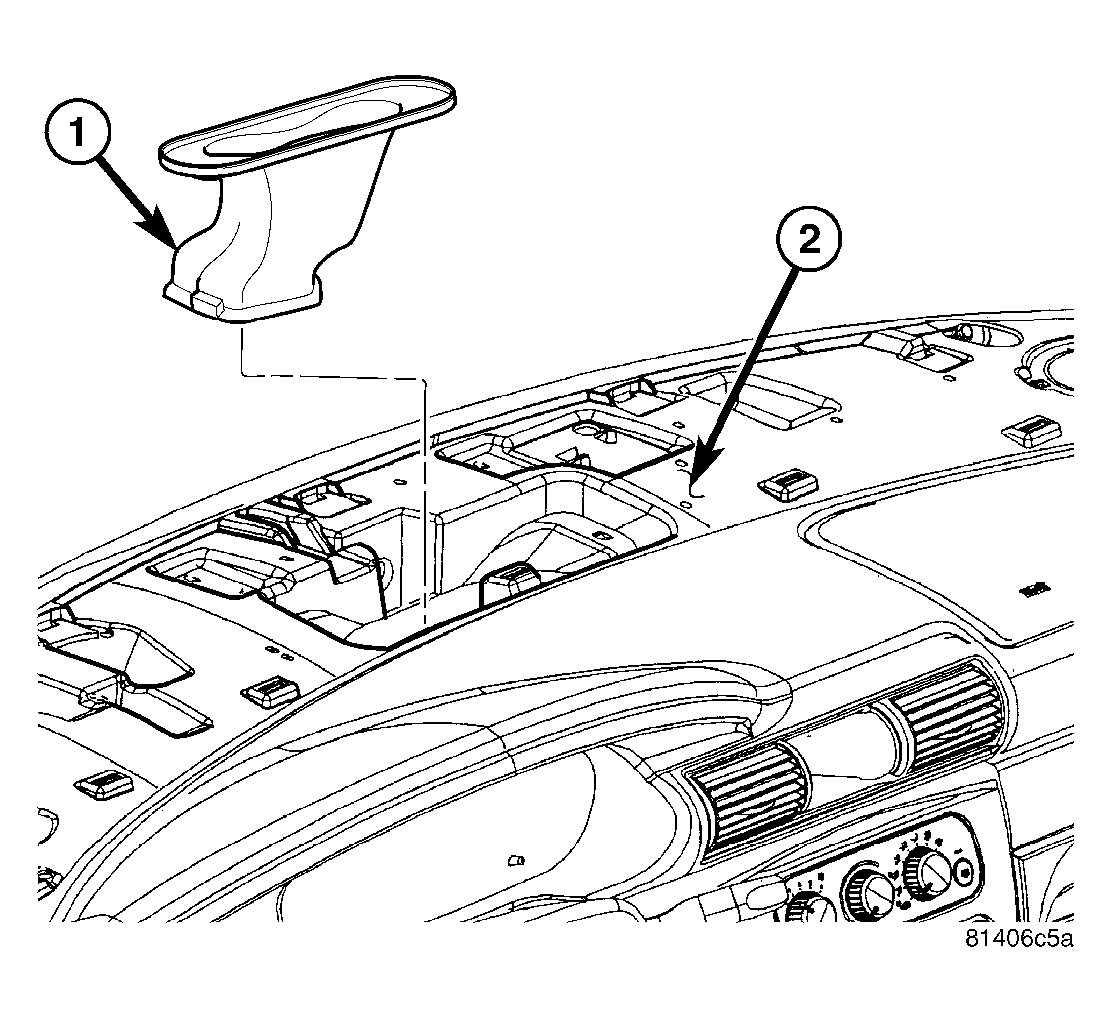

Fig 1: Defroster Duct
GC0031857Courtesy of DAIMLERCHRYSLER CORP.
1 - DEFROSTER DUCT
2 - INSTRUMENT PANEL
