Blower Motor: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

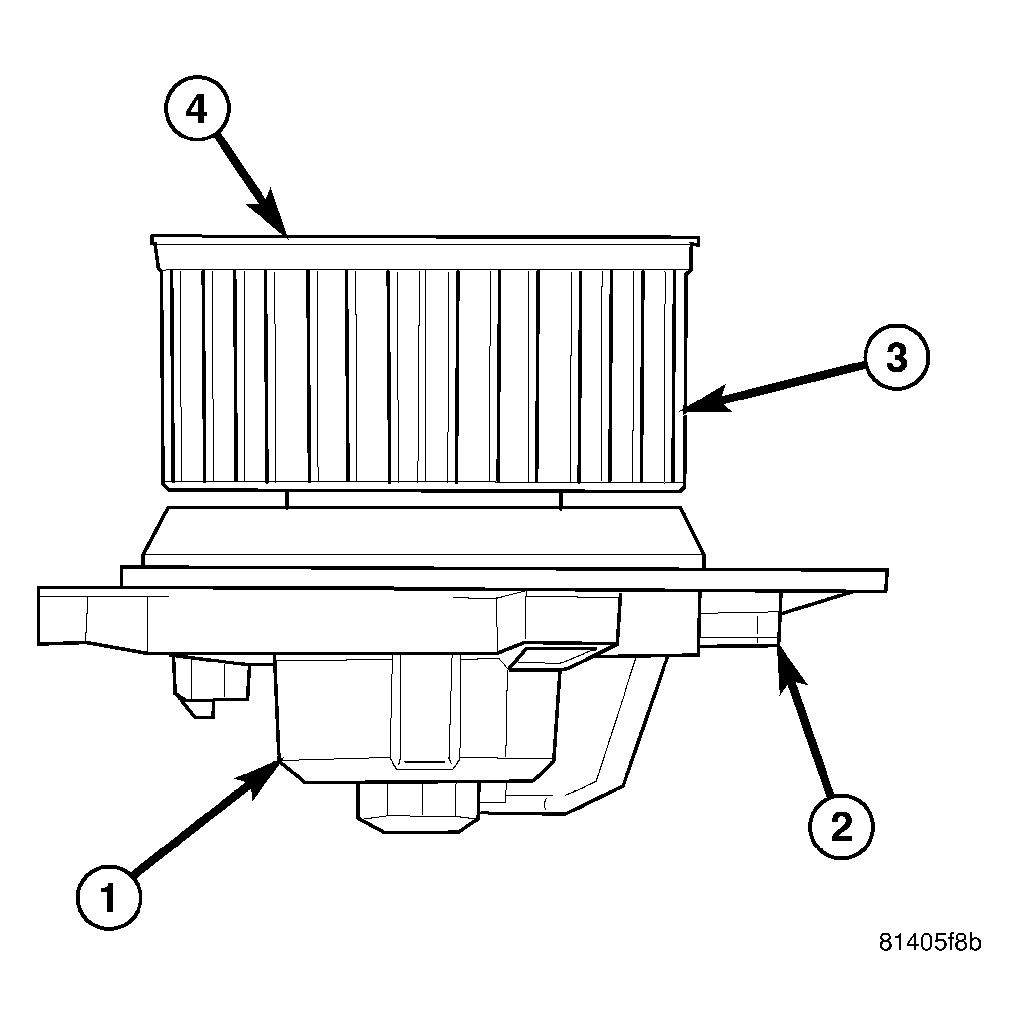

The blower motor is a 12-volt, direct current (DC) motor mounted within a plastic housing with an integral wire harness connector and squirrel cage-type blower wheel that is secured to the blower motor shaft. The blower motor wheel is located in the HVAC air inlet housing which is on the passenger side end of the HVAC housing. The blower motor can be accessed for service from underneath the instrument panel. See Fig 1.
| 1 - BLOWER MOTOR |
| 2 - WIRE HARNESS CONNECTOR |
| 3 - BLOWER WHEEL |
| 4 - BLOWER MOTOR SHAFT |
