Removal - Air Outlet
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Only the right outboard air outlet can be removed individually for service replacement. The other instrument panel air outlets are part of the instrument cluster bezel and cannot be serviced separately.
- Remove the right instrument panel trim bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TRIM - REMOVAL) .

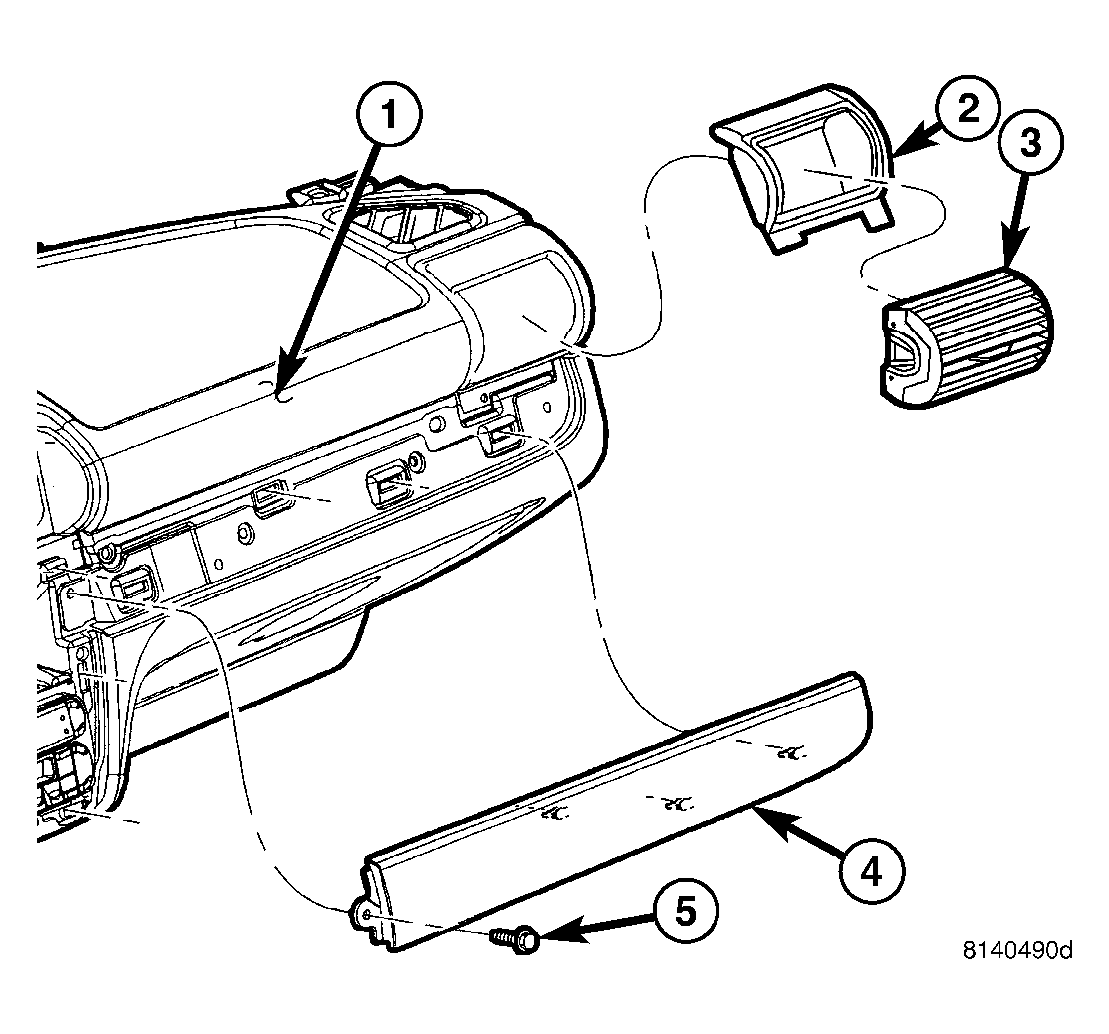

- Using a trim stick or another suitable wide flat-bladed tool, gently pry out the air outlet barrel from the instrument panel air outlet located on the right outboard end of the instrument panel. See Fig 1.
- Remove the screws that secure the air outlet to the right outboard end of the instrument panel and remove the outlet.
| 1 - INSTRUMENT PANEL |
| 2 - AIR OUTLET |
| 3 - AIR OUTLET BARREL |
| 4 - RIGHT IP TRIM BEZEL |
| 5 - SCREW |
