Evaporator Temperature Sensor: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the glove compartment door.
- Remove the blower motor from the HVAC housing (Refer to HEATING & AIR CONDITIONING/DISTRIBUTION/BLOWER MOTOR - REMOVAL) .
- If equipped with the MTC heating-A/C system, remove the blower motor resistor from the HVAC housing (Refer to HEATING & AIR CONDITIONING/CONTROLS/BLOWER MOTOR RESISTOR - REMOVAL) .
- Reach through the glove compartment door opening and disconnect the evaporator temperature sensor wiring connector.

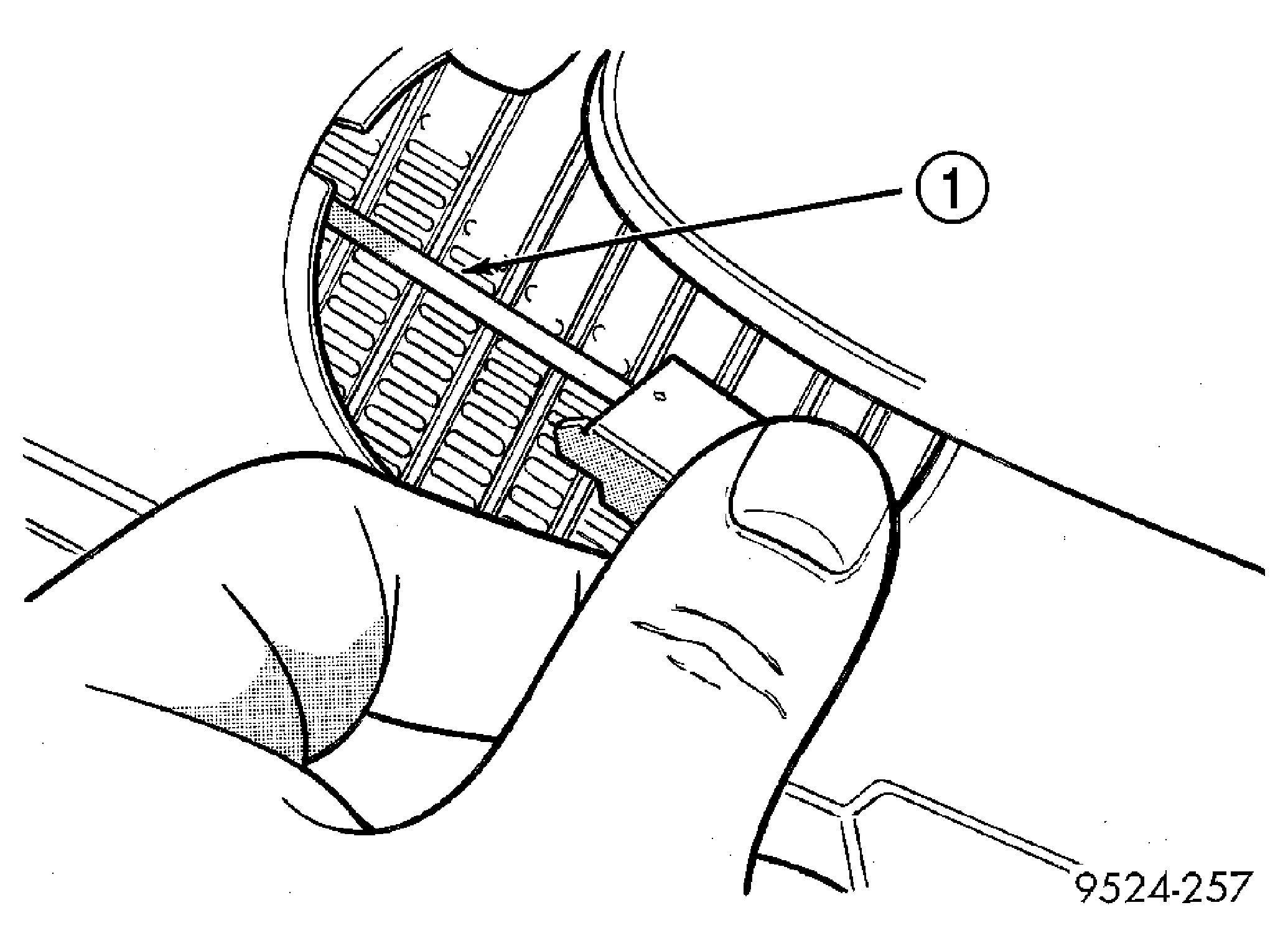

- Using a flat blade pry tool, disengage the locking tab on the access plate of the evaporator temperature sensor. Turn the access plate clockwise one-quarter turn and push the access plate inside of the HVAC housing, then orientate the plate in such a way that it can be removed from the HVAC housing. See Fig 1.

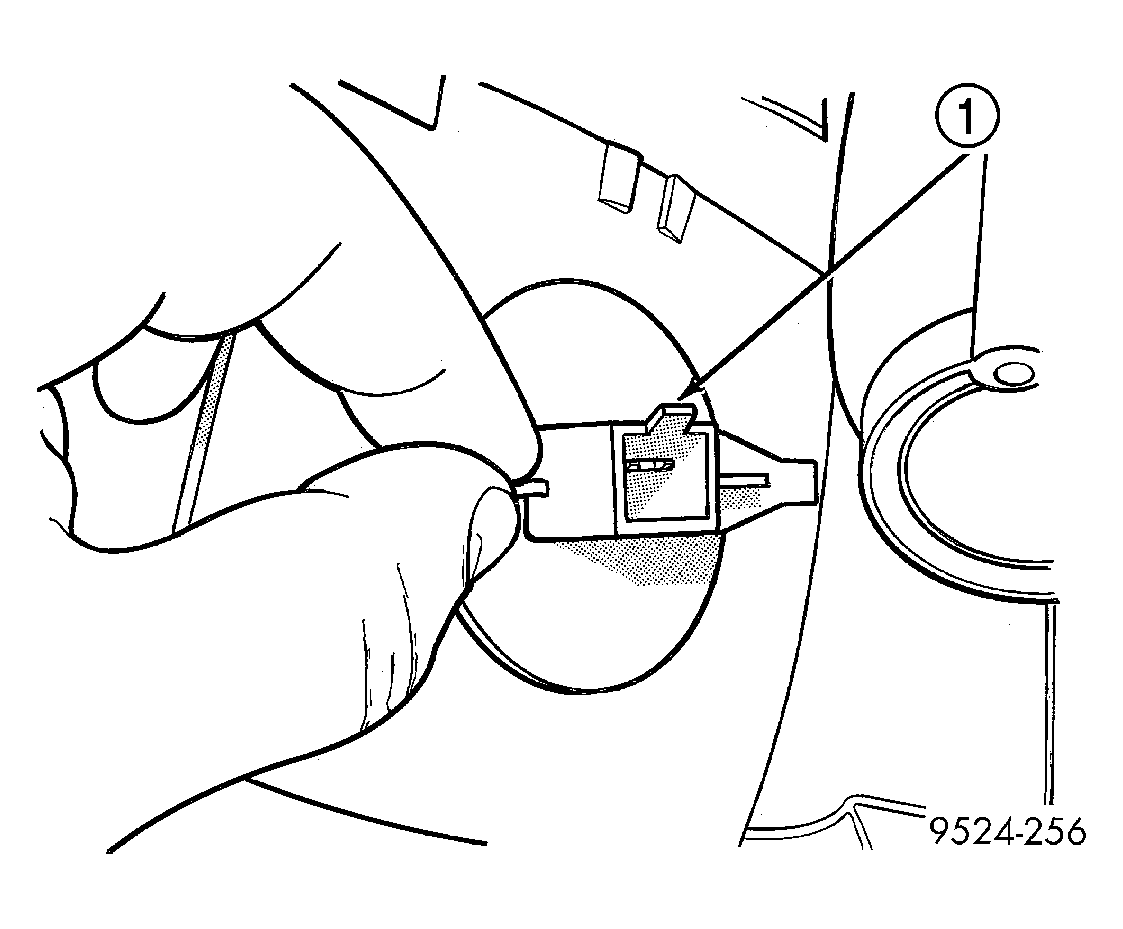

1 - ACCESS PLATE NOTE: To remove the evaporator temperature sensor probe, look through the access plate hole in the HVAC housing and reach up through the blower motor opening. - Remove the evaporator temperature sensor probe from the A/C evaporator. See Fig 2.
| 1 - EVAPORATOR TEMPERATURE SENSOR PROBE |
