A/C Pressure Transducer: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

Disconnect and isolate the battery negative cable.
Disconnect the wire harness connector from the A/C pressure transducer. See Fig 1.
Remove the A/C pressure transducer from the fitting on the A/C discharge line.
Remove the O-ring seal from the A/C pressure transducer fitting and discard.

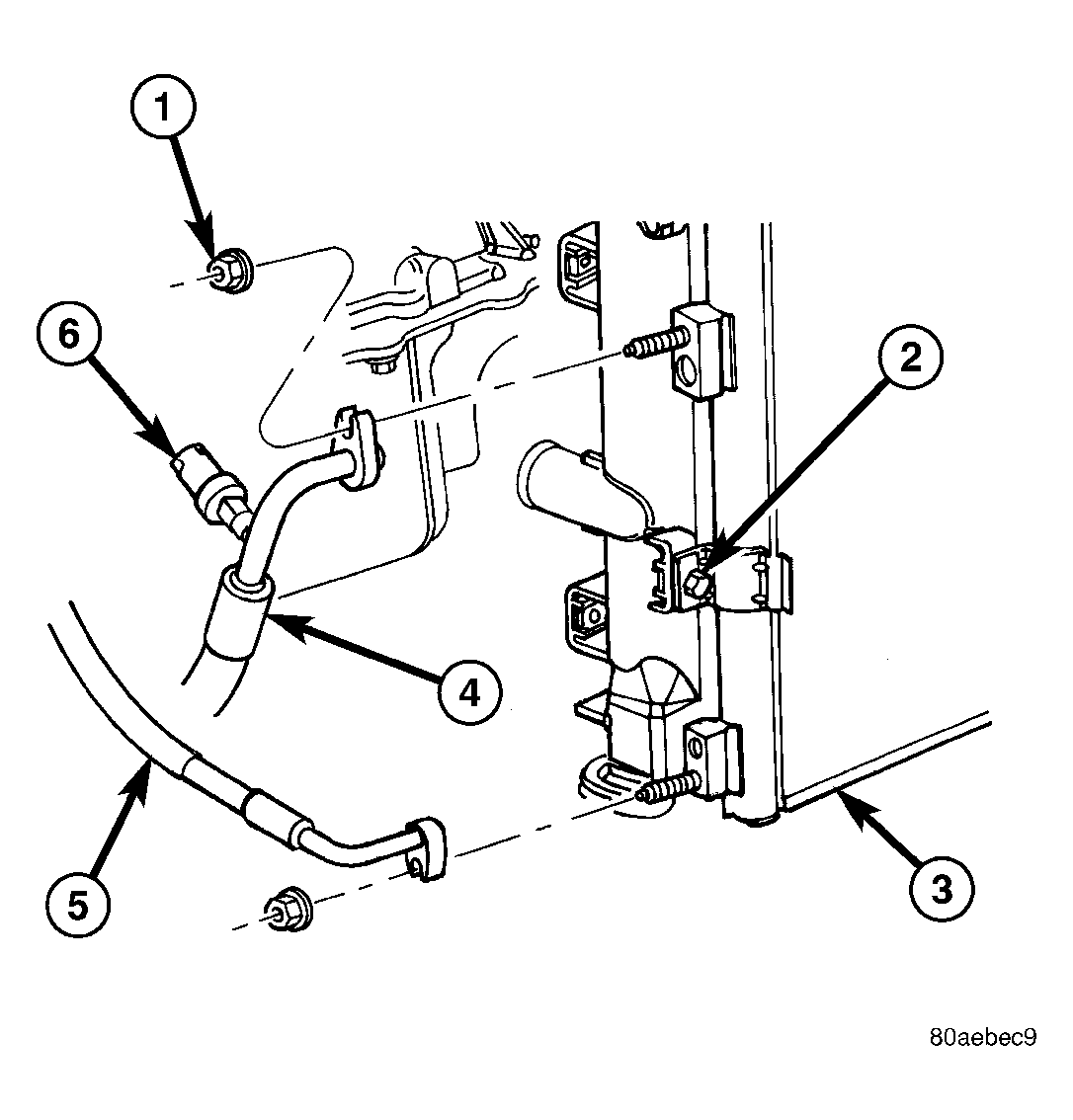

Fig 1: A/C Discharge Line - A/C Condenser - Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUT (2)

2 - BOLT (2)

3 - A/C CONDENSER

4 - A/C DISCHARGE LINE

5 - A/C LIQUID LINE

6 - A/C PRESSURE TRANSDUCER
